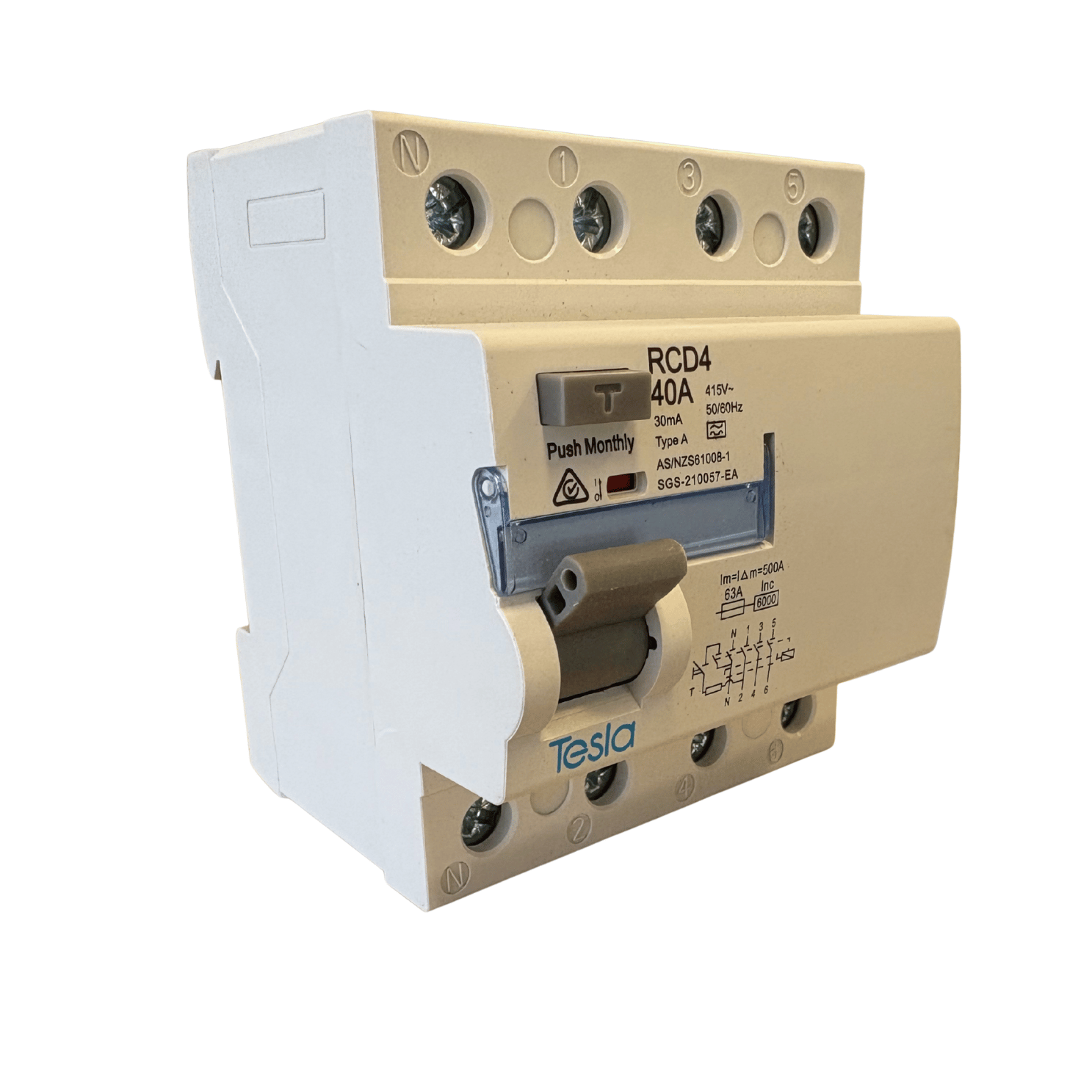

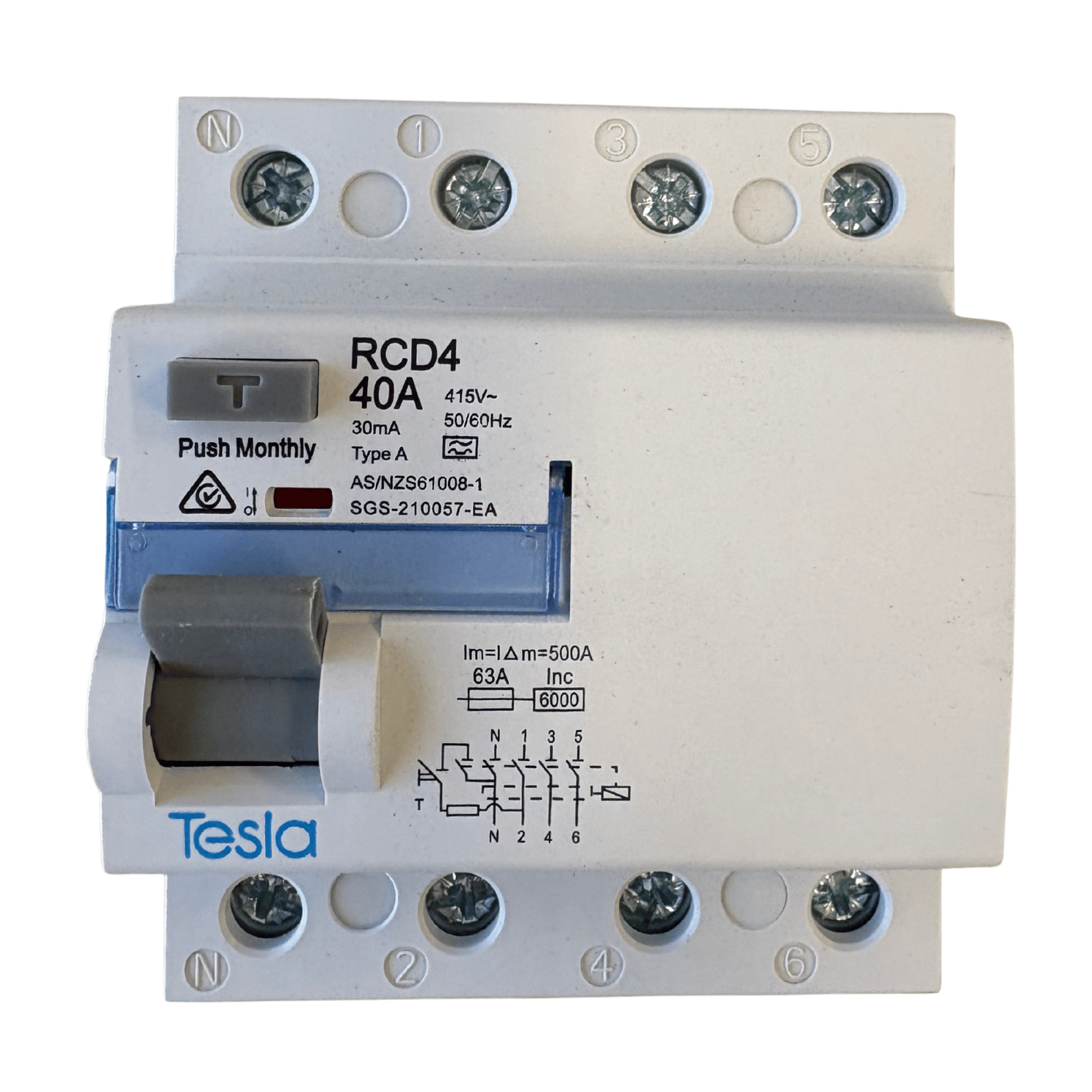

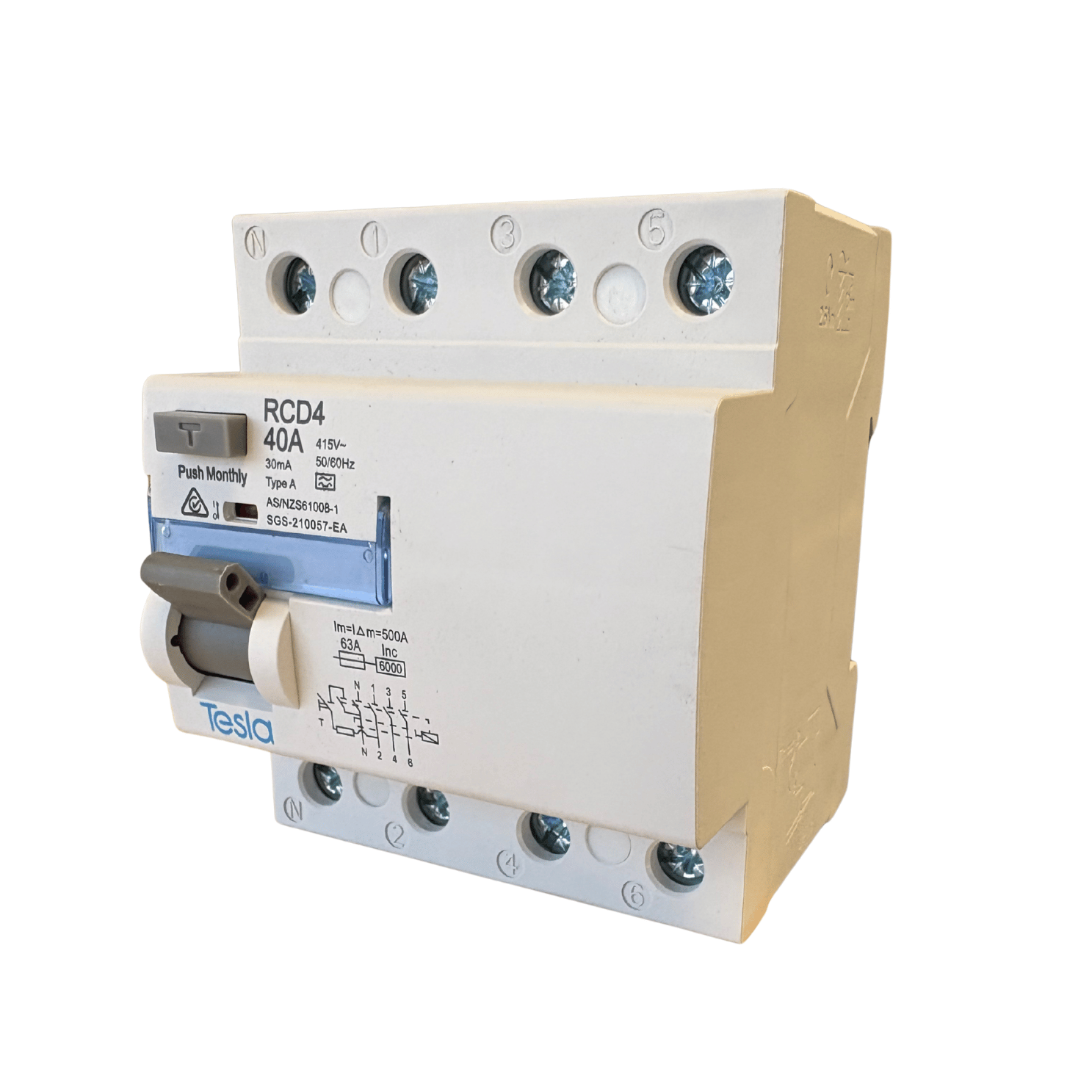

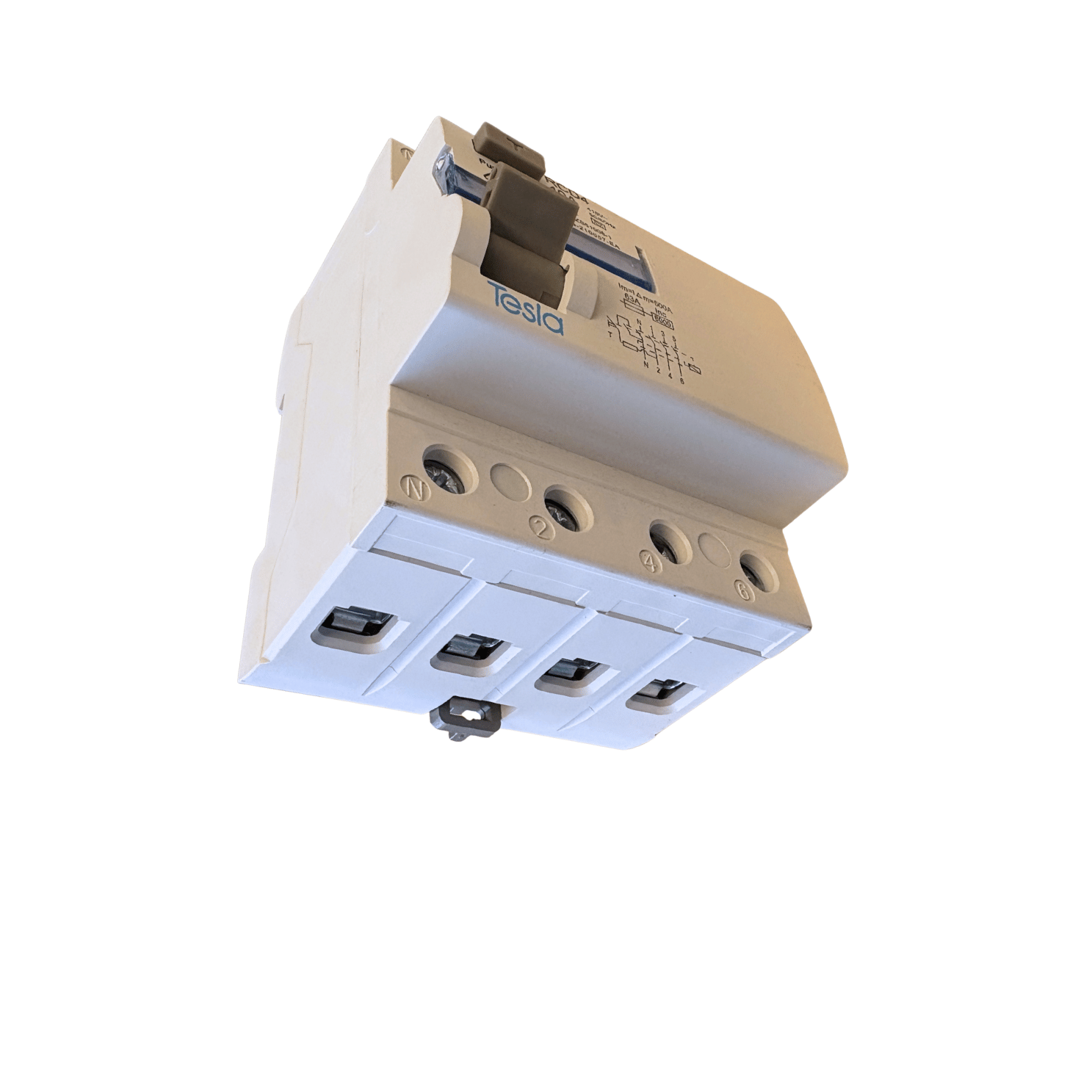

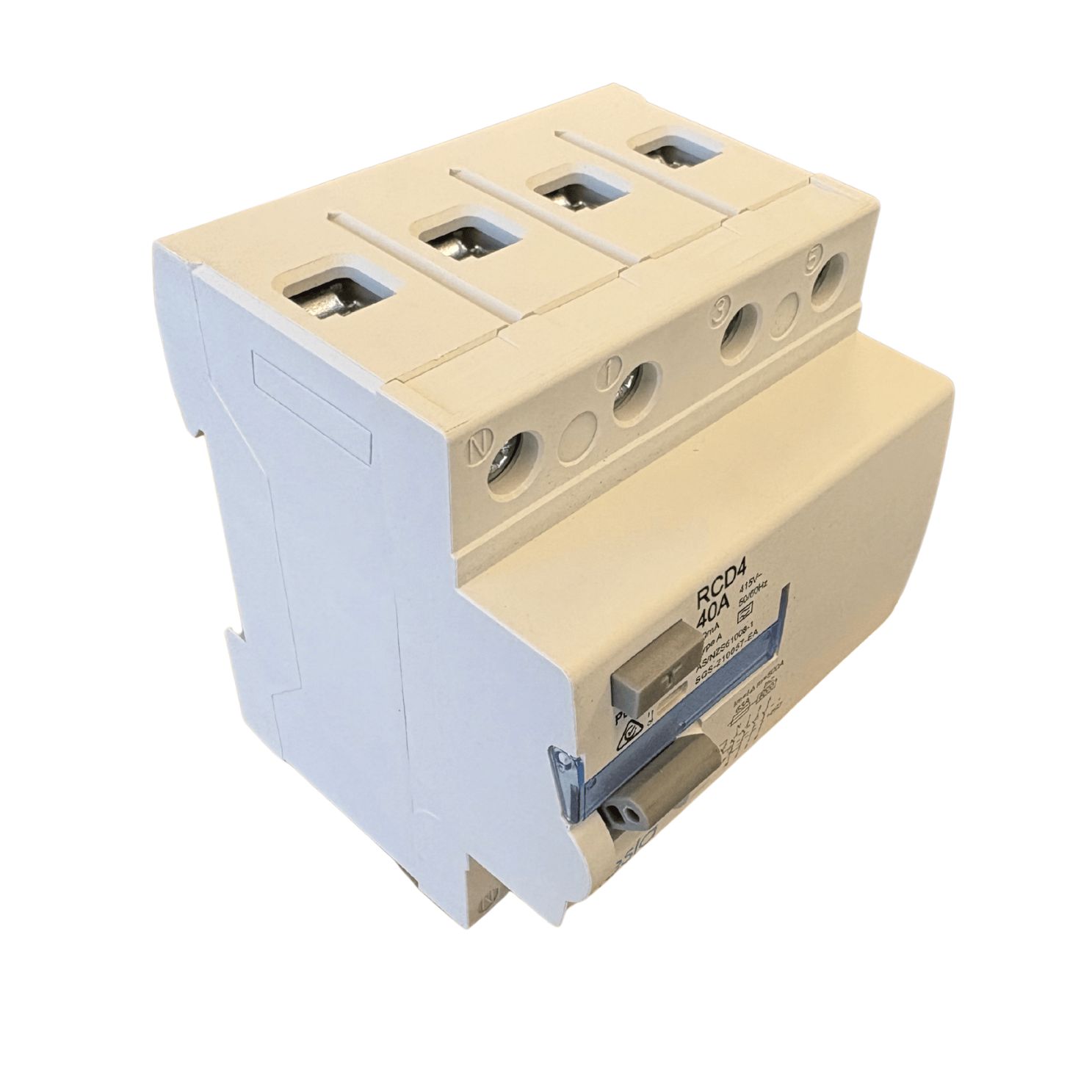

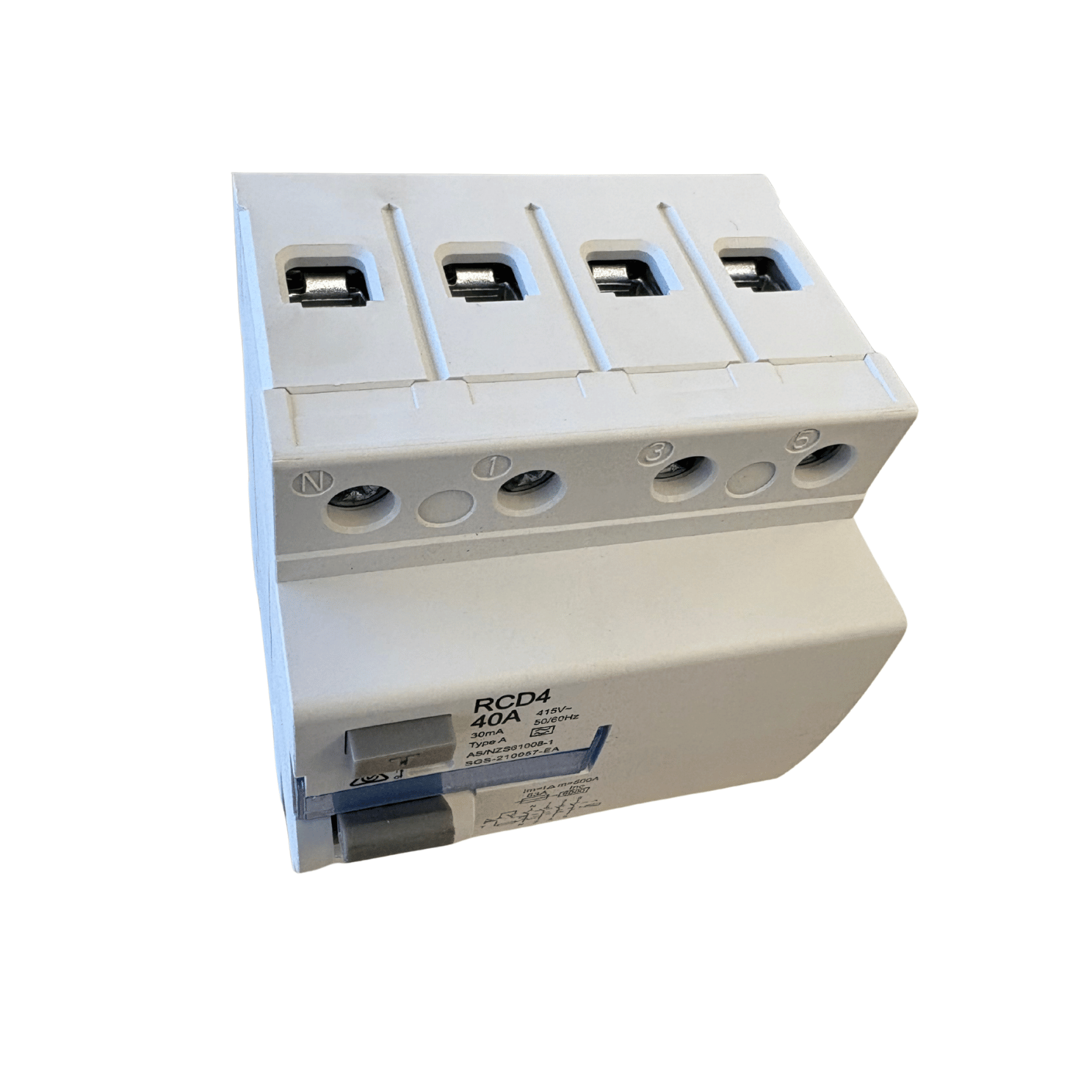

Tesla RCD4P40A 40 Amp 4 Pole RCD Safety Switch 30mA Type A 6kA 415V 4 Module DIN Rail

Description

Four pole earth leakage protection, switchboard ready.

Three phase circuits need residual current protection that covers every active plus the neutral. The Tesla RCD4P40A is a four pole, 40 amp residual current device with 30 mA Type A sensing, sized at four modules for standard DIN rail switchboards.

Key Features

• Residual current device (RCD), four pole
• 40 A rated current
• 415 V rated voltage
• 30 mA residual current sensitivity
• RCD Type A
• 6 kA conditional rated short-circuit current (Iq)
• AS/NZS 61008-1
• IP20 degree of protection, front side
• PA66 reinforced fire-resistant body

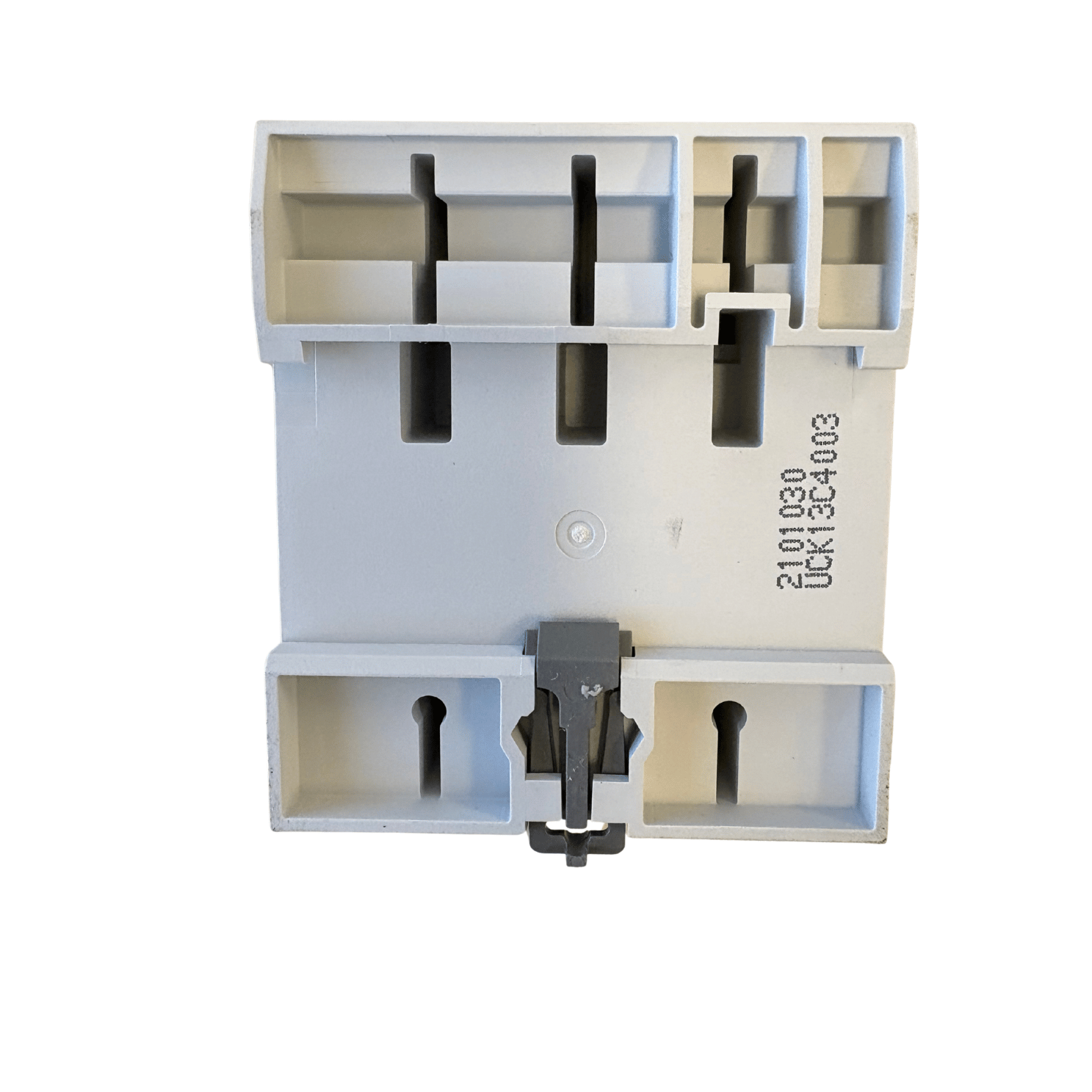

• DIN rail mounting
• Four module width, 72 mm modular spacing
• Overall size 81 mm x 72 mm x 75 mm
• Operating temperature -5 to 40 degrees C

Order today for fast dispatch Australia-wide.

Type A Sensing Across Four Poles

A four pole RCD monitors all three actives and the neutral together. Current flowing out of the circuit should equal the current returning. When it does not, the difference is leaking to earth, and the device disconnects. Type A is the classification that responds to sinusoidal AC residual currents as well as pulsating DC residual currents, as defined under AS/NZS 61008-1. The 30 mA sensitivity is the additional protection level specified for personal protection in Australian installations.

One point to be clear on before specifying: this is a residual current device, not a combination unit. It provides earth leakage protection only. Overload and short-circuit protection for the downstream circuits still has to come from separate overcurrent devices, and because the conditional rated short-circuit current is 6 kA, the RCD itself depends on a suitably rated upstream device to handle prospective fault current.

Built for Switchboard Duty

The housing is PA66 reinforced fire-resistant plastic, a material widely specified for DIN rail devices. The front face carries an IP20 rating, which suits enclosed switchboard mounting rather than exposed positions, so the device needs a board or enclosure around it rather than being fitted in the open. Rated operating temperature runs from -5 to 40 degrees C, covering the internal temperatures of a typical Australian switchboard, though boards in direct sun or in unventilated plant rooms should be assessed against that upper figure.

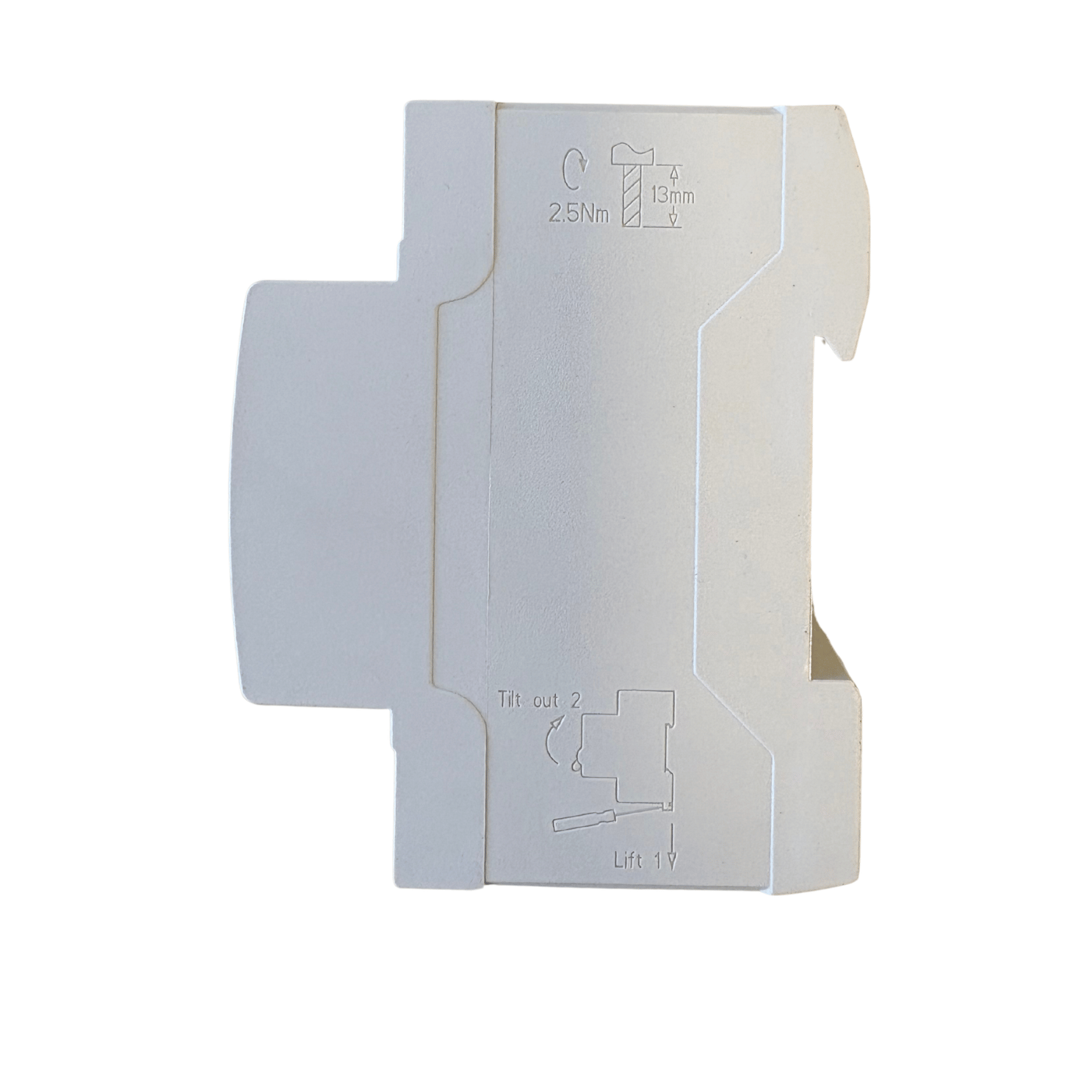

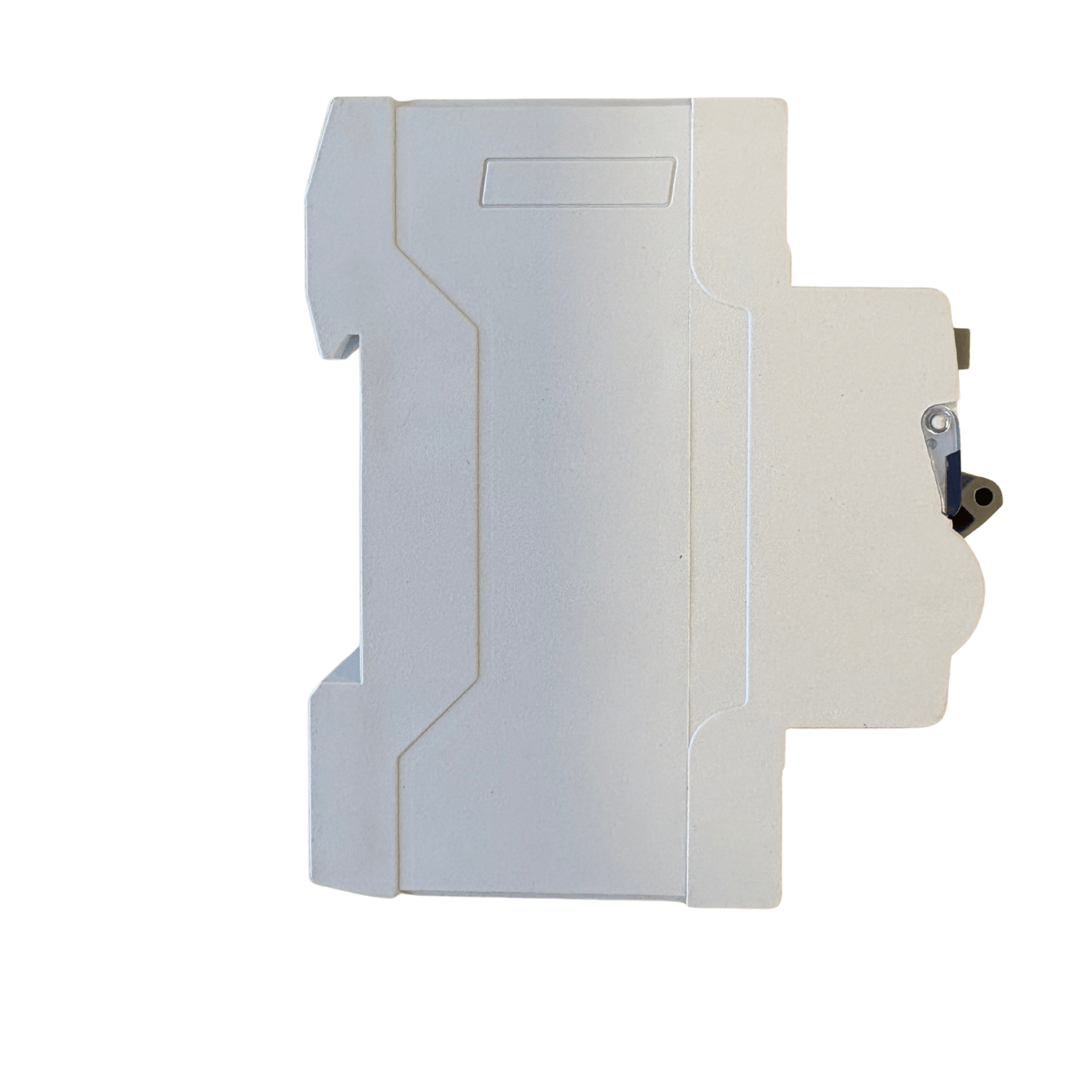

Sizing and Fit

The device occupies four modules of DIN rail, with a modular spacing of 72 mm. Overall dimensions are 81 mm x 72 mm x 75 mm. Two things are worth checking before you order:

• A clear 72 mm rail run in the board, particularly in load centres already filled with single module devices
• Enclosure depth clearance against the 75 mm body dimension

In a retrofit the free rail run is usually the tighter constraint, not depth, so measure the gap in the existing board before ordering.

Is the Tesla RCD4P40A suitable for three phase switchboards
Yes. It is a four pole device, so it switches and monitors three active poles plus the neutral, and it carries a 415 V rated voltage.

What earth leakage sensitivity does this RCD use
It uses 30 mA sensitivity and is classified RCD Type A, tested to AS/NZS 61008-1, with a 6 kA conditional rated short-circuit current.

How much DIN rail space does the RCD4P40A need
Four modules, with a modular spacing of 72 mm. Overall body size is 81 mm x 72 mm x 75 mm, so check enclosure depth as well as rail width.
