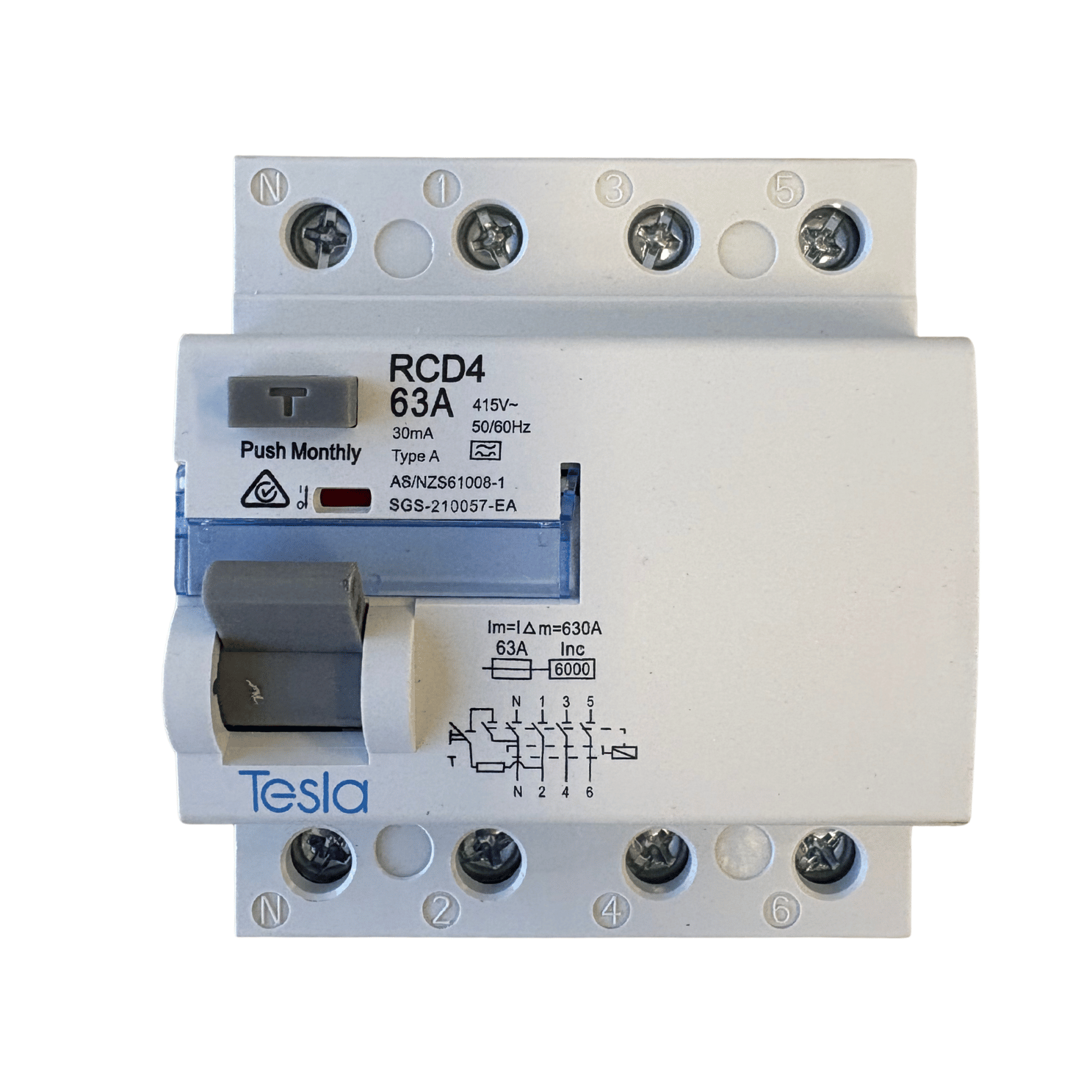

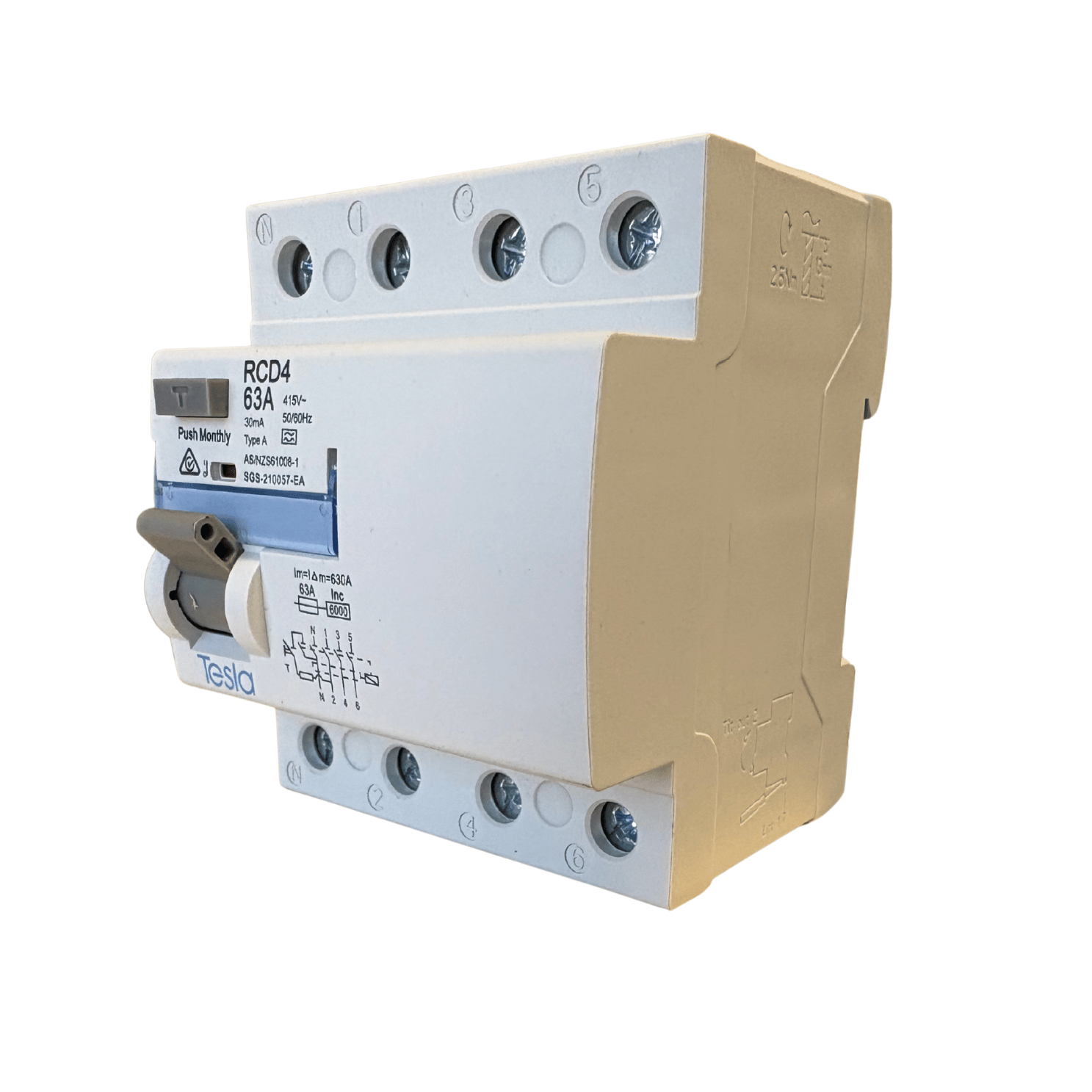

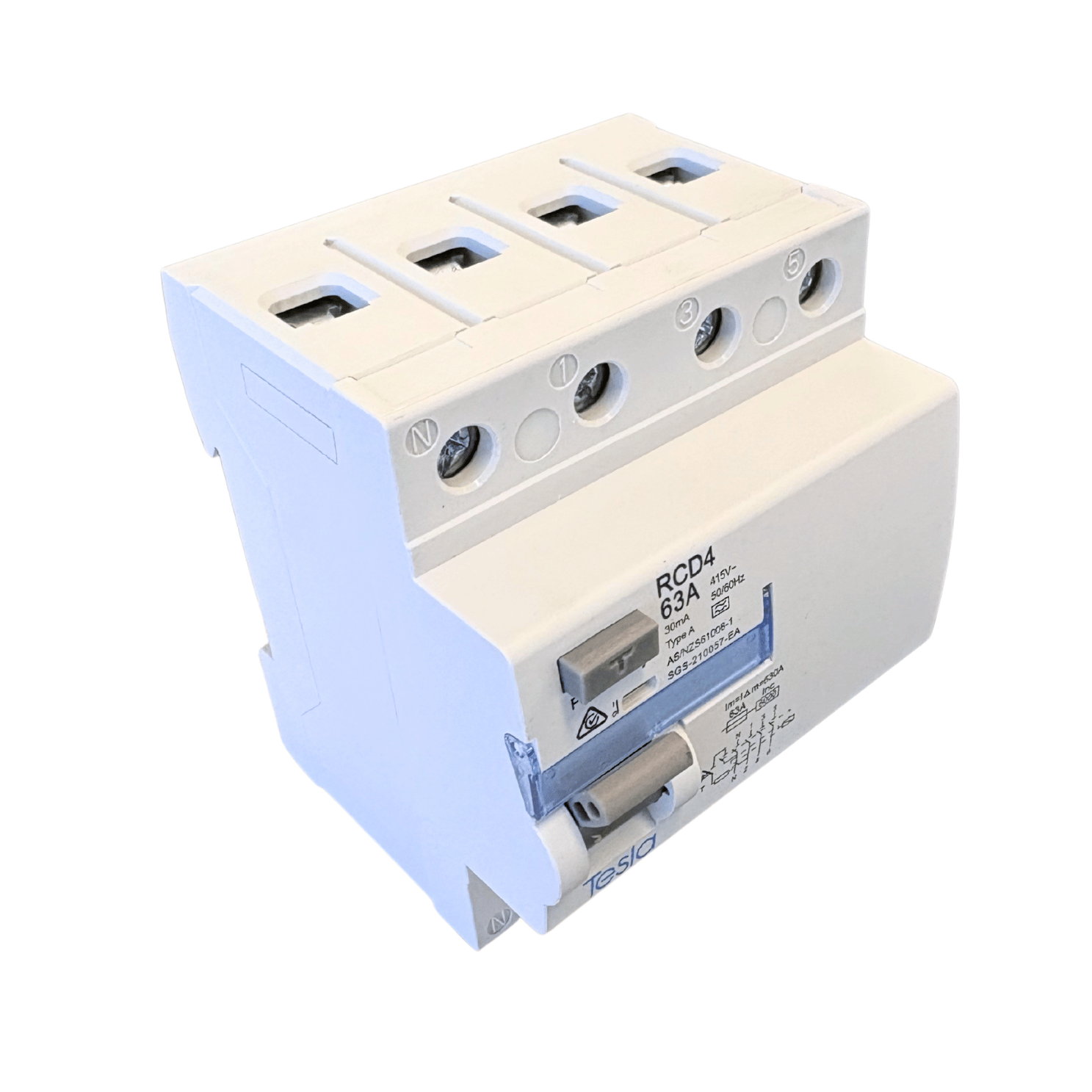

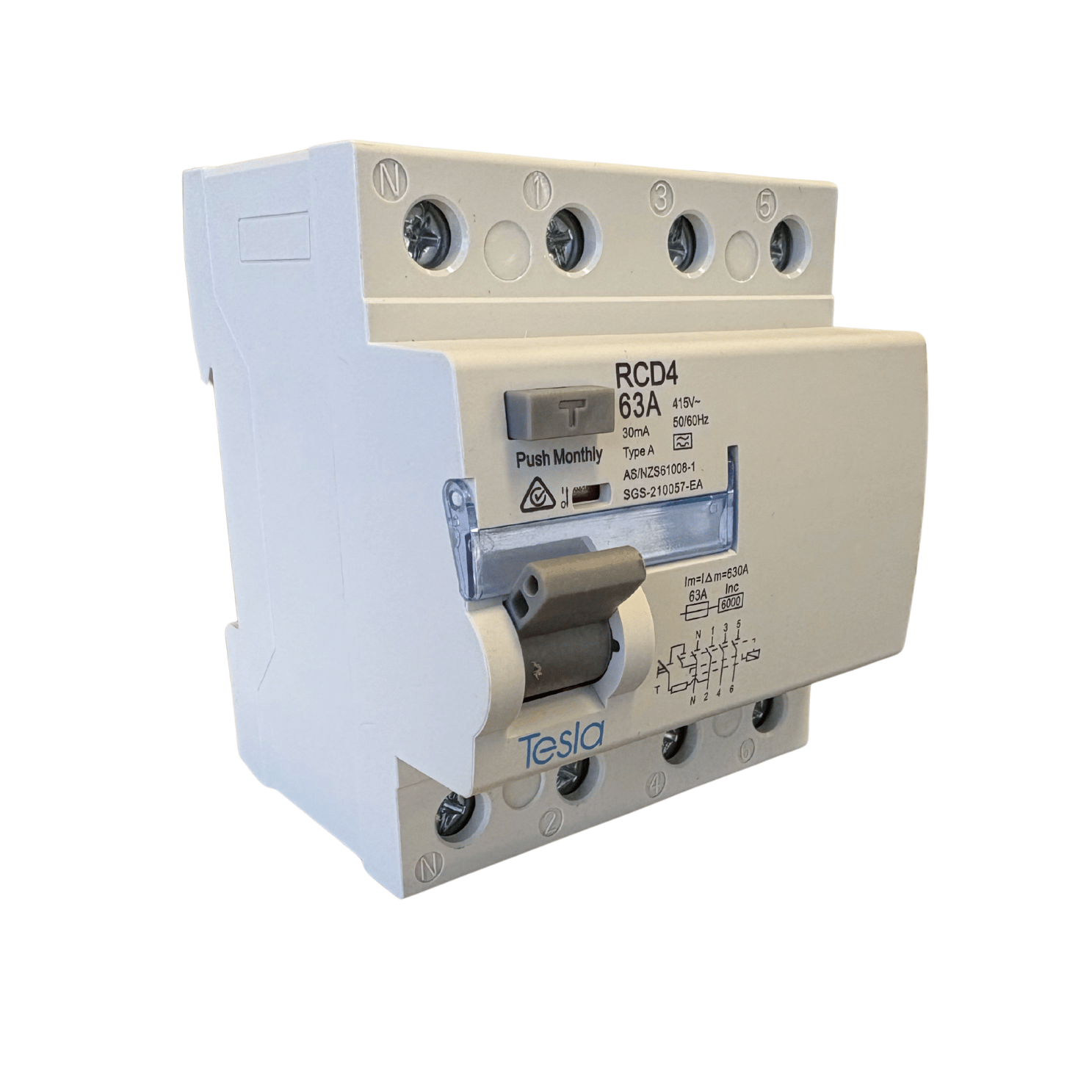

Tesla RCD4P63A 63 Amp 4 Pole RCD Safety Switch 6kA 30mA Type A 4 Module

Description

Three phase leakage protection at 63 amps.

Larger three phase feeds still need residual current protection across every active and the neutral. The Tesla RCD4P63A delivers 30 mA Type A sensing at a 63 A rating, in a four module DIN rail body built for switchboard installation.

Key Features

• Four pole residual current device (RCD)
• Rated current 63 A
• Sensitivity 30 mA, RCD Type A
• Rated voltage 415 V
• Conditional rated short-circuit current (Iq) 6 kA
• Tested to AS/NZS 61008-1
• IP20 front side protection
• Fire-resistant PA66 reinforced housing
• DIN rail mount, four module width
• Modular spacing 72 mm
• Body size 81 mm x 72 mm x 75 mm
• Operating temperature range -5 to 40 degrees C

Buy online now for fast dispatch Australia-wide.

Why Four Poles at 63 Amps

A four pole RCD switches and monitors three actives and the neutral as one set. It compares the current leaving the circuit against the current returning, and opens all four poles together when the difference exceeds the trip threshold. Type A classification means the sensing element answers to sinusoidal AC residual current and to pulsating DC residual current, as defined under AS/NZS 61008-1. The 30 mA figure is the sensitivity level specified for additional protection in Australian installations. The 63 A figure is the rated current the device carries, and the rated voltage is 415 V.

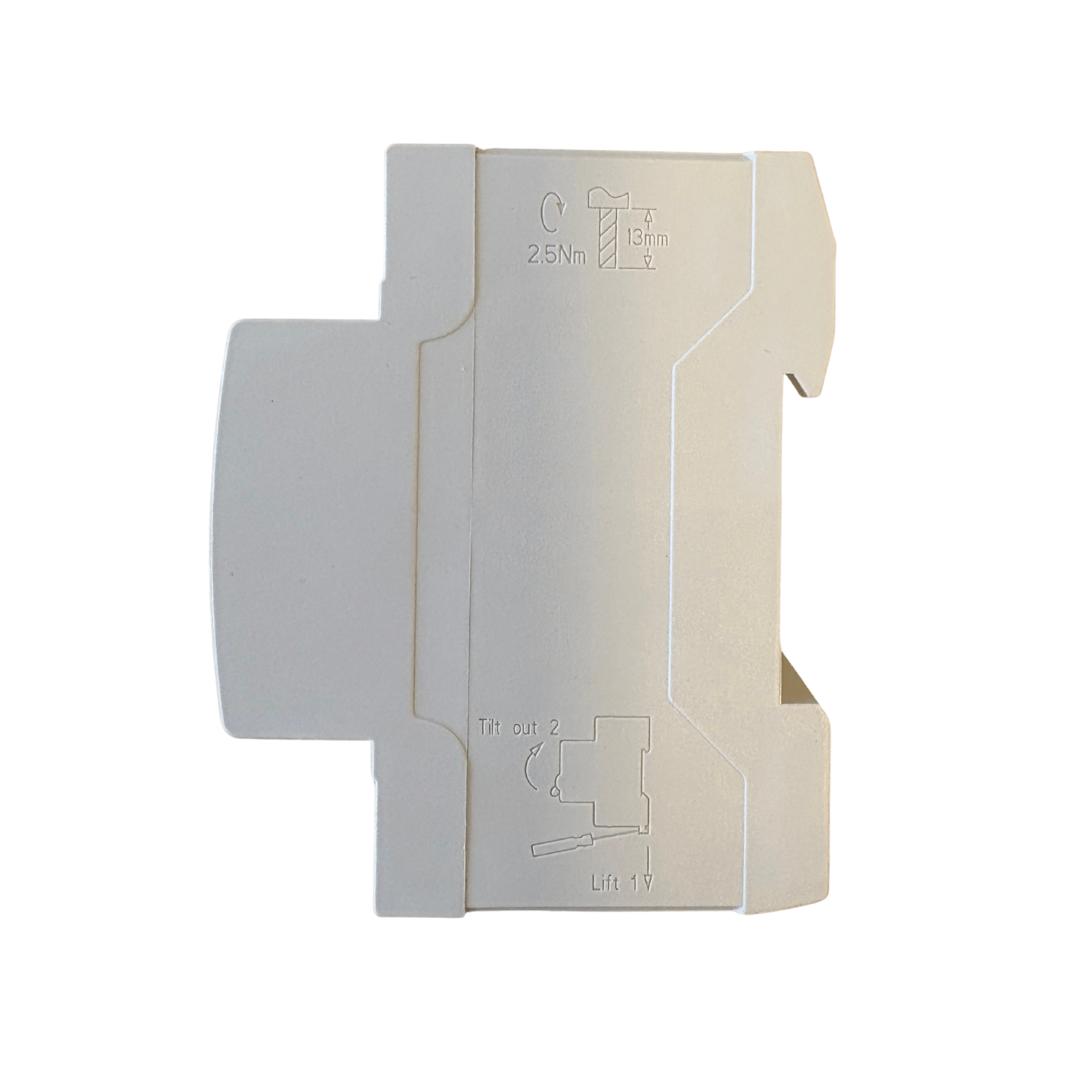

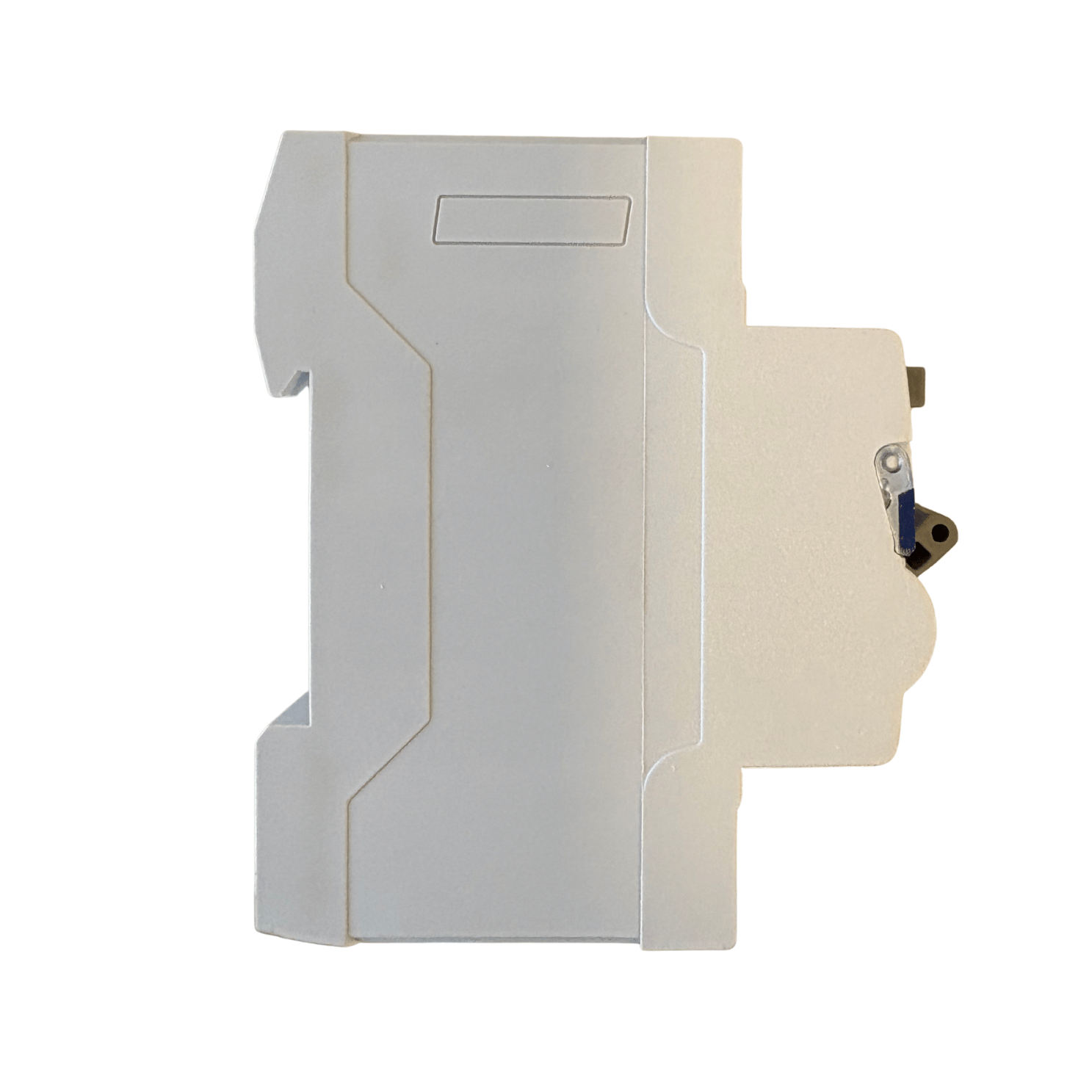

Board Space and Mounting

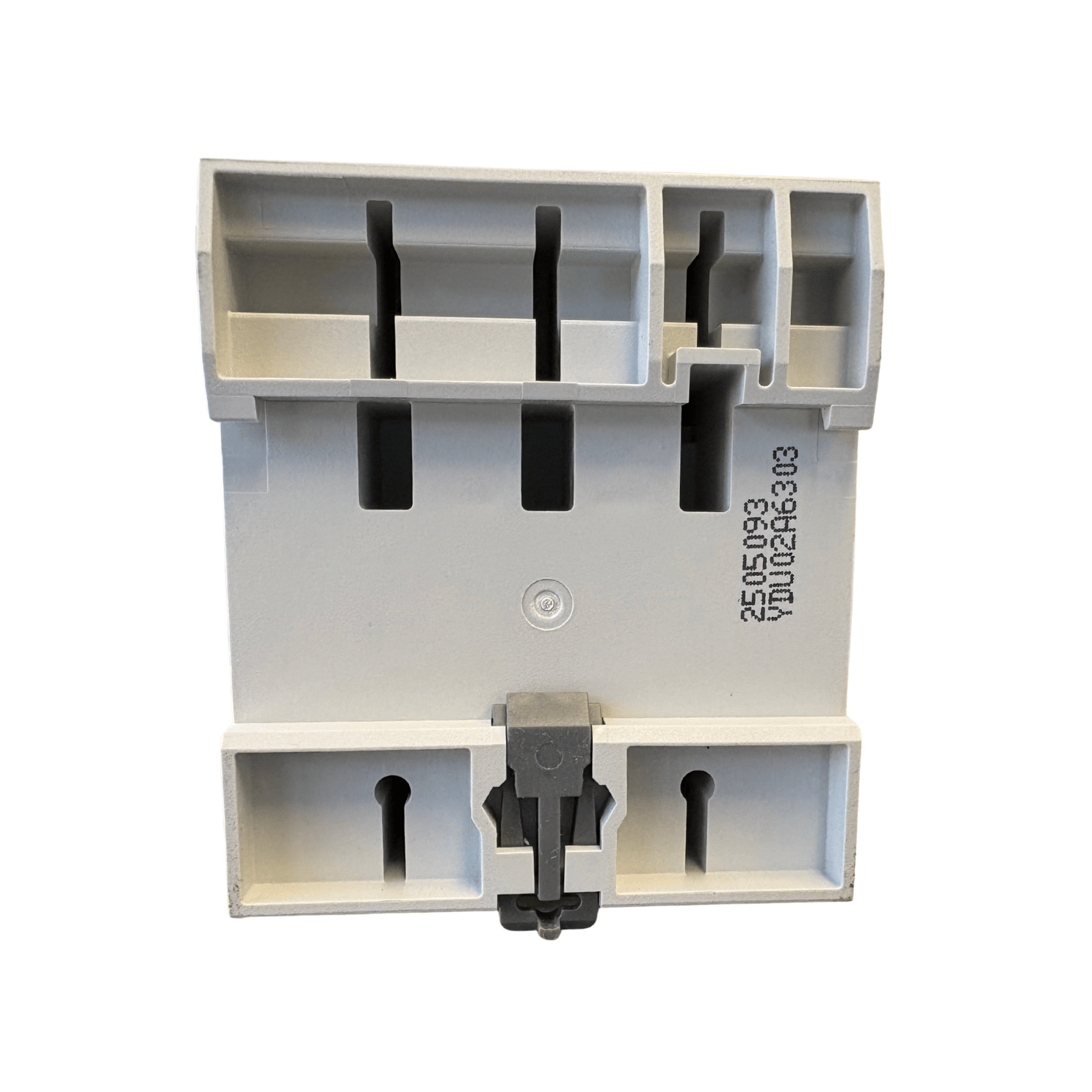

The unit clips to DIN rail and occupies four modules at 72 mm modular spacing. Body dimensions are 81 mm x 72 mm x 75 mm, so the 72 mm figure is the width the device consumes along the rail. Two things worth confirming before you order:

• That 72 mm of clear rail is available in the board
• That enclosure depth clears the 75 mm body

Housing is PA66 reinforced fire-resistant plastic with an IP20 rating on the front face, which suits mounting inside an enclosed switchboard rather than an exposed position. The rated operating temperature range is -5 to 40 degrees C, so allow for the ambient inside the enclosure rather than the ambient in the room.

Leakage Protection, Not Overcurrent

This is a residual current device. It disconnects on earth leakage, and it does not provide overload or short-circuit protection for the circuits below it. Those circuits still need their own overcurrent protection. The 6 kA rating is a conditional rated short-circuit current, so the withstand figure is achieved in combination with a suitably rated upstream protective device rather than by the RCD alone. Size that upstream device before you commit to the board layout, because the 6 kA figure is not a standalone breaking capacity.

Is the Tesla RCD4P63A a four pole device
Yes. It has four poles, switching three actives and the neutral together, and it carries a 415 V rated voltage with a 63 A rated current.

What residual current will the RCD4P63A trip at
It trips at 30 mA residual current and is classified RCD Type A under AS/NZS 61008-1, so it responds to both sinusoidal AC and pulsating DC residual current.

Does this RCD protect against overload and short circuit
No. It gives earth leakage protection only. Downstream circuits need separate overcurrent protection, and the 6 kA figure is a conditional rating that depends on a suitably rated upstream device.
