Powersafe PP01465 Reduction Sleeve Kit R50 50mm2 with Rubber Bushing

Description

R50 sleeves for 50mm² conductors.

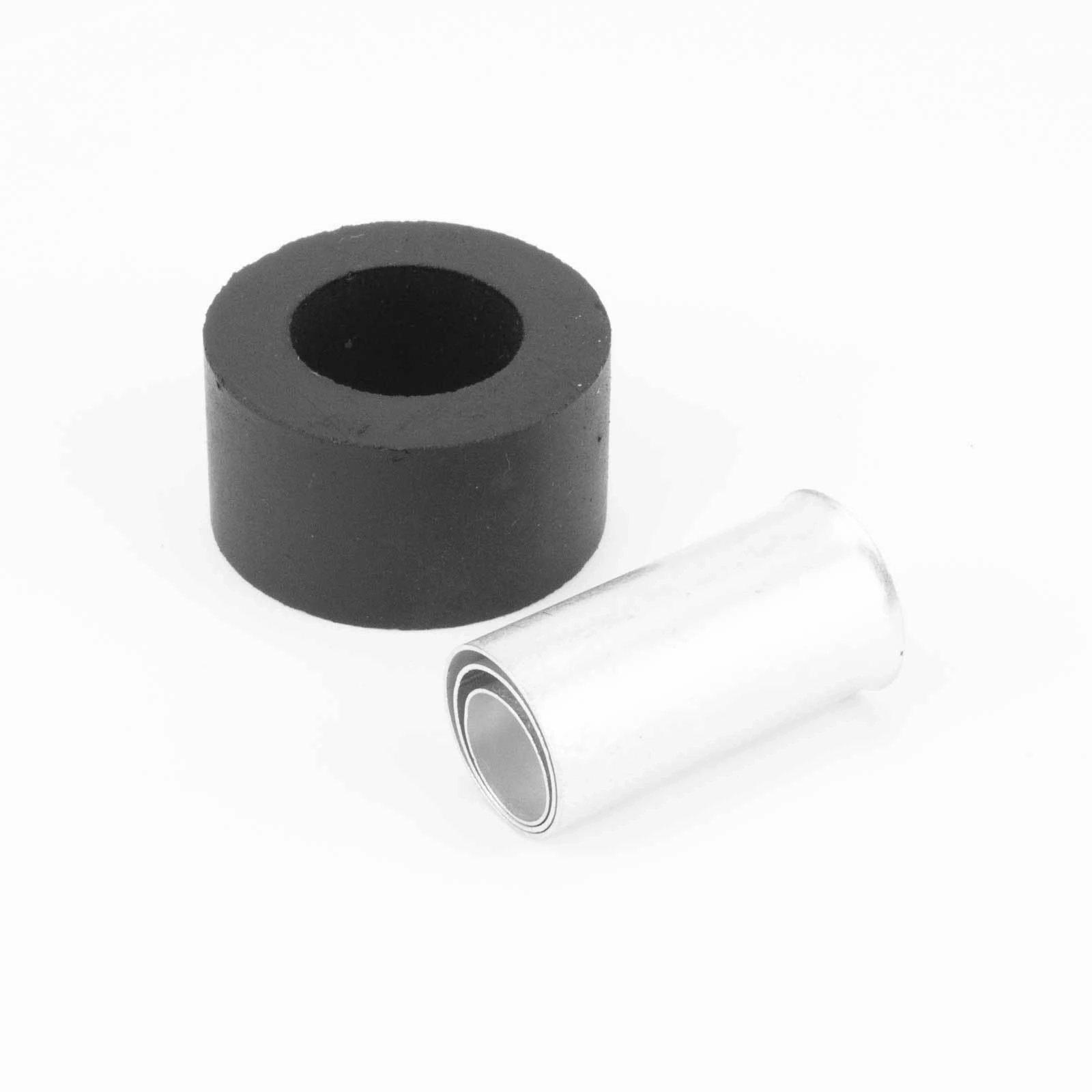

The Powersafe PP01465 is an R50 reduction sleeve kit that comes with a rubber bushing. The R50 is Phase 3's sleeve for 50mm² cable, allowing that cable to be terminated in a Powerlock-compatible Powersafe set screw connector from the 120mm² series.

Key Features

• R50 sleeve size, for 50mm² cable
• Rubber bushing included
• Made for Powersafe S120 set screw connectors
• Nesting sleeves give a gradual step down in size
• Guide sequence at 50mm²: R120, R95, R70, R50
• 33mm jacket strip, 10.5 Nm minimum on the set screws

Get yours with fast shipping to anywhere in Australia.

Stepping a 120mm² Contact Down to 50mm²

Purpose of the sleeves
Set screw connectors in the Powersafe range are built for 120mm² cable. Reduction sleeves narrow the cable bucket in the back of the set screw contact, and Phase 3's assembly guide uses them for cables from 95mm² to 25mm². The R50 is the sleeve matched to 50mm². For a complete range, Phase 3 also offers a full Set Screw Reduction Kit holding five sleeves, R95 down to R25, plus M40S and M40SS bushes.

Four sleeves for 50mm²
Every sleeve down to the recommended size has to be used, according to the guide. At 50mm² that means R120, R95, R70 and R50, one inside the next, so the reduction steps down gradually rather than in one jump. Each sleeve goes on with its flared end toward the cable insulation. Make sure all four sizes are available before stripping the cable. The guide gives the same 33mm strip length and 10.5 Nm minimum torque for every cable size from 25mm² to 95mm².

Termination sequence

• Remove 33mm of cable jacket
• Thread the sleeves on over the strands in the guide's sequence
• Insert cable and sleeves fully into the contact
• Torque the set screws, 5mm Allen bit, 10.5 Nm minimum

Doing it properly
A satisfactory set screw termination, Phase 3 says, depends on using the recommended assembly procedure. Only copper conductors are to be used with the line connectors. Qualified electricians should carry out the installation and the later inspection and maintenance, with local and national electrical code requirements met.

Q: What cable does the Powersafe PP01465 suit?
A: 50mm² cable. The R50 is Powersafe's 50mm² reduction sleeve.

Q: How many sleeves are used for 50mm² cable?
A: Four: R120, R95, R70 and R50, fitted in sequence, as Phase 3's guide requires.

Q: Which Powersafe connectors is the PP01465 for?
A: Set screw connectors in the S120 (120mm²) series. Phase 3 describes the sleeves as reducing the set screw contact's cable bucket.
