Powersafe PP01464 Reduction Sleeve Kit R70 70mm2 with Rubber Bushing

Description

R70 sleeve kit for 70mm² cable.

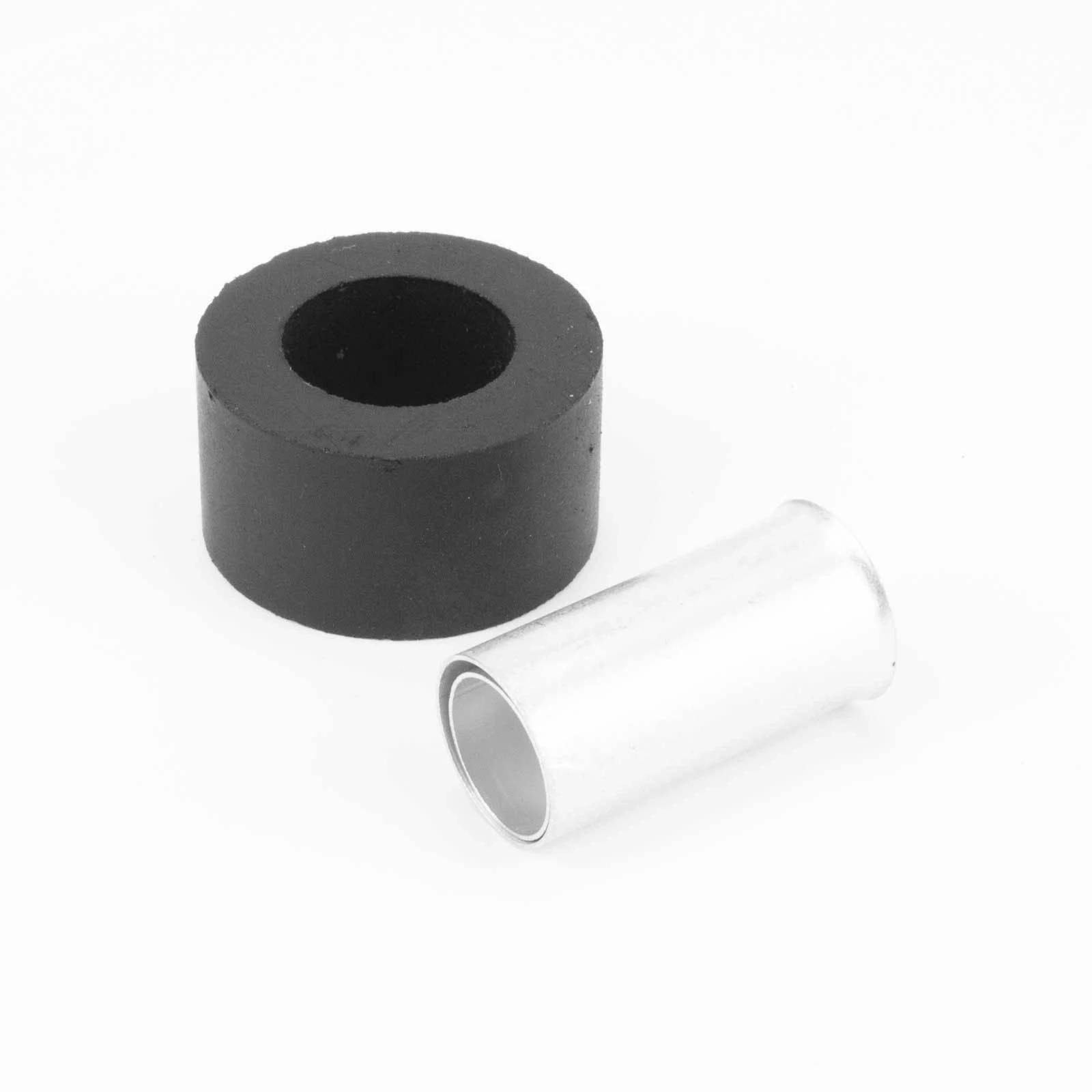

The Powersafe PP01464 is the R70 reduction sleeve kit, supplied with a rubber bushing. R70 is the Powersafe sleeve size for 70mm² cable, used to terminate smaller conductors in a Powerlock-compatible Powersafe set screw connector built for 120mm².

Key Features

• R70 reduction sleeve kit, sized for 70mm² cable
• Includes a rubber bushing
• For Powersafe set screw connectors (S120 series)
• Sleeves nest inside one another for a gradual reduction
• Phase 3 sequence for 70mm²: R120, R95, then R70
• Strip length 33mm; set screw torque 10.5 Nm minimum

Order today for dispatch to any Australian address.

Fitting 70mm² Cable to a Set Screw Contact

What reduction sleeves do
Powersafe set screw connectors are a 120mm² series, and Phase 3's reduction sleeves reduce the cable bucket at the rear of the set screw contact so smaller cable can be terminated. Phase 3's assembly guide covers cable from 95mm² down to 25mm² this way. Each sleeve size matches a cable size, and the R70 is the 70mm² sleeve.

The full sequence matters
The guide is explicit that all sleeves down to the size recommended for the cable must be used. For a 70mm² cable its table lists R120, R95 and R70. The sleeves fit perfectly inside each other to create a gradual reduction span, and the flared end of each sleeve sits against the cable insulation. Check that the larger sleeves are on hand before starting.

Assembly steps from the guide

• Strip the cable jacket to 33mm
• Slide the sleeves on in sequence over the conductor strands
• Push cable and sleeves fully into the back of the contact
• Do up the set screws using a 5mm Allen bit to at least 10.5 Nm

Getting a sound termination
Phase 3 states that following the recommended assembly procedure is essential for a satisfactory set screw termination. The line connectors are for copper conductors only, and Phase 3 requires the work, from installation through inspection to maintenance, to be done by qualified electricians to the local and national electrical codes that govern it.

Q: Which cable size suits the Powersafe PP01464?
A: 70mm². R70 is the Powersafe reduction sleeve size for 70mm² cable.

Q: Which sleeves does Phase 3 call for with 70mm² cable?
A: R120, R95 and R70, fitted in sequence. All sleeves down to the recommended size must be used.

Q: Which connectors use the PP01464?
A: Powersafe set screw connectors in the 120mm² (S120) series.
