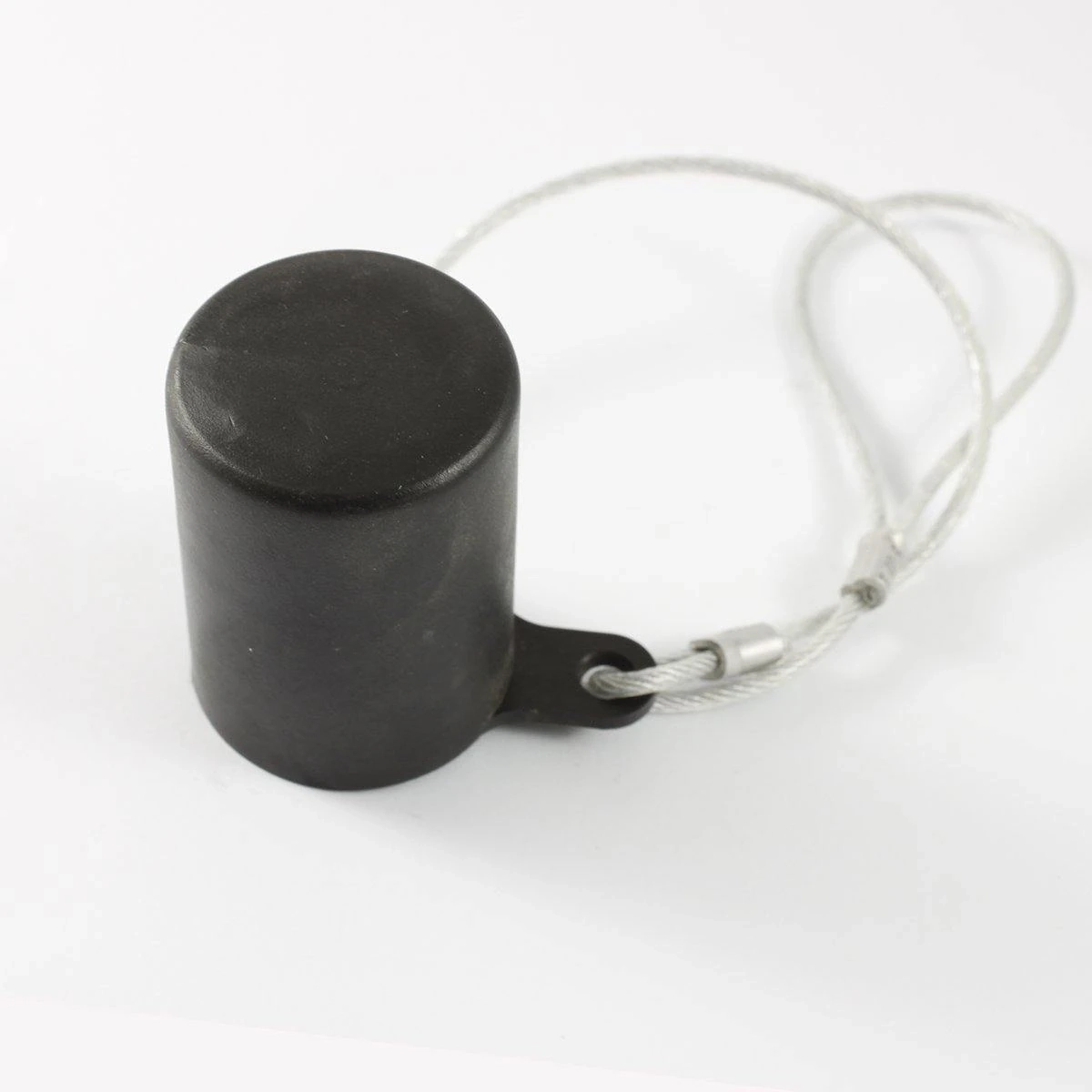

Powersafe PP01193 Protection Cap Line Drain 500A/800A Rubber IP44

Description

Rubber cap for the drain side.

The Powersafe PP01193 is the protection cap for Powerlock-compatible Powersafe line drains, in both the 500A and 800A ratings. Made of black rubber and rated IP44, it fits over the drain end of a lead whenever that connector is not coupled.

Key Features

• Cap for Powersafe line drain connectors
• For 500A and 800A line drains alike
• Black rubber construction
• Rated IP44
• One position: covers a single pole drain
• Helps keep out moisture, dirt and abrasion while uncoupled
• Compliant with RoHS

Grab yours with quick shipping Australia-wide.

Covering the Receiving End

The gap in protection
The IP67 rating on Powersafe connectors is for a mated source and drain. Separate the two and each mating face is exposed. Phase 3 offers protective caps as an optional item for exactly this state, saying they guard connectors against moisture, dirt and abrasion while uncoupled. The PP01193 does that for line drains; its partner, the PP01192, covers line sources.

Drain connectors it is listed for
A Powersafe drain has a female contact inside a male insulator and, in Phase 3's description, usually receives the connection rather than being the live end. Line drains come in two series, and this cap is supplied for both of them. Across both series, Powersafe line drains are made in five key positions, each with its own colour: green Earth, black Neutral, red Line 1, white Line 2 and blue Line 3.

• 500A series: 120mm² set screw and 185mm² crimp line drains
• 800A series: 240mm² and 300mm² crimp line drains
• Drain gender only; for sources, use the PP01192

Part of looking after the lead
Uncoupled, a Powersafe connector is still IP2X finger-proof; the cap is about keeping the mating face clean and protected. Phase 3's assembly guide separately requires drain connectors to have the front O-ring checked for degradation and given a periodic film of silicone grease, and the spring-loaded secondary locking pin checked for free movement. Connector installation, inspection and maintenance belong with qualified electricians; local and national electrical codes govern that work.

Q: Is the Powersafe PP01193 for sources or drains?
A: Drains. It is the line drain cap. The matching cap for line sources is the PP01192.

Q: Which drain ratings does the PP01193 suit?
A: Powersafe line drains in both the 500A and 800A ratings.

Q: What is the IP rating of the PP01193?
A: IP44. It is made of black rubber.
