Powersafe SLD0030 Line Drain 800A 300mm2 Crimp 22-32mm Blue Line 3 IP67

Description

Third phase, biggest cable, 800A series.

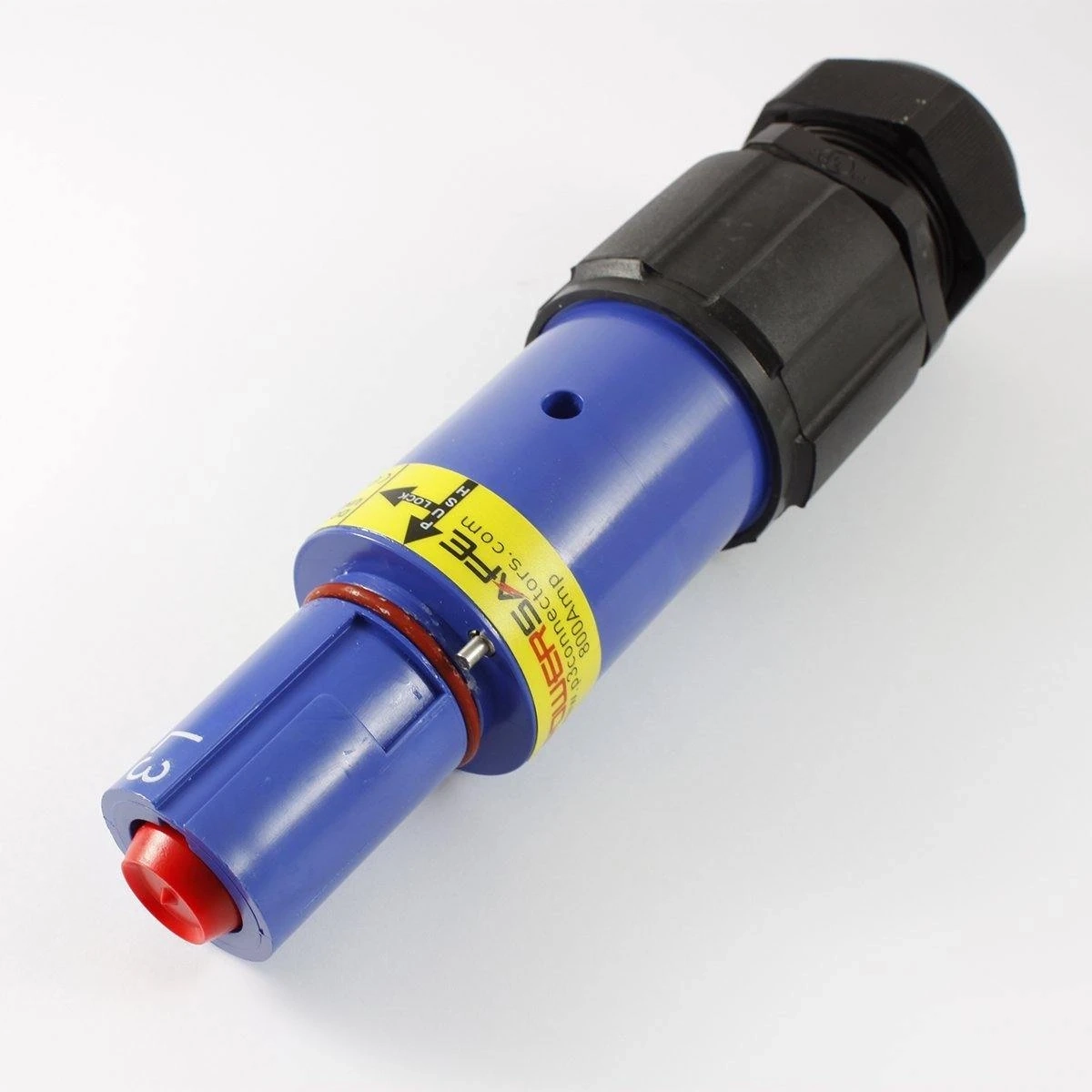

The Powersafe SLD0030 is the blue Line 3 drain for 300mm² copper cable. It rounds out a Powerlock-compatible 800A set at the top of the Powersafe cable range, with a crimped contact, L3 keying and a locking coupling.

Key Features

• Keyed for Line 3 (L3), coloured blue
• Powerlock-compatible 800A series drain, cable mounted
• Male insulator with female contact
• Crimp contact made for 300mm² copper cable
• M40B gland: 22–32mm clamping range
• Operating voltage rated at 1000V AC
• Short circuit rating of up to 35.5kA; 75kA surge current
• IP67 rated enclosure, IP2X finger-proof contact when open
• UL94-V0 flame retardancy, high temperature thermoplastic
• Silver plated contact, exceeding 500 mating cycles

Grab yours today, shipped promptly across Australia.

Finishing an 800A, 300mm² Set

One connector per line
A full three phase Powersafe set has an earth, a neutral and three lines, each with a unique key. The SLD0030 takes the Line 3 position and mates solely with a Powersafe L3 source connector, panel or cable mounted. Blue here means L3, not neutral, and the keying makes a mix-up physically impossible. A release key is required to undo the secondary lock once coupled.

Rating and cable
300mm² is one of the two cable sizes, with 240mm², that Phase 3 supplies as 800A connectors. Each contact has 29 transfer bridges rated 30A, giving 870A. Continuous current in practice is subject to cable choice and environmental factors.

Gland fit
The gland supplied is the M40B, clamping 22–32mm. Your cable's overall diameter has to sit in that range, so check it against the cable manufacturer's figure before purchase.

How it is terminated

• 43mm conductor strip length
• ME 60 hexagonal crimp die
• HT 131-C manual hydraulic tool, or the B 131-C cordless version
• Three crimps spread evenly over the contact, gland tightened to 11 Nm

Copper is the only conductor material permitted. Installation and maintenance should be left to a licensed electrician following Australian wiring rules, with the crimp tensile tested.

Q: Is the blue Powersafe SLD0030 a neutral connector?
A: No. It is the Line 3 connector, keyed to L3, and it cannot be mated with a neutral.

Q: What crimp die fits the SLD0030?
A: The ME 60 hexagonal die that Phase 3 specifies for 300mm² cable, with three crimps on the contact.

Q: Can the SLD0030 be used with other Powerlock brands?
A: Yes. Phase 3 lists 400A and 660A Powerlock, ITT Cannon and Litton VEAM among the compatible makes, as long as the key positions correspond.
