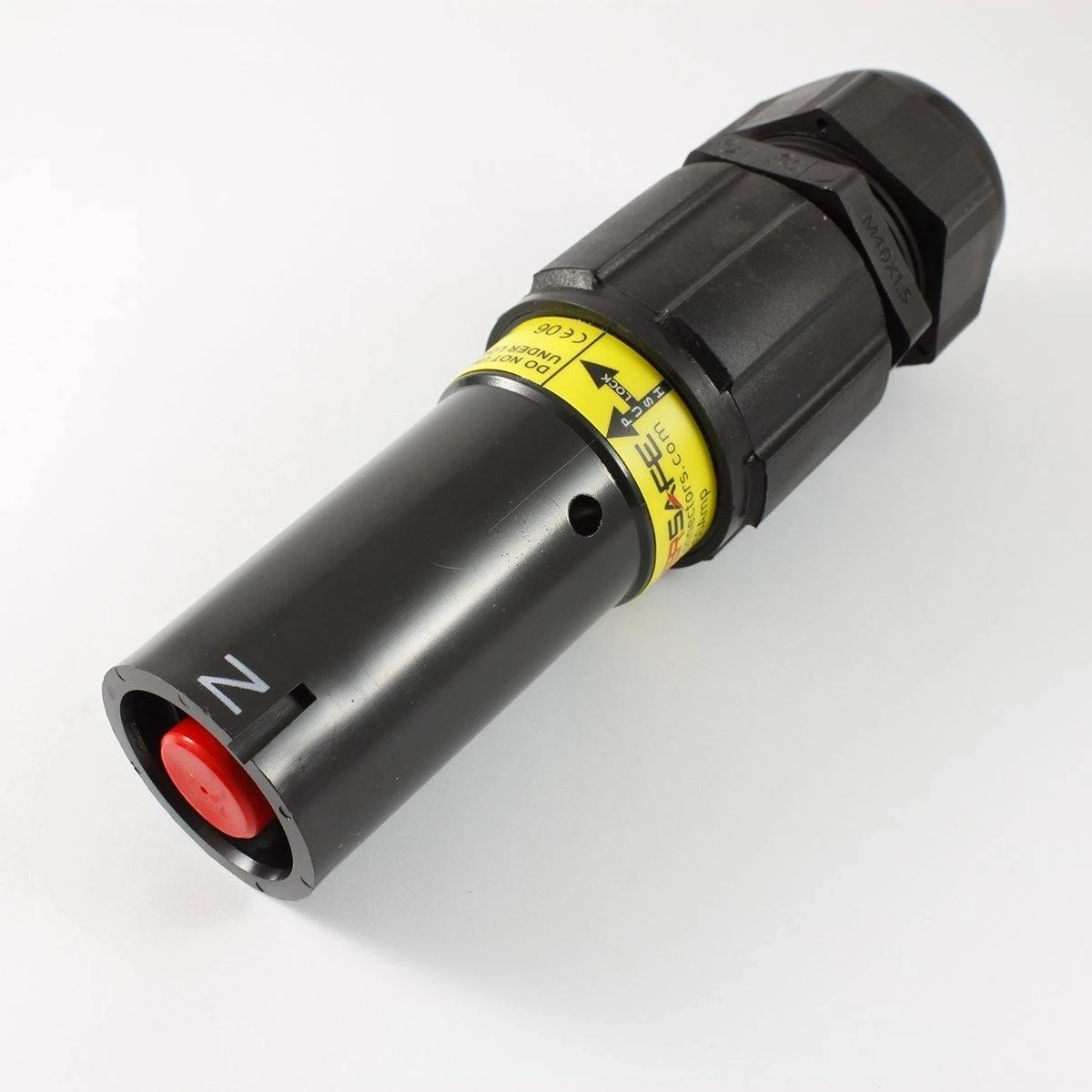

Powersafe SLS0026 Line Source 800A 300mm2 Crimp 22-32mm Black Neutral IP67

Description

Supply-end neutral for 300mm² cable.

The Powersafe SLS0026 puts a Neutral source on 300mm² copper cable. Black and Neutral keyed, this 800A series connector belongs to the Powerlock-compatible Powersafe range and uses a crimped male contact with a coupling that locks when mated.

Key Features

• Neutral (N) source; black
• Male contact, enclosed by a female insulator
• 800A series, Powerlock-compatible single pole
• 300mm² copper cable via crimp contact
• Supplied gland: M40B, 22–32mm clamping
• Operating voltage is 1000V AC
• Handles a 75kA surge current; short circuit rated as high as 35.5kA
• IP67 mated, IP2X finger-proof unmated
• UL94-V0, high temperature thermoplastic shell
• Silver plated contact, rated past 500 mating cycles

Order now, with fast delivery available across Australia.

What to Know Before You Fit It

It is the source, and it is the neutral
Two things define where the SLS0026 goes. Gender: it is a source, the half with the male contact that is usually the live end. Key: it is cut for Neutral, so the only connector it joins is a Powersafe Neutral drain, in-line or panel mounted. Black on its own is not a reliable guide, as other Powersafe colour schemes use it for a phase.

The gland sets the cable limit
The M40B gland on this version clamps 22–32mm. Compare that with the overall diameter of your 300mm² cable before ordering, since the gland is what seals and anchors the cable.

Protection built in
Unmated, the contact is IP2X finger-proof. Mated, the pair is IP67 rated and held by a secondary lock that needs a release key.

Crimping at the top cable size

• 43mm of conductor left exposed
• ME 60 hexagonal die, used with a hydraulic tool (Phase 3 lists the HT 131-C and B 131-C)
• Three crimps, equal distances apart
• Gland closed up to 11 Nm on its body and dome nut

For copper conductors, and no other conductor material. Qualified electricians should do the installation, inspection and maintenance in line with local and national electrical codes, and Phase 3 calls for a tensile test on the finished crimp.

Q: Is the Powersafe SLS0026 a neutral connector?
A: Yes. Its key is the Neutral one, and a Powersafe Neutral drain is the only connector it will join.

Q: How much current can the SLS0026 carry?
A: It is an 800A series connector, which is the type fitted to 240mm² and 300mm² cable. Phase 3 qualifies the maximum continuous rating by cable choice and environmental factors.

Q: What cable diameter does the SLS0026 accept?
A: 22mm to 32mm overall, the clamping range of its M40B gland.
