Powersafe SLS0029 Line Source 800A 300mm2 Crimp 22-32mm White Line 2 IP67

Description

Line 2 source at the 300mm² size.

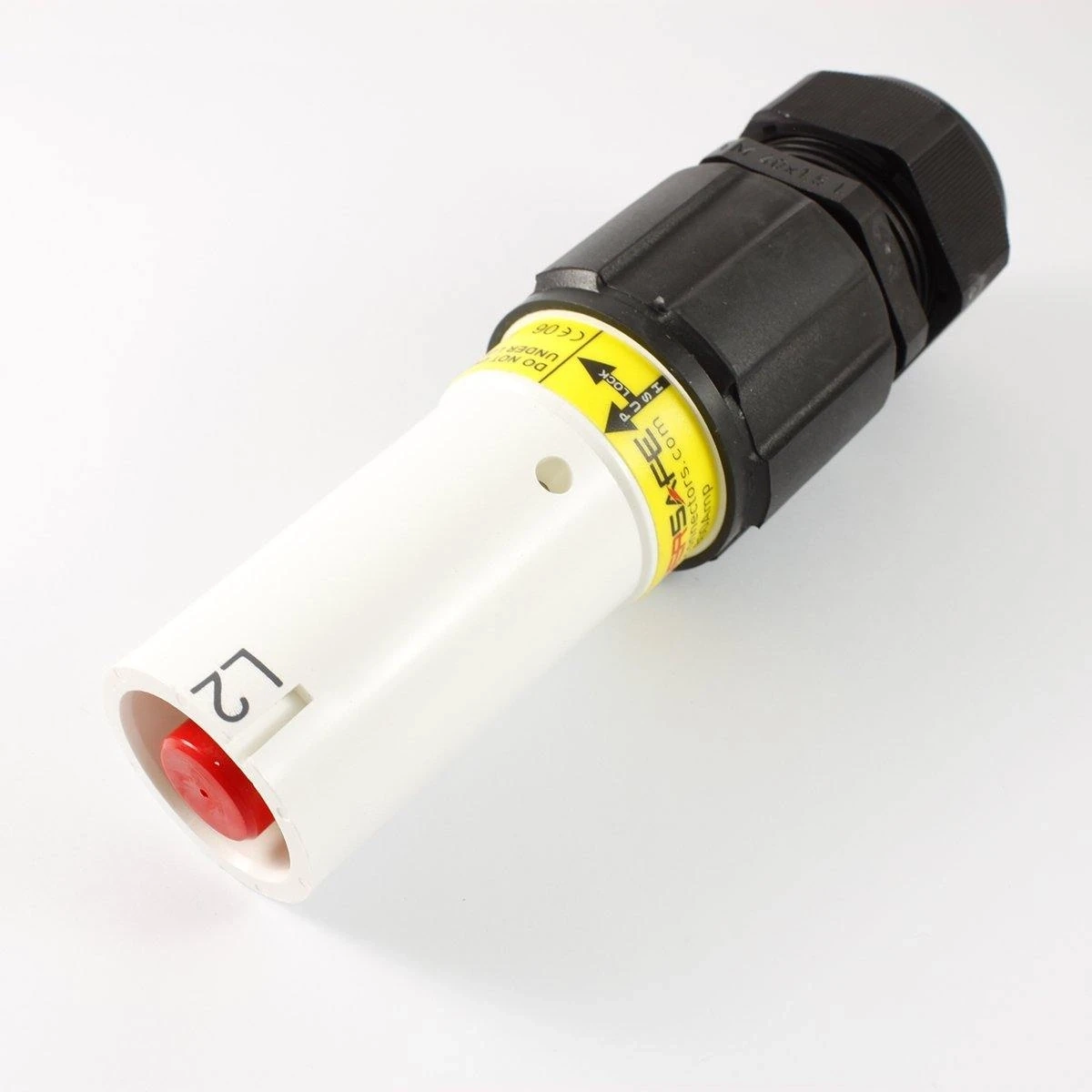

The Powersafe SLS0029 is the white Line 2 source connector made for 300mm² copper cable. This 800A series, Powerlock-compatible connector has a male crimp contact behind a finger-proof insulator, keyed so that it joins only the matching Line 2 drain.

Key Features

• White, Line 2 (L2) source connector
• Male contact behind a female insulator
• 800A series; mates Powerlock-compatible
• Crimp contact, 300mm² copper cable
• M40B gland fitted, for 22–32mm cable OD
• Designed for a 1000V AC operating voltage
• Short circuit rating no higher than 35.5kA; surge current 75kA
• IP67 rating when mated; IP2X when not
• Shell of high temperature thermoplastic to UL94-V0
• Contact plated with silver; 500 or more mating cycles

Buy online today for fast shipping to any part of Australia.

The Second Phase on the Heaviest Cable

Identified two ways
White tells you at a glance that this is Line 2. The mechanical key guarantees it: the SLS0029 seats in a Powersafe L2 drain, cable mounted or panel mounted, and in nothing else. Once seated, the secondary lock stops the pair separating until a release key is used.

Cable diameter matters
300mm² is the largest cable size for Powersafe line connectors. This version comes with the M40B gland, which clamps 22–32mm, so the overall diameter of the cable you choose needs to be within that range for the gland to seal and grip.

Source connectors and safety
Phase 3 notes that sources are usually the live end. The SLS0029 keeps its male contact IP2X finger-proof while uncoupled, and the mated connection carries an IP67 rating.

Steps to terminate

• Strip back so that 43mm of conductor shows
• Select the ME 60 hexagonal die
• Put three evenly spaced crimps on the contact with a hydraulic tool
• Fit the gland, applying 11 Nm at its body and at the dome nut

The contact accepts copper conductors only. Phase 3's two listed hydraulic tools (HT 131-C, B 131-C) both take this die, and it recommends a tensile test on the crimp. Installation, inspection and maintenance must be done by qualified electricians who follow the electrical codes in force locally and nationally.

Q: What colour is the Line 2 Powersafe source?
A: The SLS0029 Line 2 source is white, and it is keyed to L2.

Q: Does the SLS0029 suit 240mm² cable?
A: No. Its crimp contact is sized for 300mm² cable; Phase 3 lists a separate contact and die for 240mm².

Q: What does the SLS0029 plug into?
A: A Powersafe Line 2 drain connector, in line or panel mount form.
