Powersafe SPS0016 Panel Source 800A Black Neutral

Description

Black Neutral source, 800A class.

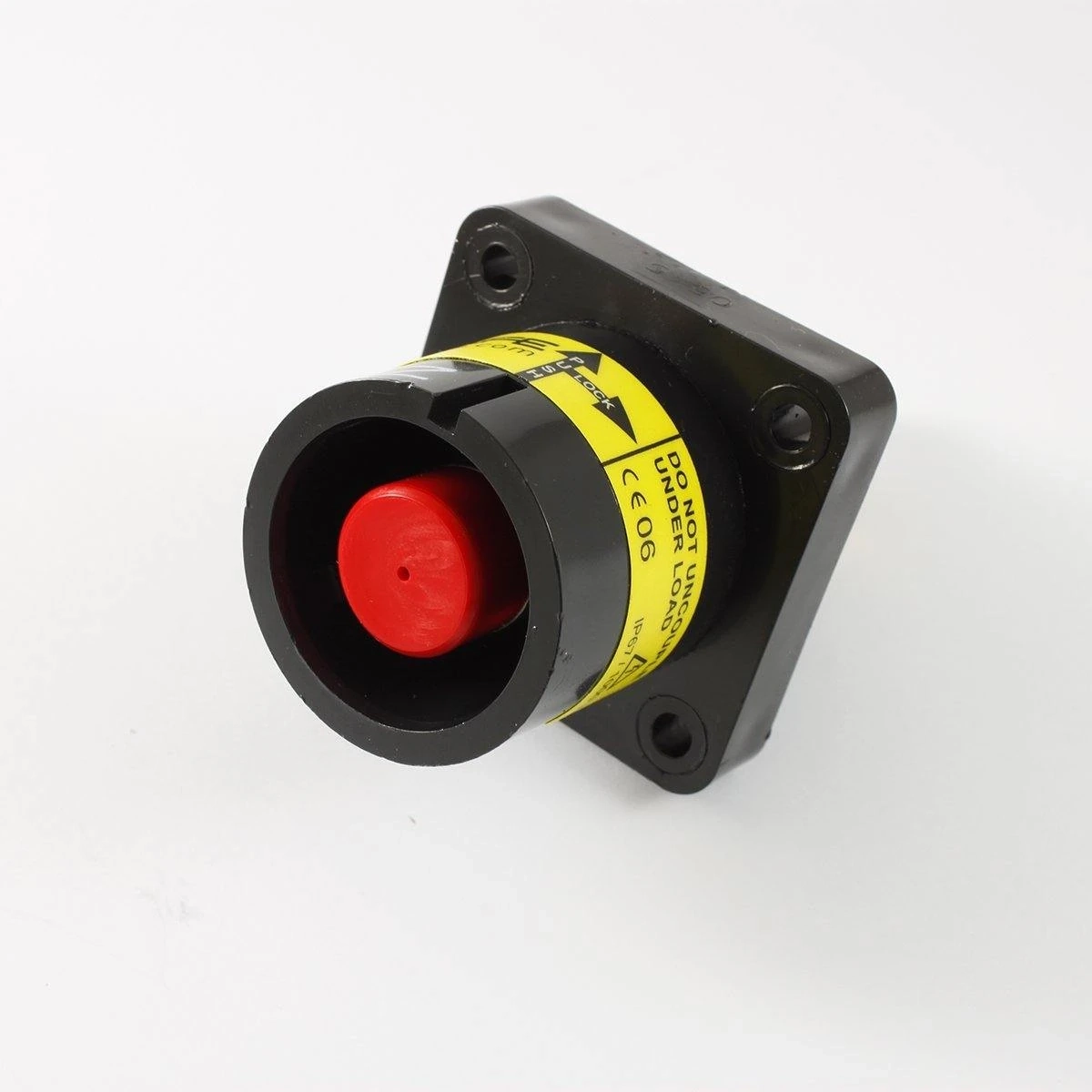

The Powersafe SPS0016 is the Neutral panel source for 800A installations. Black and Neutral keyed, this Powerlock-compatible T8 connector puts a silver plated copper male contact inside a female insulator, and a lugged cable connects at its M12 threaded post.

Key Features

• Neutral (N) keyed panel source in black
• Source gender: female insulator around a male contact
• T8 rating of 800A, Powerlock-compatible
• Copper contact under silver plating
• M12 threaded post takes the cable lug
• Flange fixing on four holes, sealed by a gasket
• Comes assembled: post, M12 nut, spring washer, gasket
• Operating voltage of 1000V AC, 75kA surge current
• Short circuit rating goes to 35.5kA
• Mated IP67; unmated IP2X finger-proof

Buy online and have it shipped Australia-wide.

Neutral Supply From the Panel

Matching drains only
Powersafe gives each position its own key, so a panel source only ever couples with a drain of the same position. A Powersafe Neutral line drain is the one connector the SPS0016 accepts; the Neutral key blocks Earth and line drains. Black is the Neutral colour, so the position is clear at a glance on the panel face. When mated, the bayonet lock is held by a secondary lock that needs the release key to undo.

T8 construction
For its 800A sockets Phase 3 uses copper with silver plating; the lower-rated T5 sockets are brass. The insulator around the contact is high impact and flame retardant, rated UL94-V0, with no glass in it. Phase 3 rates the connector for more than 500 mating cycles.

Installation points

• Flange holes: four, or fitted with M6 threaded inserts
• Inserts allow the choice of front or rear fixing
• Gasket between flange and panel keeps the joint watertight
• Lug onto the M12 post; nut torque 12–14 Nm maximum

Sources, in Phase 3's description, are usually the live end and drains usually receive; the SPS0016 keeps IP2X finger-proof protection while open. Phase 3 delivers the connector ready for direct mounting and says installing it in the field takes no special tools. Installation, inspection and maintenance belong with a qualified electrician, working within local and national electrical codes.

Q: What mates with the Powersafe SPS0016?
A: A Powersafe Neutral line drain. The Neutral key rejects drains for any other position.

Q: What is the SPS0016 contact made of?
A: Copper with silver plating, as used in Phase 3's 800A sockets.

Q: How many mating cycles is the SPS0016 rated for?
A: More than 500, according to Phase 3.
