Powersafe SPS0017 Panel Source 800A Red Line 1

Description

Line 1 source for 800A panels.

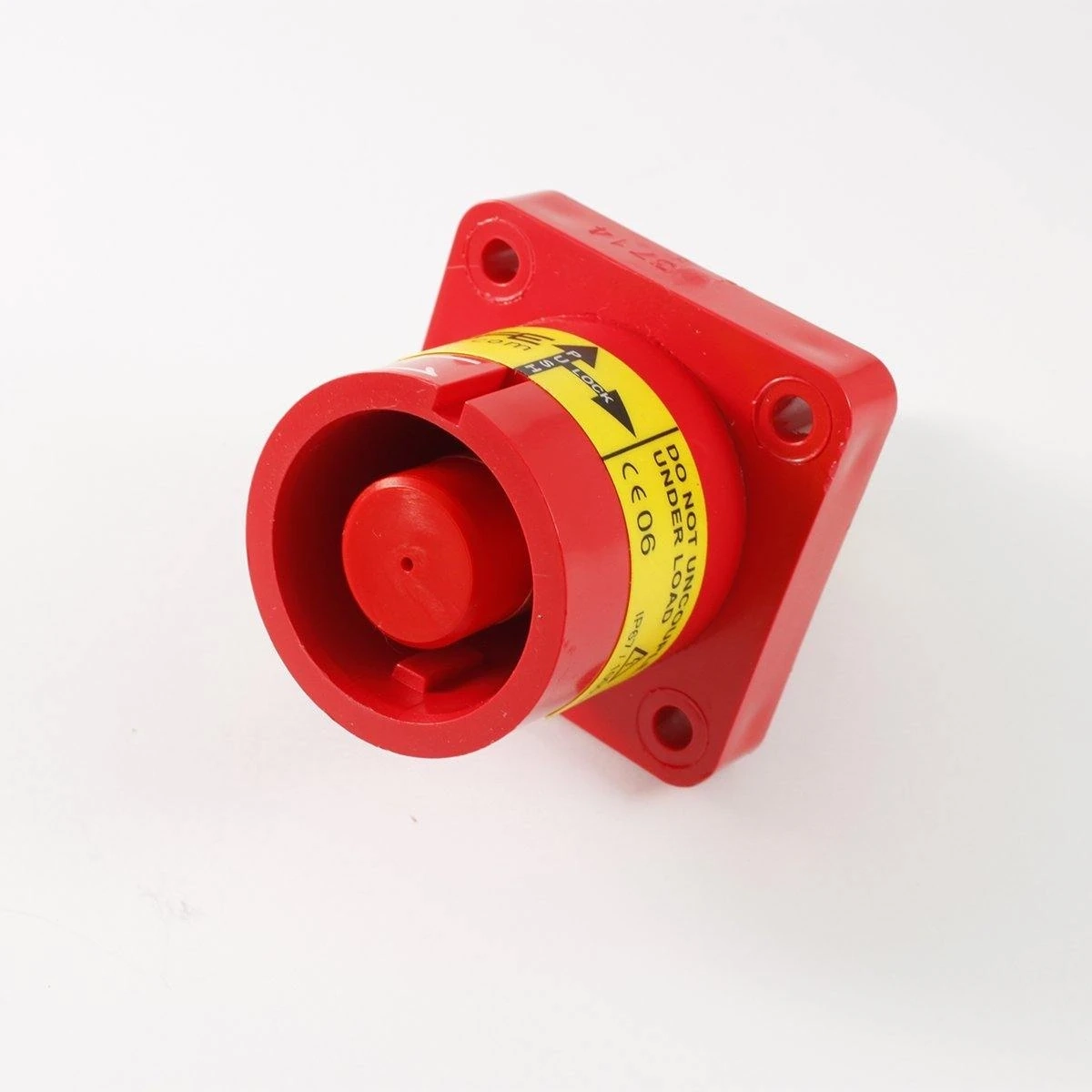

The Powersafe SPS0017 is the red Line 1 panel source in the T8 rating of 800A. Powerlock-compatible and L1 keyed, it has a copper male contact plated with silver, set in a female insulator, and the supply cable is lugged to its M12 post.

Key Features

• Panel source in red, Line 1 (L1) key
• Source form: male contact, female insulator
• Powerlock-compatible, T8 for 800A
• Copper contact with a silver plated finish
• Lug connection to the M12 threaded post
• Flange carrying four fixing holes, with panel gasket
• Arrives assembled, spring washer and nut already fitted
• Rated 1000V AC in operation; surge 75kA
• Up to 35.5kA short circuit rating
• IP67 mated and IP2X finger-proof unmated

Get yours now with fast dispatch Australia-wide.

Line 1, Fixed in Place

One phase, one key
Powersafe connectors are keyed by position, and the SPS0017 takes the L1 key. A Powersafe Line 1 line drain will couple with it; Earth, Neutral, L2 and L3 drains will not. Red identifies Line 1. Bayonet coupling is followed by a secondary lock, and the release key is the only way to undo it.

Live-end protection
Phase 3 explains that the live end of a connection is normally the source, with the drain on the receiving side. Without a drain fitted, the SPS0017 is rated IP2X finger-proof against electric shock; with one locked in, the joint is IP67 to EN 60529.

At the panel

• Secure the flange through its four holes
• Front or rear fixing is possible with M6 threaded inserts
• Gasket sits under the flange for a watertight seal
• Lug on the post, then nut to 12–14 Nm at the most

Phase 3 makes its 800A sockets using copper with silver plating, against brass in the T5 range, and uses a high impact, glass-free insulator that is flame retardant to UL94-V0. The SPS0017 is supplied fully assembled for direct mounting, with no special tools needed in the field. Qualified electricians should carry out installation, inspection and maintenance, applying local and national electrical codes.

Q: What phase is the Powersafe SPS0017 keyed for?
A: Line 1. It is red, L1 keyed, and couples with a Powersafe Line 1 line drain.

Q: What does the T8 in SPS0017's description mean?
A: The 800A panel version, built with a silver plated copper contact.

Q: Is the SPS0017 protected when nothing is plugged in?
A: Yes. Unmated, it is rated IP2X finger-proof against electric shock.
