Powersafe SPD0019 Panel Drain 800A White Line 2

Description

White L2 drain, T8 copper build.

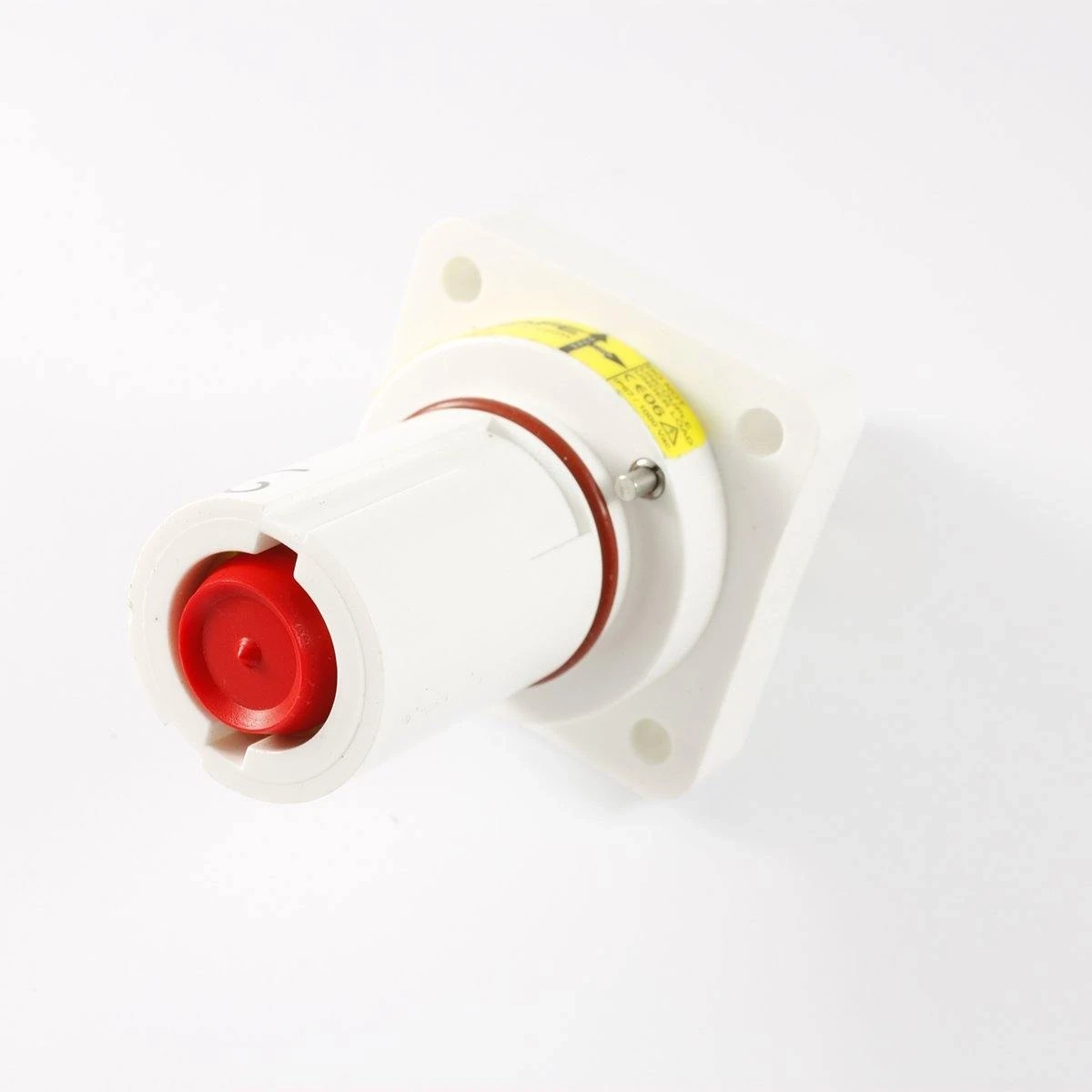

The Powersafe SPD0019 gives Line 2 an 800A home on the panel. This white, Powerlock-compatible T8 drain uses a copper contact finished in silver plating, seals to the panel with a gasket, and has an M12 threaded post where the cable lug connects.

Key Features

• White panel drain, Line 2 (L2) key
• Rated 800A as a T8, Powerlock-compatible
• Copper contact finished in silver plating
• M12 threaded post for lug termination
• Flange fixes through four holes
• Gasket included for a watertight mount
• Arrives assembled, spring washer and M12 nut included
• 1000V AC operating voltage and 75kA surge current
• Short circuit rating tops out at 35.5kA
• IP67 sealed when mated; IP2X finger-proof

Buy online and we ship to any Australian address.

Line 2 on an 800A Panel

Keyed against cross-connection
The SPD0019 has the L2 key, so a Powersafe Line 2 source is its only mate; sources for the other positions are blocked by their keys. White sets Line 2 apart on the panel face. The pair join with a bayonet lock, and secondary locking then holds until the release key is brought to it.

Materials
Copper with silver plating is what Phase 3 uses for 800A sockets such as this one. Around the contact sits a high impact insulator that contains no glass and is flame retardant to UL94-V0. The operating temperature range is -30°C to +125°C, and the connector is rated for more than 500 mating cycles.

Mounting and termination

• Four flange holes, with a gasket behind the flange
• M6 threaded inserts optional, front or rear fixing
• Standard lug on the M12 post, 12–14 Nm maximum

Phase 3 delivers its panel connectors fully assembled and notes that field installation calls for no special tools. Drain connectors have two upkeep points in the assembly guide: inspect the front O-ring and keep it filmed with silicone grease, and make sure the secondary locking pin, which is spring loaded, moves freely. Fitting and maintenance are jobs for a qualified electrician, and local and national electrical codes apply throughout.

Q: What mates with the Powersafe SPD0019?
A: A Powersafe Line 2 line source. The L2 key keeps every other source out.

Q: What temperature range suits the SPD0019?
A: Phase 3 rates the connector from -30°C to +125°C.

Q: What torque does the SPD0019 post nut take?
A: 12–14 Nm is the maximum given in the Phase 3 assembly guide.
