Powersafe SPS0020 Panel Source 800A Blue Line 3

Description

Blue Line 3 source at 800A.

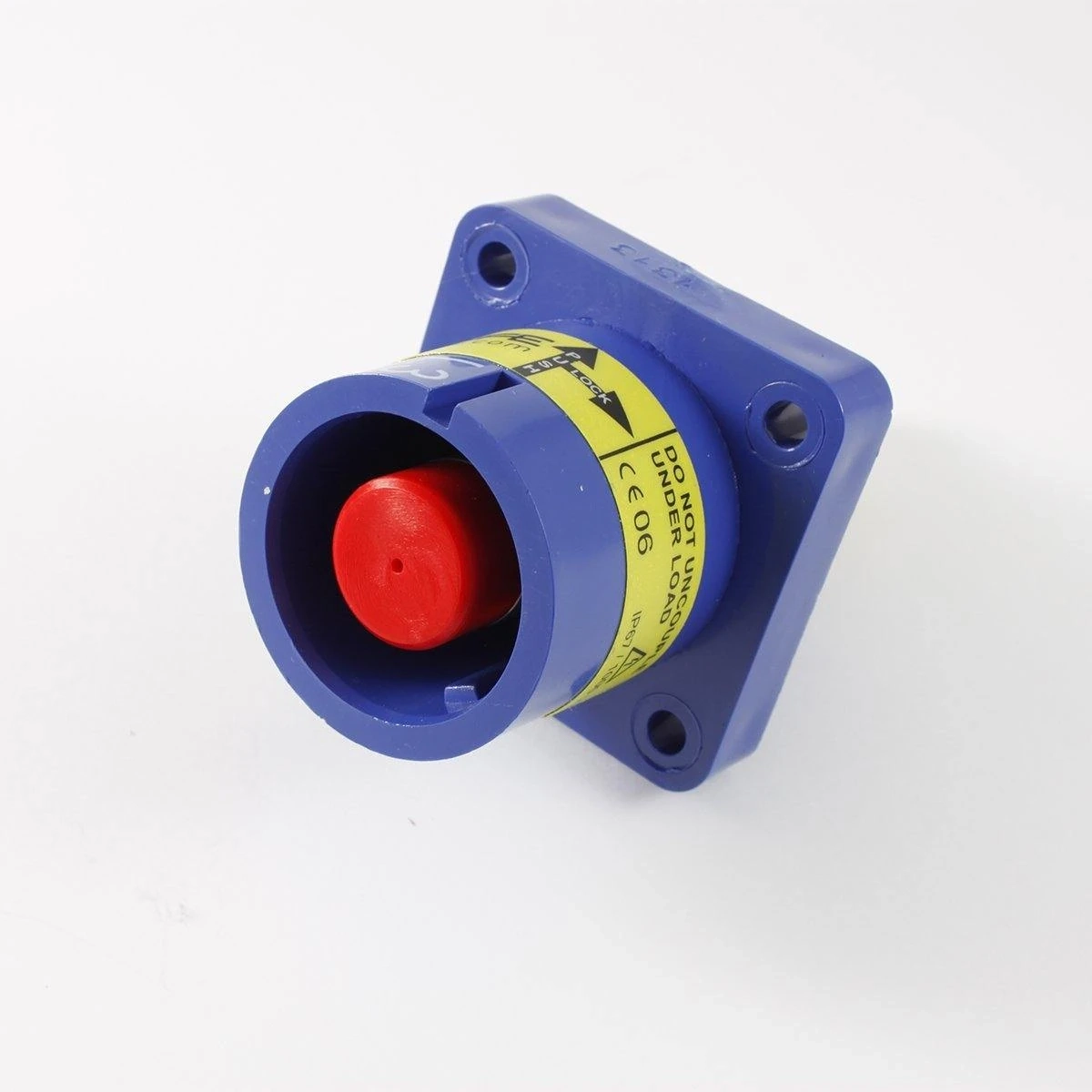

The Powersafe SPS0020 rounds off the 800A panel source set, carrying Line 3 in blue. Keyed for L3 and Powerlock-compatible, this T8 source has a male copper contact with silver plating in a female insulator, with the cable lug fixed to an M12 threaded post.

Key Features

• Blue panel source carrying the Line 3 (L3) key
• Gender: source, male contact in female insulator
• T8, 800A, Powerlock-compatible
• Silver plating on a copper contact
• M12 threaded post for the lugged cable
• Gasket plus four flange holes for panel fixing
• Assembled already, with M12 nut and spring washer
• Works at 1000V AC; 75kA surge capability
• Short circuit rating to a ceiling of 35.5kA
• IP67 once mated; IP2X finger-proof otherwise

Secure yours today, with delivery throughout Australia.

The Third Phase on an 800A Panel

L3 and nothing else
Keying keeps the SPS0020 to Line 3: a Powersafe Line 3 line drain locks into it, and drains for any other position are turned away. Blue labels the third phase visually. The bayonet coupling is held by secondary locking, and the pair separate only with the release key.

Copper contact, finger-proof body
Phase 3 makes 800A sockets like the SPS0020 from copper with silver plating, while its T5 range is brass. The insulator is high impact, flame retardant to UL94-V0 and free of glass. Phase 3 identifies sources as normally being the live side of the connection. Unmated, the SPS0020 is rated IP2X finger-proof against electric shock; mated, it is sealed to IP67.

Mounting steps

• Bolt the flange to the panel through its four holes
• M6 threaded inserts are an alternative, front or rear
• Gasket between the two for a watertight fit
• Lug to the M12 post, nut at 12–14 Nm maximum

Phase 3 ships its panel connectors fully assembled for direct mounting, noting that field installation can be done without special tools. The connector operates from -30°C to +125°C and Phase 3 gives it a mating life above 500 cycles. Only a qualified electrician should install, inspect or service the SPS0020, and the relevant local and national electrical codes must be met.

Q: Which connector mates with the Powersafe SPS0020?
A: A Powersafe Line 3 line drain, matching its blue L3 key.

Q: What current is the SPS0020 rated for?
A: The T8 version is rated 800A, and the SPS0020 is the Line 3 panel source in that series.

Q: What temperature range does the SPS0020 cover?
A: -30°C to +125°C, according to Phase 3.
