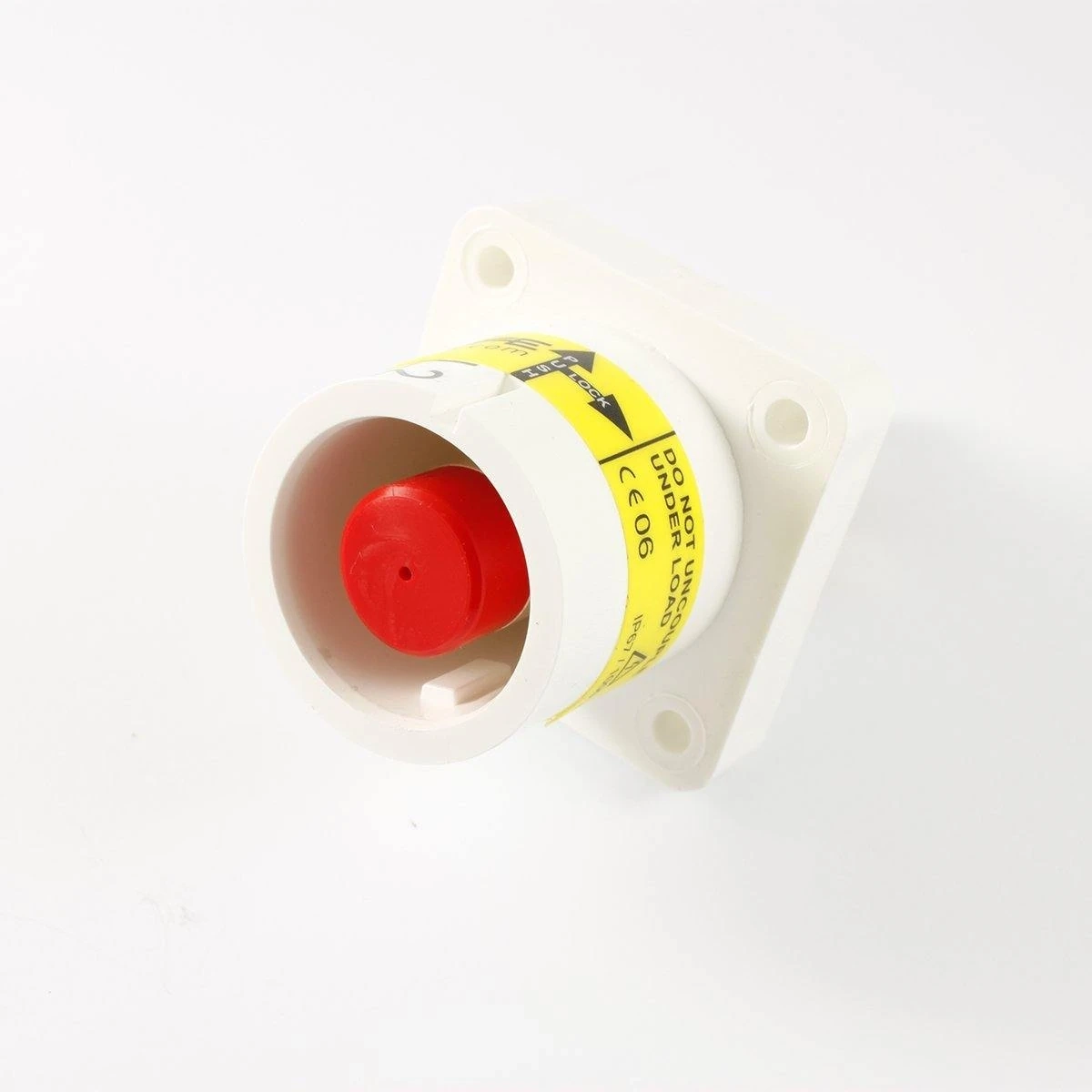

Powersafe SPS0019 Panel Source 800A White Line 2

Description

White L2 source rated 800A.

The Powersafe SPS0019 is the Line 2 panel source for T8, 800A duty. In white with the L2 key, this Powerlock-compatible connector houses a silver plated copper male contact in a female insulator and its rear M12 threaded post accepts the cable lug.

Key Features

• L2 keyed panel source, white
• Male contact; female insulator around it
• Powerlock-compatible 800A, T8 version
• Silver plated copper for the contact
• Standard cable lug on the M12 threaded post
• Four fixing holes on the flange and a sealing gasket
• Pre-assembled, including M12 nut and spring washer
• 1000V AC operation with a 75kA surge rating
• Short circuit rating of up to 35.5kA
• Rated IP67 mated and IP2X unmated

Add to cart for quick shipping anywhere in Australia.

Line 2 Source at 800A

Second phase only
The SPS0019 carries the Line 2 key. That means a Powersafe Line 2 line drain mates with it, while drains for Earth, Neutral, L1 and L3 are kept out. White distinguishes Line 2 on the panel. A turn engages the bayonet lock, the secondary lock then follows, and only the release key frees the drain.

Source gender, explained
In Phase 3's terms, a source is typically the live end and a drain typically receives. The SPS0019 remains IP2X finger-proof against electric shock while unmated and becomes IP67 when its drain is locked in.

Panel fitting

• Fixings go through the flange's four holes
• M6 threaded inserts make front or rear fixing possible
• Gasket under the flange keeps the panel joint watertight
• Fit the lug to the post; 12–14 Nm is the nut maximum

As an 800A socket the SPS0019 uses copper with silver plating, where Phase 3's T5 sockets are brass. Around it sits a glass-free, high impact insulator rated UL94-V0 for flame retardance. It arrives fully assembled and mounts directly to equipment; Phase 3 adds that field installation requires no special tools. Installation and maintenance call for a qualified electrician who works to local and national electrical codes.

Q: Which drain connects to the Powersafe SPS0019?
A: A Powersafe Line 2 line drain. The L2 key keeps other positions out.

Q: What makes the SPS0019 an 800A part?
A: It is the T8 version; Phase 3 makes 800A sockets from copper, silver plated.

Q: Can the SPS0019 be fixed from the rear of a panel?
A: Yes. Fitting M6 threaded inserts in the flange holes allows front or rear fixing.
