Tesla RCDM3PN50 RCD/MCB Safety Switch RCBO 50 Amp 3P+N 6kA 30mA Type A C Curve 3 Module 53mm

Description

Top of the range at fifty amps, three phase.

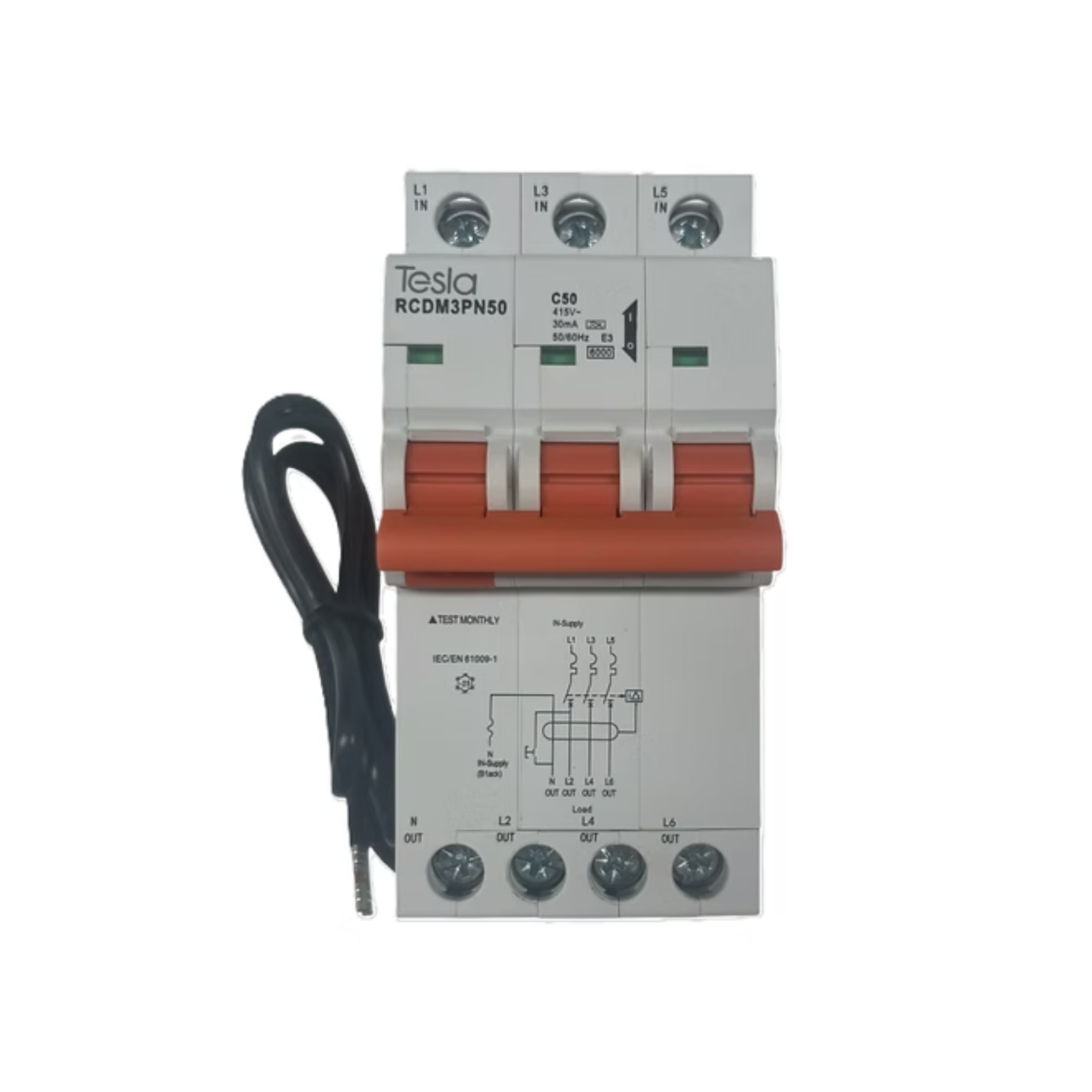

The Tesla RCDM3PN50 is a 3P+N RCBO rated at 50 amps. C curve overcurrent protection and 30 mA Type A residual current sensing share a single 53 mm body, covering both duties on one three phase circuit. A 900 mm neutral lead is supplied with the unit.

Key Features

• Rated current: 50 A
• Number of poles: 3P+N
• Poles switched: active only
• Curve type: C curve
• Breaking capacity: 6000 A
• Rated operating current: 30 mA
• Residual current type: A Type
• Rated voltage: 400/415 V AC
• Rated frequency: 50/60 Hz
• Width: 53 mm, three module
• Mounting: 35 mm DIN rail
• IP degree: IP20
• Dielectric strength: 2500 V
• Cable termination: 25 mm2
• Terminal tightening torque: 2.5 Nm
• Length of neutral lead: 900 mm

Secure yours now for fast dispatch Australia-wide.

Why it Matters

Both protective functions in one body

An RCBO carries out the work of two devices. Overcurrent protection and residual current detection sit inside the same enclosure, sharing one set of terminals and one operating handle. At 50 A that puts overload protection and earth leakage protection on the same three phase circuit under a single point of isolation. Whichever fault occurs, the device that operated is the device protecting that circuit. Overcurrent and earth leakage are two separate fault conditions, and this unit answers both from one position on the rail. Rated supply is 400/415 V AC at 50 or 60 Hz.

How the neutral is handled

Switching on this unit applies to the three active poles. Neutral itself is left unswitched. A neutral lead measuring 900 mm leaves the body and terminates at the neutral bar, so allow for routing and landing it when the board is set out.

C curve behaviour at fifty amps

A C characteristic rides out the momentary current surge produced when motors, transformers or switch-mode supplies energise, then trips on a sustained overload. Fifty amps is the highest rating published for this three phase range. Type A sensing picks up sinusoidal AC residual current together with pulsating DC residual current, the category that becomes relevant once electronic control gear sits on the load side. Sensitivity is fixed at 30 mA, the rated operating current published for every model in this range. Interrupting capacity is 6000 A, and confirming that figure against the fault level present at the installation stays a design responsibility.

Board layout and termination

The body occupies three modules, measures 53 mm across and clips onto 35 mm DIN rail. Its IP20 rating puts it inside an enclosed switchboard. Terminals accept conductors to 25 mm2, and the published figure for tightening them is 2.5 Nm, which a torque screwdriver will repeat pole to pole. A dielectric strength of 2500 V is specified. Every current rating in this range, 10 A up to 50 A, is built on the same three module body, so module count on a schedule holds steady as ratings change. Units are supplied singly, packed 20 to an outer carton.

What is the Tesla RCDM3PN50 rated at?
It is rated 50 A on a C curve in a 3P+N configuration at 400/415 V AC, with 6000 A breaking capacity and 30 mA A Type residual current sensing.

Does the Tesla RCDM3PN50 switch the neutral?
No. Only the three active poles are switched. A 900 mm neutral lead is provided for termination at the neutral bar.

How wide is the Tesla RCDM3PN50 on the rail?
It measures 53 mm across and takes up three modules on 35 mm DIN rail. The IP20 rating means it belongs inside an enclosed board.
