SAL Premier S9074TC/WH/DP 15/20W LED Downlight 160mm Tri-CCT

Description

15W/20W dual power. Selectable CCT. 160mm cut-out. Premier downlight for residential and commercial.

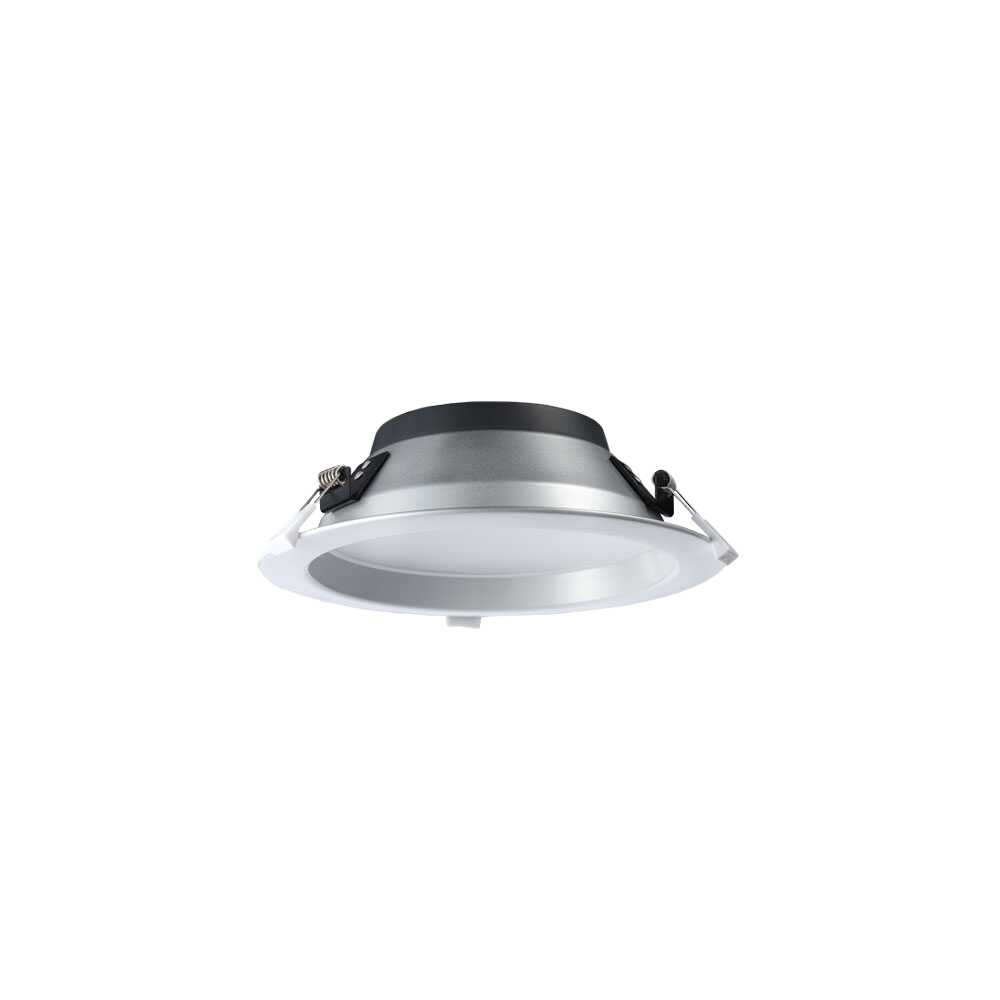

The SAL S9074TC/WH/DP is a 15W/20W dual-power recessed LED downlight with selectable colour temperature (3000K / 4000K / 5700K), a premium white powder-coated aluminium body, recessed opal polycarbonate diffuser, CA-90 insulation contact rating, IP64 moisture resistance, and a remote non-dimmable LED driver with flickerCONTROL technology and flex and plug — from the SAL Premier range. At 20W full power, the fitting delivers up to 1900 lm at 4000K from a 160mm cut-out, 200mm overall diameter fitting. The dual-power selector lets the installer choose between 15W economy and 20W full output; the CCT selector sets the colour temperature — all configured before commissioning.

• Power: 15W or 20W (selectable dual-power driver)
• Lumens at 20W: 1600 lm (3000K) / 1900 lm (4000K) / 1700 lm (5700K)
• CCT: Selectable 3000K / 4000K / 5700K
• CRI: 80
• Beam Angle: 90°
• Cut-out Diameter: 160mm
• Overall Diameter: 200mm | Height: 68mm
• IP Rating: IP64
• Insulation Rating: CA-90 (IC-4 equivalent)
• Dimmable: No (DP non-dimmable driver supplied)
• Driver: Remote non-dimmable, flickerCONTROL, flex and plug
• Body: Premium aluminium, white powder coat
• Lamp Life: 51,000 hours (L70)
• Power Factor: >0.9
• IPART approved

Important: Set power (15W/20W) and CCT before energising. Non-dimmable — do not connect to a wall dimmer. Must be installed by a licensed electrician in accordance with AS/NZS 3000.

Fast shipping across Australia — order online now for quick dispatch.

Dual Power and Selectable CCT — One Fitting, Multiple Applications

The S9074TC/WH/DP has two configuration switches that must be set before the fitting is commissioned. The power selector chooses between 15W economy mode and 20W full output — allowing the installer to match the lumen output to the room size and ceiling height. The CCT selector sets the colour temperature: 3000K Warm White for residential living areas, dining rooms, and hospitality; 4000K Cool White for kitchens, bathrooms, and commercial offices — the most popular CCT for Australian residential and commercial applications; and 5700K Daylight for maximum visual clarity in commercial and retail environments. Once set, both selections are fixed until the fitting is de-energised and the switch is adjusted again.

CA-90 rated and IP64 — insulated ceilings and wet areas covered.

The CA-90 insulation contact rating (IC-4 equivalent) means the fitting can be covered by standard thermal insulation batts in residential ceilings without creating a fire risk — eliminating the need for insulation clearance around the downlight. The IP64 rating provides full dust-tight protection and water splash resistance from any direction, making this fitting suitable for bathroom Zone 2 and Zone 3 installations, laundries, and covered exterior locations. Always confirm the specific zone and IC requirements with a licensed electrician prior to installation.

flickerCONTROL — reduced flicker for occupant comfort.

The remote LED driver incorporates SAL flickerCONTROL technology, reducing light output flicker to levels below the thresholds associated with headaches and photosensitive conditions. This is particularly relevant in commercial offices and retail environments where occupants are exposed to artificial lighting for extended periods.

Q: Can I install this in a bathroom?
A: Yes — IP64 provides full dust-tight protection and water splash resistance from any direction, making it suitable for bathroom Zone 2 and Zone 3 installations in Australian homes. Always confirm IP zone requirements with a licensed electrician before installation.

Q: Can I install this over insulation?
A: Yes — the CA-90 (IC-4 equivalent) insulation contact rating means the fitting can be covered by standard thermal insulation batts in residential ceilings. Always refer to the SAL installation instructions for specific insulation coverage limits and confirm with a licensed electrician.

Q: Is this dimmable?
A: No — the S9074TC/WH/DP is supplied with a non-dimmable remote LED driver. A dimmable HP version with optional trailing edge, 1-10V, or DALI/DSI control is available — see the S9074TC/WH/HP.
