Pro-Vision PRDL-302TAC 30W LED Downlight 3CCT Dimmable IP44 160-170mm Cut-Out 2490lm CRI Above 83

Description

Thirty watts of output, deep dimming, three colours, one downlight.

The Pro-Vision PRDL-302TAC is a 30W tri-colour LED downlight built for large rooms and high ceilings, pushing up to 2490 lumens and dimming right down to 5 percent. It drops into a 160 to 170mm aperture, so a handful of them cover the same floor area that a full grid of small downlights would need.

Key Features

• 30W power draw, up to 2490 lumens output
• Dimmable across a 5–100% range
• 3CCT selectable: 3000K / 4000K / 6000K
• Output rated per colour: 2400lm / 2490lm / 2450lm
• Large 160–170mm adjustable cut-out

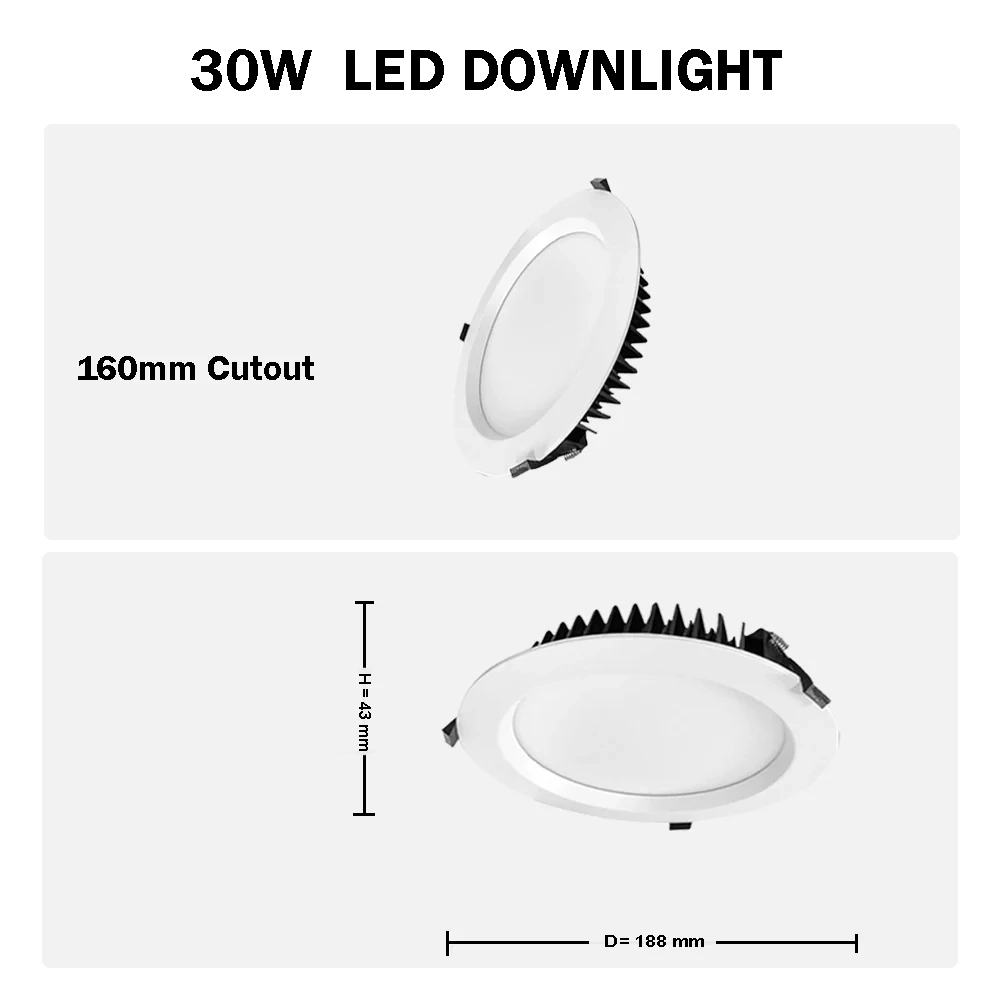

• 188mm face diameter, 43mm depth
• CRI >83, 120° beam angle
• 2835 SMD LED
• Power factor ≥0.9
• IP44 rated
• External driver supply
• Input AC 200–240V, 50/60Hz
• >50,000 hour rated lifespan, 3 year warranty

Add to cart now for fast dispatch Australia-wide.

Coverage the Small Fittings Cannot Reach

Thirty watts and a 188mm face put this in a different job to a standard residential downlight. Where a raked living room, a stairwell void, a warehouse office or a large open-plan retail floor would otherwise call for a whole dense grid of small fittings, a smaller number of these carries the same lux at the working plane. That means fewer holes, fewer terminations, less ladder time. The 160 to 170mm aperture is worth checking against your ceiling first, since it sits well past the residential norm and needs joist clearance a small hole never would.

Three Colours, Measured at Each One

Pro-Vision publishes an output figure for every colour setting rather than one headline number: 2400 lumens at 3000K, 2490 at 4000K and 2450 at 6000K. That matters when you are calculating a room, because tri-colour fittings often lose output at the warm end and the spec sheet rarely says by how much. Here the spread is under 4 percent, so switching between warm, neutral and cool barely moves the light level. Colour rendering sits above CRI 83, which lifts it clear of the bargain-bin tier and keeps finishes, joinery and stock reading true.

Dimming Down to Five Percent

The dimming range runs from full output to 5 percent, which is deeper than most tri-colour downlights manage and enough to hold a genuine low ambient level rather than simply going dim then dropping out. Pair that with the tri-colour switch and one part number covers a boardroom on presentation mode, a function room at dinner service and a warehouse office at full lift. IP44 covers ingress from objects down to 1mm across plus splashing off every side. Rated life runs past 50,000 hours, efficiency stays put with a power factor no lower than 0.9, and three years of warranty sits behind the unit. Install to AS/NZS 3000 and confirm clearances for the ceiling construction involved.

What size ceiling opening does the Pro-Vision PRDL-302TAC need?
Between 160mm and 170mm. That is a large aperture by residential standards, so check joist and truss positions before cutting. The fitting face measures 188mm across, which gives roughly 9mm of trim overlap on a 170mm hole.

How far down will this downlight dim?
To 5 percent of full output. No dimmer topology is published for this model, so cross-check the luminaire against whatever wall dimmer you intend to run it on, including its LED load rating and approved-fixture list, before the circuit goes in.

Does the PRDL-302TAC have a built-in driver?
No, Pro-Vision specifies external driver supply. The gear mounts away from the luminaire instead of inside it, so plan a spot for it in the ceiling void on top of the 43mm the fitting itself occupies.
