Pro-Vision PVDF-1301TAC 13W Super Slim LED Downlight 3CCT Dimmable IP44 90-110mm Cut-Out 26mm

Description

Super slim, fully dimmable, three colours in one low-profile fitting.

The Pro-Vision PVDF-1301TAC packs 13W of tri-colour LED output and a full 10 to 100 percent dimming range into a body only 26mm tall. It suits renovation and fit-out work where the ceiling void is too shallow for a standard luminaire but the room still needs proper light-level control at the dimmer.

Key Features

• 13W power draw, 950–1050 lumens output
• Dimmable across a 10–100% range
• 3CCT selectable: 3000K / 4000K / 6000K
• Super slim 26mm overall height, 130mm face diameter
• Adjustable 90–110mm cut-out
• Samsung SMD LED chip
• CRI >80, 120° beam angle
• Power factor ≥0.9
• IP44 rated
• External driver supply
• Input AC 200–240V, 50/60Hz
• >50,000 hour rated lifespan, 3 year warranty

Secure yours online now for fast dispatch Australia-wide.

Dimming Without the Depth

Low-profile downlights usually make you give something up, and dimming is normally first out the door. Not here. A 26mm overall height drops the PVDF-1301TAC into ceiling voids no deeper luminaire can occupy, while the 10 to 100 percent range still winds the light back for evening living areas, bedrooms and hospitality spaces. That pairing earns its place on renovations, apartment fit-outs and upper-storey work where the plenum above the plasterboard runs shallow, congested with insulation and ducting, or both. One planning note: the driver mounts outside the fitting body, so set aside a position for it during rough-in.

Samsung Chip, Three Colours, One Part Number

A Samsung SMD LED drives the light engine, delivering 950 to 1050 lumens off 13 watts with colour rendering above CRI 80 and an even 120 degree spread rather than a tight beam. Colour temperature is selectable on the unit itself across 3000K, 4000K and 6000K. Warm 3000K reads well in lounges and bedrooms, neutral 4000K handles kitchens and offices, and cool 6000K gives crisp task light for garages and workshops. One part number therefore covers the whole job. The cut-out runs from 90mm through to 110mm, so both common aperture sizes are covered and a like-for-like swap rarely needs the hole saw.

Where the IP44 Rating Takes It

IP44 puts this fitting in dust- and splash-protected territory: sealed against solid bodies over 1mm and water thrown from any angle. That covers standard interior ceilings plus rooms where steam or spray is routine. Service life backs it up at more than 50,000 rated hours, a figure that counts for far more across a rental portfolio or commercial ceiling grid than in a single room. Efficiency holds at a power factor of at least 0.9, and a full three years of warranty cover comes with every unit sold. Install to AS/NZS 3000 and respect the clearance rules for the ceiling construction involved.

Is the Pro-Vision PVDF-1301TAC dimmable, and how far down does it go?
Yes. Pro-Vision specifies a 10 to 100 percent range, so output winds back to roughly a tenth of full. No dimmer topology is nominated for this model, so check it against your dimmer's own LED load rating and compatibility list first.

What size ceiling hole does this downlight fit?
Anything from 90mm to 110mm. It covers that full 20mm window rather than one fixed aperture, taking in both common openings used on Australian ceilings. Swapping out an older fitting therefore often works with the hole already in place.

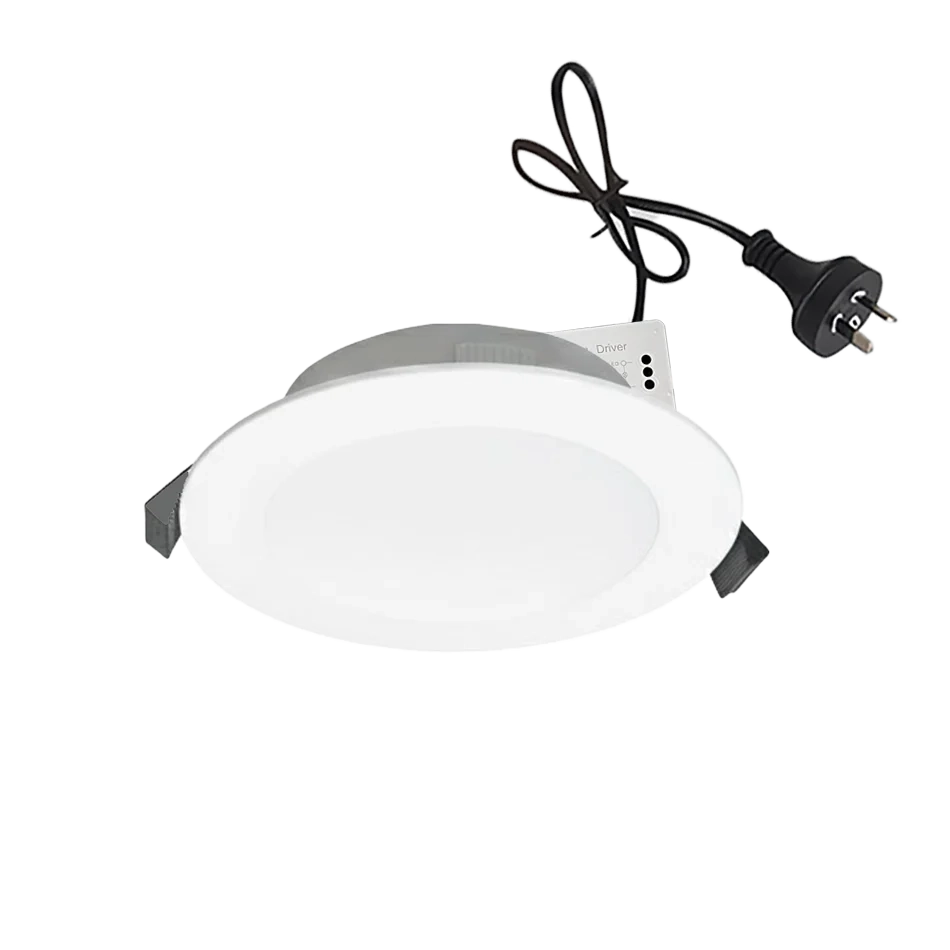

Does the PVDF-1301TAC use a built-in driver?
No. Pro-Vision lists the driver supply as external, so it is a separate unit rather than part of the fitting body. That separation is what allows the 26mm profile, but it does mean finding a mounting position for the driver above the ceiling.
