Pro-Vision PVCL-3601 36W Slim Round LED Oyster Ceiling Light 380mm Tri-Colour IP54 Dimmable White

Description

Serious output from a 26mm ceiling profile.

Shallow ceiling voids and damp rooms usually force a compromise between light output and a fitting that actually fits. The Pro-Vision PVCL-3601 puts 3300 lumens behind an IP54 diffuser only 26mm deep, with three colour temperatures selectable on the fitting itself.

Key Features

• 36W SMD LED, 3200-3300lm depending on colour temperature
• 3CCT changeable: 3000K, 4000K and 6000K
• IP54 protection rating
• Trailing edge dimmable across a 5-100% range

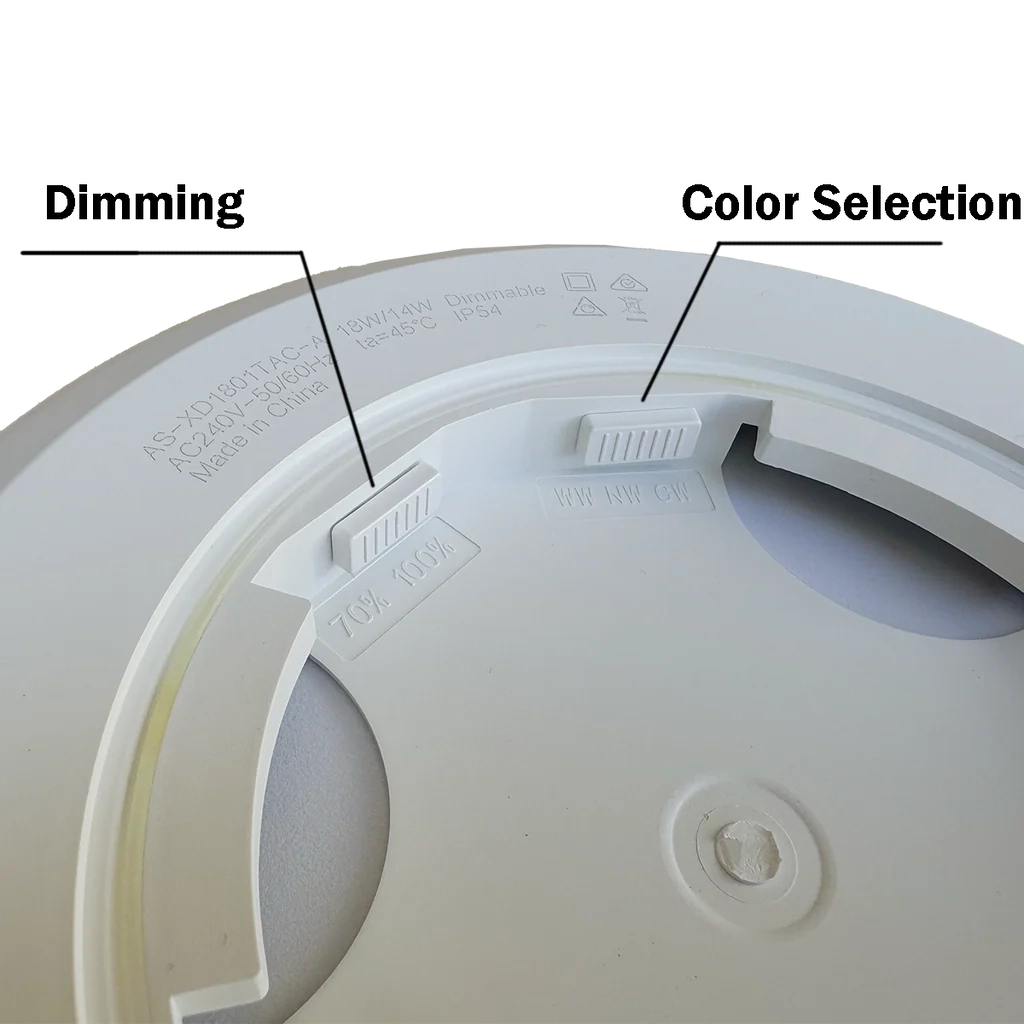

• Power dimming set to 70% or 100% by switch

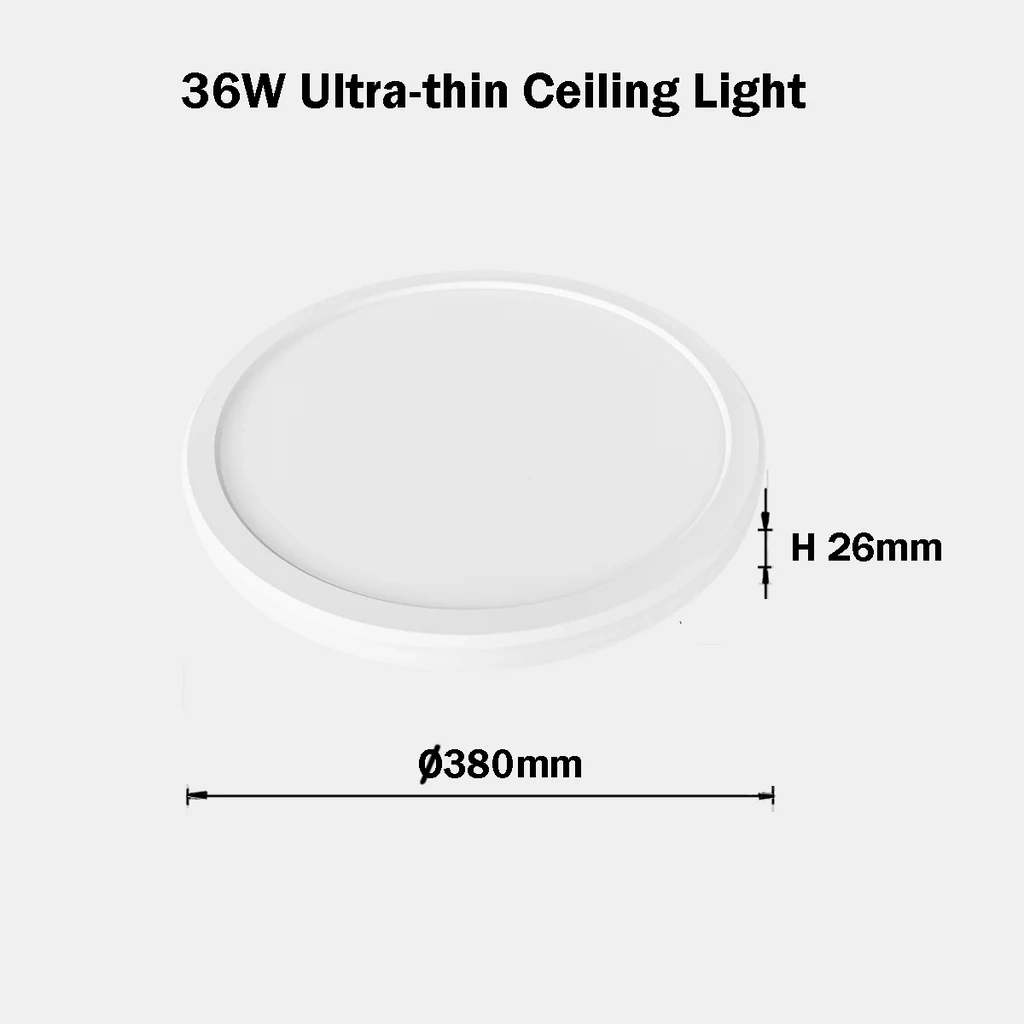

• Ø380mm x 26mm high, ultra-thin round profile
• Polycarbonate housing and diffuser in white
• AC200-240V, 50/60Hz, supply wire in
• CRI greater than 83, power factor 0.9 or better
• 120° beam angle
• Rated lifespan in excess of 30,000 hours
• 3 year warranty

Order online now for fast dispatch Australia-wide.

Three Colour Temperatures, One Part Number

Carrying one oyster instead of three is the practical win here. The PVCL-3601 is switchable between 3000K warm white, 4000K neutral white and 6000K daylight, so the same fitting suits a bedroom, a hallway and a laundry on the one job. Output holds up across all three settings: 3200lm at 3000K, 3300lm at 4000K and 3250lm at 6000K, so the room does not go dim when the client asks for warm white.

That matters on multi-room fitouts, rental refurbishments and body corporate work, where the specification changes after the boxes are already on site and a second trip is money out the door. It also trims what you carry in the van, because one part number covers warm, neutral and daylight requirements across the whole job.

Where the Slim Profile Pays Off

At 26mm deep and 380mm across, this is a flush round fitting rather than a bowl. It suits low ceilings, apartment corridors, garages, sheds and caravan annexes where a deep oyster looks bulky or catches heads. The polycarbonate housing keeps weight down for single-handed installation and shrugs off the knocks that crack glass diffusers.

With an IP54 rating it is protected against dust and against splashing water from any direction, which extends its use into bathrooms, laundries, undercover patios and covered walkways. Always confirm the intended mounting position against the wet area zones in AS/NZS 3000 before installation.

Dimming That Behaves

Two dimming methods are built in. A trailing edge dimmer gives a continuous 5% to 100% range for living areas and bedrooms. Separately, a switch-selected power dimming function fixes output at either 70% or 100%. That is a straightforward way to cut load in corridors and back-of-house spaces without running a dimmer into the circuit at all.

The driver accepts AC200-240V at 50/60Hz with the supply wire in, so it drops onto standard Australian mains without an external driver to find a home for above the ceiling. A 120° beam spreads the output evenly across the room rather than pooling it under the fitting.

Is the PVCL-3601 suitable for a bathroom?
It carries an IP54 rating, covering dust ingress and splashing water from any direction. Check the intended mounting position against the wet area zone requirements in AS/NZS 3000 before you install it.

What dimmer does this oyster light need?
A trailing edge dimmer. The published dimming range is 5% to 100%. A separate power dimming function also lets you set output at 70% or 100% by switch, with no dimmer required on the circuit.

How do you change the colour temperature?
The fitting is 3CCT changeable between 3000K, 4000K and 6000K. Each setting has its own rated output, from 3200lm at 3000K up to 3300lm at 4000K, and the housing stays white in every setting.
