SAL Premier S9075TC/WH/DP 23/30W LED Downlight 195mm Tri-CCT

Description

23W/30W dual power. Selectable CCT. 195mm cut-out. The large-format Premier downlight.

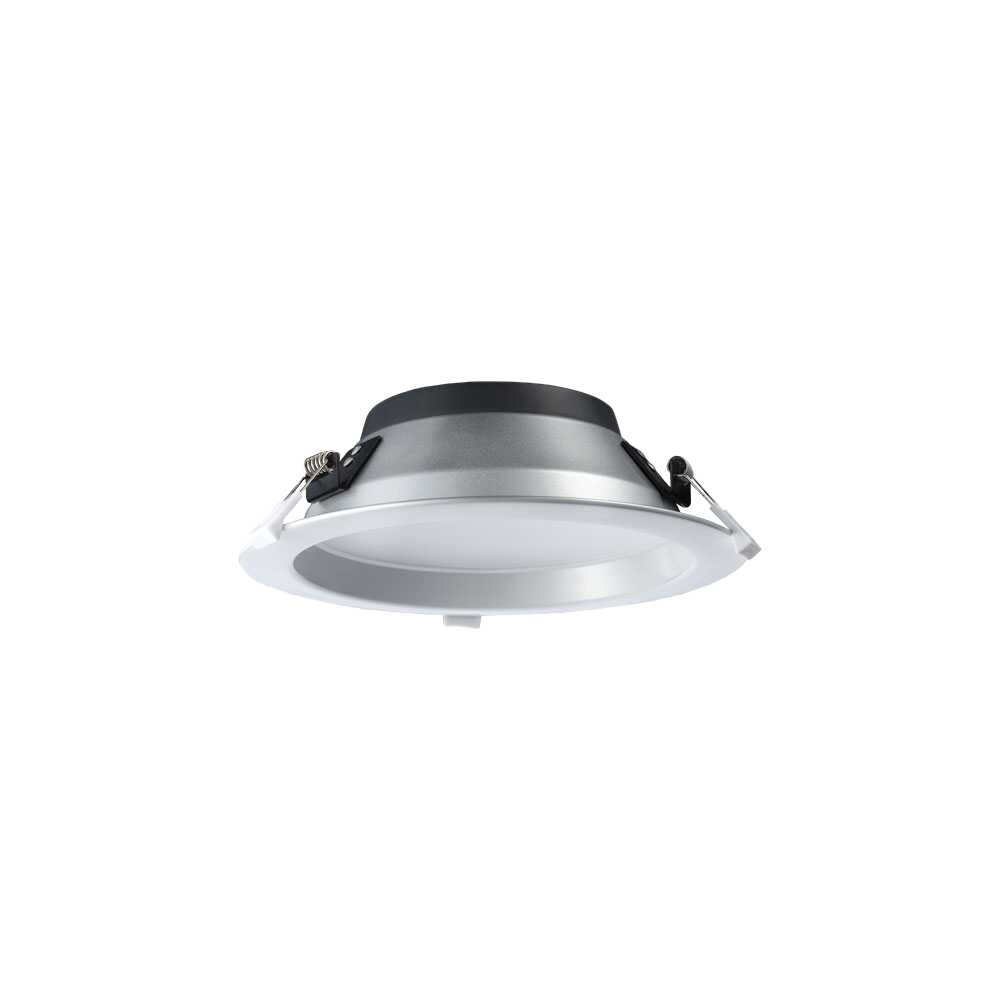

The SAL S9075TC/WH/DP is a 23W/30W dual-power recessed LED downlight with selectable colour temperature (3000K / 4000K / 5700K), a premium white powder-coated aluminium body, recessed opal polycarbonate diffuser, CA-90 insulation contact rating, IP64 moisture resistance, and a remote non-dimmable LED driver with flickerCONTROL technology and flex and plug — from the SAL Premier range. At 30W full power, the fitting delivers up to 3100 lm at 4000K from a 195mm cut-out, 230mm overall diameter fitting — the largest and highest-output size in the S907xTC/DP Premier family. The dual-power selector lets the installer choose between 23W economy and 30W full output; the CCT selector sets the colour temperature — all configured before commissioning.

• Power: 23W or 30W (selectable dual-power driver)
• Lumens at 30W: 2600 lm (3000K) / 3100 lm (4000K) / 2800 lm (5700K)
• CCT: Selectable 3000K / 4000K / 5700K
• CRI: 80
• Beam Angle: 90°

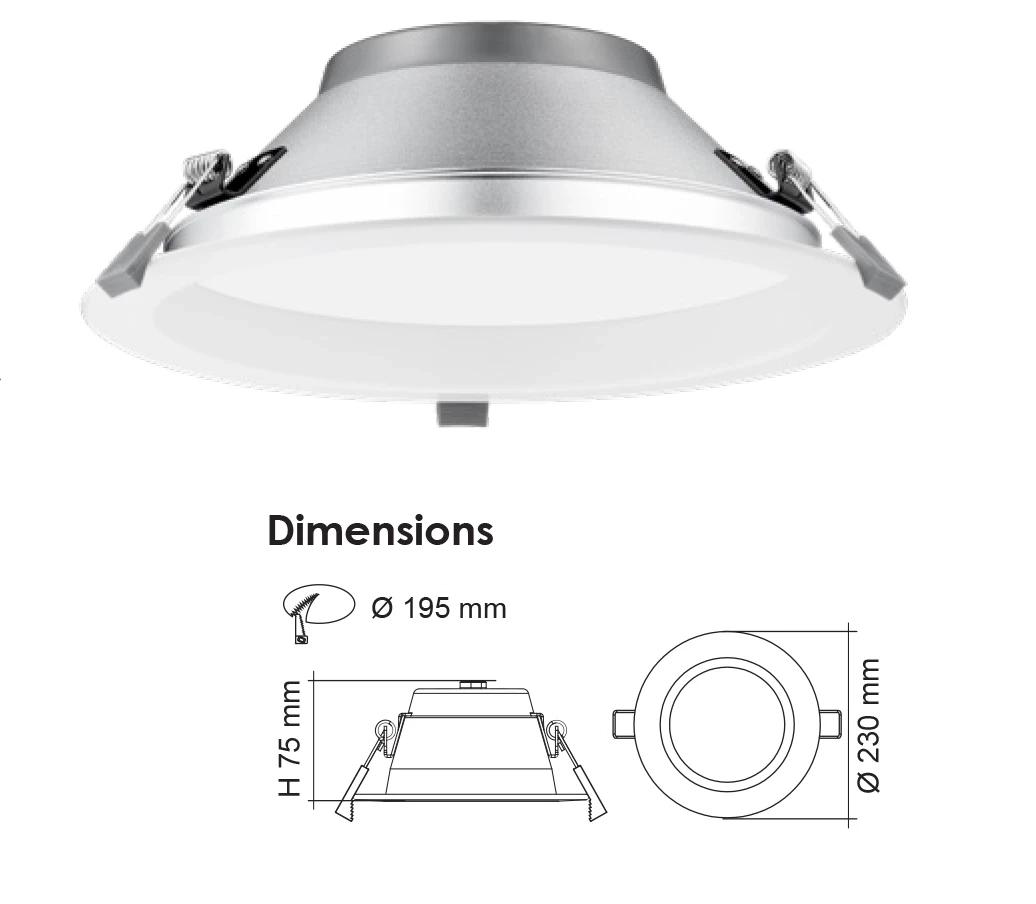

• Cut-out Diameter: 195mm
• Overall Diameter: 230mm | Height: 75mm
• IP Rating: IP64
• Insulation Rating: CA-90 (IC-4 equivalent)
• Dimmable: No (DP non-dimmable driver supplied)
• Driver: Remote non-dimmable, flickerCONTROL, flex and plug
• Body: Premium aluminium, white powder coat
• Lamp Life: 51,000 hours (L70)
• Power Factor: >0.9
• IPART approved

Important: Set power (23W/30W) and CCT before energising. Non-dimmable — do not connect to a wall dimmer. Must be installed by a licensed electrician in accordance with AS/NZS 3000.

Fast shipping across Australia — order online now for quick dispatch.

Dual Power and Selectable CCT — One Fitting, Multiple Applications

The S9075TC/WH/DP has two configuration switches that must be set before commissioning. The power selector chooses between 23W economy mode and 30W full output — allowing the installer to match the lumen output to the room size and ceiling height. The CCT selector sets the colour temperature: 3000K Warm White for residential living areas, dining rooms, and hospitality; 4000K Cool White for kitchens, bathrooms, and commercial offices — the most popular CCT for Australian applications; and 5700K Daylight for maximum visual clarity in commercial and retail environments. Once set, both selections are fixed until the fitting is de-energised and the switch is adjusted again.

CA-90 rated and IP64 — insulated ceilings and wet areas covered.

The CA-90 insulation contact rating (IC-4 equivalent) means the fitting can be covered by standard thermal insulation batts in residential ceilings without creating a fire risk — eliminating the need for insulation clearance. The IP64 rating provides full dust-tight protection and water splash resistance from any direction, making this fitting suitable for bathroom Zone 2 and Zone 3 installations, laundries, and covered exterior locations. Always confirm the specific zone and IC requirements with a licensed electrician prior to installation.

flickerCONTROL — reduced flicker for occupant comfort.

The remote LED driver incorporates SAL flickerCONTROL technology, reducing light output flicker to levels below the thresholds associated with headaches and photosensitive conditions — particularly relevant in commercial offices, retail, and hospitality environments where occupants are exposed to artificial lighting for extended periods.

Q: Can I install this in a bathroom?
A: Yes — IP64 provides full dust-tight protection and water splash resistance from any direction, making it suitable for bathroom Zone 2 and Zone 3 installations in Australian homes. Always confirm IP zone requirements with a licensed electrician before installation.

Q: Can I install this over insulation?
A: Yes — the CA-90 (IC-4 equivalent) insulation contact rating means the fitting can be covered by standard thermal insulation batts in residential ceilings. Always refer to the SAL installation instructions for specific insulation coverage limits and confirm with a licensed electrician.

Q: Is this dimmable?
A: No — the S9075TC/WH/DP is supplied with a non-dimmable remote LED driver. A dimmable HP version with optional trailing edge, 1-10V, or DALI/DSI control is available — see the S9075TC/WH/HP.
