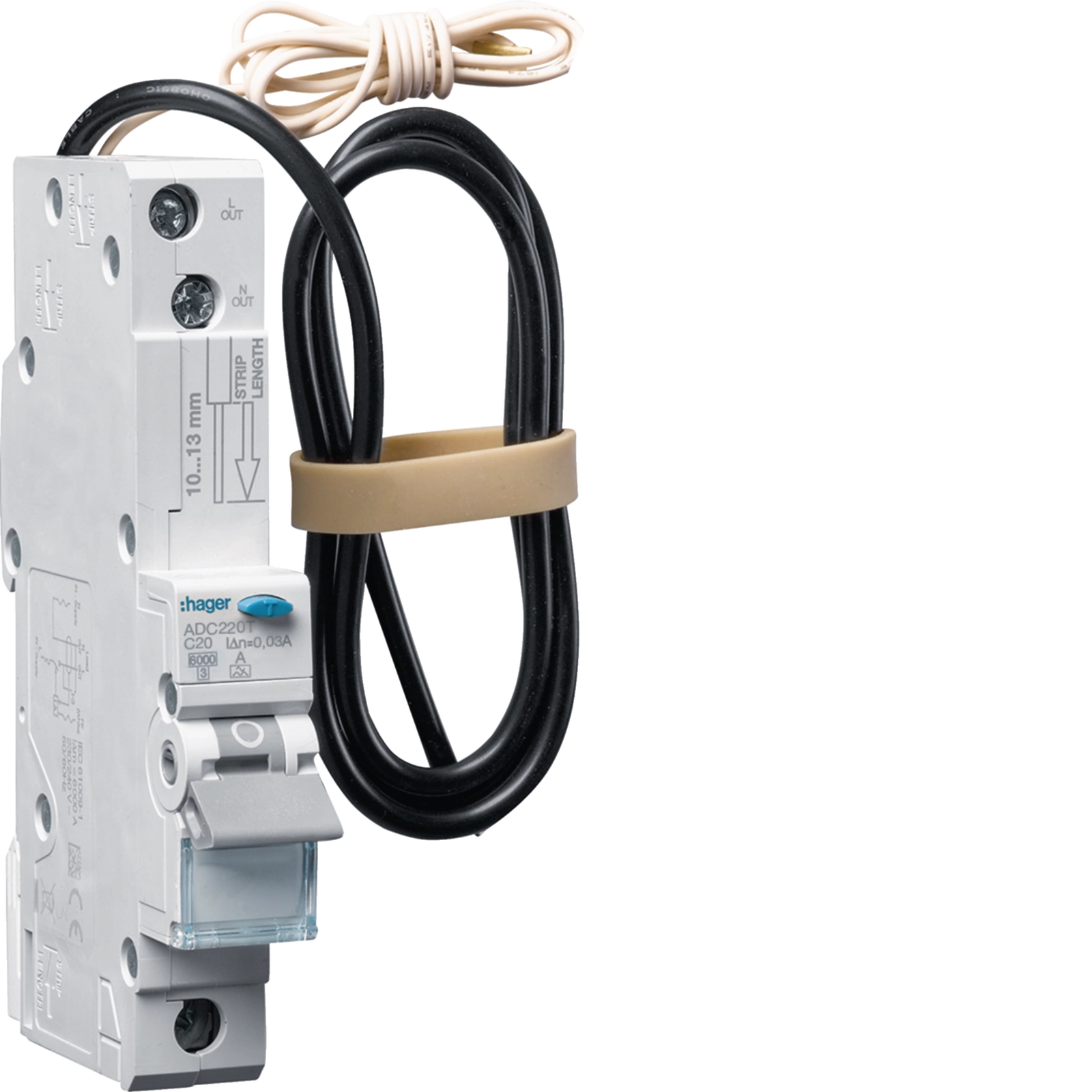

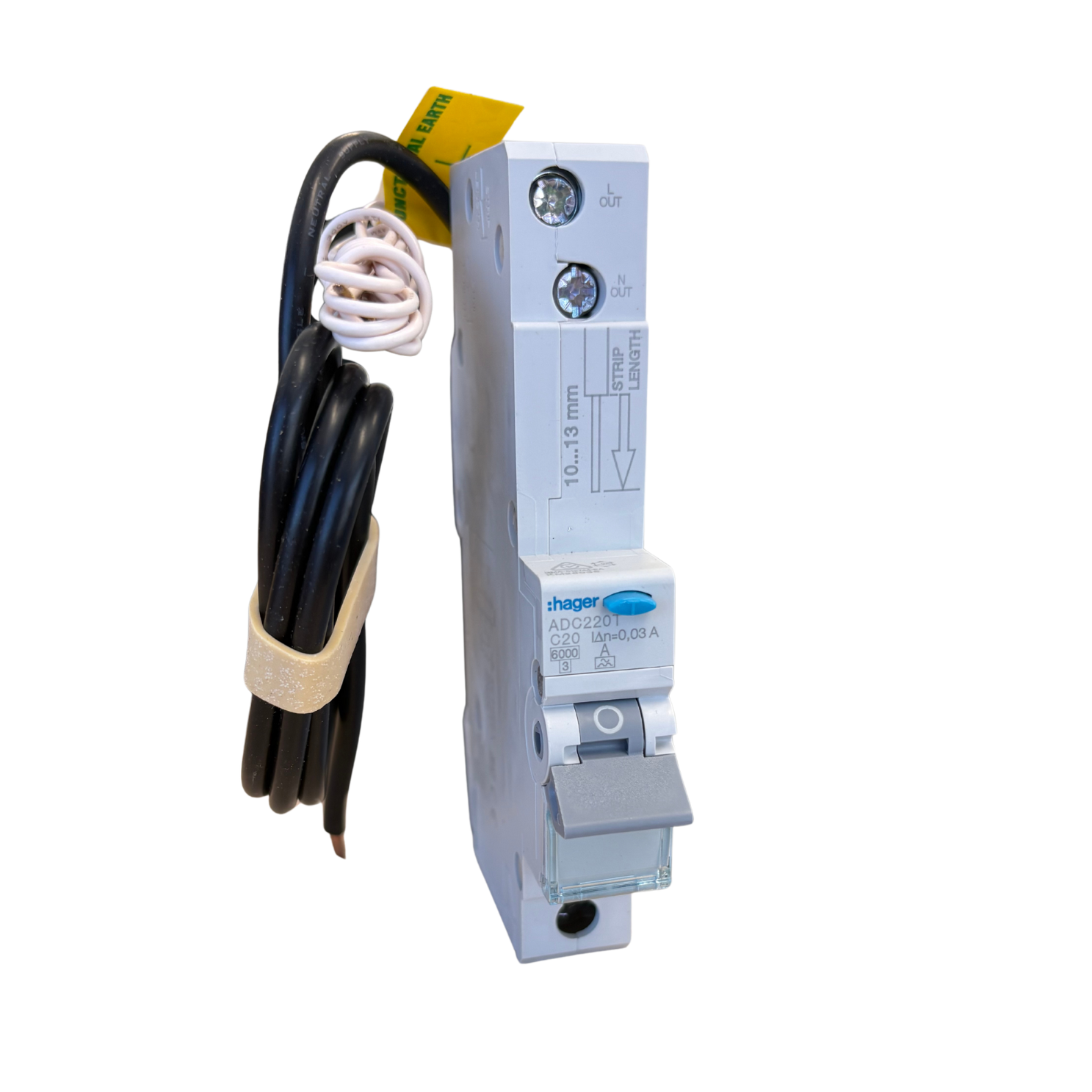

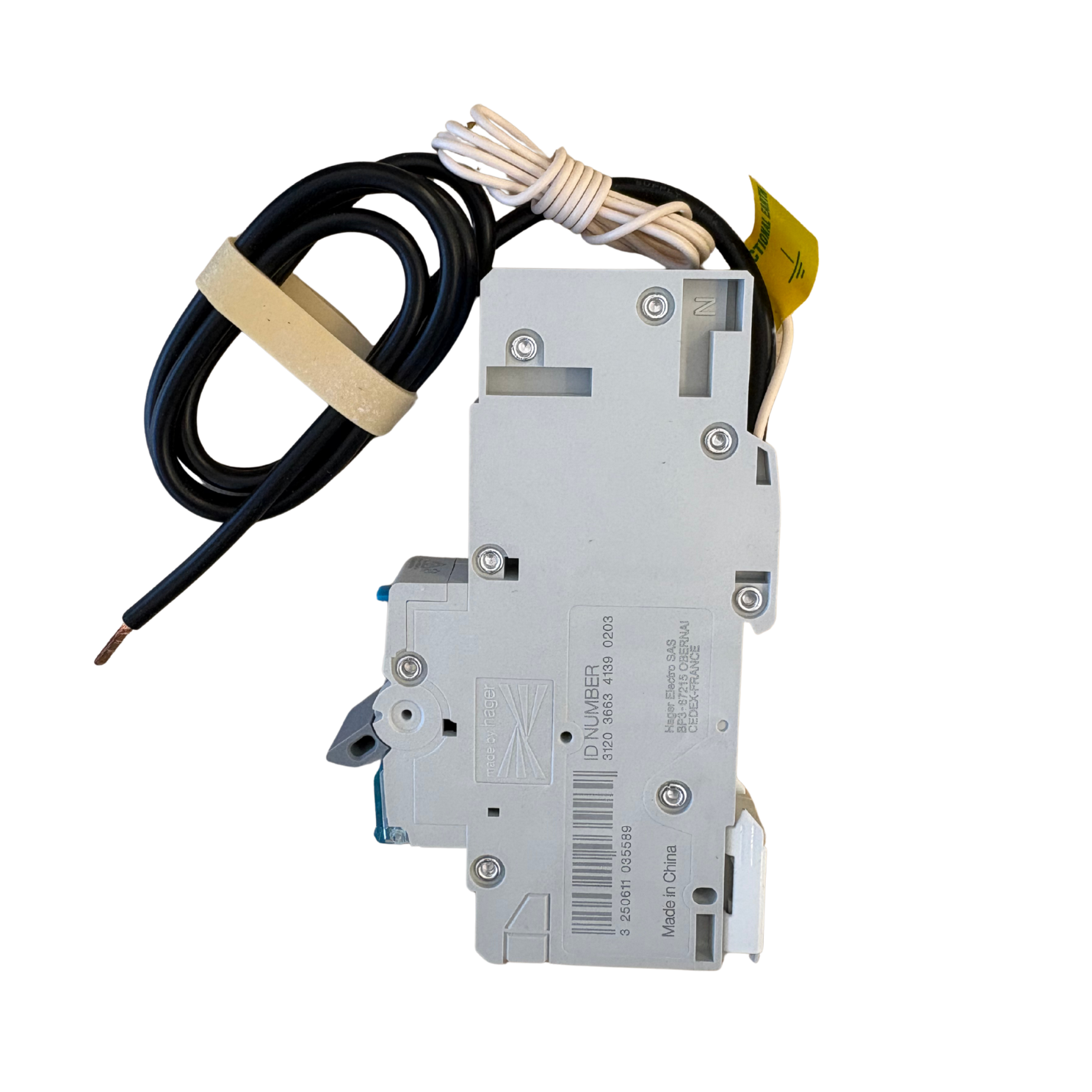

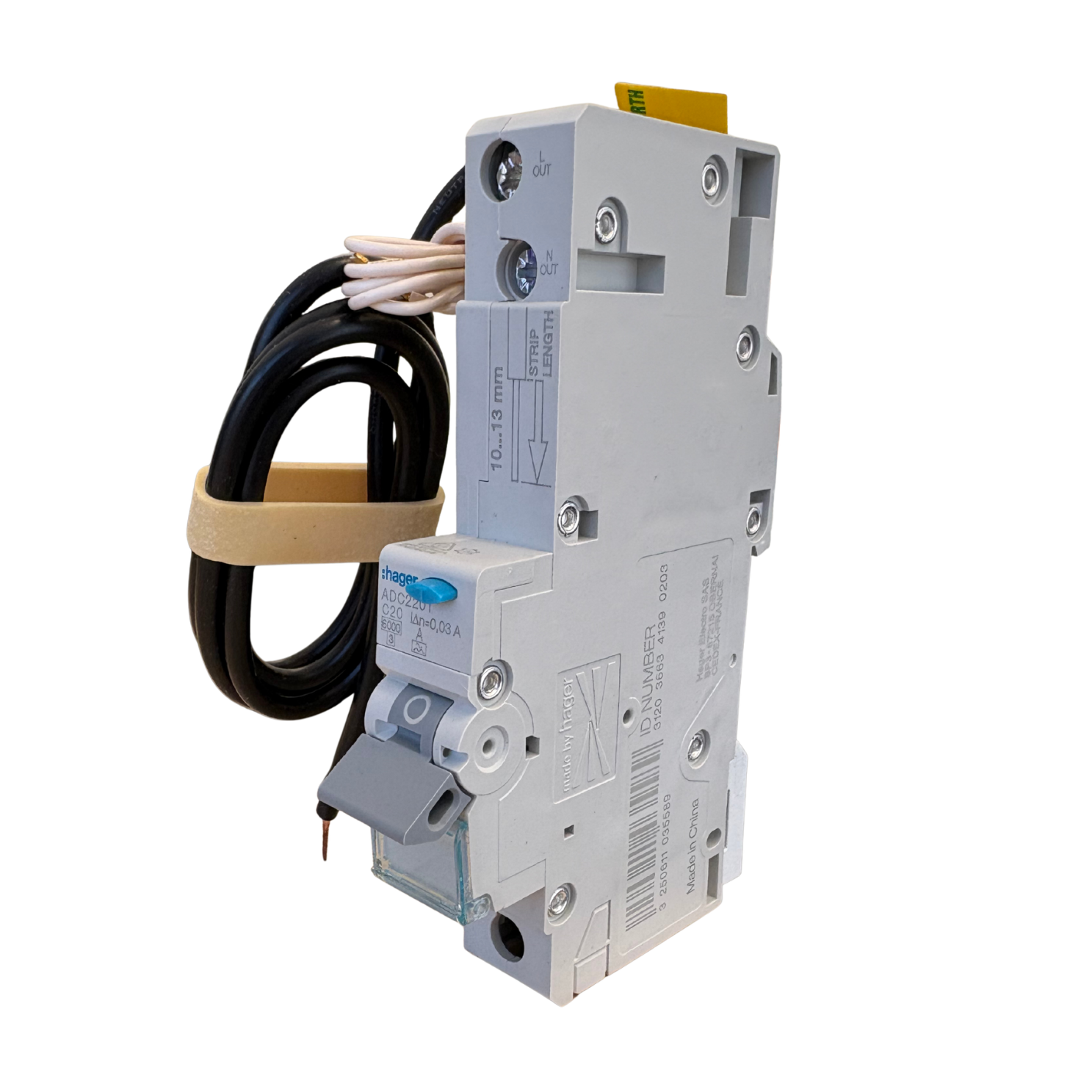

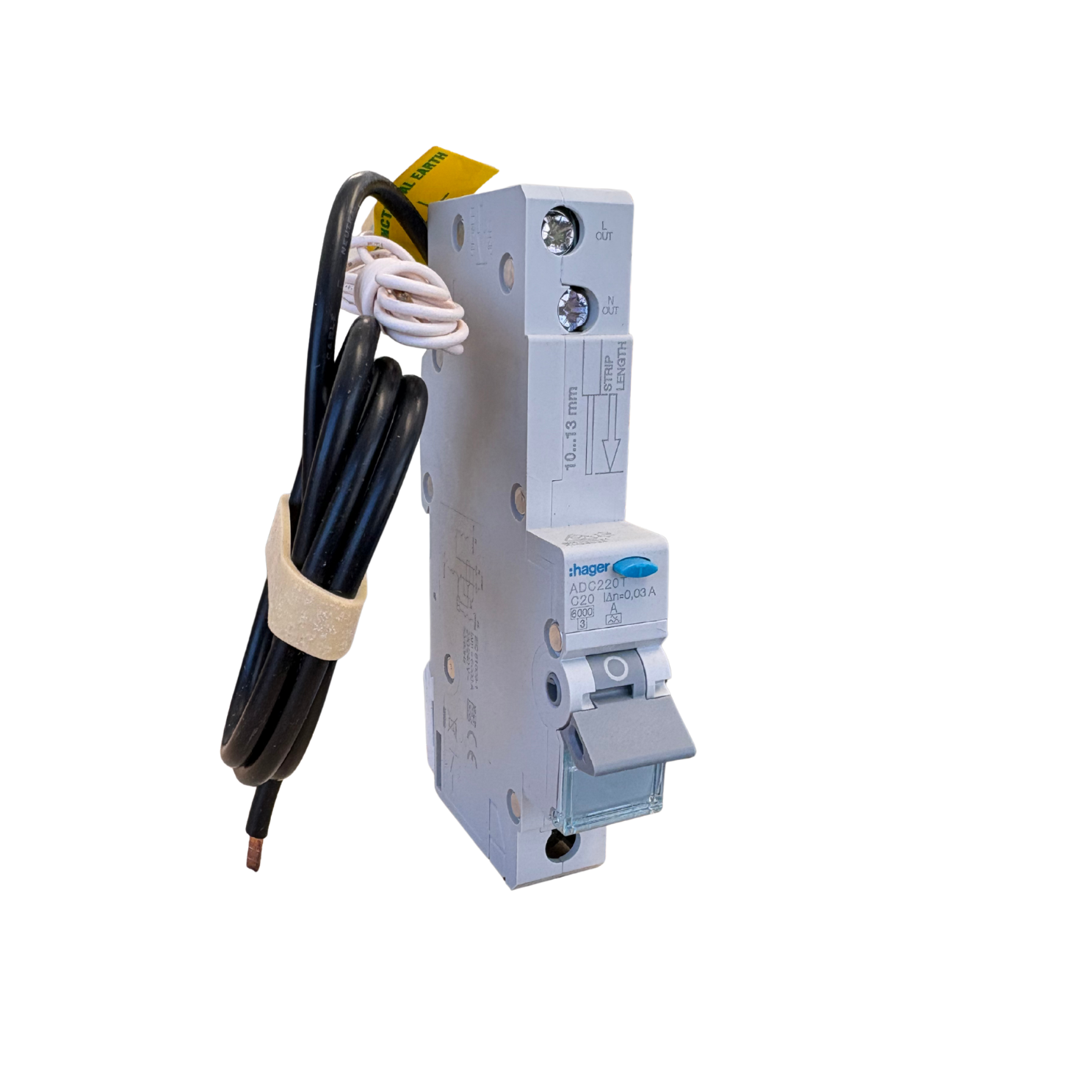

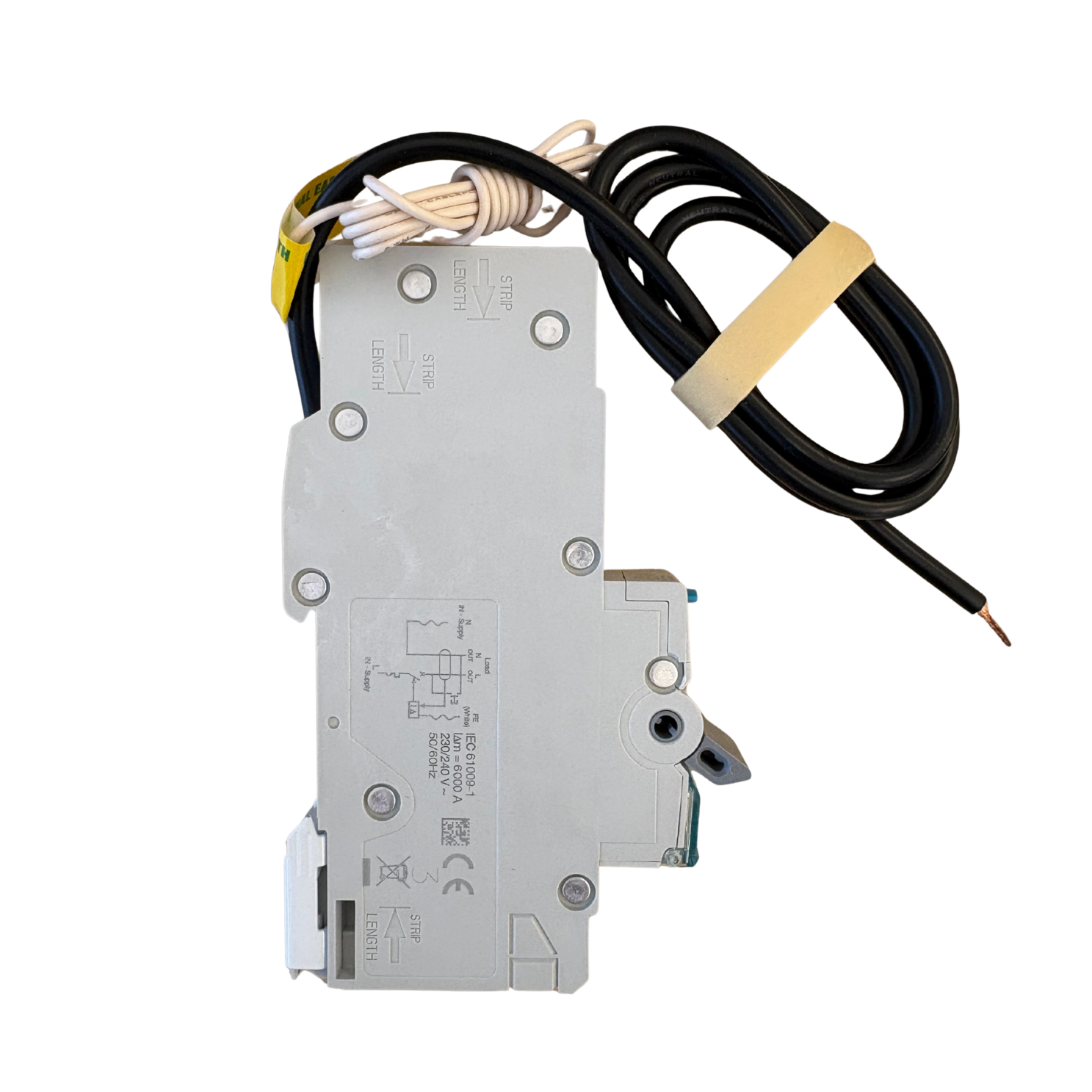

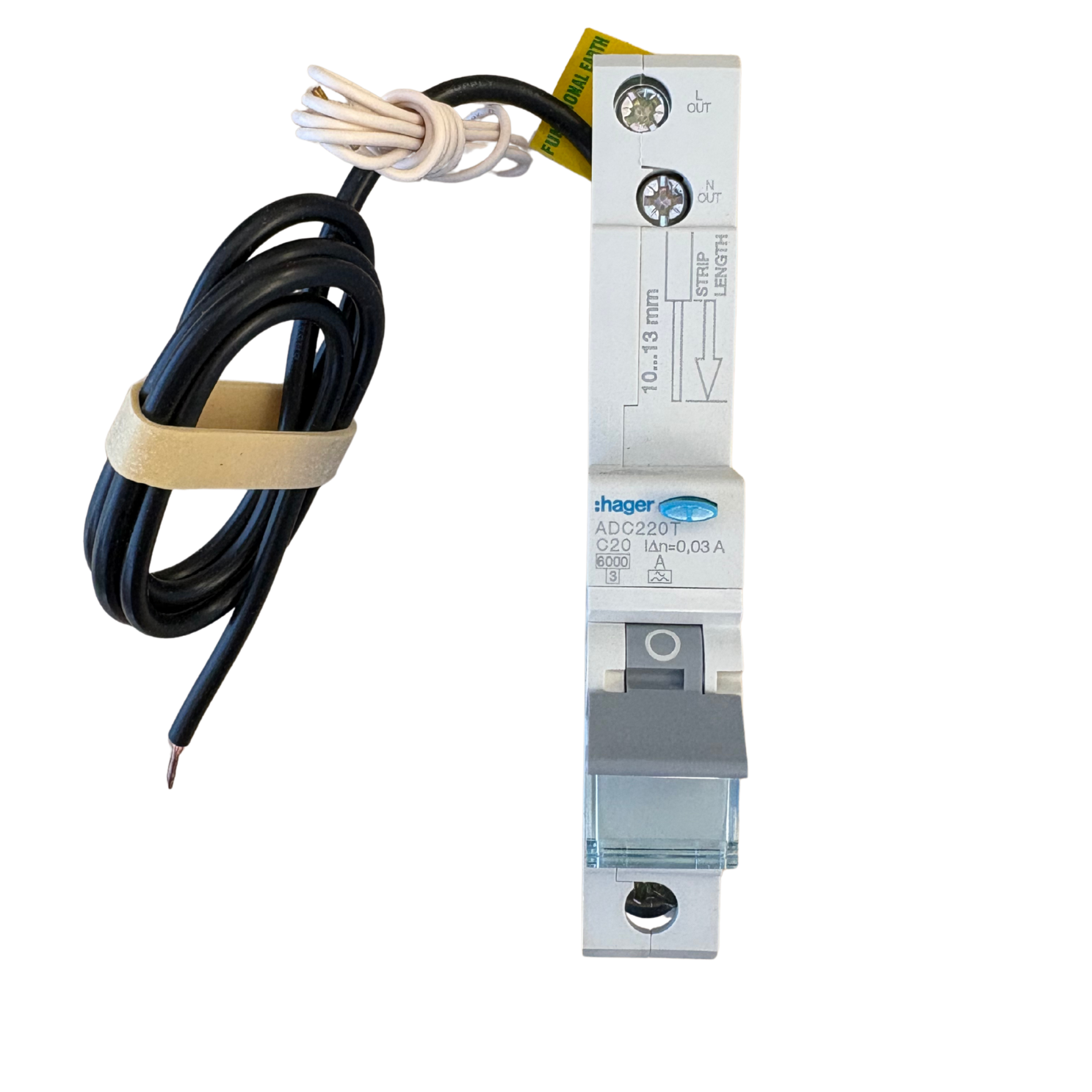

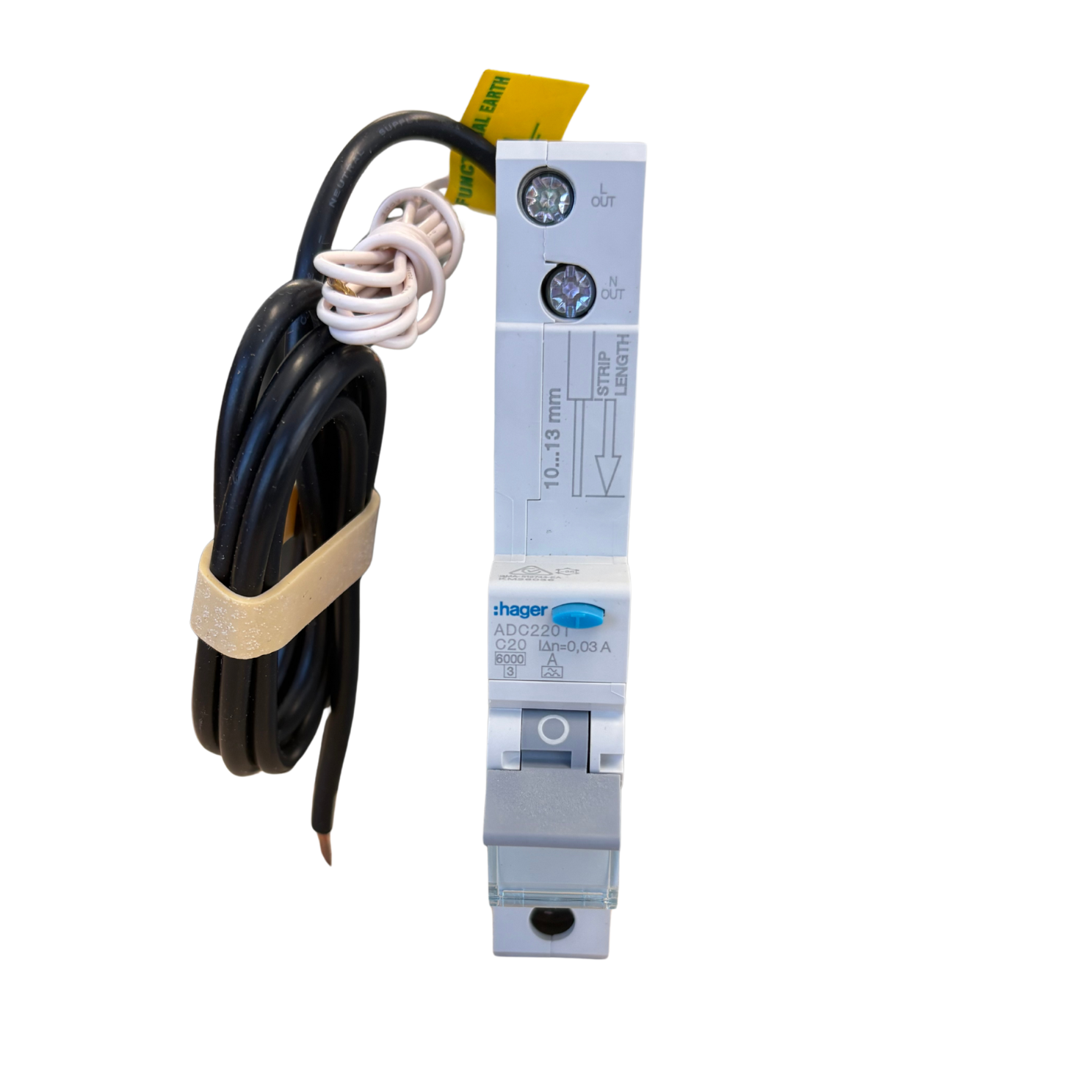

Hager ADC220T 20 Amps 1 Pole RCBO Safety Switch 6kA 30mA Type A C Curve 1 Module DIN Rail 230-240V

Description

Full RCBO protection in a single module.

The Hager ADC220T combines overload, short circuit and earth leakage protection in one 17.8 mm wide device. It solves the oldest problem in switchboard work: finding rail space to add protection to an existing board without upgrading the enclosure.

Key Features

• Hager ADC220T single pole RCBO, 1 module (17.8 mm) wide
• 20 A rated current, C curve tripping characteristic
• 30 mA rated residual operating current, Type A
• 6 kA rated short circuit breaking capacity (Icn, IEC 60898-1)
• 230 - 240 V AC rated operational voltage, 50 - 60 Hz
• Rated impulse withstand voltage 4 kV, energy limitation class 3
• Screw terminal top, BIconnect bottom connection
• Accepts 1 - 25 mm² solid or 1 - 16 mm² flexible conductors
• Mounts on symmetrical (type O) 35 mm DIN rail, IP20
• 10,000 mechanical operations, 2,000 electrical cycles
• Power dissipation 6.50 W at rated current
• Manufactured to EN 61009-1, RoHS conform

Secure yours now - in stock and dispatched Australia-wide within 24 hours.

One Module, No Board Upgrade

Most RCBOs eat two modules of rail. The ADC220T needs one. On a full domestic or light commercial board that is the difference between adding a circuit and replacing the enclosure. Height is 115 mm and depth 70 mm, so it sits within standard flush and surface switchboard cavities.

The top terminal is a conventional screw connection and the bottom uses Hager's BIconnect arrangement, so devices land in line with the rest of a Hager modular assembly rather than fighting it.

Type A Sensing for Electronic Loads

Type A residual current devices detect sinusoidal AC earth leakage and pulsating DC earth leakage. Type AC devices detect only the former. As switch mode power supplies, LED drivers, inverters and speed controllers spread through Australian homes and workplaces, Type A has become the practical baseline for final subcircuit protection. The ADC220T trips at 30 mA residual current.

Rated for Australian Conditions

Rated operational voltage is 230 - 240 V at 50 - 60 Hz, matching the Australian supply. Hager publishes a full derating curve for this device: 20 A at 30 °C ambient, 19.05 A at 40 °C and 17.15 A at 60 °C. That matters in roof spaces, plant rooms and unventilated meter boxes where board temperatures climb well past nameplate assumptions. Storage and transport range is -40 to 70 °C, and the device is rated to 2000 m altitude with pollution degree 2.

Q: Is the Hager ADC220T a single pole or double pole RCBO?
A: It is a 1 pole device with one protected pole in a single 17.8 mm module, with the neutral position on the right. If you need the 1P+N version at the same 20 A rating, that is the Hager ADC920T.

Q: What does the Type A rating on the ADC220T mean?
A: Type A means the RCBO responds to sinusoidal AC residual currents and to pulsating DC residual currents. A Type AC device only responds to the AC component. The ADC220T has a rated residual operating current of 30 mA.

Q: What cable sizes do the ADC220T terminals take?
A: Combined input and output screw terminals accept 1 - 25 mm² solid or 1 - 16 mm² flexible conductors. The input only screw terminal accepts 1 - 16 mm² solid or 1 - 10 mm² flexible.
