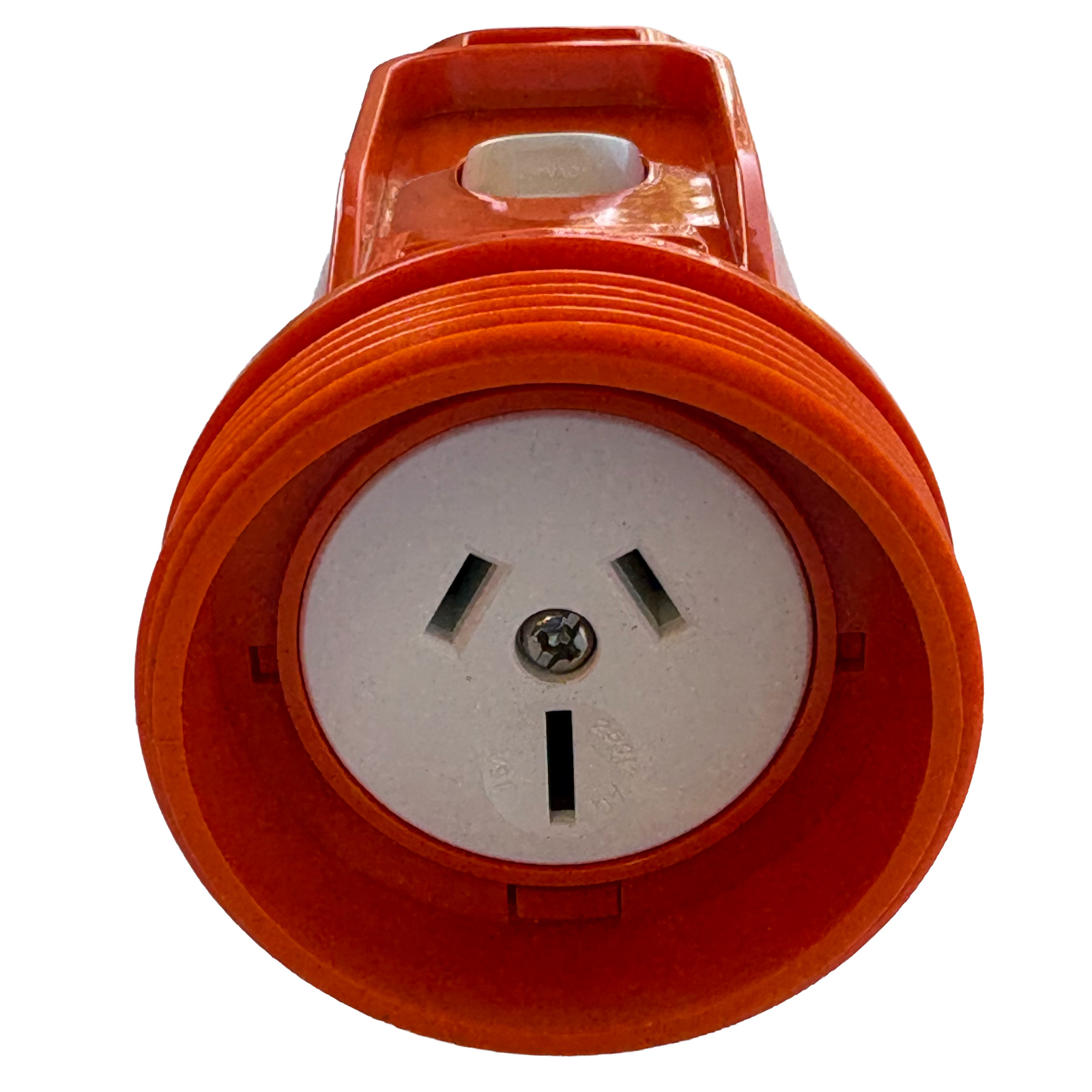

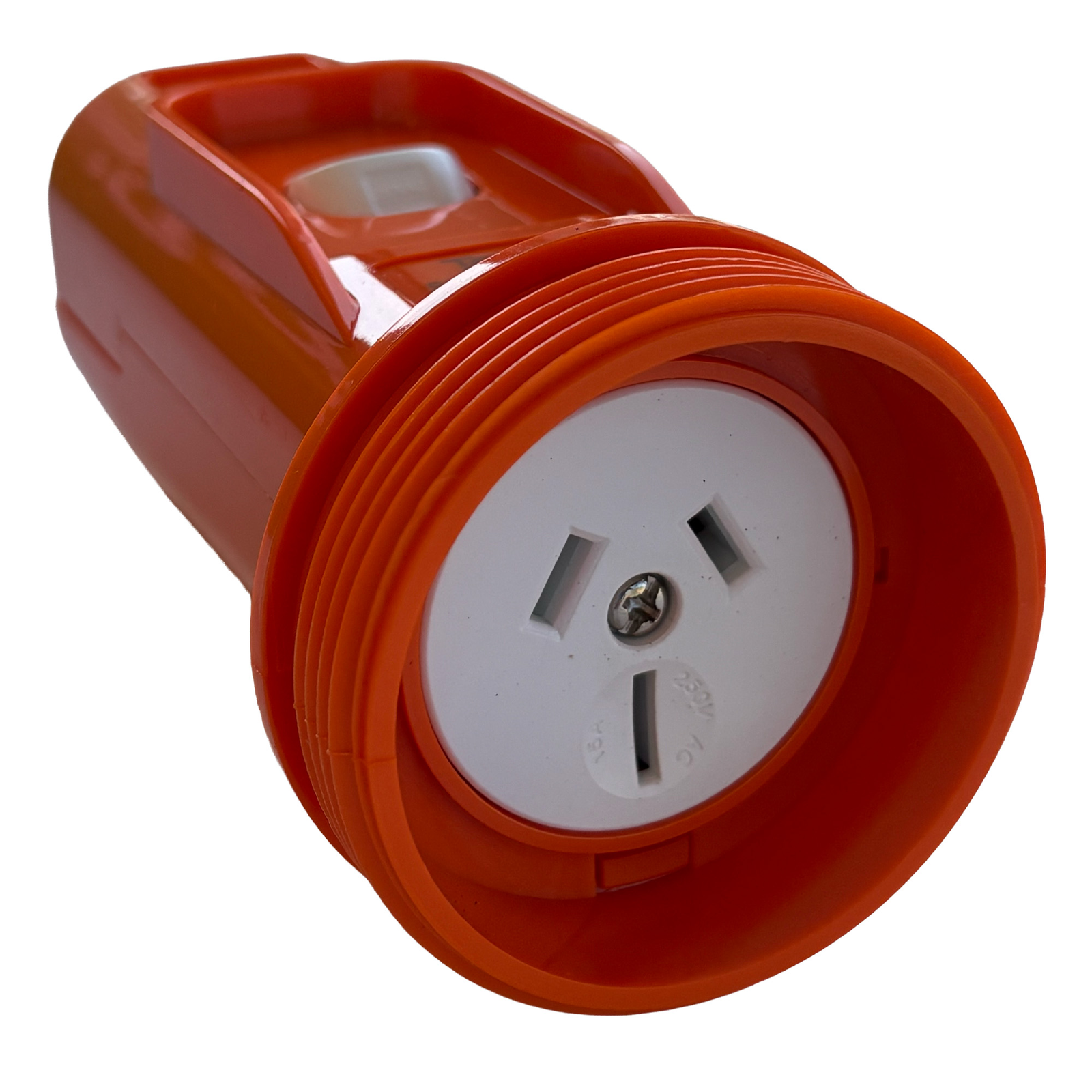

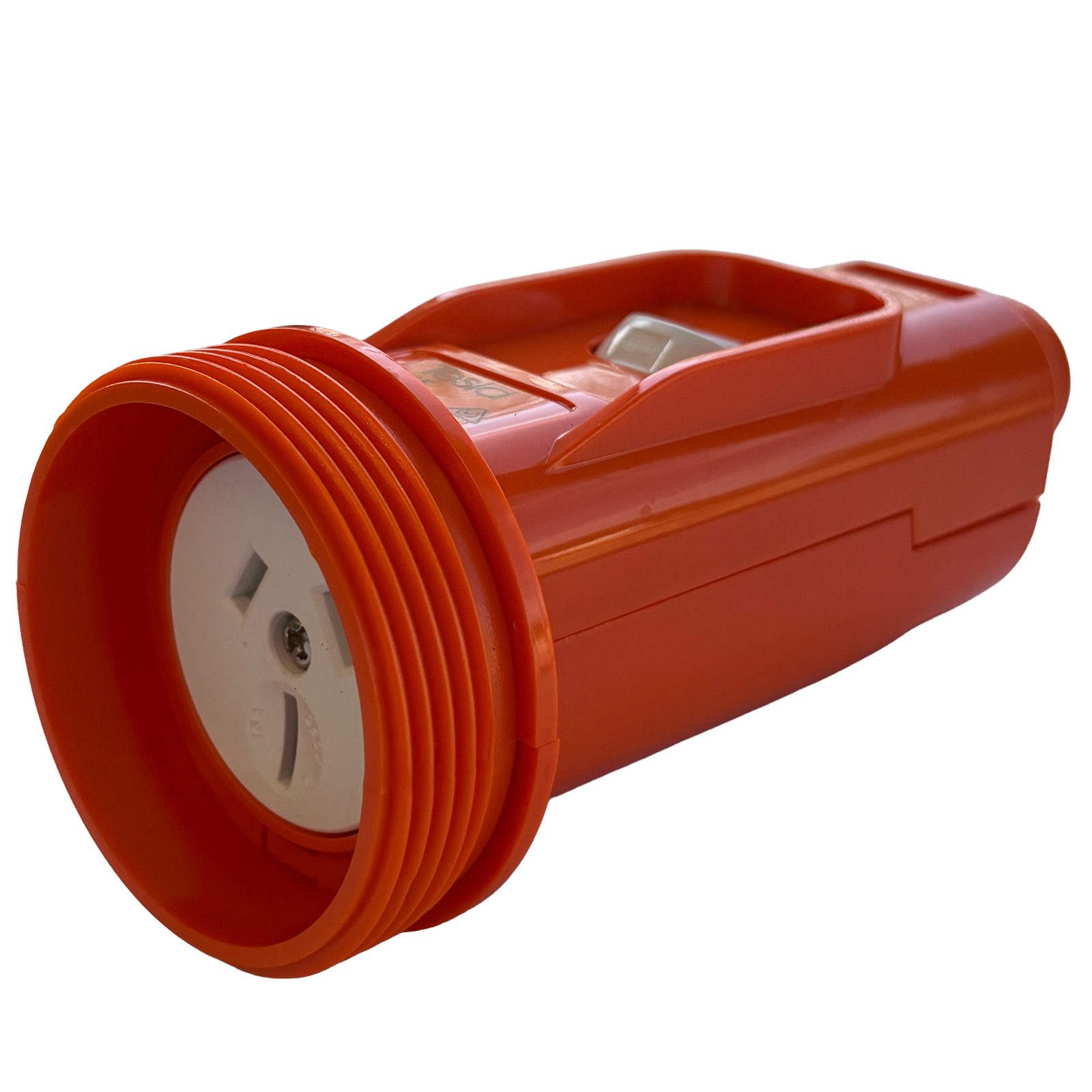

Tesla SPP15 Suspension Extension Socket 15A 250V 3 Pin Switched Double Pole Orange

Description

Overhead switched power at 15A where a wall socket cannot reach.

The Tesla SPP15 in orange is a suspension extension socket rated 15A at 250V, designed to hang overhead and bring switched power directly above a bench or work area. Its 3 pin switched mechanism is a 1 gang double pole design, and a solid support loop takes the weight on a chain or wire rope while a thread ring helps retain a weatherproof plug. The 15A rating suits heavier equipment than the 10A version, and the high-visibility orange body stands out in a workshop or site environment.

Key Features

• Tesla SPP15 — Suspension Extension Socket (Orange)
• Rated: 15A, 250V AC

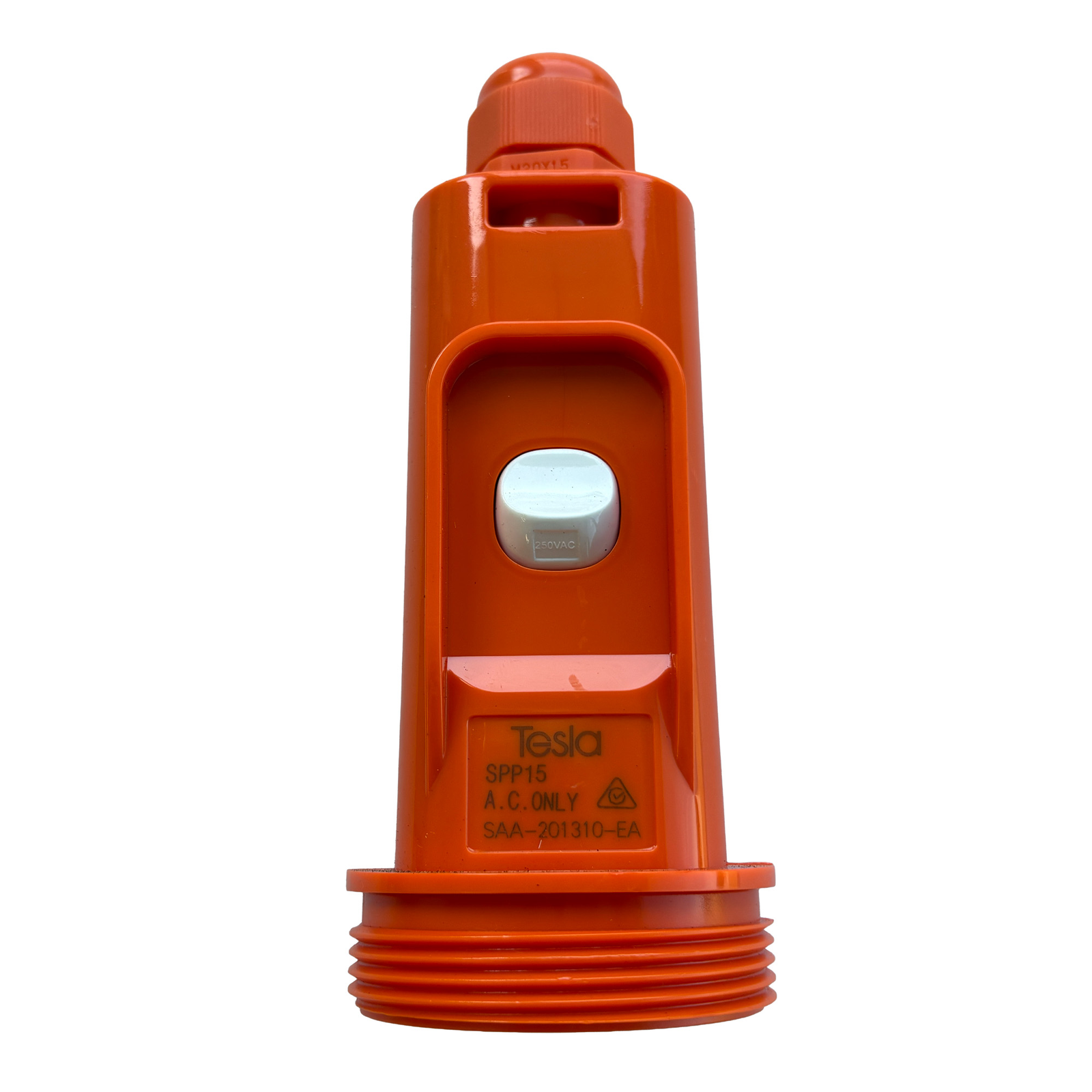

• 3 pin switched, 1 gang double pole mechanism inside

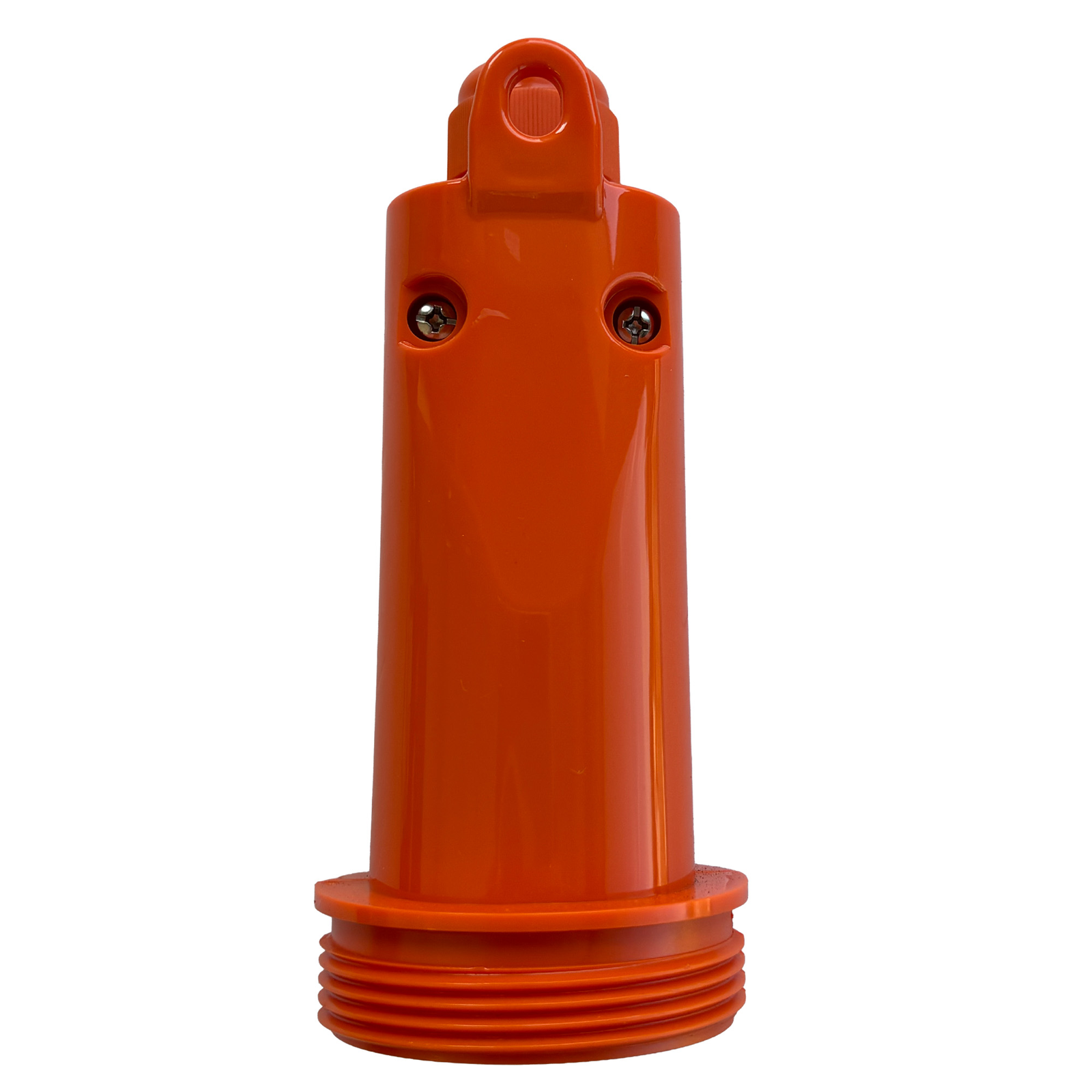

• Solid support loop for chain or wire rope — support and strain relief for the cabling
• Standard thread ring — interconnects weatherproof plugs to assist retention during operation

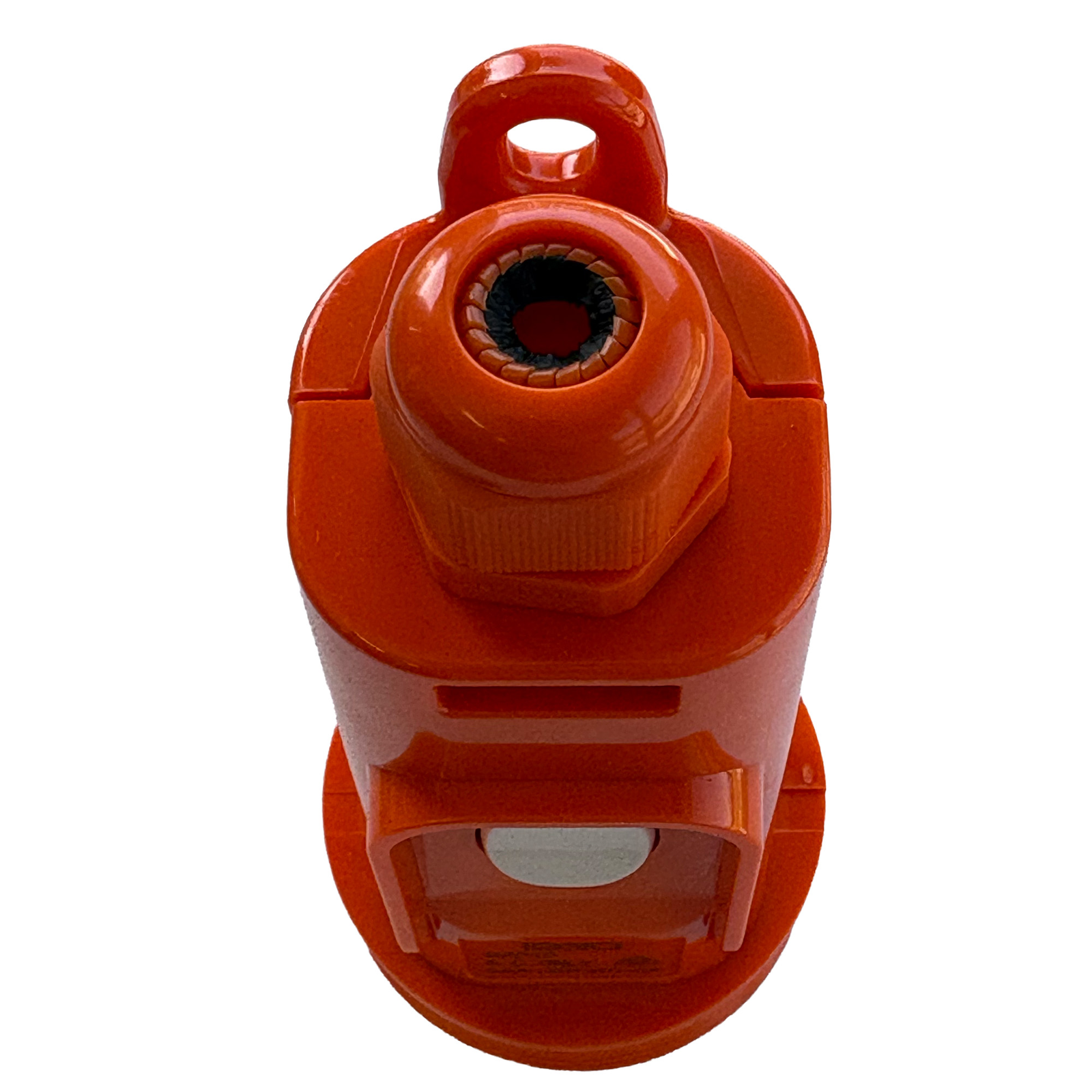

• 20mm threaded conduit entry — suits rigid or flexible conduit
• Recommended for up to 1.5mm² heavy duty 3 core flexible cord (max 2.5mm²)
• High-visibility orange body

Shop now for fast dispatch Australia-wide.

Why the Tesla SPP15 Suspension Socket Solves a Real Problem

15A power directly above the work
Some work areas simply have no wall nearby to mount a socket — a central bench, an assembly station, a wash bay, or a mid-floor machine. The SPP15 answers that by hanging the outlet overhead, positioning switched power exactly where it is needed above the work rather than trailing a lead across the floor. Its 15A rating handles heavier equipment than a 10A drop, while keeping cords off the ground, reducing trip hazards, and putting the switch within easy reach.

Built to hang safely and take the strain
The main housing contains a solid loop for a chain or wire rope connection, so the socket is supported mechanically and the electrical cabling is not carrying the load — important strain relief for a suspended fitting. The switched 1 gang mechanism inside is double pole, breaking both active and neutral, and the standard thread ring lets a weatherproof plug screw in and stay retained during operation, so a lead is not knocked loose mid-task.

Flexible wiring, clear visibility
A 20mm threaded conduit entry suits both rigid and flexible conduit, and the socket is recommended for up to 1.5mm² heavy duty three core flexible cord, accepting up to 2.5mm². The high-visibility orange body makes the drop point easy to see in a busy workshop or on site. Installation must be carried out by a licensed electrician in accordance with Australian requirements. Tesla Electrical Components is an Australian-based brand headquartered in Wetherill Park, NSW, and this socket is sold individually and shipped Australia-wide.

Q: What is the Tesla SPP15 suspension socket for?
It is a 15A switched extension socket designed to hang overhead on a chain or wire rope, bringing power above benches and work areas where a fixed wall socket cannot be located.

Q: How is the Tesla SPP15 supported when suspended?
The main housing has a solid loop for a chain or wire rope, which supports the socket and relieves strain on the electrical cabling.

Q: What cord and conduit does the Tesla SPP15 take?
It has a 20mm threaded conduit entry for rigid or flexible conduit and is recommended for up to 1.5mm² heavy duty three core flexible cord, with a maximum of 2.5mm².

Warranty

This product is backed by an extended manufacturer warranty - click here for details.
