Tesla SPP10 Suspension Extension Socket 10A 250V 3 Pin Switched Double Pole Orange

Description

Overhead switched power where a wall socket cannot reach.

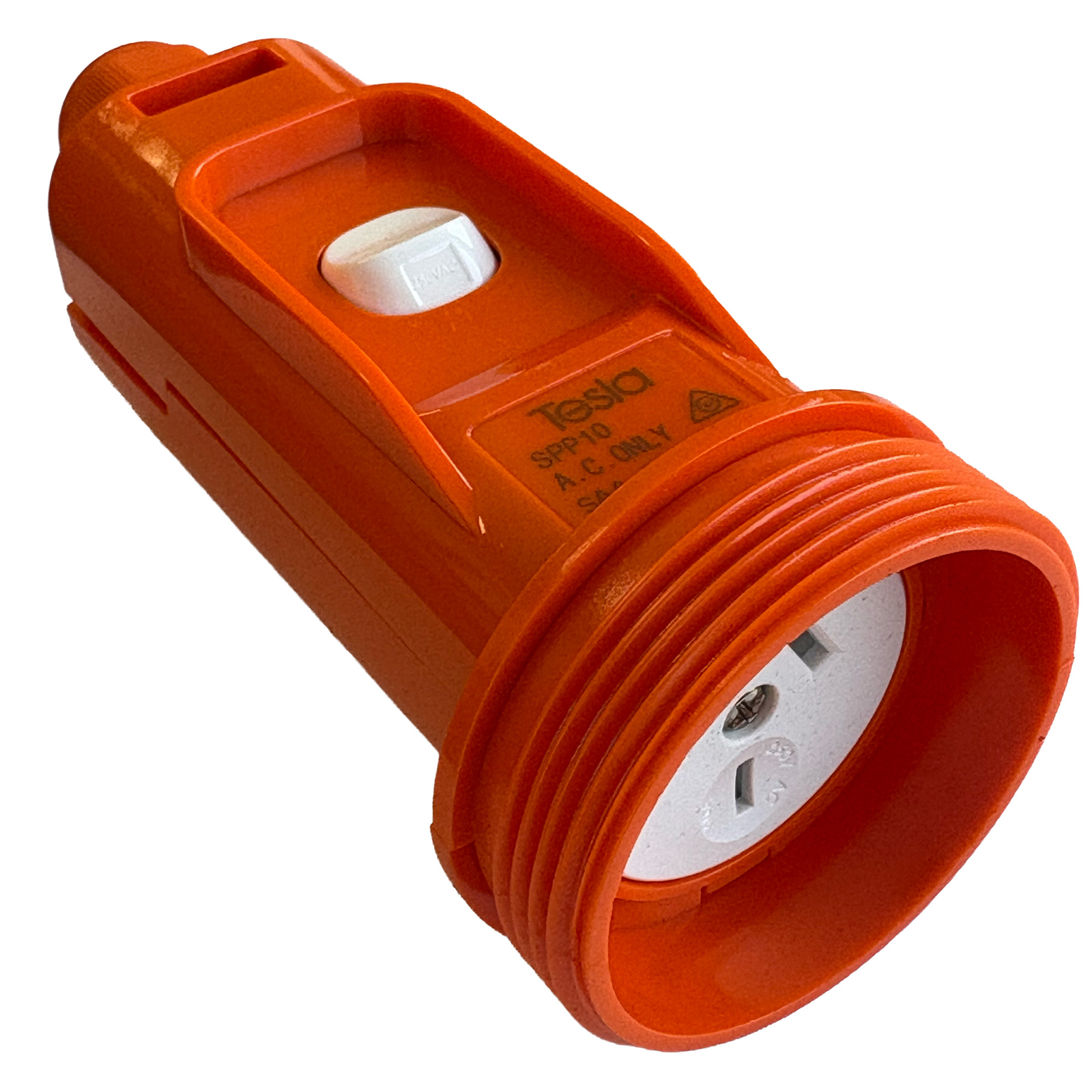

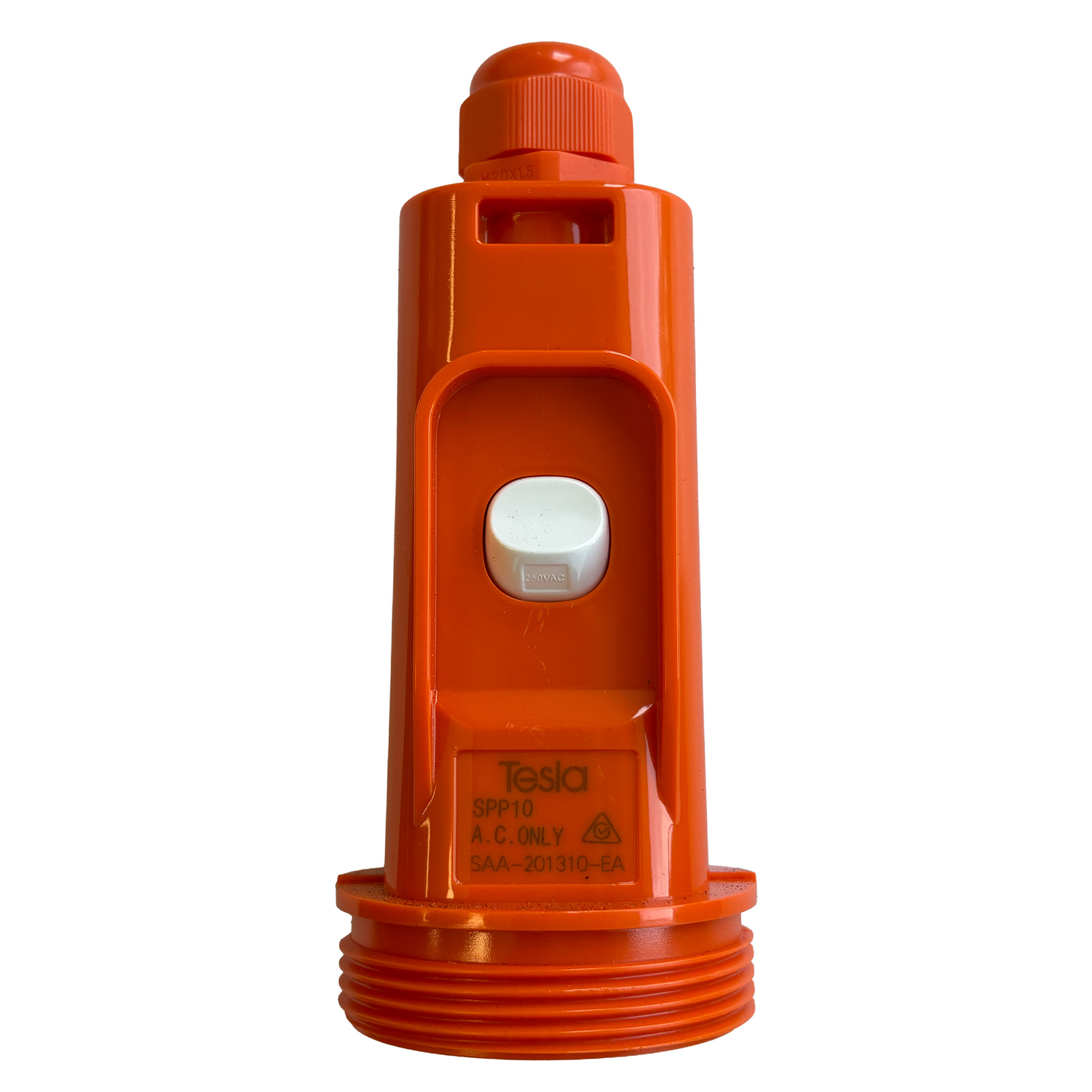

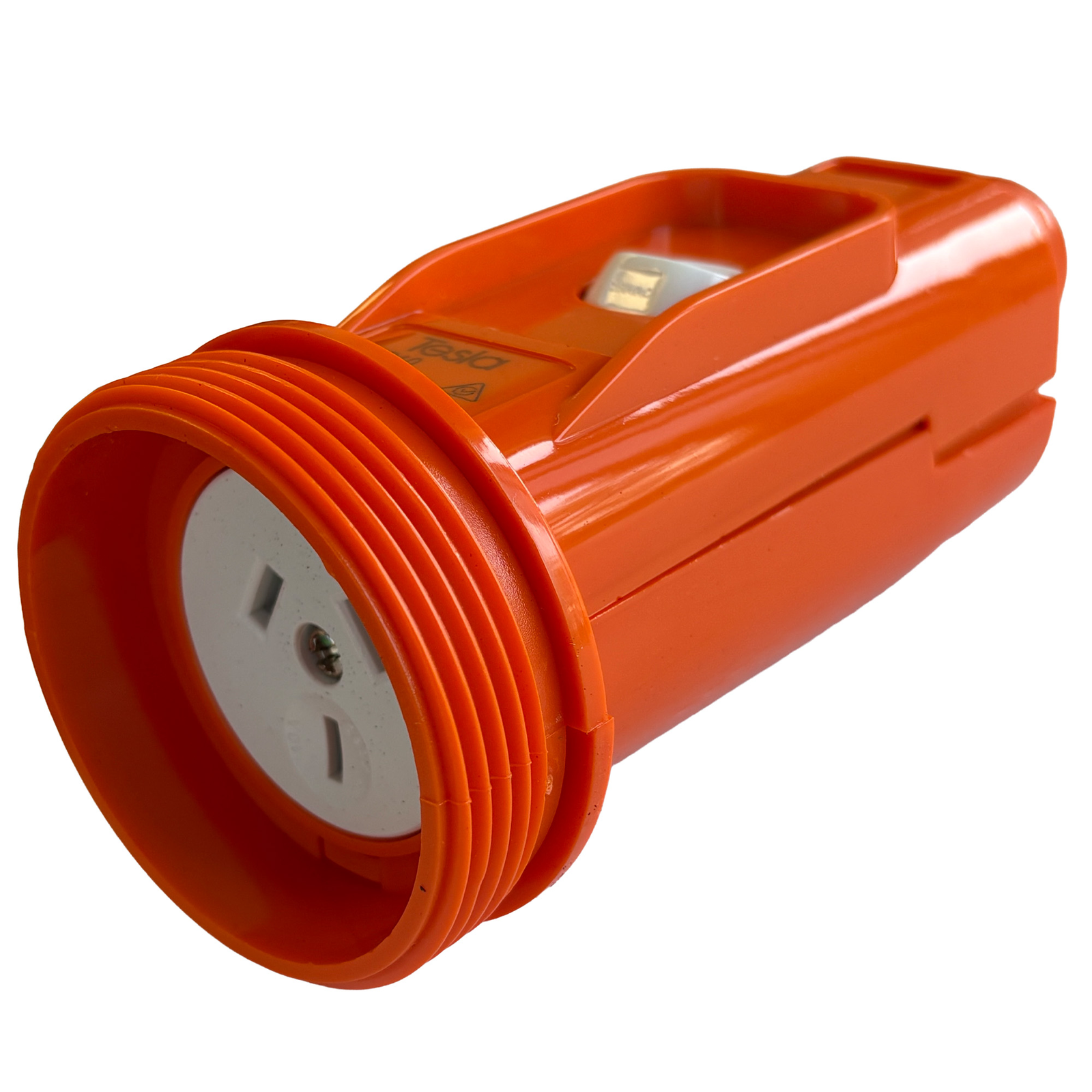

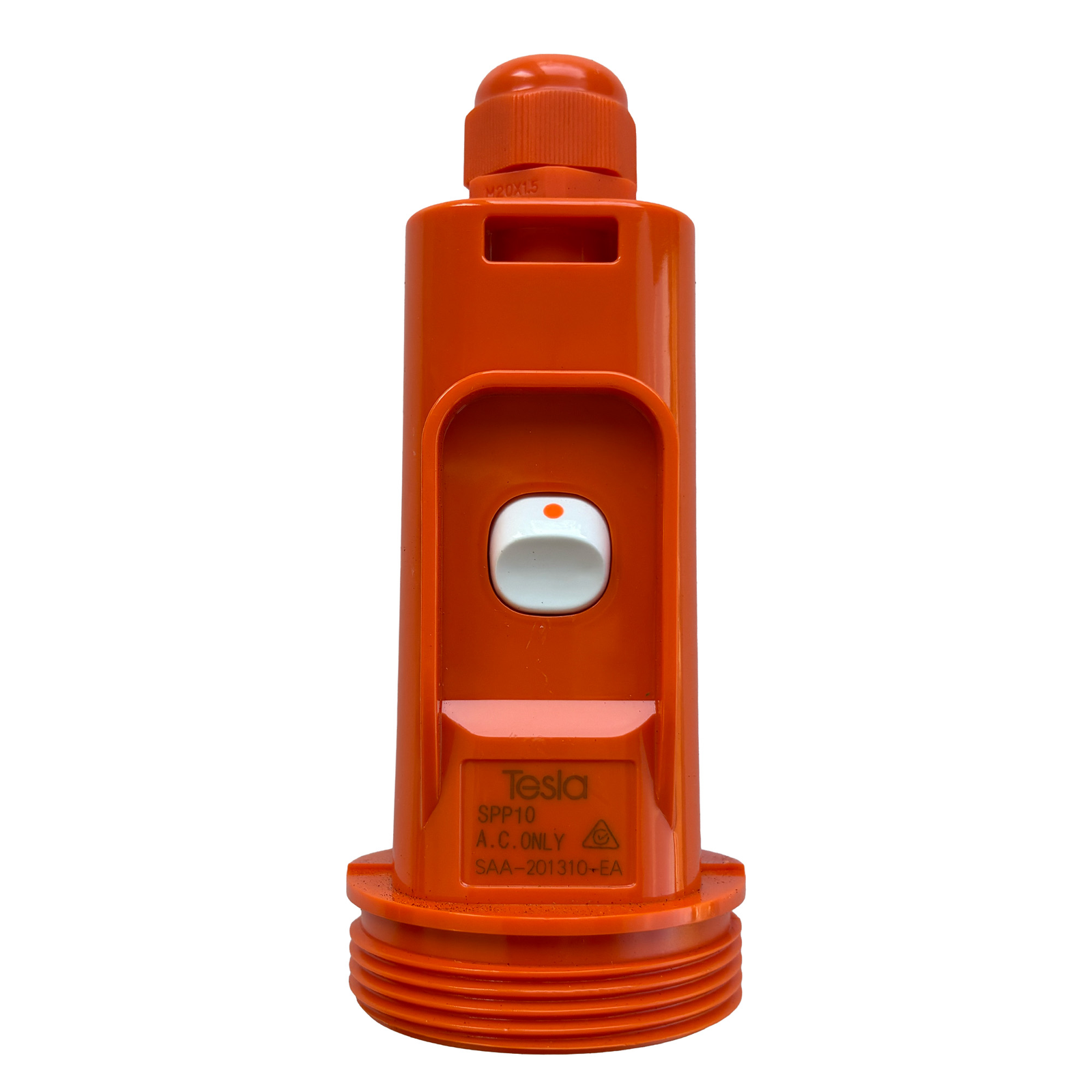

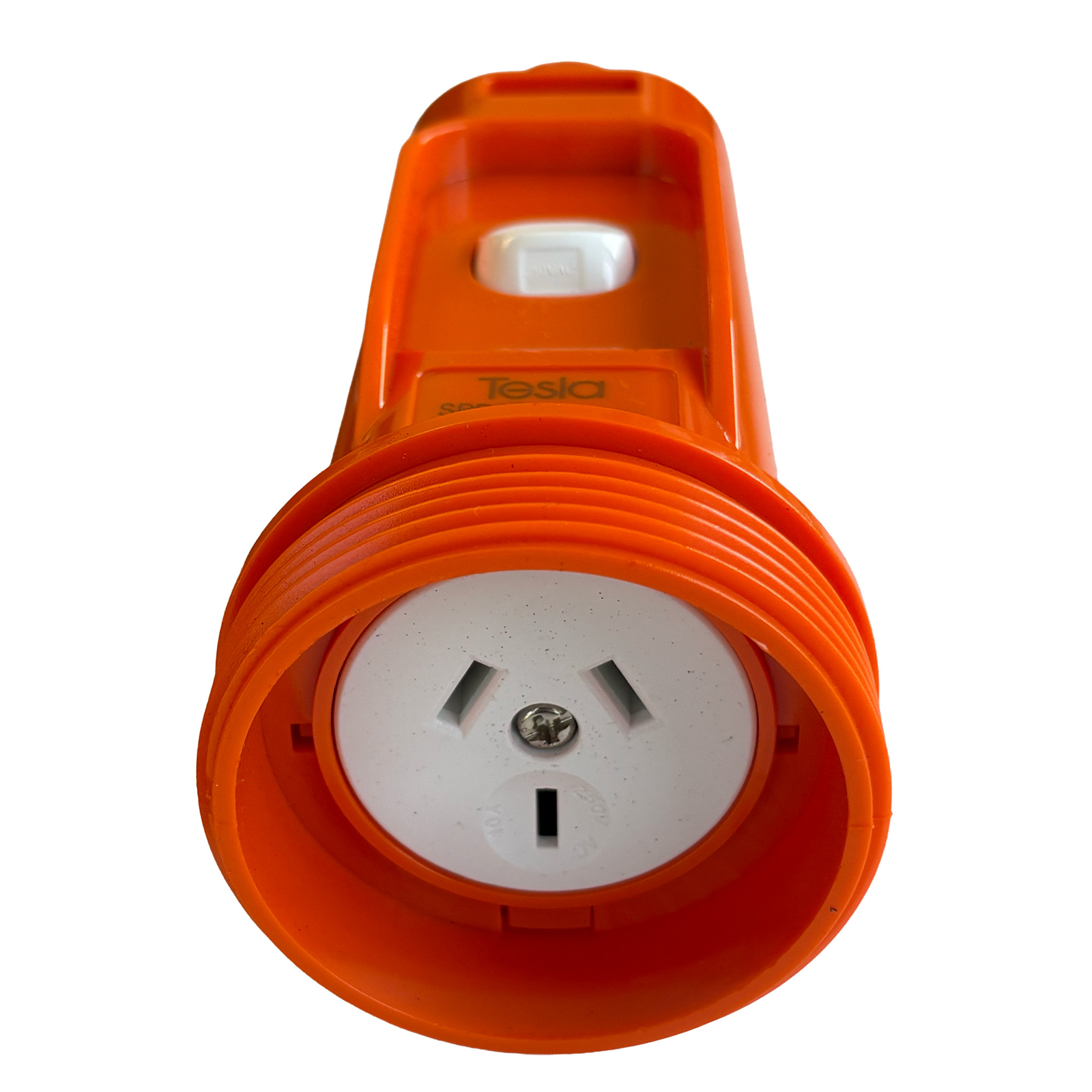

The Tesla SPP10 in orange is a suspension extension socket rated 10A at 250V, designed to hang overhead and bring a switched outlet directly above a bench or work area. Its 3 pin switched mechanism is a 1 gang double pole design, and a solid support loop takes the weight on a chain or wire rope while a thread ring helps retain a weatherproof plug. The high-visibility orange body stands out in a workshop or site environment.

Key Features

• Tesla SPP10 — Suspension Extension Socket (Orange)
• Rated: 10A, 250V AC
• 3 pin switched, 1 gang double pole mechanism inside
• Solid support loop for chain or wire rope — support and strain relief for the cabling
• Standard thread ring — interconnects weatherproof plugs to assist retention during operation

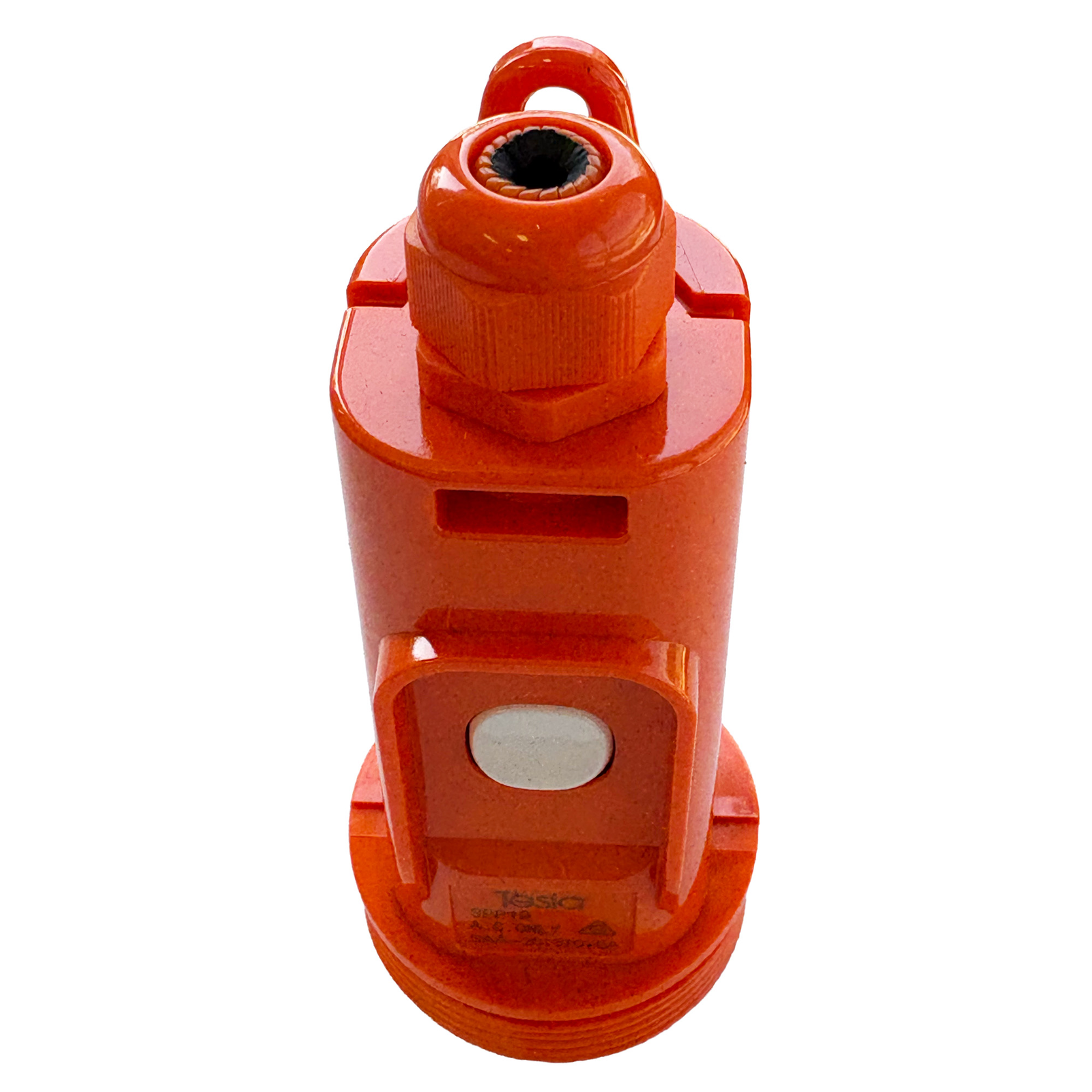

• 20mm threaded conduit entry — suits rigid or flexible conduit
• Recommended for up to 1.5mm² heavy duty 3 core flexible cord (max 2.5mm²)
• High-visibility orange body

Buy online now for fast dispatch Australia-wide.

Why the Tesla SPP10 Suspension Socket Solves a Real Problem

Power directly above the work
Some work areas simply have no wall nearby to mount a socket — a central bench, an assembly station, a wash bay, or a mid-floor machine. The SPP10 answers that by hanging the outlet overhead, positioning switched power exactly where it is needed above the work rather than trailing a lead across the floor. That keeps cords off the ground, reduces trip hazards, and puts the switch within easy reach.

Built to hang safely and take the strain

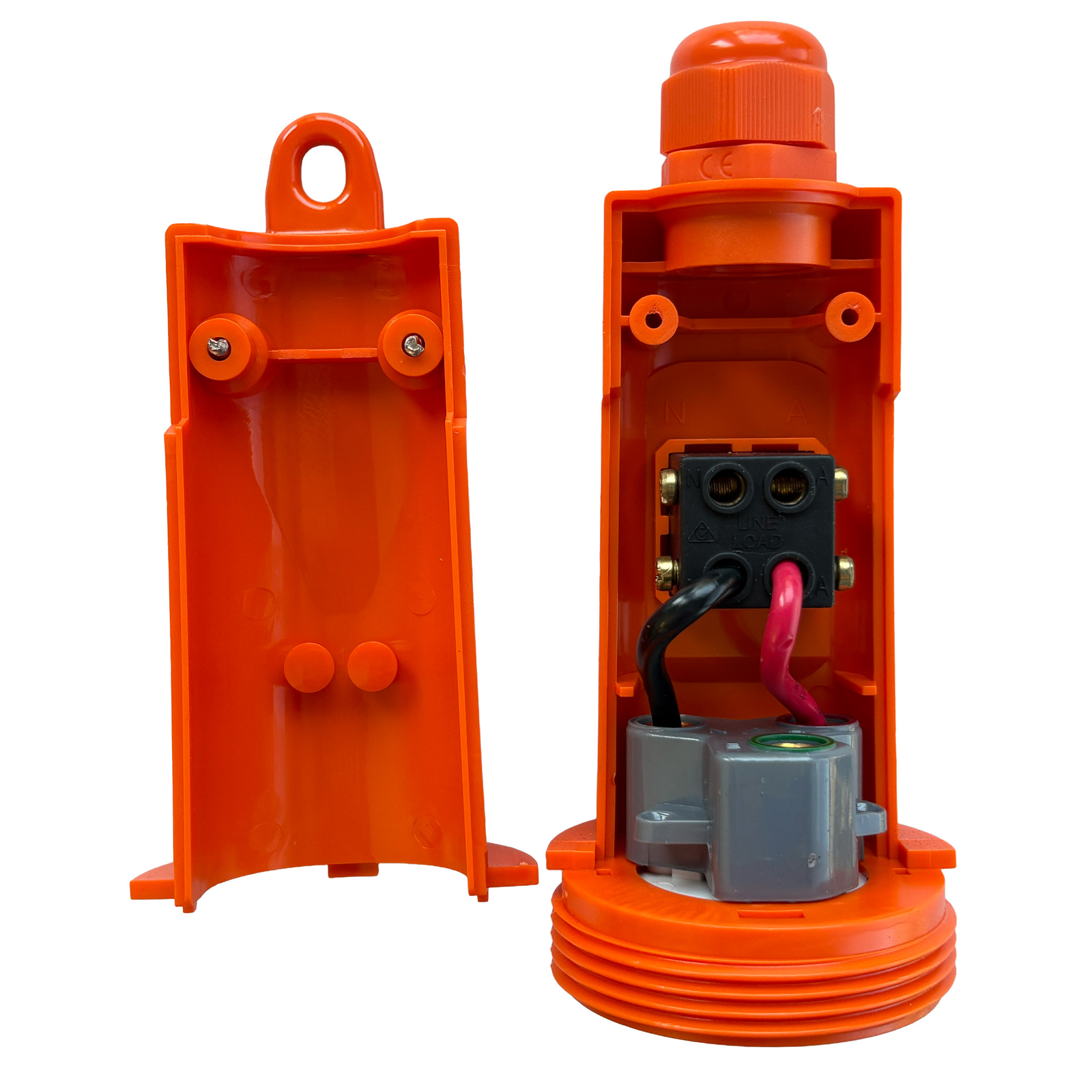

The main housing contains a solid loop for a chain or wire rope connection, so the socket is supported mechanically and the electrical cabling is not carrying the load — important strain relief for a suspended fitting. The switched 1 gang mechanism inside is double pole, breaking both active and neutral, and the standard thread ring lets a weatherproof plug screw in and stay retained during operation, so a lead is not knocked loose mid-task.

Flexible wiring, clear visibility
A 20mm threaded conduit entry suits both rigid and flexible conduit, and the socket is recommended for up to 1.5mm² heavy duty three core flexible cord, accepting up to 2.5mm². The high-visibility orange body makes the drop point easy to see in a busy workshop or on site. Installation must be carried out by a licensed electrician in accordance with Australian requirements. Tesla Electrical Components is an Australian-based brand headquartered in Wetherill Park, NSW, and this socket is sold individually and shipped Australia-wide.

Q: What is the Tesla SPP10 suspension socket for?
It is a switched extension socket designed to hang overhead on a chain or wire rope, bringing power above benches and work areas where a fixed wall socket cannot be located.

Q: How is the Tesla SPP10 supported when suspended?
The main housing has a solid loop for a chain or wire rope, which supports the socket and relieves strain on the electrical cabling.

Q: What cord and conduit does the Tesla SPP10 take?
It has a 20mm threaded conduit entry for rigid or flexible conduit and is recommended for up to 1.5mm² heavy duty three core flexible cord, with a maximum of 2.5mm².
