Clipsal 3 Pin Flush Base Round Surface Socket 10A White

Description

Simple, reliable 10A power where you need it.

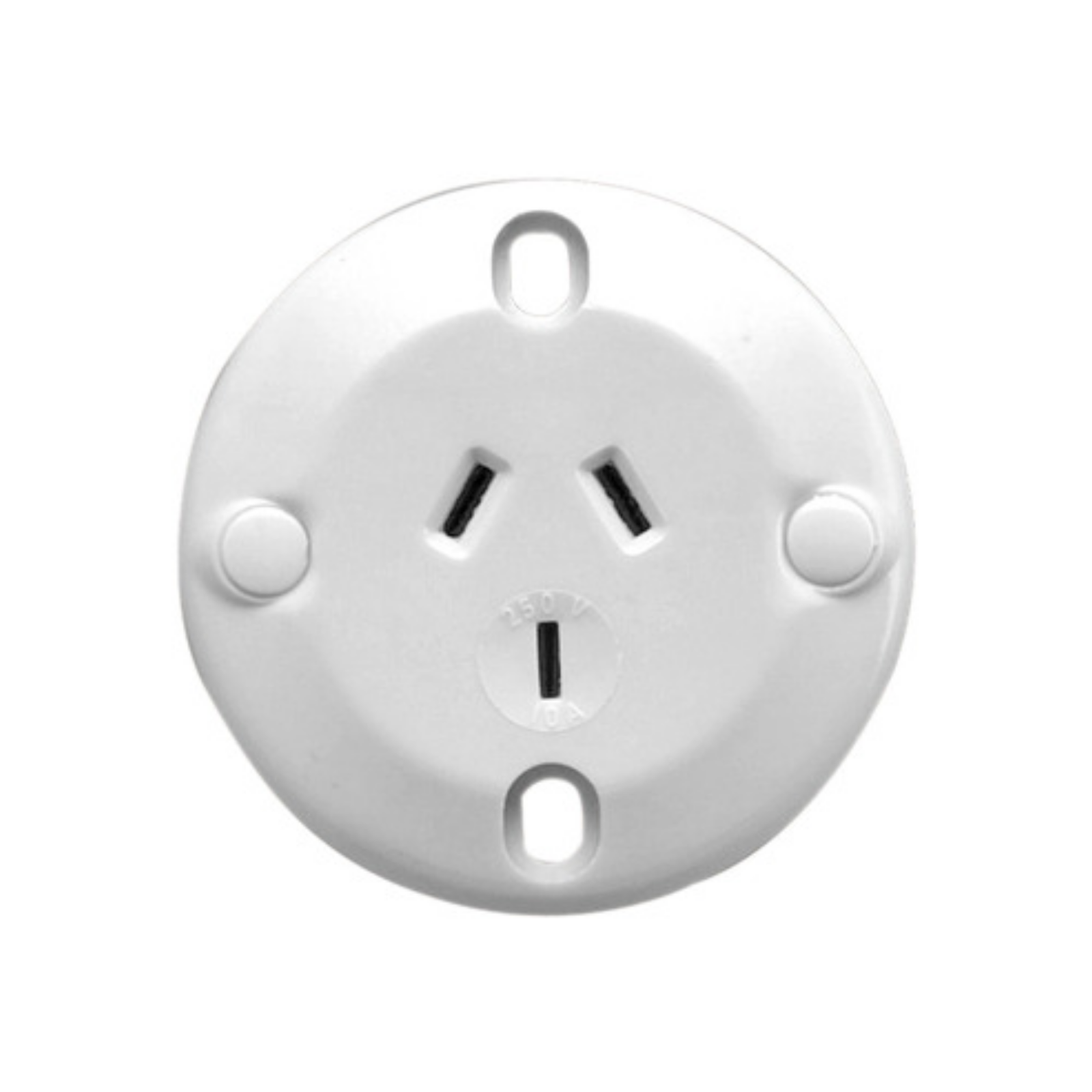

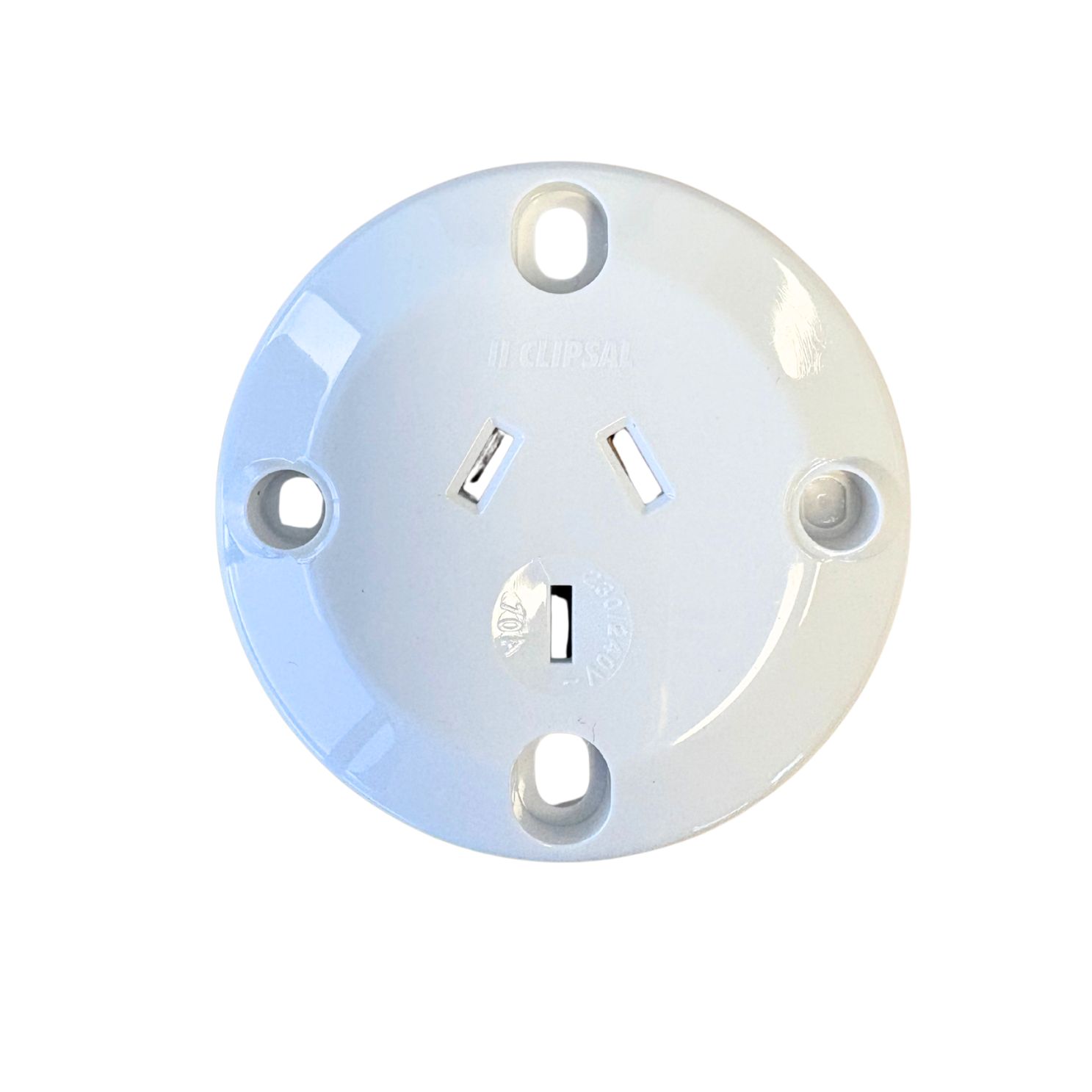

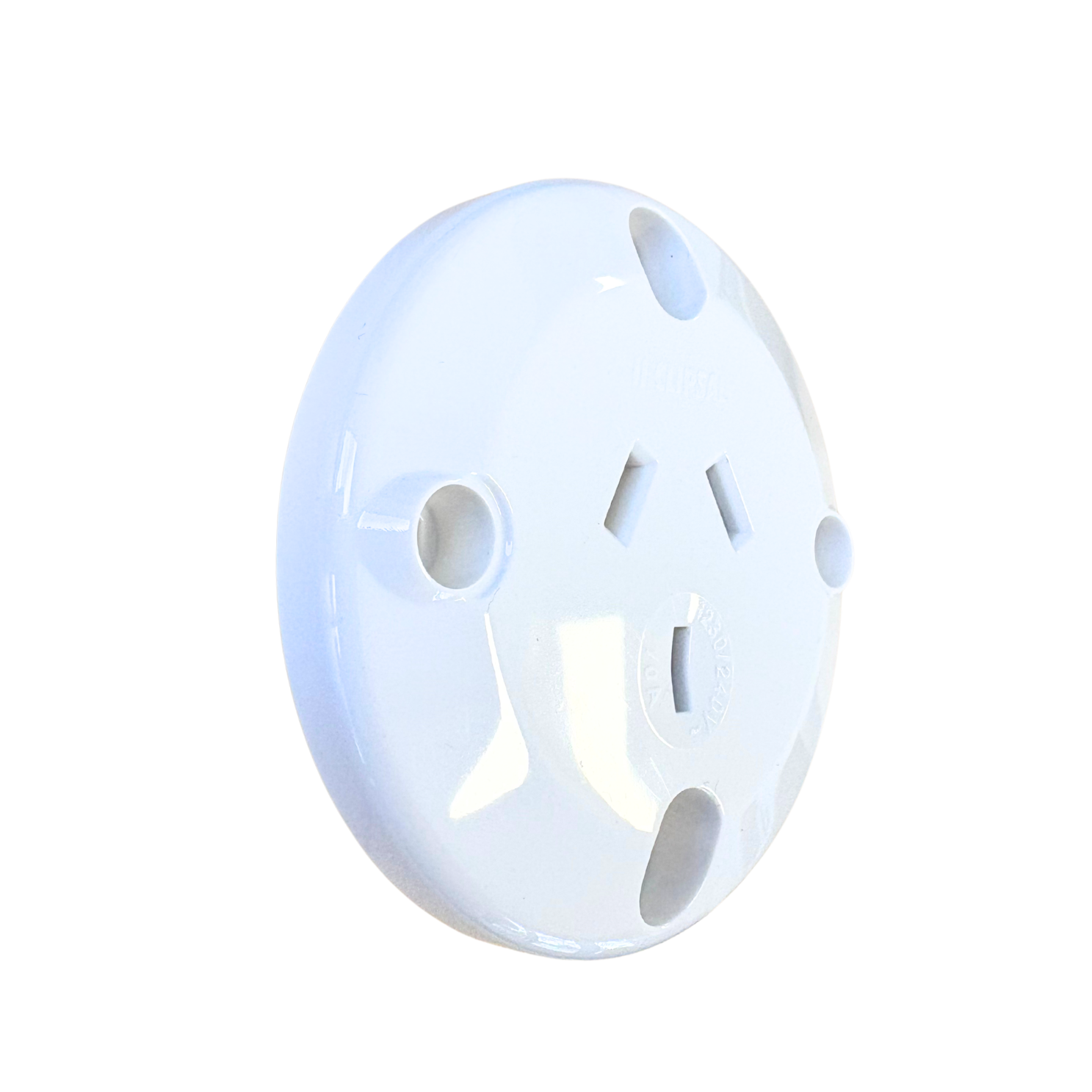

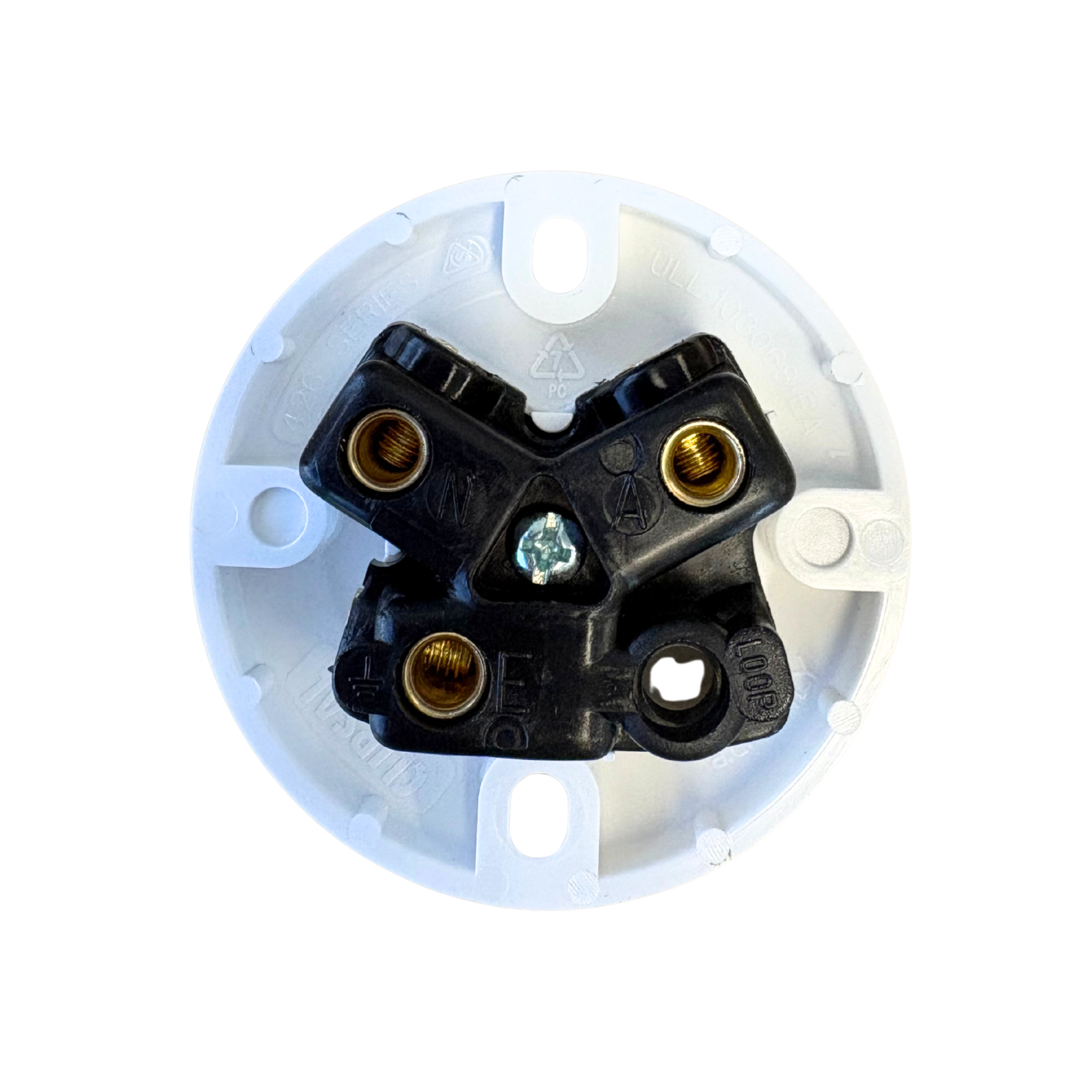

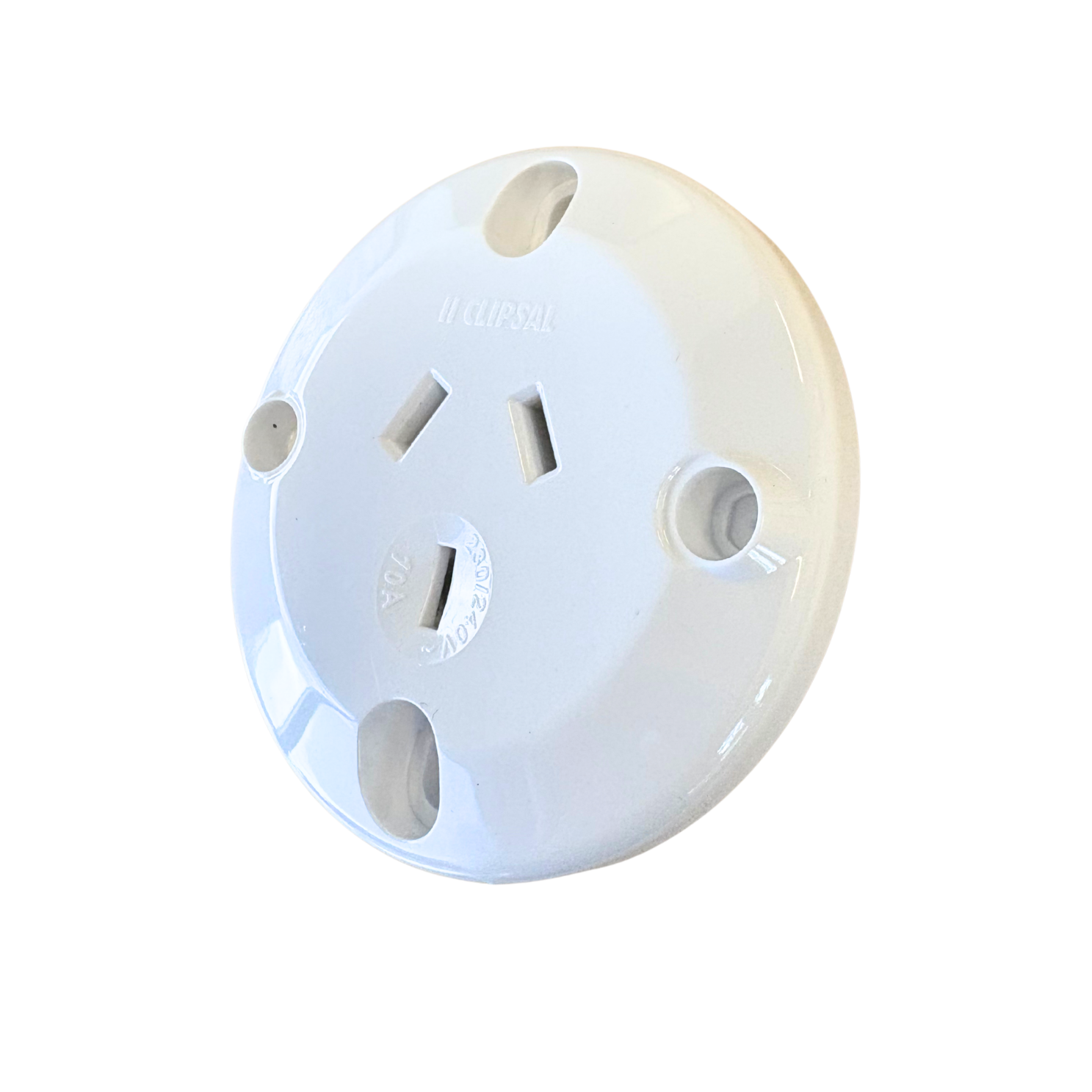

The Clipsal 426-WE is a 10A single socket outlet designed for flush mounting to a round junction box. Rated at 250V AC, this compact 3-pin power outlet provides a straightforward solution for fixed electrical installations where a single power point is required.

Key Features

• Current Rating: 10A
• Rated Voltage: 250V AC
• Configuration: Single 3-Pin Socket Outlet
• Mounting: Flush Mount
• Fixing: Screw Fixing
• Fixing Centres: 50mm
• Diameter: 66mm
• Depth: 24mm
• Colour: White Electric
• Range: Clipsal Series 426

Order online now for fast dispatch Australia-wide.

Why It Matters

A straightforward single power point

Not every installation needs a large wall plate or multiple outlets. The Clipsal 426-WE provides a compact single 10A socket outlet for applications requiring one standard 3-pin power connection. Its 250V AC, 10A rating makes it a practical option for general fixed electrical installations where a dedicated single outlet is specified.

Designed to suit round junction boxes

The 426-WE is designed for flush mounting and features 50mm fixing centres, making it suitable for compatible round junction box installations. At 66mm in diameter and only 24mm deep, it provides a compact solution that keeps the finished installation neat and unobtrusive.

Screw fixing provides secure mounting, while the complete housing and White Electric finish deliver the familiar, functional appearance expected from Clipsal electrical accessories. For electricians carrying out new installations, maintenance or replacement work, the clearly defined dimensions and mounting configuration make it easy to determine whether the 426-WE suits the job.

Made for Australian electrical installations

The Clipsal 426-WE is manufactured from plastic and is specified by Clipsal to AS/NZS 3112, AS 3100, AS 3109 and AS/NZS 3122. This combination of a standard 10A rating, compact format and round junction box mounting makes it a useful addition to an electrician's range of everyday socket outlet options.

Whether you're replacing an existing 426 Series outlet or specifying a single socket for a new installation, check the mounting dimensions and electrical requirements before ordering to ensure the 426-WE is the right fit.

Q: What is the Clipsal 426-WE?
A: The Clipsal 426-WE is a single 3-pin socket outlet rated at 10A and 250V AC. It is designed for flush mounting and suits compatible round junction boxes.

Q: What size junction box does the Clipsal 426-WE suit?
A: The 426-WE has a 66mm diameter and 50mm fixing centres and is designed for mounting to a compatible round junction box.

Q: What standards does the Clipsal 426-WE meet?
A: Clipsal lists AS/NZS 3112, AS 3100, AS 3109 and AS/NZS 3122 for the 426 Series socket outlet.
