Clipsal 3 Pin Flush Base Round Surface Socket Round Eaarth

Description

The right socket for round earth pin plugs.

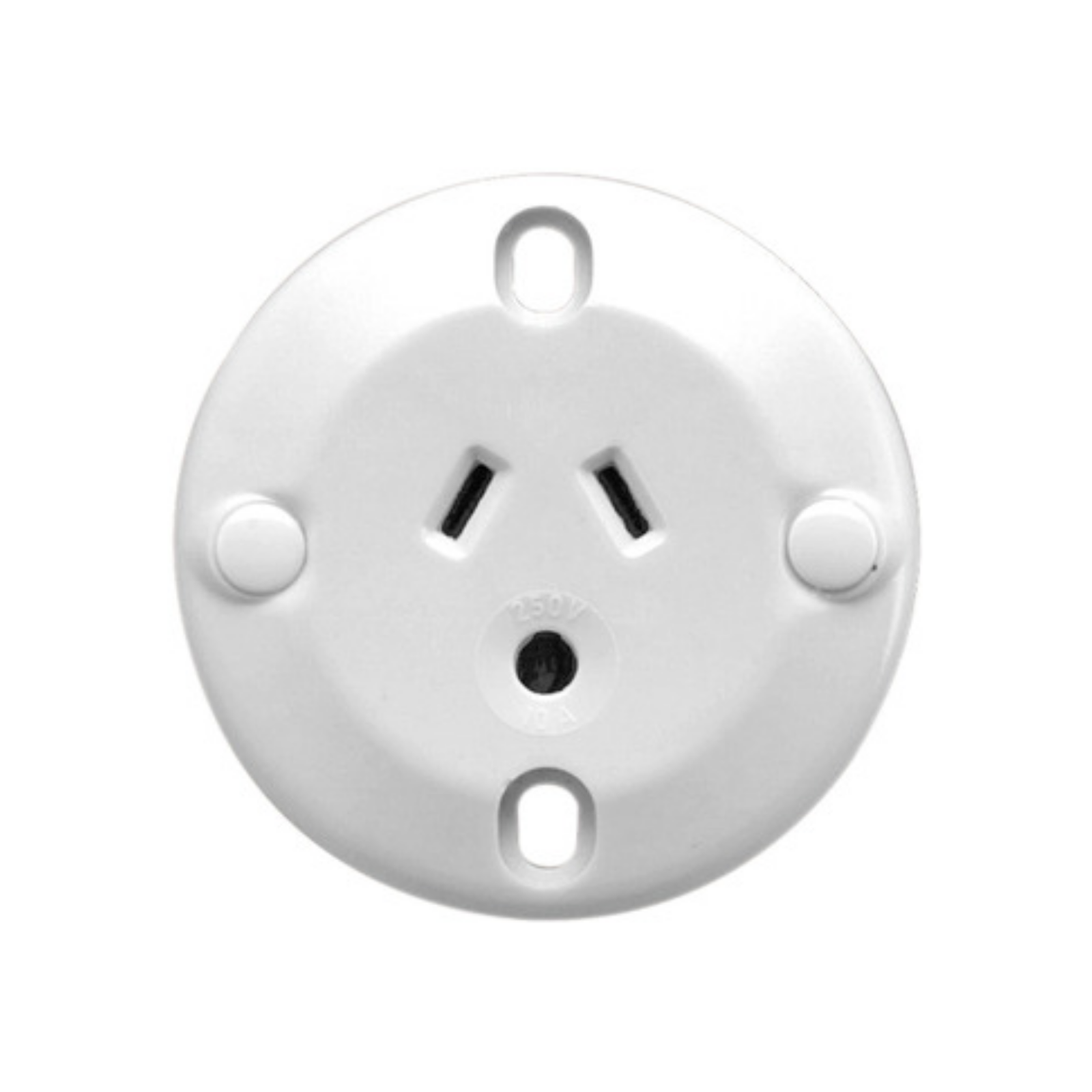

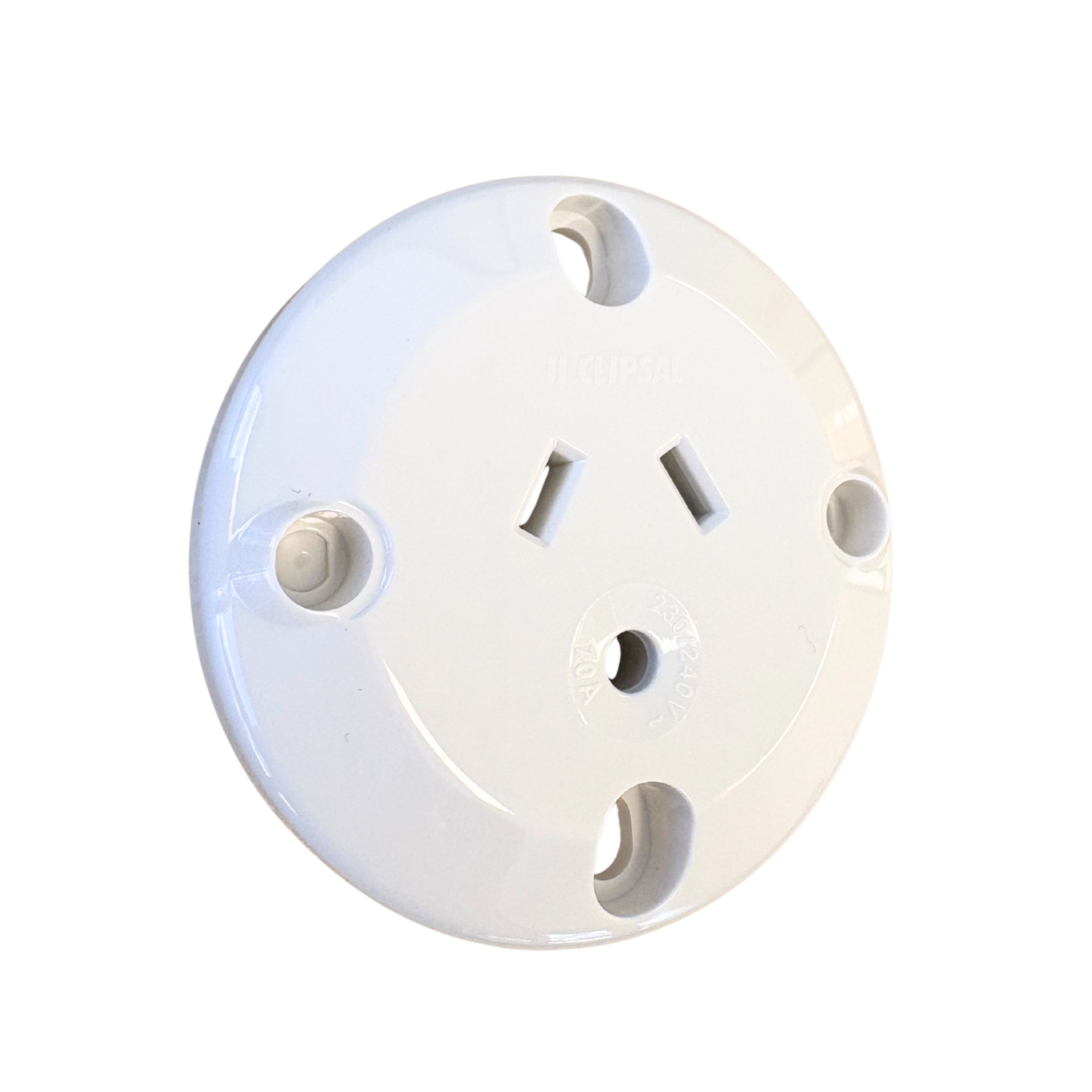

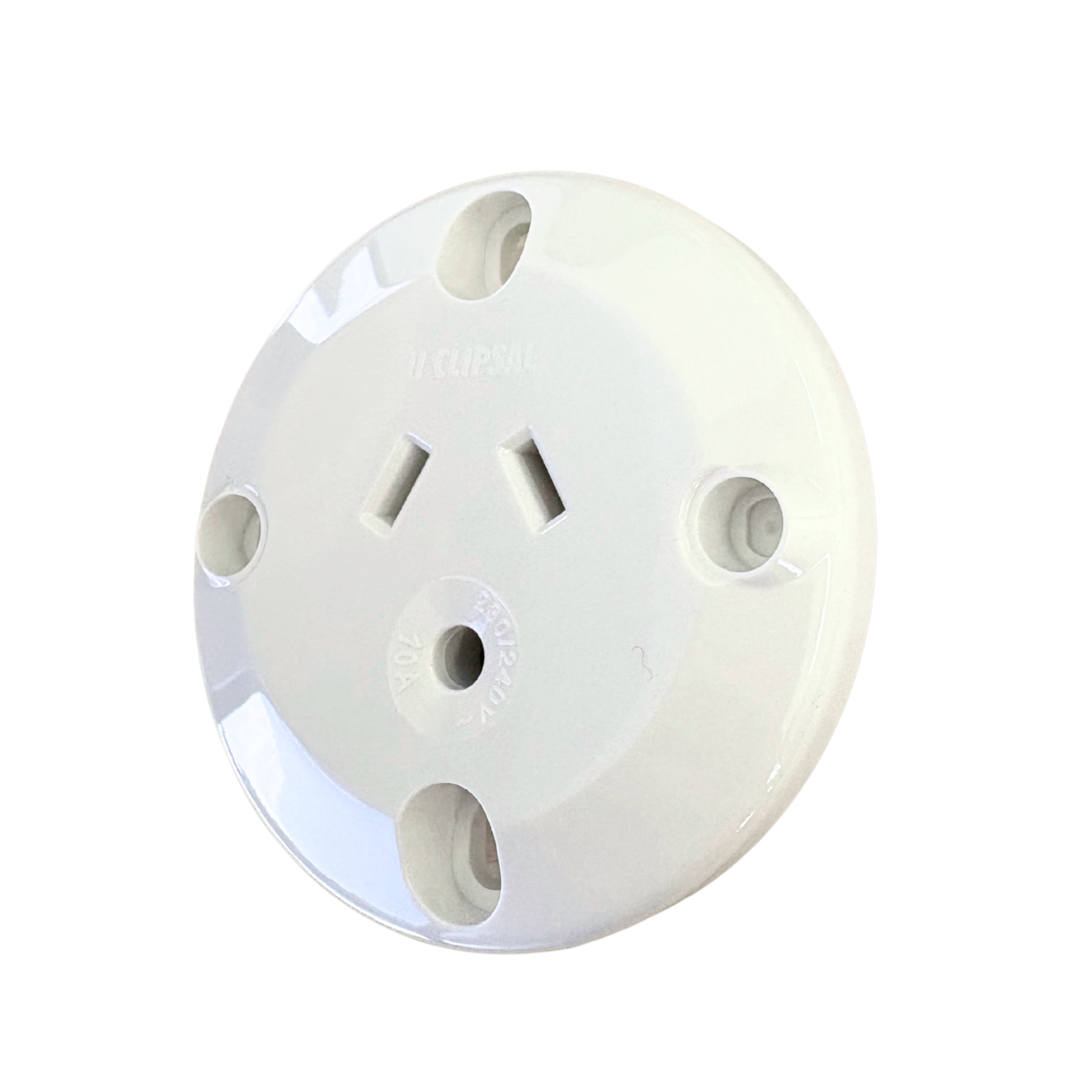

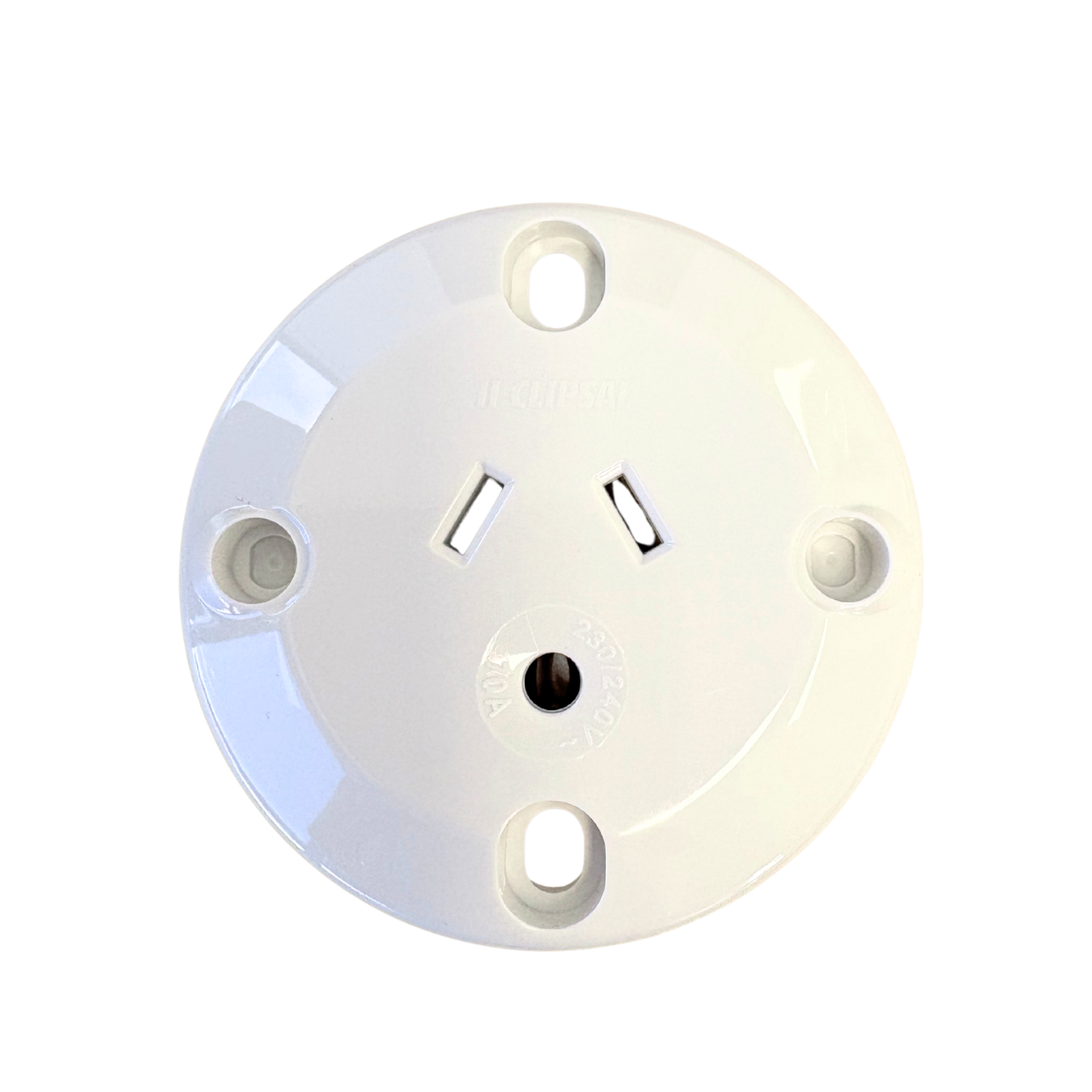

The Clipsal 426L-WE is a 10A, 250V AC single socket outlet featuring a round earth pin configuration. Designed for flush mounting, it provides a dedicated power connection where a compatible round earth pin socket is specifically required.

Key Features

• Current Rating: 10A
• Rated Voltage: 250V AC
• Configuration: Single 3-Pin Socket Outlet
• Earth Pin: Round Pin
• Mounting: Flush Mount
• Fixing: Screw Fixing
• Fixing Centres: 50mm
• Diameter: 66mm
• Colour: White Electric
• Range: Clipsal Series 426

Order online now for fast dispatch Australia-wide.

Why It Matters

A dedicated round earth pin connection

The key difference with the Clipsal 426L-WE is its round earth pin configuration. This distinguishes it from a standard Australian 10A socket outlet and makes correct product selection particularly important. Where equipment uses the corresponding plug configuration, the 426L-WE provides a purpose-designed connection while helping differentiate the circuit from a standard socket outlet.

For electricians replacing an existing outlet, the model number and pin configuration are important. The 426L-WE should not be confused with the Clipsal 426-WE: although both are 10A, 250V AC single socket outlets with a similar compact format, the 426L-WE features a round earth pin. Always confirm the required plug and socket configuration before ordering.

Compact flush-mount installation

The 426L-WE has a 66mm diameter, 24mm depth and 50mm fixing centres. Its flush-mounted design provides a neat, low-profile finish, while screw fixing allows secure installation. The complete plastic housing is finished in Clipsal White Electric for a clean and familiar appearance.

These compact dimensions make the 426L-WE a practical option for new installations and replacement work where this particular socket configuration has been specified. For maintenance teams and electrical contractors, clearly identifying the round earth pin arrangement can also help reduce the risk of an incorrect replacement being ordered or installed.

Clipsal 426 Series reliability

Part of the Clipsal Series 426 range, the 426L-WE is specified to AS/NZS 3112, AS 3100, AS 3109 and AS/NZS 3122. It provides a straightforward 10A single socket solution for applications requiring the 426L round earth pin configuration.

Q: What is different about the Clipsal 426L-WE socket outlet?
A: The Clipsal 426L-WE is a 10A, 250V AC single socket outlet with a round earth pin configuration. This distinguishes it from standard socket outlets and means it must be used with the appropriate plug configuration.

Q: What is the difference between the Clipsal 426L-WE and 426-WE?
A: The key difference is the earth pin configuration. The 426L-WE features a round earth pin, so you should confirm the required plug configuration before choosing between the two models.

Q: What are the dimensions of the Clipsal 426L-WE?
A: The Clipsal 426L-WE has a 66mm diameter, 24mm depth and 50mm fixing centres. It is designed for flush mounting with screw fixing.
