Tesla BUSBARRCDMCB54B Insulated Pin Busbar 1 Pole plus Neutral 54 Module for 4.5kA RCBO

Description

Neatly link your 4.5kA RCBO board.

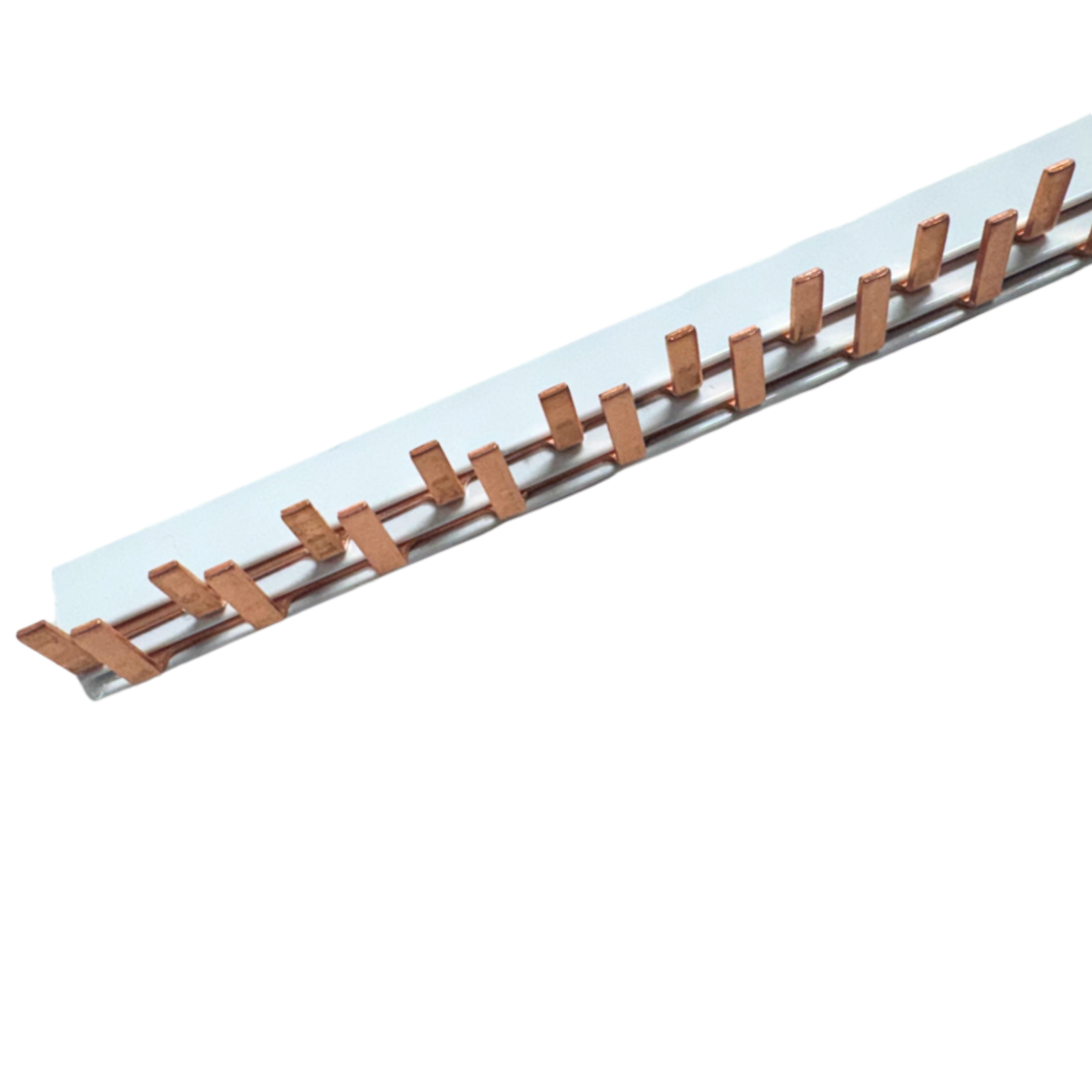

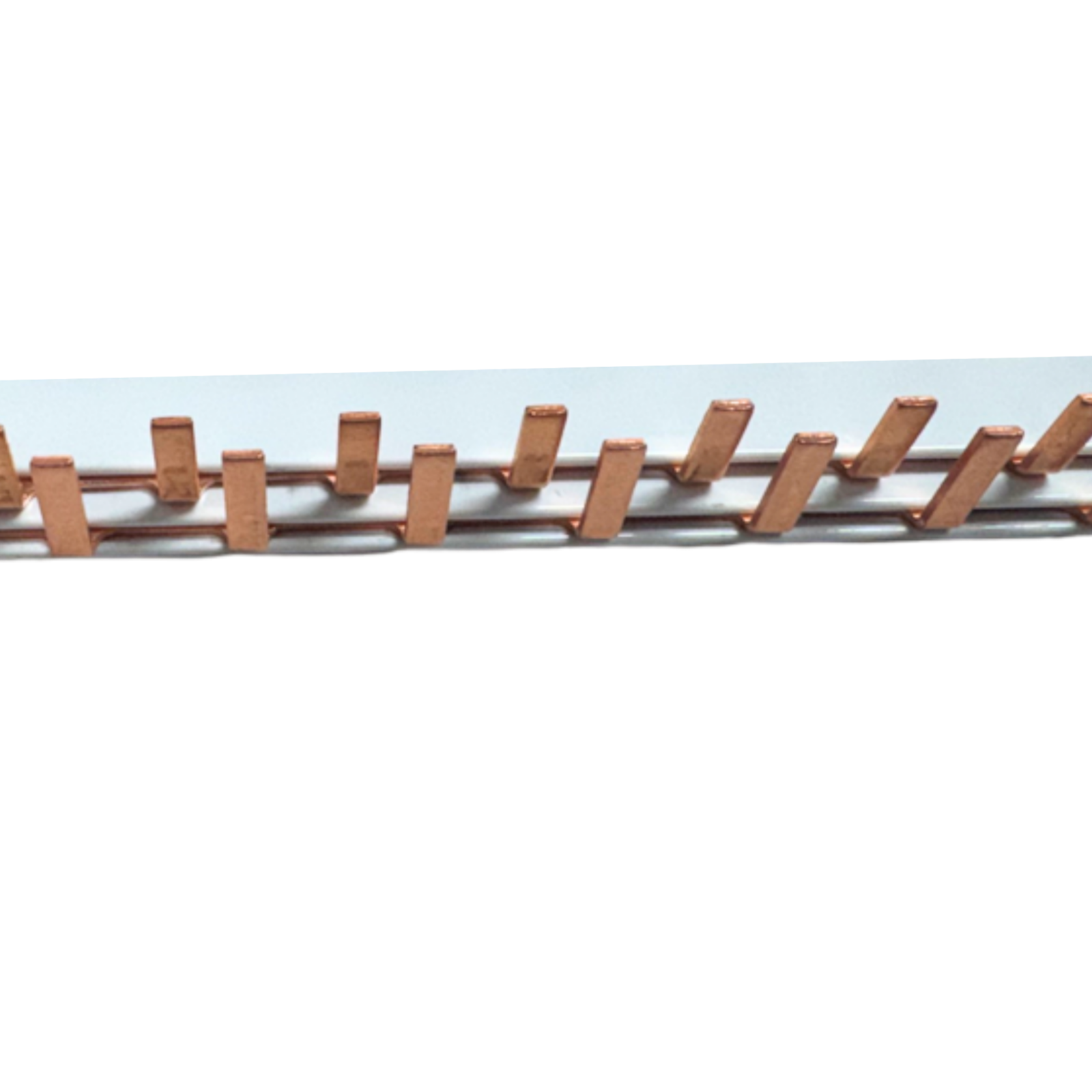

The Tesla insulated pin busbar joins a row of Tesla 4.5kA RCBO safety switches into one tidy connection instead of hand-cut looped conductors. This is the B-type busbar, sized at 54 module for larger boards, distributing 1 pole plus neutral to every device on the row.

Key Features

• 1 pole plus neutral pin (comb) busbar
• 54 module width
• B type, for the Tesla 4.5kA RCBO range
• Fully insulated body
• Pin type connection

Add to cart for fast dispatch Australia-wide.

Why it Matters

Cleaner, Faster Switchboard Assembly
A pin busbar replaces dozens of hand-cut links between devices. For electricians building or upgrading larger domestic and commercial boards, that means quicker fit-off, fewer loose terminations, and a board that is far easier to inspect and fault-find later. At 54 module width, a single busbar feeds a long row of single-module RCBOs from one incoming supply, so even a fully populated board stays neat and orderly. Fewer hand-made links also means a more repeatable result from one board to the next.

Built for the Tesla 4.5kA RCBO Range
This is the B-type busbar, matched to the Tesla 4.5kA RCBO safety switch range rather than the 6kA (A-type) devices. Selecting the busbar type that matches your RCBOs helps ensure correct seating and consistent contact across the row. The two-conductor pin arrangement carries the active pole and the neutral together, so each single-module RCBO receives both connections from the one bar.

Insulated for Safe Work
The insulated body shrouds the live comb between devices, reducing exposed conductor inside a populated enclosure and supporting safe work practices during install and later maintenance. Because the connection is made across a single pre-formed bar rather than many separate links, there are fewer individual joints to loosen over the life of the board.

Which RCBOs does this busbar suit?
It is the B-type busbar for the Tesla 4.5kA 1-pole RCBO range at 54 module width. Always confirm module pitch and pole configuration against your specific devices before install.

What is the difference between the B-type and A-type busbar?
The B-type is designed for the Tesla 4.5kA RCBO range, while the A-type suits the 6kA range. Match the busbar type to the RCBO series you are installing.

What does "1 pole plus neutral" mean here?
The busbar carries one active pole and the neutral across the row, so each single-module RCBO receives both its connections from the one bar.
