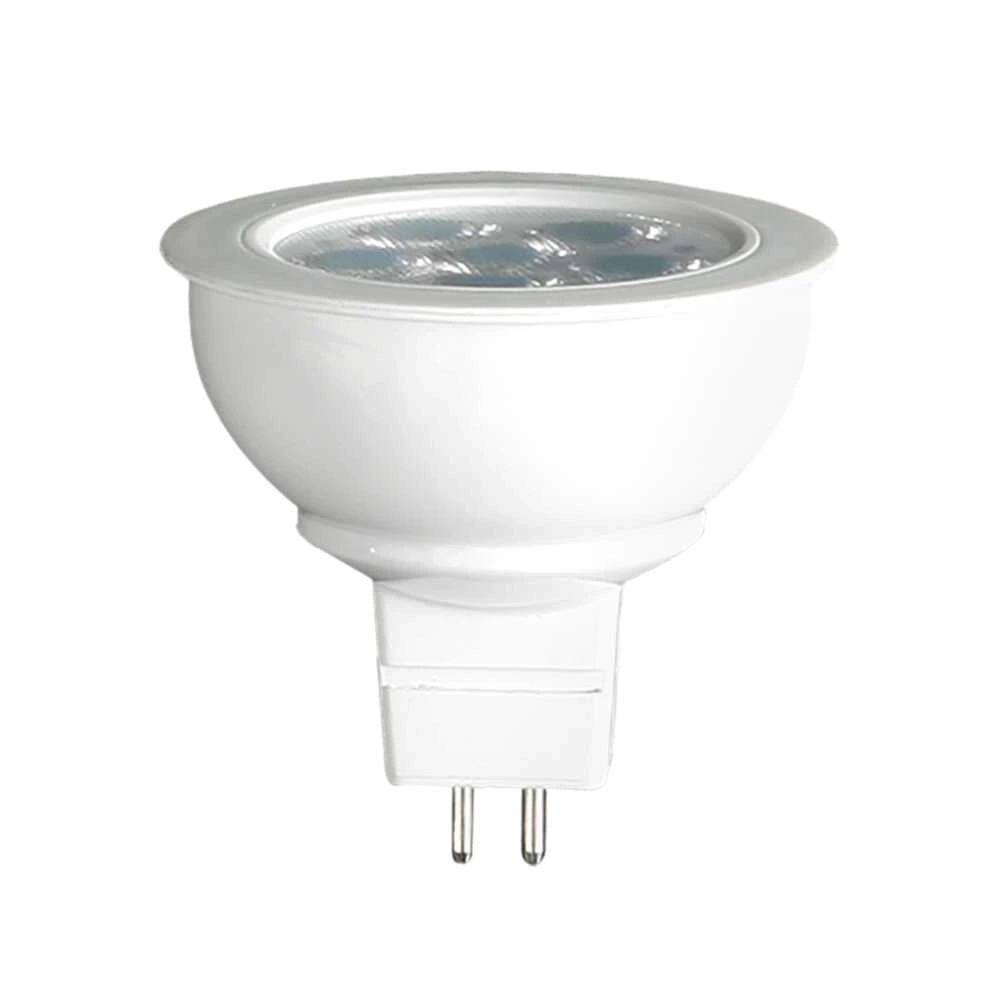

SAL MR16/7W/TC LED MR16 Lamp 6W 12V GU5.3 Tri-CCT - Non-Dimmable

Description

6W MR16 LED. Three colours. Drop-in halogen replacement — 88% energy saving.

The SAL MR16/7W/TC is a 6W non-dimmable LED MR16 lamp with selectable colour temperature (3000K / 4000K / 6000K), a shockproof frosted polycarbonate lens, die-cast aluminium body, GU5.3 bi-pin base, and a 38° spot beam — designed as a direct LED replacement for traditional 50W halogen MR16 lamps in Australian residential and commercial recessed downlight fittings, track lighting, and display lighting applications. Operating on 12V AC or DC, the MR16/7W/TC requires a separate 12V electronic LED transformer or driver (not included) and is rated to a maximum ambient temperature of 26°C (TA26). Up to 600 lm at 4000K from a compact 50mm x 55mm form factor — a direct size and base match for standard MR16/GU5.3 halogen lamp fittings.

Important: 12V electronic transformer required — not included. The MR16/7W/TC operates on 12V AC or DC. A separate 12V electronic LED transformer or driver must be supplied. SAL specifically recommends the SAL MINl60 electronic LED transformer for optimum performance. Traditional iron core (magnetic) transformers are not recommended and must be replaced with a compatible 12V electronic LED transformer before installing this lamp.

• Power: 6W, 12V AC or DC (electronic transformer required — not included)
• Lumens: 500 lm (3000K) / 600 lm (4000K) / 550 lm (6000K)
• CCT: Selectable 3000K / 4000K / 6000K
• CRI: >80
• Beam Angle: 38° (spot)
• Base: GU5.3 (MR16 bi-pin)
• Dimmable: No
• Diameter: 50mm | Length: 55mm
• IP Rating: IP20
• Max Ambient Temp: 26°C (TA26)
• Body: Die-cast aluminium, shockproof frosted polycarbonate lens
• Recommended transformer: SAL MINl60 electronic LED transformer

Important: Always switch power OFF before adjusting the CCT selector — equipment damage may occur if switched while live. Non-dimmable — do not connect to a dimmer circuit.

Fast shipping across Australia — order online now for quick dispatch.

Why the SAL MINl60 Transformer — and Why Iron Core Won't Do

MR16 LED lamps have a very different electrical load characteristic compared to halogen lamps. Traditional iron core (magnetic) transformers were designed for the resistive load of halogen lamps and do not perform correctly with the electronic load of LED drivers — causing flicker, buzzing, reduced output, or driver damage. The SAL MINl60 is a dedicated 12V electronic LED transformer designed to work correctly with SAL MR16 LED lamps. If replacing halogen MR16 lamps in an existing fitting with an iron core transformer, the transformer must also be replaced with a compatible electronic LED transformer before installing the LED lamp. Electronic (switch-mode) transformers already installed may be compatible — confirm with your electrician.

Selectable CCT — 3000K / 4000K / 6000K.

A selector switch on the base sets the colour temperature before installation with power off: 3000K Warm White for a warm, inviting ambience in residential living areas, dining rooms, hospitality venues, and retail where warm accent lighting is preferred; 4000K Cool White for kitchens, bathrooms, offices, and commercial spaces where neutral, crisp white light is preferred; and 6000K Daylight for retail display lighting, commercial offices, and applications where maximum colour clarity is required.

38° spot beam — focused accent and display lighting.

The 38° beam angle concentrates light into a defined cone suited to accent lighting, retail display illumination, artwork lighting, and directional task lighting. Multiple MR16 downlights spaced appropriately create overlapping spot pools that combine for general ambient illumination, while single MR16 lamps in adjustable track or gimbal fittings create effective accent spotlights for artworks, products, and architectural features.

Q: Can I use my existing halogen transformer with this LED lamp?
A: No — traditional iron core (magnetic) transformers are not compatible with the MR16/7W/TC. They must be replaced with a compatible 12V electronic LED transformer such as the SAL MINl60 before installing this lamp. Electronic (switch-mode) transformers already installed may be compatible — confirm with your electrician.

Q: What is the difference between MR16/5W/TC and MR16/7W/TC?
A: Both are SAL LED MR16 lamps with selectable CCT (3000K/4000K/6000K), GU5.3 bi-pin base, 38° beam, non-dimmable, IP20, and 50mm x 55mm dimensions. The MR16/5W/TC is the lower-output variant at 4W actual power, delivering 360/400/380 lm. The MR16/7W/TC (this product) is the higher-output variant at 6W actual power, delivering 500/600/550 lm. Choose MR16/7W/TC where more light output is required.

Q: What is TA26 and why does it matter?
A: TA26 means the lamp is rated for ambient temperatures up to 26°C. In enclosed or insulated ceiling cavities where heat can accumulate, the ambient temperature around the lamp may exceed 26°C, reducing lamp life or causing thermal shutdown. Ensure adequate ventilation around the fitting and confirm the ceiling cavity temperature is within the TA26 rating.
