Red Smoke Professional RRURF12 RF Relay Unit 12-30V DC with 10 Year Battery Backup

Description

Turn an alarm signal into real-world action.

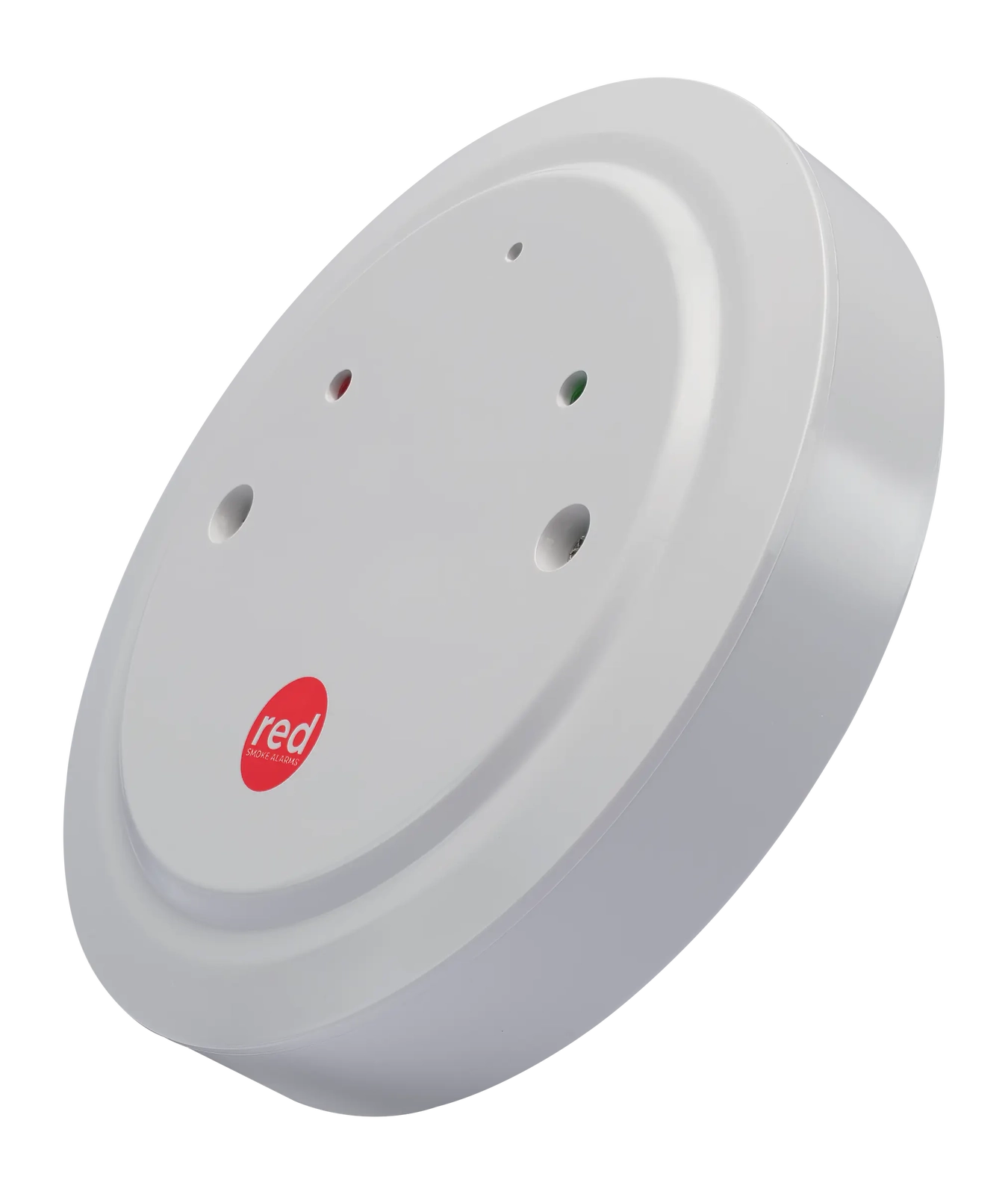

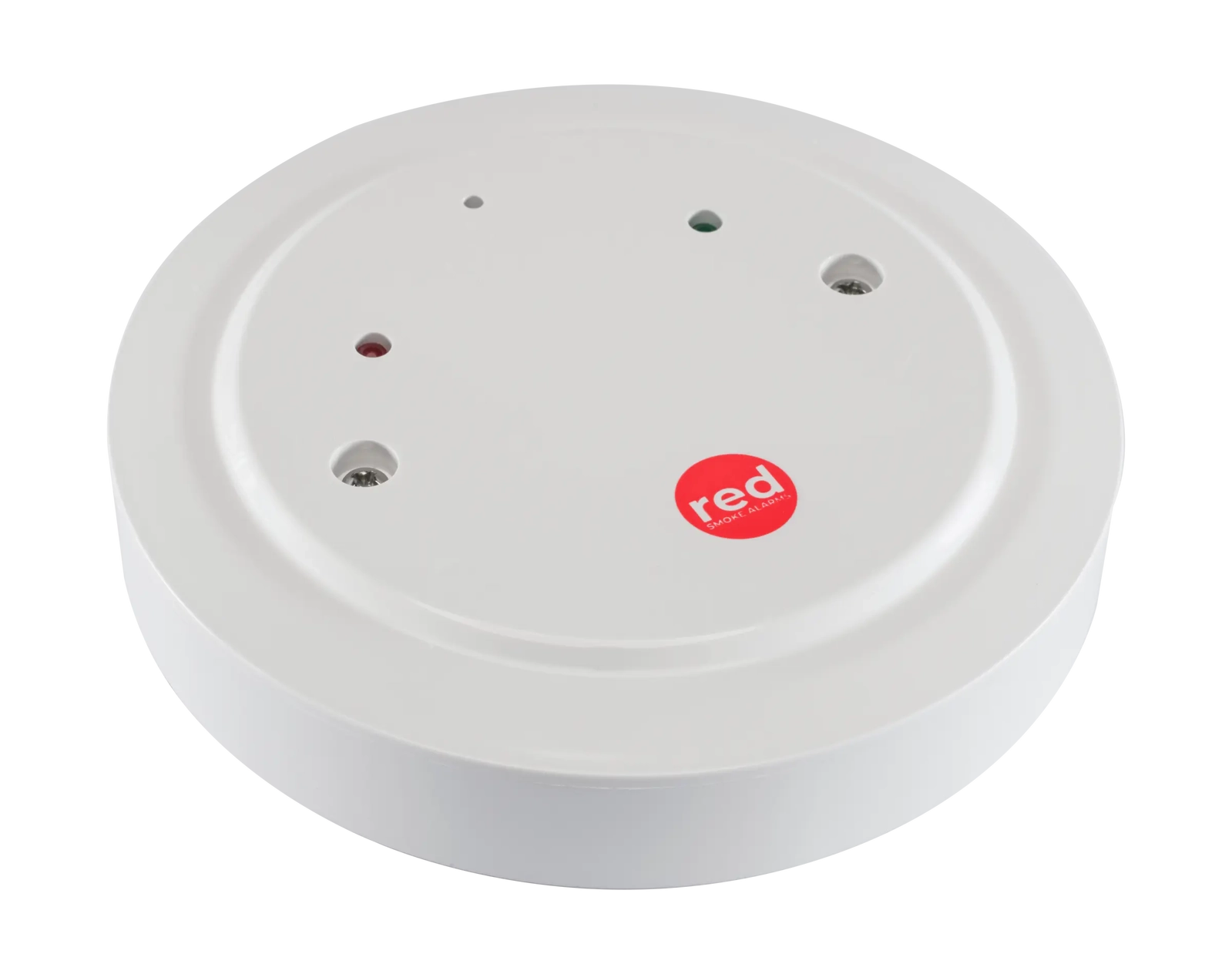

The Red Smoke RRURF12 is a stand-alone wireless relay unit that lets a smoke alarm switch external equipment. It receives fire and fault signals over RF, then drives two independent volt free relays rated 250V AC, 5A resistive.

Key Features:

• 12-30V DC supply with sealed 10 year 3V lithium backup for the RF receiver
• Two independent relays: FIRE and FAULT, each with volt free NO/NC and COM contacts
• Relay rating 250V AC, 5A resistive
• FIRE relay selectable Pulse (5 second) or Continuous latching operation
• 433.92 MHz RF, up to 20 devices wirelessly interconnected
• 30 m indoor line of sight, 100 m free field RF range
• Approximately 8 second response time

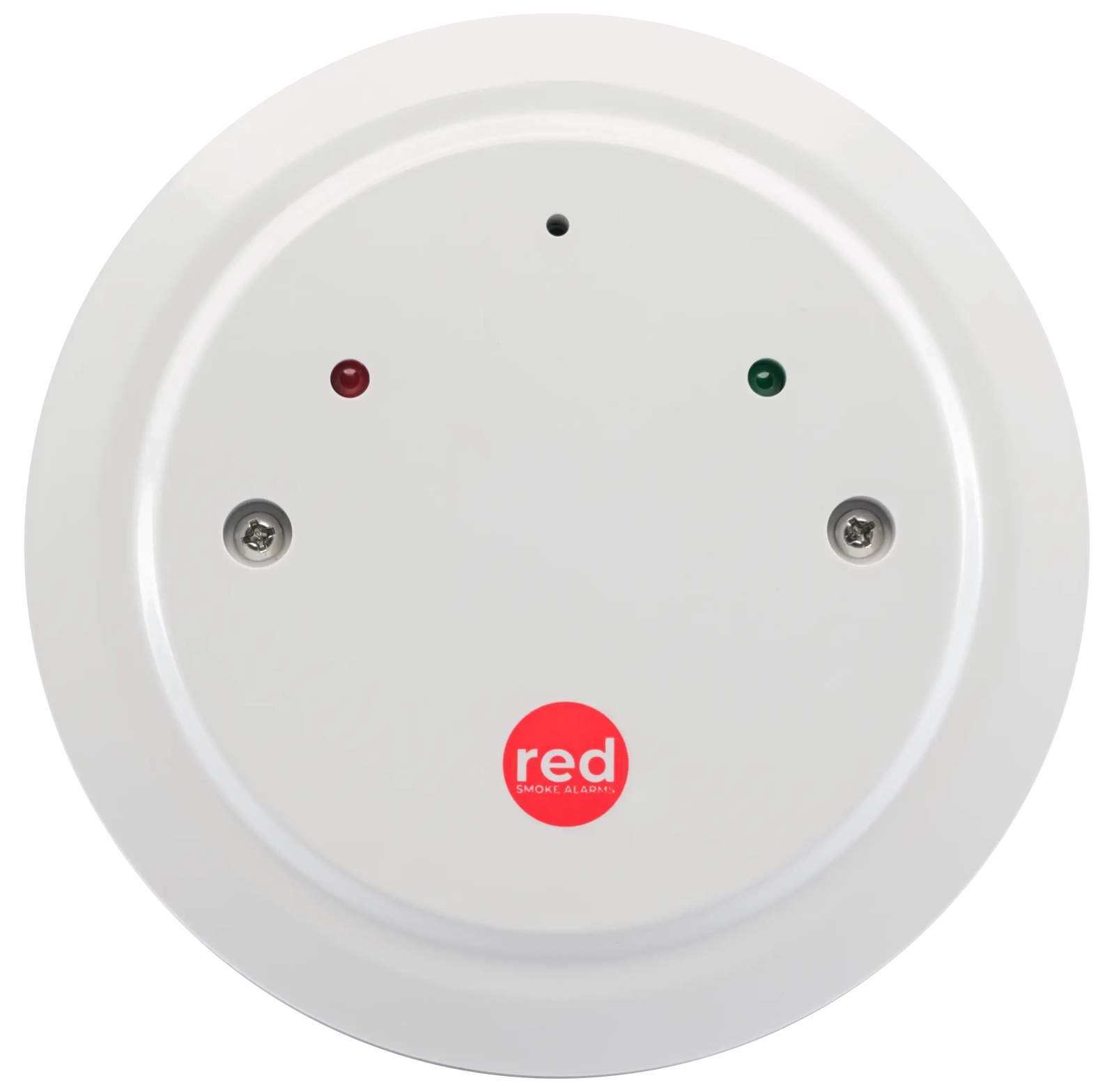

• Green mains LED, red status LED and audible low battery warning
• Compatible with Red Original and Red Professional series alarms

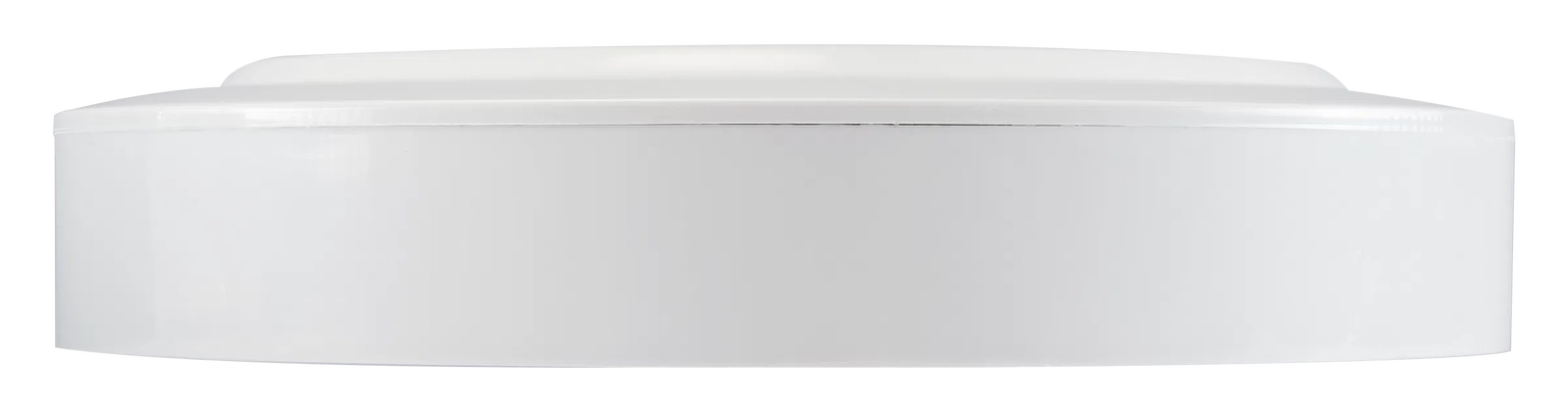

• 140 mm diameter, 28 mm protrusion, white ABS, surface mount with conduit entries
• AS/NZS 62368.1:2022, AS/NZS 4268:2017 AMD 1:2021, AS/NZS CISPR 32:2015 AMD 1:2020

Order online now for fast dispatch Australia-wide.

Two Relays, Two Separate Jobs

The RRURF12 carries two relays that operate independently of each other. The terminal marked FIRE switches when a paired alarm in the RF network sends a fire, test or silence signal. The terminal marked FAULT switches when the RF network reports a low battery or fault. An alarm event and a maintenance warning can therefore drive completely different devices. The FIRE relay can be set to Pulse, holding for five seconds, or Continuous, latching until a cancel signal arrives. The FAULT relay runs in Continuous mode only.

Powered by Low Voltage DC

This unit takes a 12-30V DC supply rather than 240V mains. Red Smoke advises it can be run from alternative energy sources such as solar, wind or UPS inverters, provided total harmonic distortion stays below 5 per cent. The relay contacts are electrically isolated from the supply and rated to 250V AC, 5A resistive, so the switched load does not have to share the same circuit. For resistive loads above 5 A, use the relay to drive a contactor coil and let the contactor carry the load. The unit must not be powered from a dimmer circuit and must not be earthed.

Installation and Limitations

The RRURF12 surface mounts to a wall or ceiling with screws and accepts cable or conduit through the moulded entries, including a rear entry knockout. A pairing button handles RF setup and an internal pin cap selects the FIRE relay mode before power up. Interconnection is wireless only, so position the unit within RF range of the alarms it needs to hear. The unit is for indoor use, is not waterproof, and Red Smoke rates it for single occupancy private dwellings only. Installation must be carried out by a licensed electrician in line with local wiring rules.

Q: What voltage does the Red Smoke RRURF12 relay unit need?
A: It runs on a 12-30V DC supply. A sealed 3V lithium battery gives 10 years of backup for the RF receiver only.

Q: Which smoke alarms work with the RRURF12?
A: It pairs with interconnectable Red smoke alarms from the Red Original and Red Professional ranges, covering 240V AC and 10 year lithium models, plus alarms fitted with the RFMOD wireless module.

Q: How many alarms can the RRURF12 connect to?
A: Up to 20 devices can be wirelessly interconnected at 433.92 MHz, with a range of 30 m indoors line of sight or 100 m in free field.
