Red Smoke RACP Wireless Smoke Alarm Controller RF 433MHz

Description

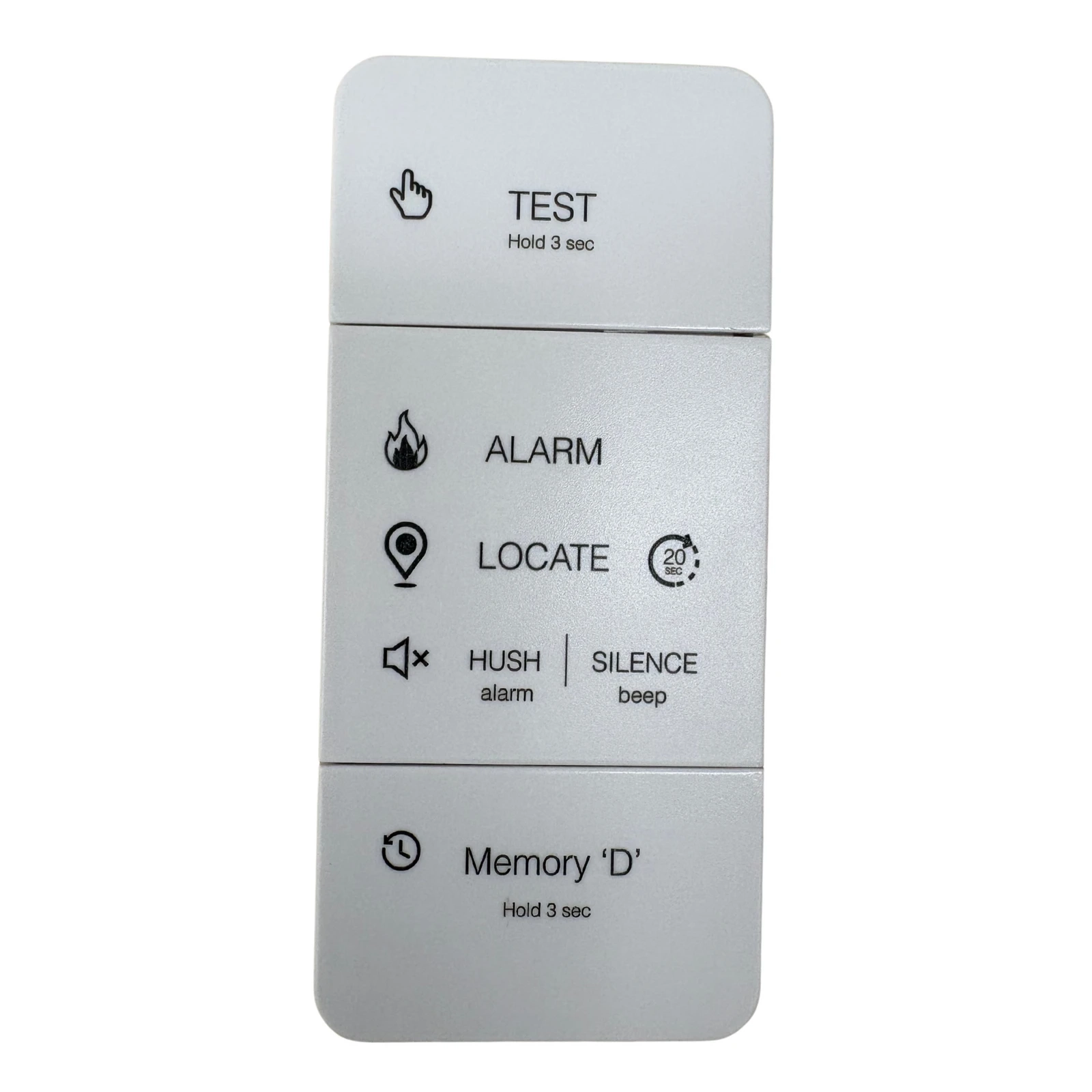

Silence, test and locate your alarms from the wall.

The Red Smoke RACP is a wireless wall controller for RF-enabled Red smoke alarms. From one wall-mounted button you can silence nuisance alarms, run a system test, locate which alarm triggered, and diagnose past events with the Memory "D" feature – no climbing up to the ceiling. The remote lifts off its magnetic base for use anywhere in the home.

Key Features

• One-touch control of RF-enabled Red smoke alarms from the wall
• Test, Locate, Hush, Silence and Memory "D" event-history functions
• Memory "D" puts alarms into 14-day memory to show what triggered an event
• Controls up to 40 Red RF smoke alarms over 433.92 MHz
• Powered by a replaceable CR2450 lithium battery (approx. 2-year life)

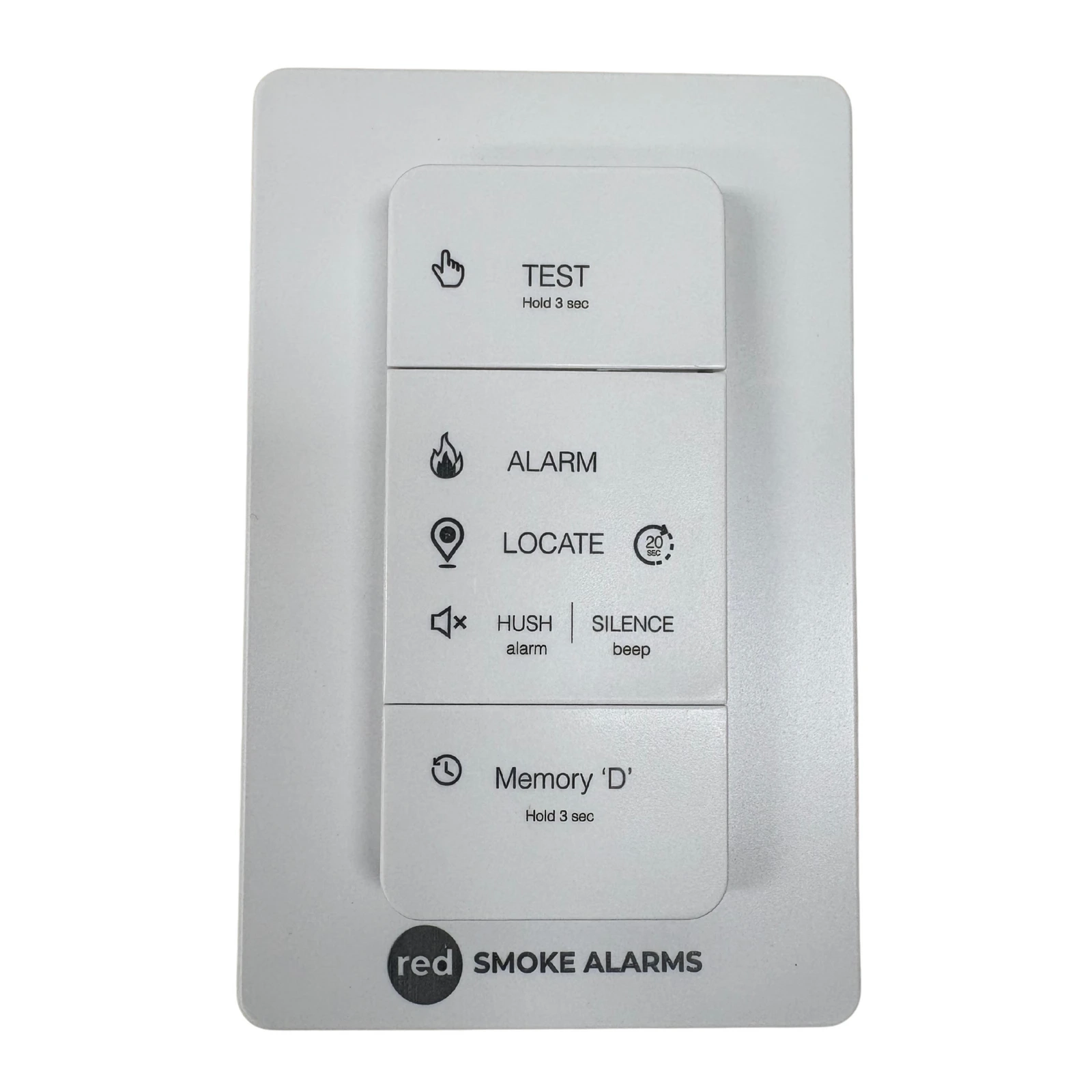

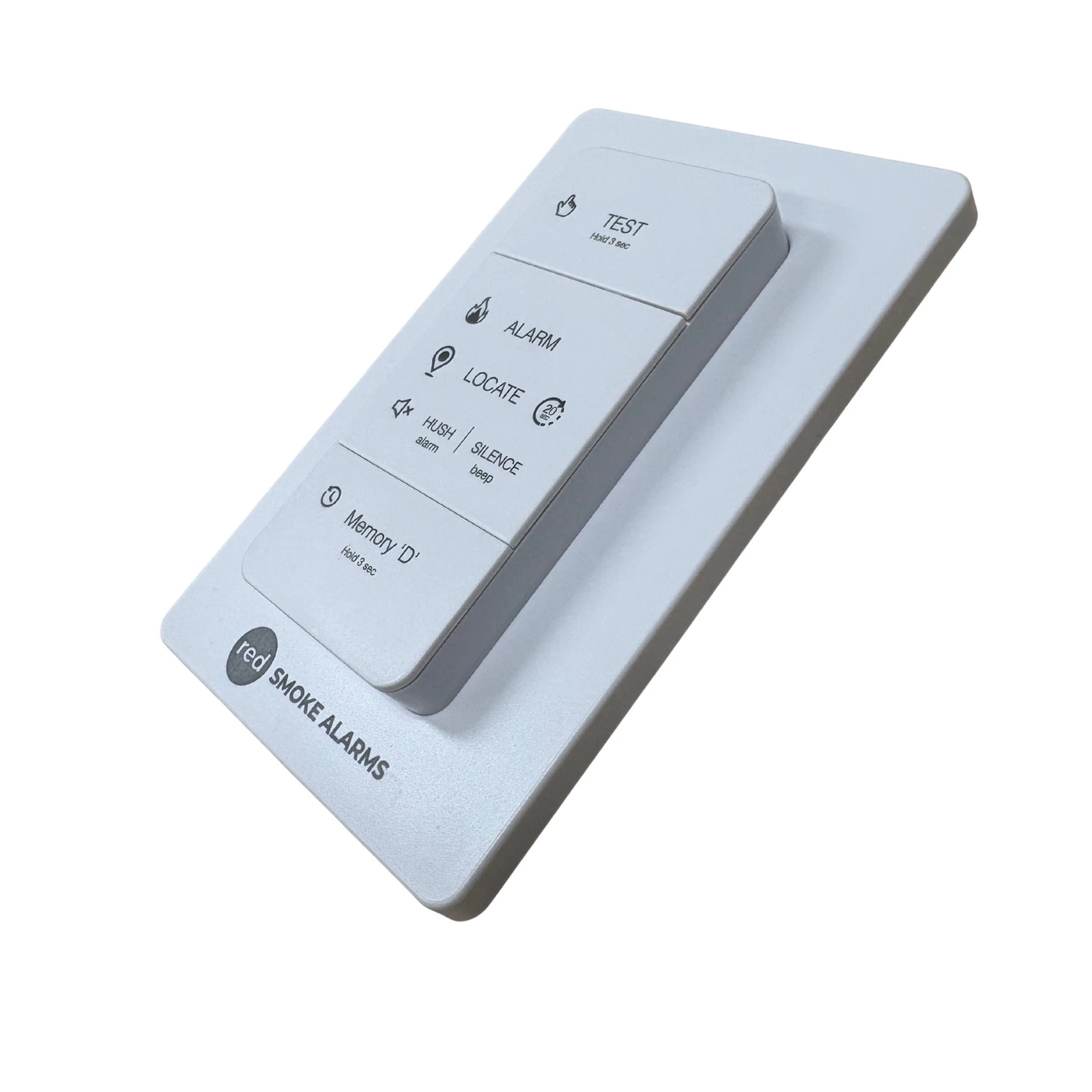

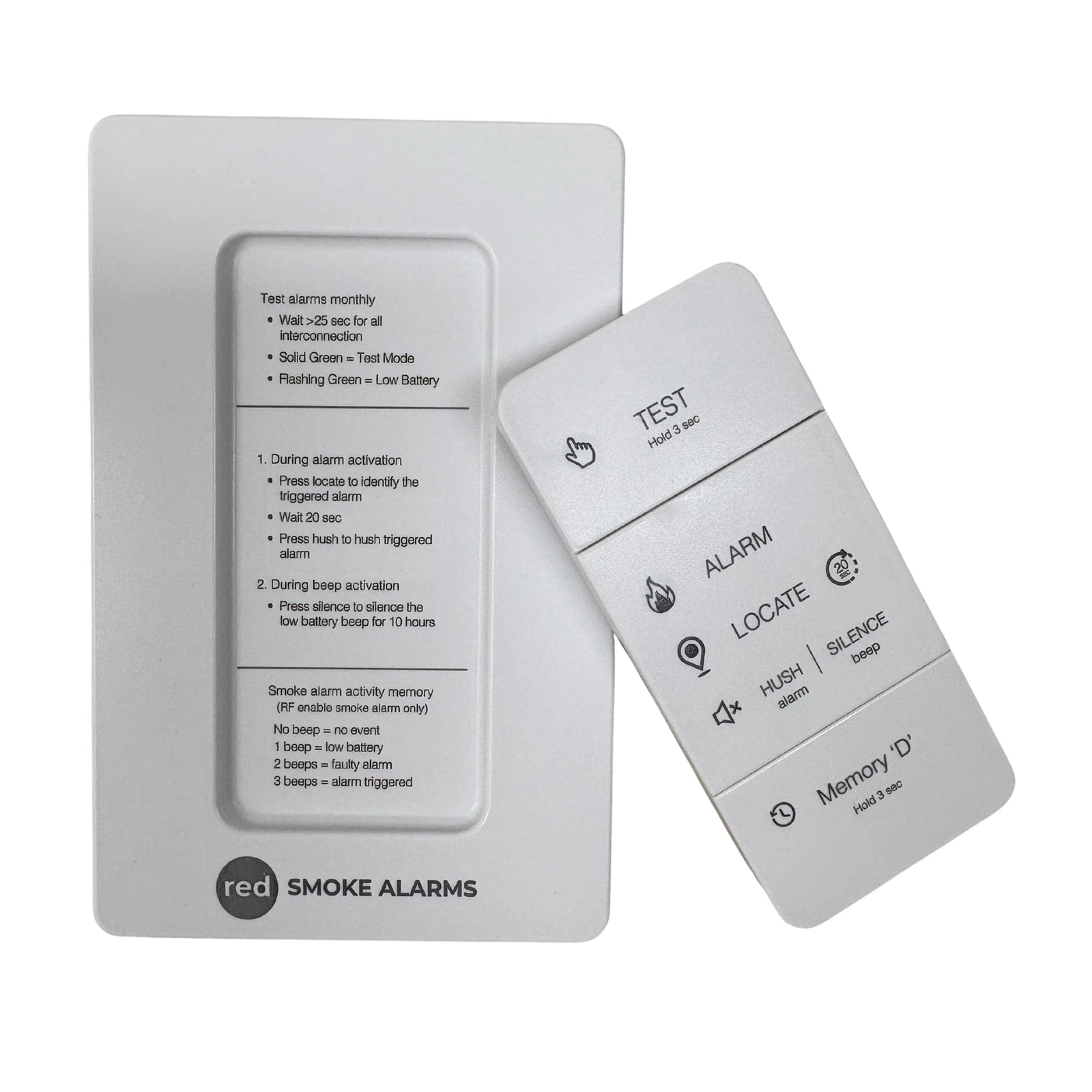

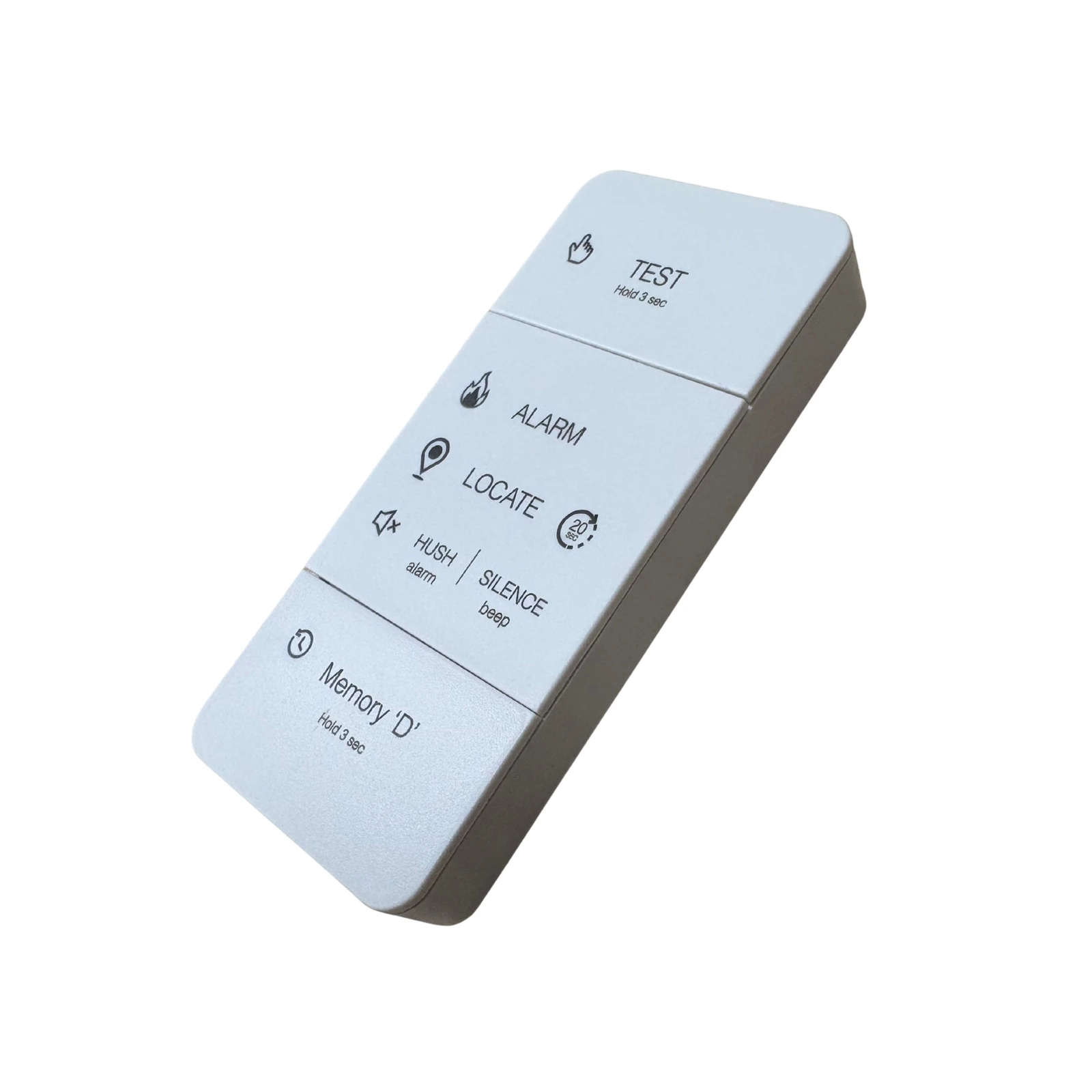

• Magnetic wall bracket – mount with screws or adhesive, lifts off as a remote
• Built for Red smoke alarms – compatible with R240, R240RC and R10RF and the Professional Range (240V models require an RWB2 base or RFMOD module)
• Complies with AS/NZS 4268:2017 and AS/NZS 62368.1:2022

Add one to your cart for fast dispatch nationwide.

RF Alarms Only – Check Compatibility

The RACP is a radio-frequency controller and works only with RF-enabled Red alarms, not directly with hardwired interconnect. RF wireless alarms such as the R10RF and R10RFP pair with it directly. To use it with 240V hardwired alarms (R240, R240RC, R240P, RSDUALP, RSDUALPB, RFMDUAL), each alarm must first be fitted with an RWB2 wireless base or an RFMOD module to join the RF network.

The Memory "D" Advantage

Memory "D" is the RACP's standout feature: it interrogates the alarm network for the last 14 days of events, so you can tell whether an alarm sounded from smoke, a fault, or a low battery. One "D" tone means low battery, two means a fault, and three means the alarm was triggered. It is a remote for the homeowner and a fault-finder for the electrician. Memory "D" works with Red Original alarms from batch code 150525 and Red Professional alarms from batch code 150725; the Test, Locate, Hush and Silence functions work across the wider Red range.

Q: How long does the Red Smoke RACP battery last, and can it be replaced?

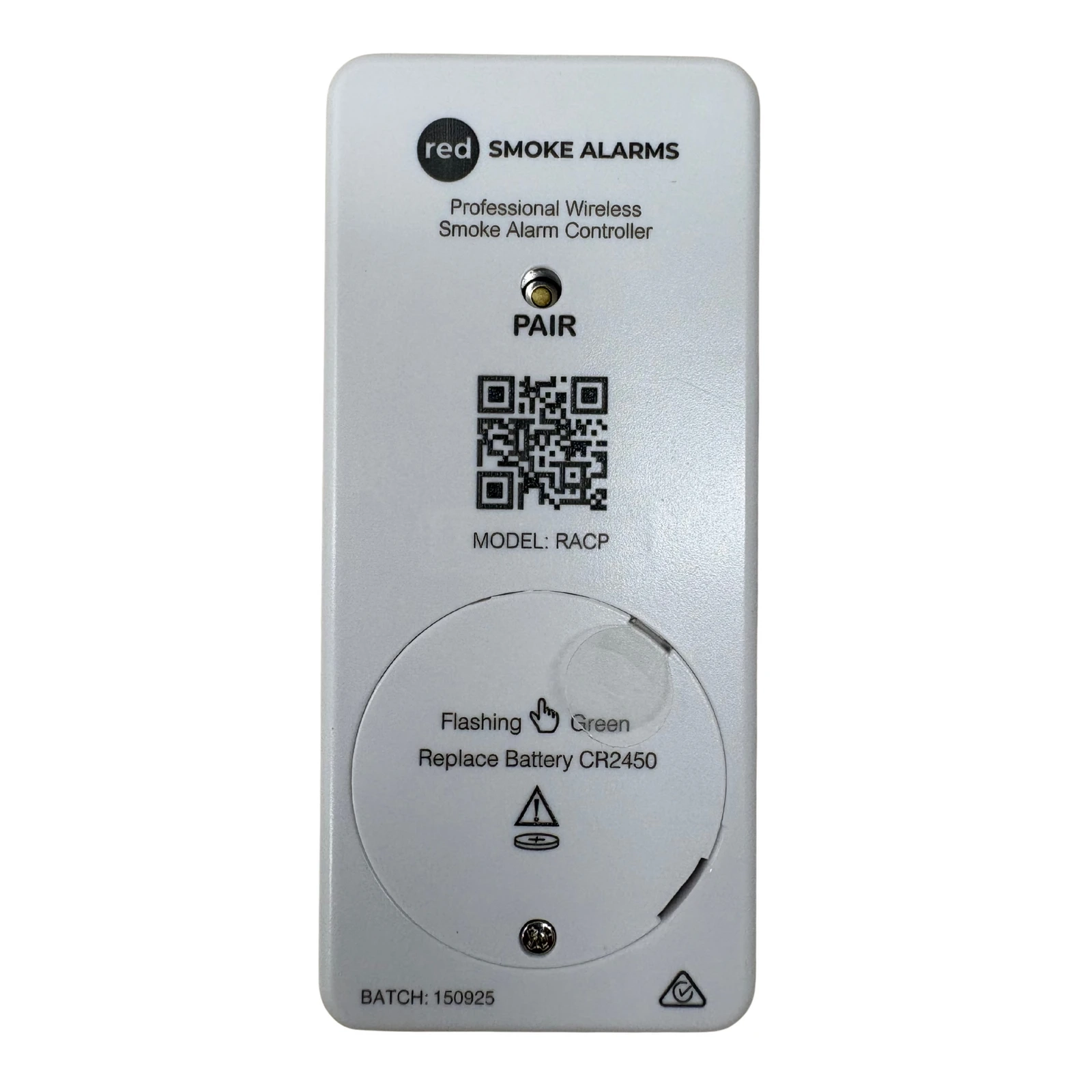

A: It runs on a replaceable CR2450 lithium battery that lasts approximately two years. A green LED flashing every four seconds indicates the battery needs replacing.

Q: Does the RACP work with hardwired 240V smoke alarms?
A: Only indirectly. The RACP controls RF-enabled alarms; to include a hardwired 240V alarm, fit it with an RWB2 base or RFMOD module so it can join the RF network. RF alarms like the R10RF and R10RFP connect directly.

Q: How many alarms can the Red Smoke RACP control?
A: Up to 40 Red RF smoke alarms, communicating wirelessly at 433.92 MHz over 30m indoors (line of sight) or 100m in free field.

Warranty

Red Smoke Alarms – Manufacturer Warranty

Red Smoke Alarms are built to last and backed by a 10-year warranty for both residential and commercial use. Faults are rare, but if something does go wrong, support is just a call or click away.

To submit a warranty claim, you can either:

• Call Red Smoke Alarms on 1300 316 552, or

• Submit a claim online at: redsmokealarms.com.au/warranty

Red Smoke Alarms are supported by a national network of service agents ready to assist in the unlikely event of a fault.

Note: For the fastest resolution, contact Red Smoke Alarms directly. Warranty claims and repairs are handled exclusively by their team—not through Electrotraders.
