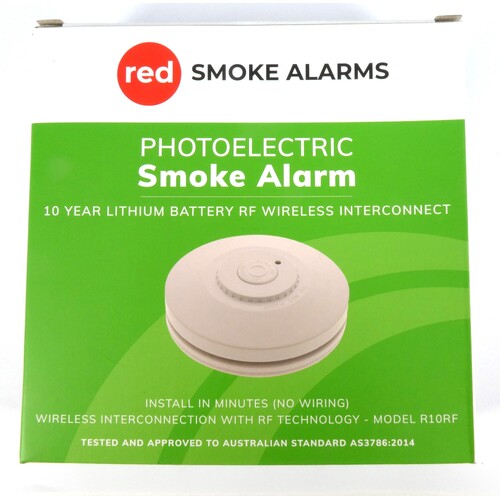

Model No: R10RF
- A photoelectric, 10 year sealed lithium battery RF wireless smoke alarm.
- Interconnectable with up to 20 Red smoke alarms (240v hard wired and/or 10 year RF wireless smoke alarms) and includes a test/hush button and visual indicators.
- The R10RF smoke alarm is approved and certified to meet AS3786:2014 and is fully compliant to meet the Queensland 2022 smoke alarm legislation.
- The new QLD smoke alarm legislation starts on January 1st 2022, All properties leased or sold in Queensland must be fitted with photoelectric, interconnected smoke alarms in all bedrooms of the home as well as hallways or between areas containing bedrooms and on each storey of the dwelling.
- The Red Smoke Alarm Controller can connect wirelessly to this smoke alarm.
- This product must be installed by a licensed electrician.
- Clipsal Equivalent 755LPSMA4,Brooks Equivalent EIB650iRF,PSA Equivalent LIF10YPEW
- For Full Specifications Click on the Brochure Link Under The Main Image.
(rer10rf)
Red Smoke Alarms R10RF Spec Sheet
| Key Information | |
| Product Brand | Red Smoke Alarms |
| Product or Component | Smoke Detector |
| Device Application | Early detection of smouldering fires and open fires |
| Electronic Sensor Type | Photo-electric sensor |
| Colour | White |
| Quantity per Set | Set of 1 |
| Type of Packing | Carton |
| Battery Type | 3V DC Sealed Lithium Battery |
| Battery Life | 10 Year |
| Operating Current | < 100mA at 3V |
| Standby Power | < 0.04 mW |
| Detection Type | Smoke |
| Function Available | Hush Function, Self-test of smoke detection, Local alarm |
| Control Type | Button for test/hush function |
| Transmission Frequency | 433.92 MHz |
| Number of Devices | Up to 20 pieces |
| Operating Distance | 30m indoor use line of sight, 100m in free field |
| Pairing delay range | 2 min maximum |
| Response time | Approx. 8s |
| Noise level | 85 dB at 3m minimum |
| Time delay range | 10 min for hush |
| Local Signal | Sound: Alarm, Sound: Signal, Visual: 1 LED (red for warning and low battery) |
| Type of Installation | Indoor |
| Device Mounting | Surface |
| Mounting Support | Wall-mount, Ceiling |
| Fixing Mode | By screws |
| Diameter | 140 mm |
| Height | 39 mm |
| Environment | |
| Ambient Air Temperature for Operation | 0...45°C |
| Relative Humidity | 5...95% |
| Standards | AS 3786 : 2014 / amdt 2:2018 |
| Disclaimer | |
| The information provided in this table contains general descriptions and/or technical characteristics of the performance of the products contained herein. This table is not intended as a substitute for and is not to be used for determining suitability of reliability of these products for specific user applications. It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof. Neither Red Smoke Alarms PTY. LTD nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein. | |
| SKU | rer10rf |
| Brand | Red Smoke |
