Orange Circular Building Cable 3 Core and Earth (4G) 1.5mm

Description

Three cores plus earth, supplied by the metre.

When a circuit needs three insulated conductors and an earth, a twin-and-earth cable will not do the job. The APEC MVM105E03 carries three 1.5mm² annealed copper cores plus a 1.5mm² earth in one orange circular sheath with a 450/750V rating under AS/NZS 5000.2, and you buy only the metres required.

Key Features:

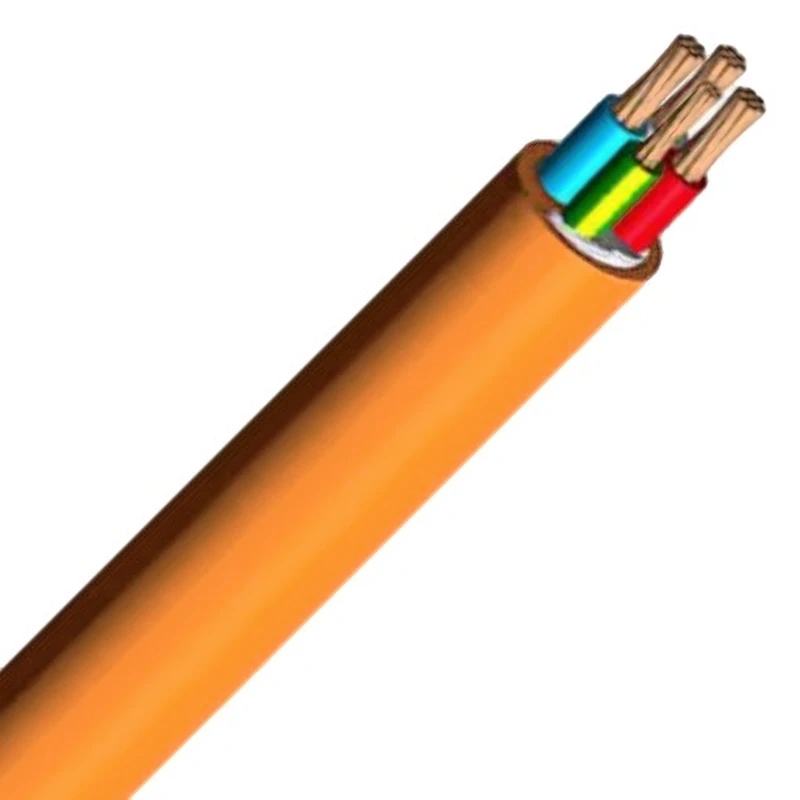

• 3 core + earth (3C+E) circular construction
• Three 1.5mm² power cores and a 1.5mm² earth core
• Annealed copper conductors throughout
• 450/750V voltage rating to AS/NZS 5000.2
• PVC V90 core insulation, PVC 5V90 sheath in orange
• 90°C continuous conductor temperature rating

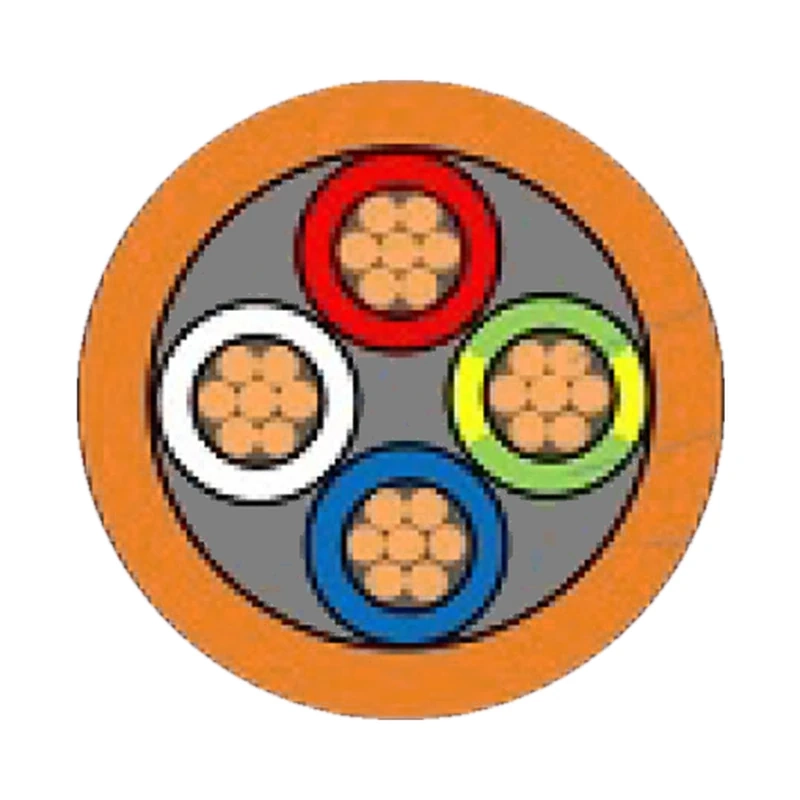

• Core colours red, white and blue, plus green/yellow earth
• Approx. 10.4mm overall diameter and 14.3kg per 100m
• Priced per metre — type in the length you want

Secure yours today — cut to length and dispatched Australia-wide.

Why It Matters

Three Distinct Cores, One Sheath

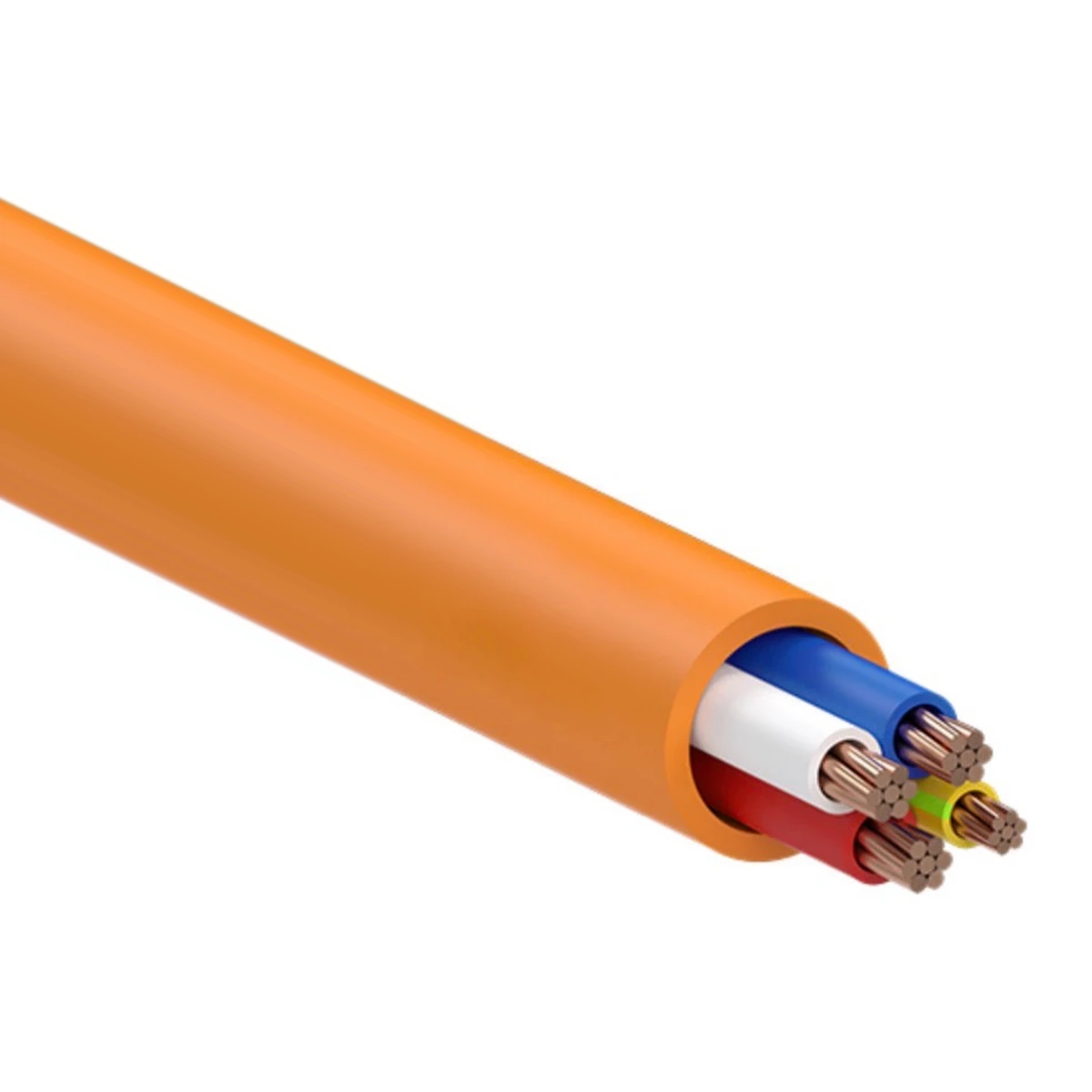

With separate red, white and blue power cores and a green/yellow earth, the MVM105E03 keeps every conductor visually distinct inside a single orange 5V90 sheath. That makes terminations quicker to check and keeps the cable easy to trace once it is pulled in, without running multiple separate cables alongside each other.

Ordered to Length, Not by the Drum

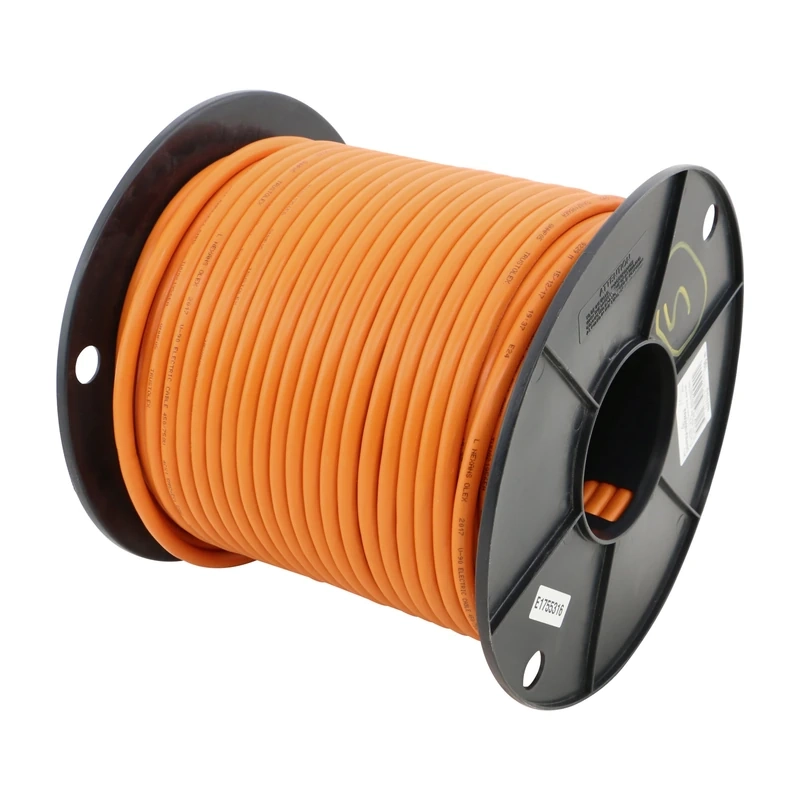

A 100-metre drum is rarely the right quantity for a single run. Because this cable is priced per metre, you can enter 12 metres or 60, receive that length cut from stock, and keep leftovers off your books. It suits tight job costing where every metre is accounted for in the quote.

Standards You Can Specify Against

APEC manufactures the MVM105E03 to AS/NZS 5000.2, using V90 insulation and a 5V90 sheath for a 90°C continuous conductor rating. Final cable selection for any circuit, including current-carrying capacity and voltage drop, should follow AS/NZS 3008.1.1, and the installation itself must be carried out by a licensed electrician to AS/NZS 3000.

Q: How many cores does the APEC MVM105E03 have?
A: It has four insulated cores in total: three 1.5mm² power cores coloured red, white and blue, plus one 1.5mm² green/yellow earth core.

Q: How heavy is APEC MVM105E03 orange circular cable?
A: APEC lists an approximate mass of 14.3kg per 100 metres and an approximate overall diameter of 10.4mm.

Q: Can I buy MVM105E03 cable in a custom length?
A: Yes. It is sold per metre, so whatever length you type in is exactly the length we cut and supply to you.
