Orange Circular Building Cable 4 Core and Earth (5G) 1.5mm

Description

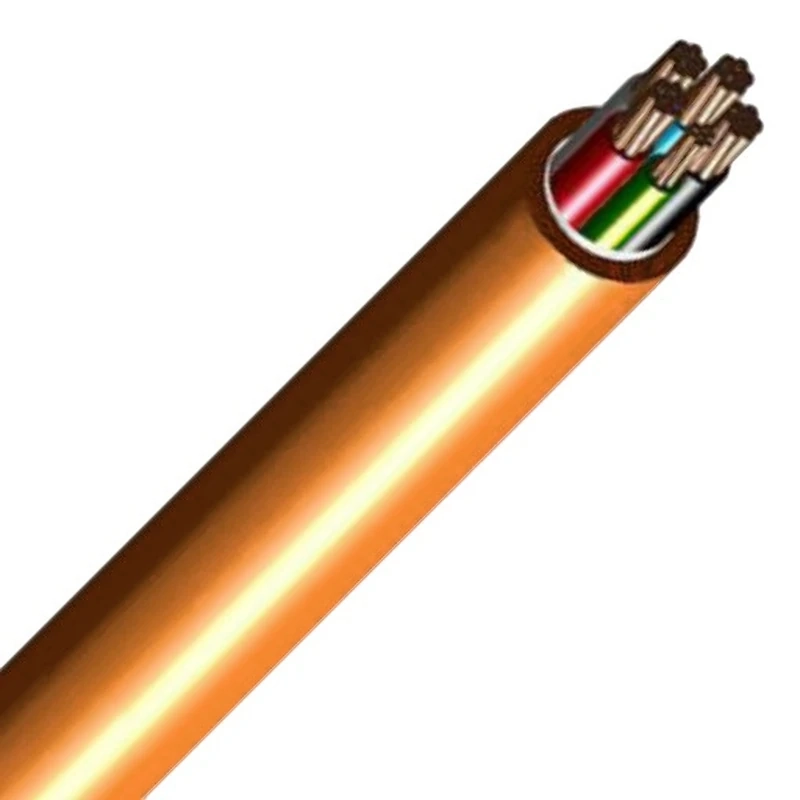

Four power cores and an earth in one orange sheath.

Some circuits call for four insulated conductors alongside the earth, and running extra cables to get there adds cost and clutter. The APEC MVM105E04 packs four 1.5mm² copper cores plus a 1.5mm² earth into a single circular sheath, made to AS/NZS 5000.2, and is priced by the metre.

Key Features:

• 4 core + earth (4C+E) in a round, orange PVC sheath
• Four 1.5mm² power conductors with a 1.5mm² earth
• Annealed copper conductors
• Voltage rating 450/750V, AS/NZS 5000.2
• PVC V90 insulation and PVC 5V90 outer sheath
• Conductors rated for 90°C continuous operation

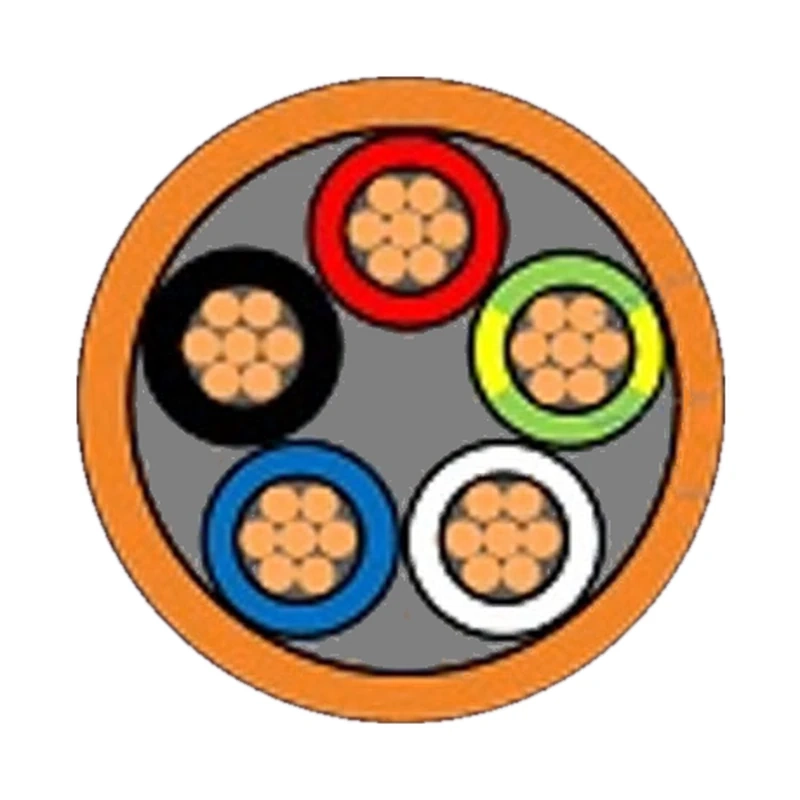

• Red, white, blue and black cores; green/yellow earth
• About 11.4mm overall diameter, about 17.2kg per 100m
• Sheath thickness 1.3mm (average)
• Buy any length — it is sold by the metre

Grab yours now — measured, cut and shipped to your door.

Why It Matters

Four Cores, Each Easy to Tell Apart

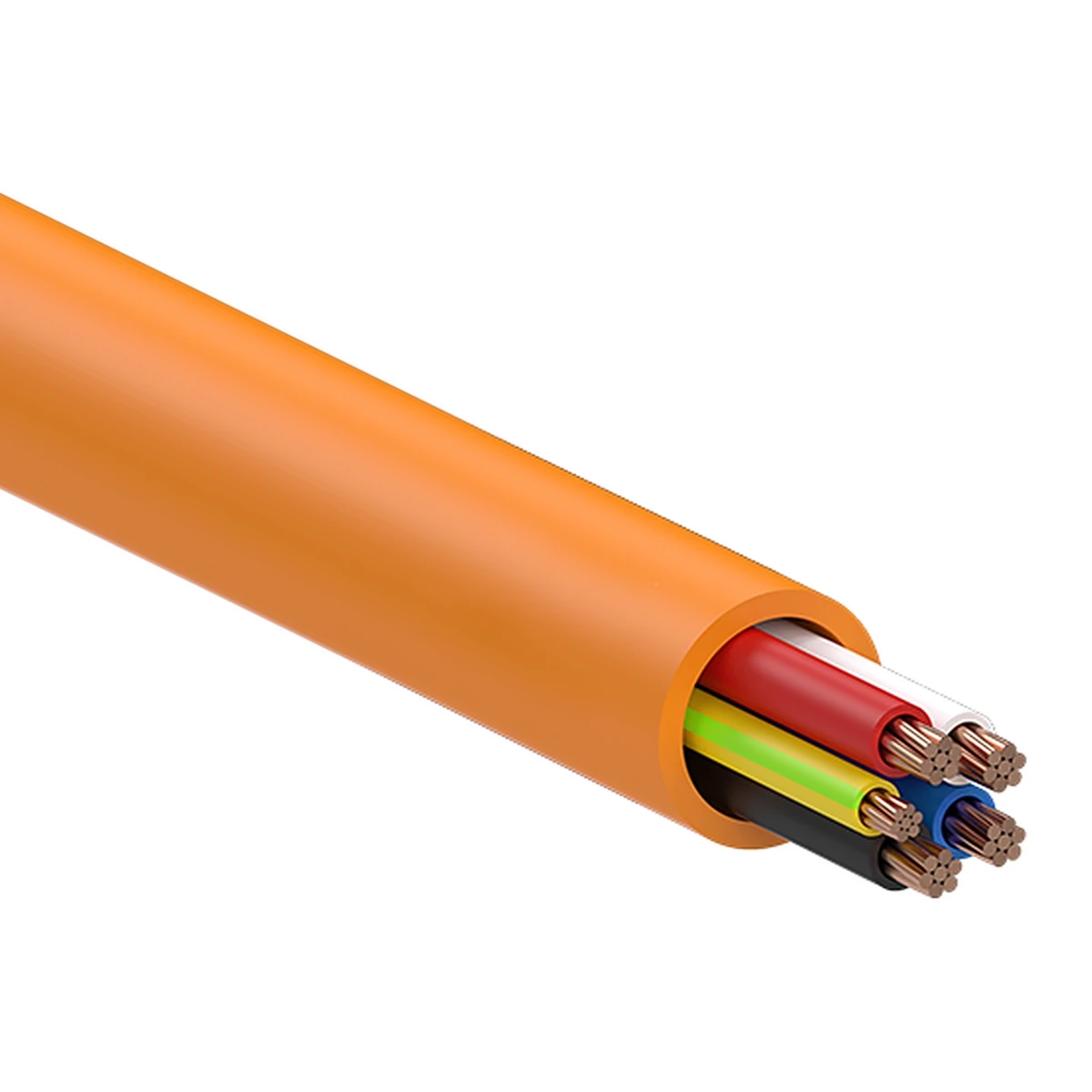

Red, white, blue and black power cores sit with a green/yellow earth inside the MVM105E04, so each conductor can be identified at a glance when you strip back the orange sheath. One cable carrying all five conductors also means fewer pulls through conduit and a tidier installation overall.

No Leftover Drum Stock

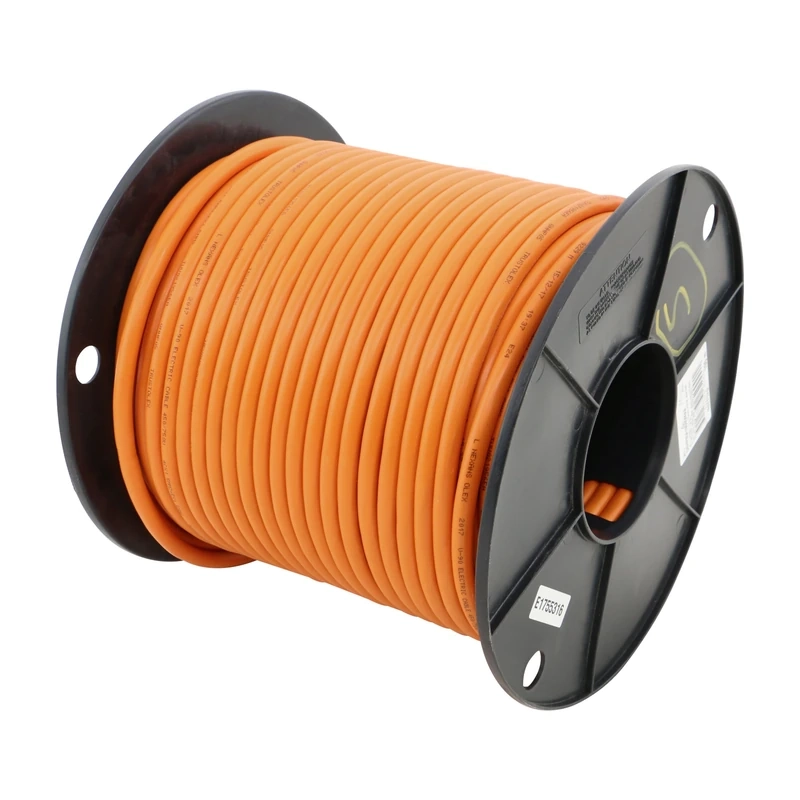

Rather than buying a full 100-metre drum and storing what is left, you choose the exact length for the run — 15 metres, 45 metres or anything else. The cable arrives cut to that figure, so the cost on the invoice lines up with the metres your job actually consumes.

Made to a Recognised Australian Standard

The MVM105E04 is produced to AS/NZS 5000.2 with V90 insulation and a 5V90 sheath, giving its conductors a 90°C continuous temperature rating. Use AS/NZS 3008.1.1 to confirm the cable size suits the load and run length of your circuit, and have a licensed electrician complete the work in line with AS/NZS 3000.

Q: What colours are the cores in APEC MVM105E04 cable?
A: The four power cores are red, white, blue and black, and the earth core is green/yellow, all within an orange outer sheath.

Q: What size is the earth in the APEC MVM105E04?
A: The earth core is 1.5mm², the same cross-section as each of the four 1.5mm² power cores.

Q: Does the APEC MVM105E04 come on a full drum?
A: No need — this listing is sold per metre, so you order only the length your installation calls for.
