Orange Circular Building Cable 2 Core and Earth (3G) 1.5mm

Description

Australian-standard orange circular cable, cut to your length.

Buying a full drum when the job only calls for forty metres ties up money and storage. This APEC MVM105E02 orange circular building cable is sold by the metre, so you order exactly the length your installation needs — 2 core + earth, 1.5mm² annealed copper, rated 450/750V to AS/NZS 5000.2.

Key Features:

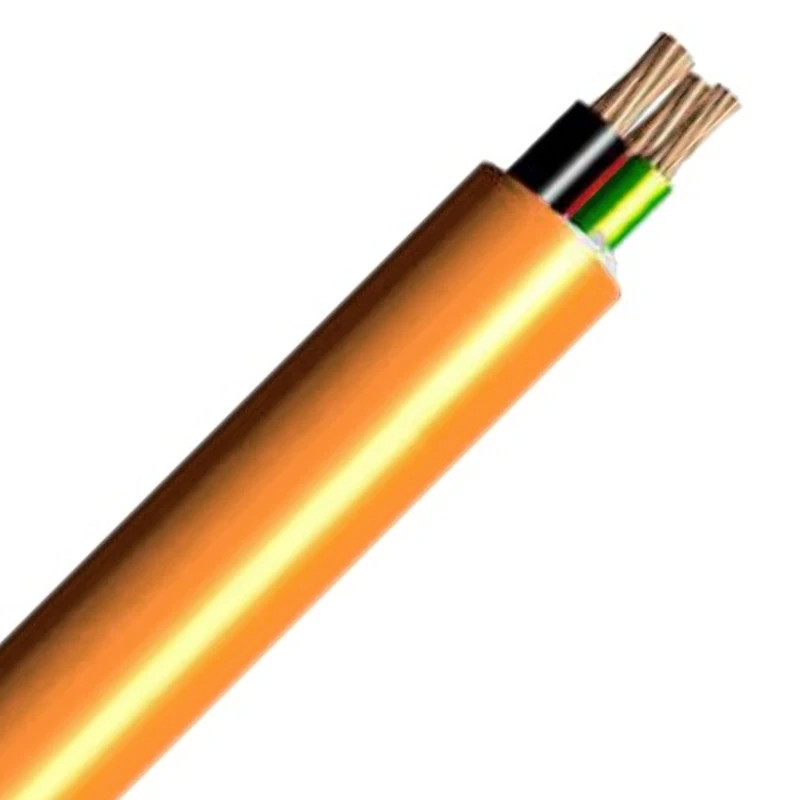

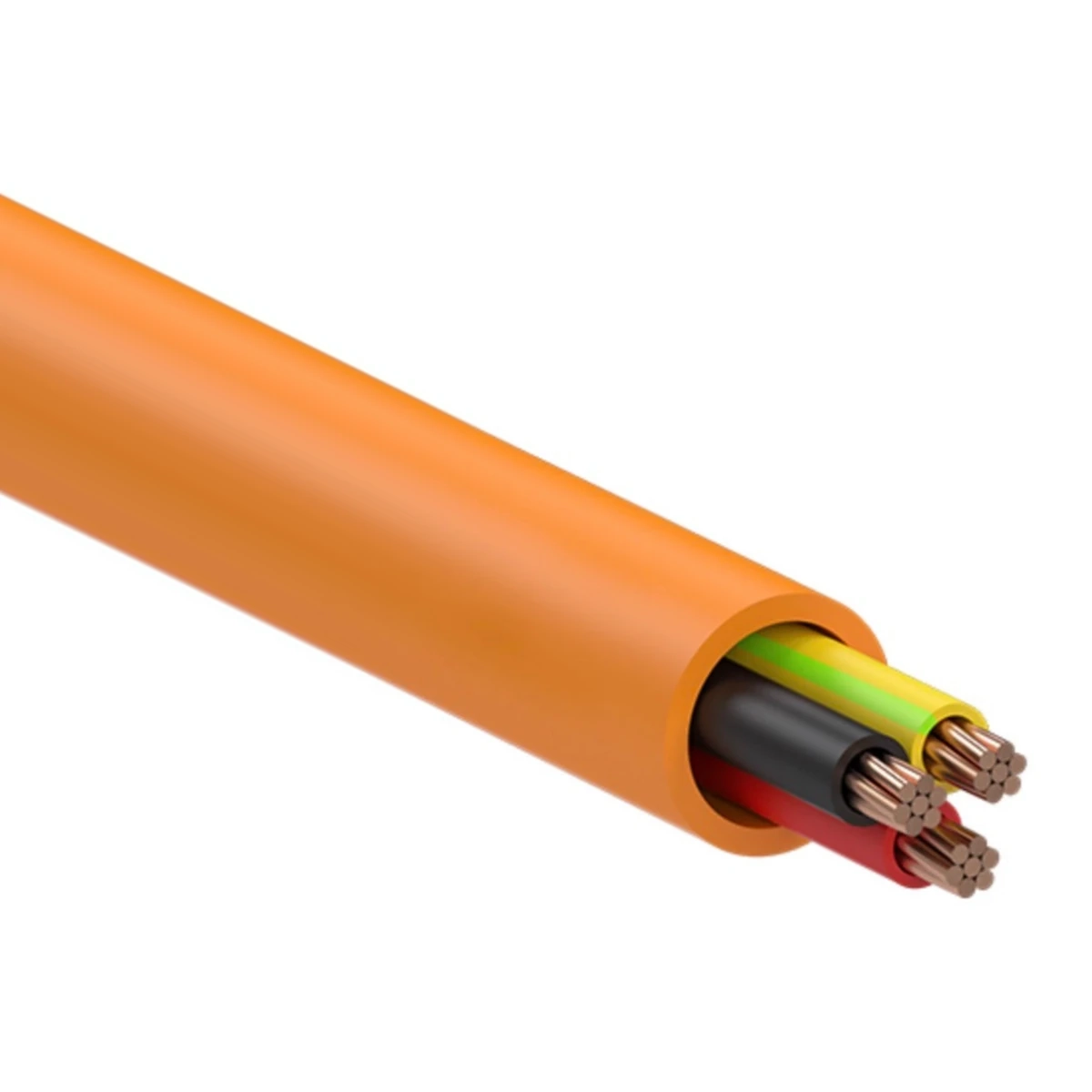

• 2 core + earth (2C+E) orange circular configuration
• 1.5mm² annealed copper power and earth conductors
• Rated 450/750V, manufactured to AS/NZS 5000.2
• PVC V90 insulation with PVC 5V90 orange sheath
• Continuous conductor temperature rating of 90°C

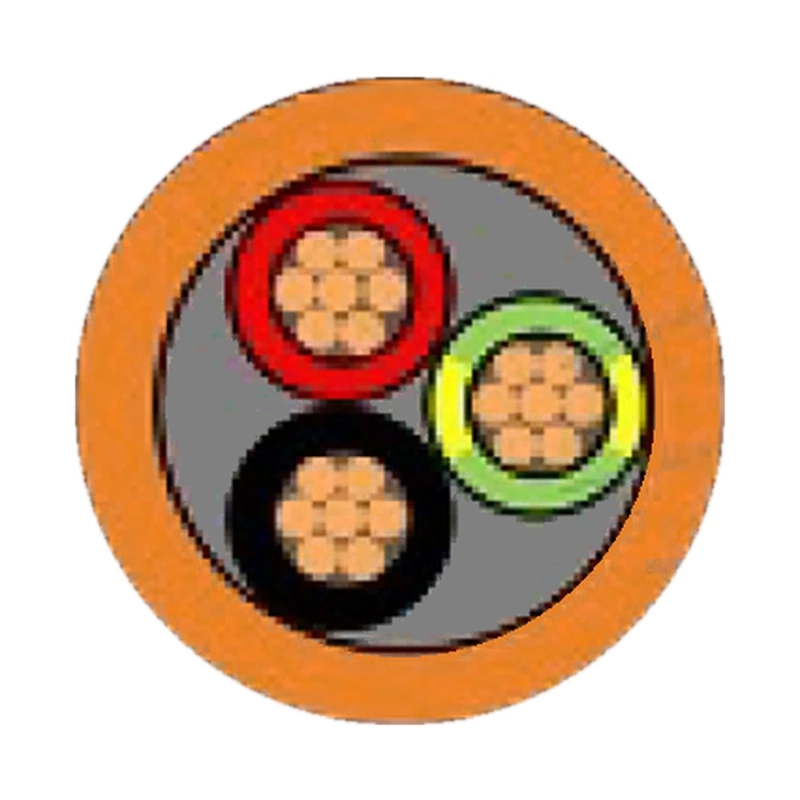

• Colour-coded cores: red and black, with green/yellow earth
• Approximate overall diameter 9.6mm, approximately 11.6kg per 100m
• Sold per metre — enter the number of metres you need
• APEC product code MVM105E02

Get yours cut to length — fast dispatch Australia-wide.

Why It Matters

Built to the Australian Standard

Compliant electrical work starts with compliant cable. The MVM105E02 is manufactured to AS/NZS 5000.2 with annealed copper conductors, V90 insulation and a 5V90 sheath, carrying a continuous conductor temperature rating of 90°C. Conductor sizing and current-carrying capacity for a circuit should be determined in accordance with AS/NZS 3008.1.1, and all fixed wiring must be installed by a licensed electrician in compliance with AS/NZS 3000.

Pay Only for the Metres You Use

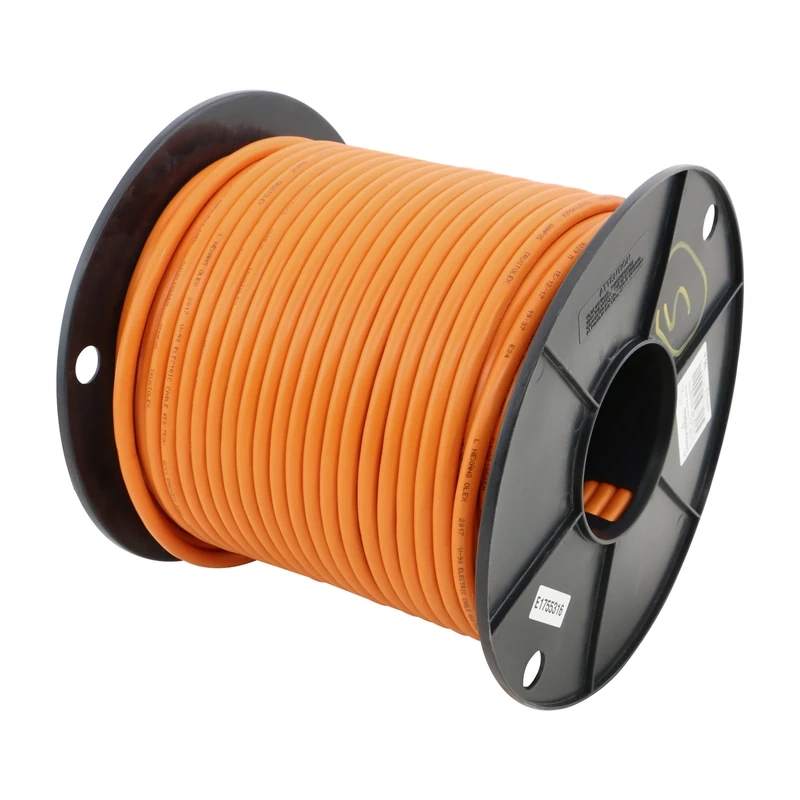

Per-metre ordering means no part-used drums left on the shelf after the job. Whether a run needs 8 metres or 80, you enter the length, we cut it, and your material cost matches your take-off. That makes quoting tighter and keeps waste out of the van.

Clear Identification On Site

The orange 5V90 sheath and colour-coded cores — red and black power cores with a green/yellow earth — keep circuits easy to identify during installation and at every inspection after it. The published 9.6mm overall diameter and 11.6kg/100m mass also make routing and handling easy to plan before the cable arrives.

Q: What does 2C+E mean on the APEC MVM105E02 cable?
A: It contains two insulated power cores (red and black) plus an insulated green/yellow earth core, each 1.5mm² annealed copper, inside an orange PVC 5V90 sheath.

Q: Is this orange circular cable sold by the metre?
A: Yes. Enter the number of metres you need and the cable is supplied cut to that length.

Q: What is the voltage rating of the APEC MVM105E02?
A: It is rated 450/750V and manufactured to AS/NZS 5000.2, with a continuous conductor temperature rating of 90°C.
