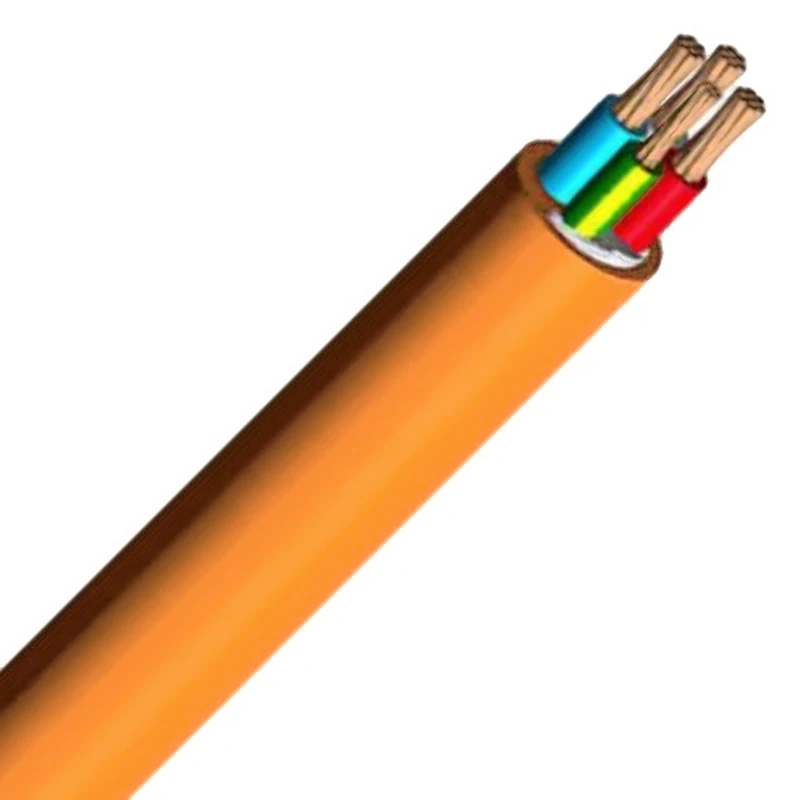

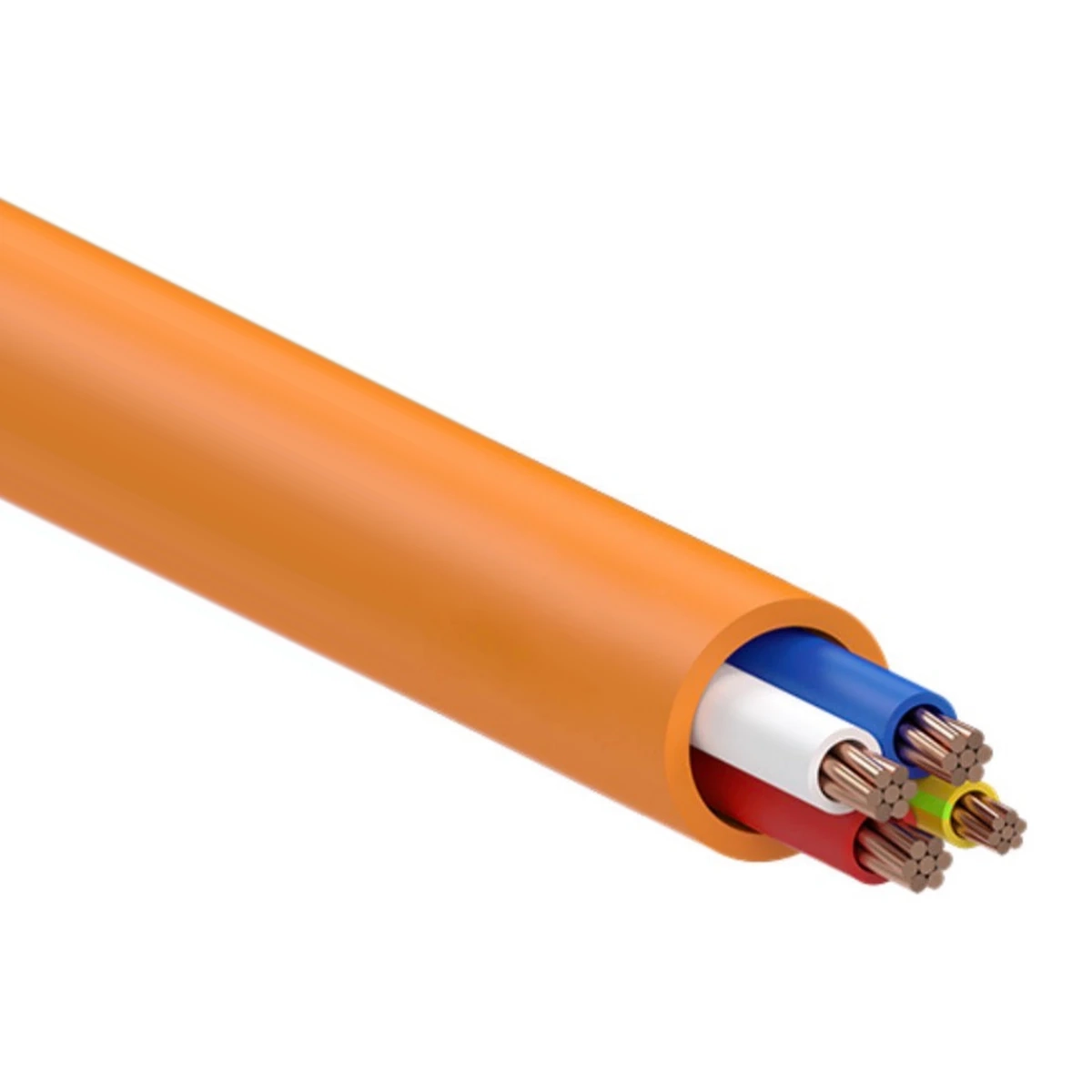

Orange Circular Building Cable 3 Core and Earth (4G) 4mm

Description

0.6/1kV three core and earth in 4mm², cut to length.

Three 4mm² actives and an earth in a single orange cable save running separate conductors, and a 0.6/1kV rating to AS/NZS 5000.1 sets this APEC MVM004E035K1 apart. Like the rest of the range, it is sold per metre.

Key Features:

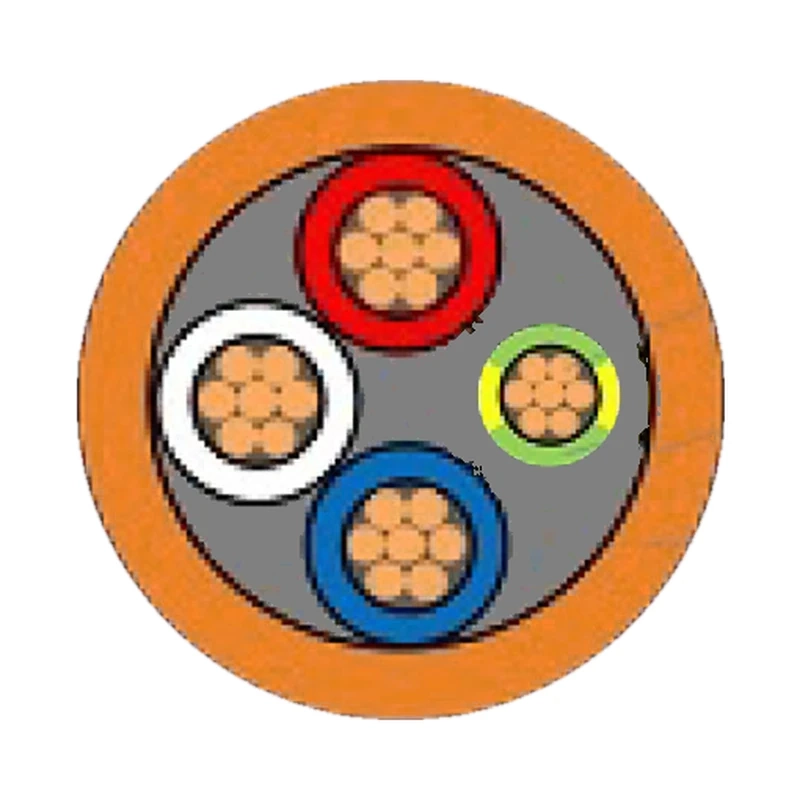

• 3C+E circular construction with orange sheath
• Three 4mm² annealed copper active cores
• 2.5mm² annealed copper earth core
• 0.6/1kV voltage rating, manufactured to AS/NZS 5000.1
• V90 PVC insulation: 1.0mm on actives, 0.7mm on earth
• Heavier 1.8mm average 5V90 PVC sheath
• Rated for 90°C continuous conductor operation
• Cores red, white and blue; earth green/yellow
• Overall diameter about 14.5mm; mass about 32.0kg per 100m
• Supplied by the metre to your nominated length

Get yours now — your length, cut and dispatched.

Why It Matters

A 0.6/1kV Build

The MVM004E035K1 is a 0.6/1kV cable made to AS/NZS 5000.1, and that rating shows in its construction: 1.0mm of V90 insulation on each 4mm² active and a 1.8mm 5V90 sheath, for an overall diameter of around 14.5mm. Allow for that diameter when sizing conduit and cable entries.

Earth Sized by APEC

The earth core in this cable is 2.5mm², smaller than the three 4mm² actives, with 0.7mm of insulation. Confirm that this earth size suits your circuit and protective device arrangement before specifying the cable for an installation. The reduced earth is part of APEC's published design for this size, so the figure listed here is taken directly from the manufacturer's datasheet.

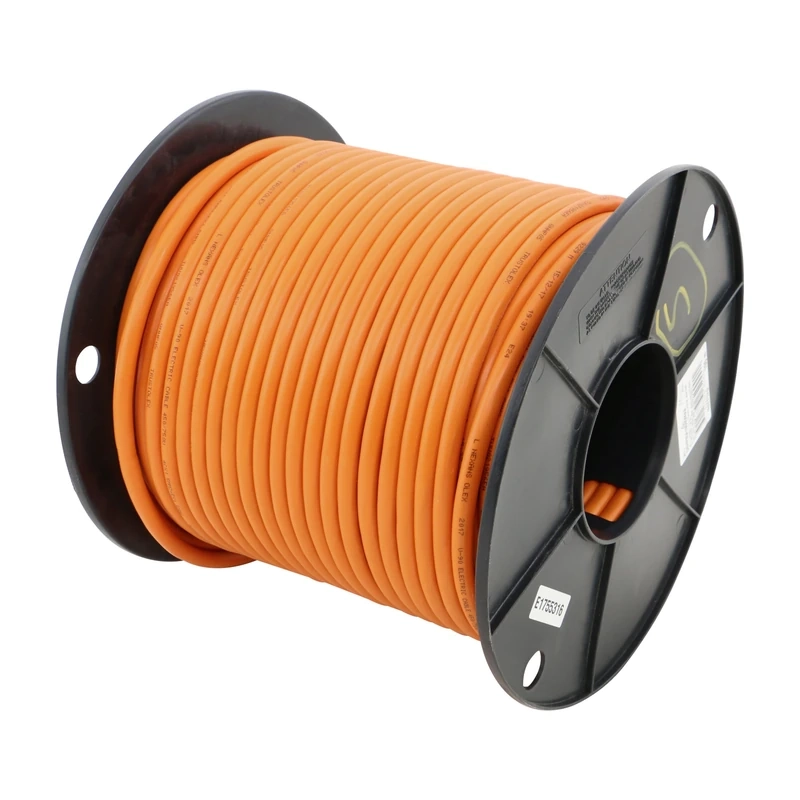

Bought to the Metre

Whether the job needs 14 metres or 40, you enter the length and that is what arrives, with no drum to finish later. Paying only for what is installed keeps material costs predictable on a cable of around 32.0kg per 100m. Before ordering, work through AS/NZS 3008.1.1 to confirm 4mm² conductors carry your load over the route length, and engage a licensed electrician so the completed job complies with AS/NZS 3000.

Q: What voltage is APEC MVM004E035K1 rated for?
A: It is rated 0.6/1kV and manufactured to AS/NZS 5000.1, with a 90°C continuous conductor temperature rating.

Q: What size earth does APEC MVM004E035K1 have?
A: It has a 2.5mm² green/yellow earth alongside three 4mm² actives coloured red, white and blue.

Q: How much does MVM004E035K1 cable weigh per 100 metres?
A: APEC lists an approximate mass of 32.0kg per 100 metres, with an overall diameter of about 14.5mm across the orange sheath.
