Tesla ST09B Infrared 180 Degree Motion Sensor Wall Mount 240V PIR Black IP44

Description

180 degree infrared sensing with adjustable light and time control.

The Tesla ST09B is a 180 degree infrared motion sensor (PIR) in black that switches lighting automatically when movement is detected up to 12 metres away. With a swivel-adjustable head, an adjustable time delay, and an adjustable ambient light threshold, it is an energy-saving lighting switch that identifies day and night automatically.

Key Features

• Tesla ST09B — 180 Degree Infrared Motion Sensor (PIR)
• Detection range: 180 degrees
• Detection distance: 12m max (below 24°C)
• Swivel-adjustable mounting head
• Automatic day / night detection
• Adjustable time delay: 10 sec to 7 min
• Adjustable ambient light: 3-2000 LUX
• Power: 220-240V AC / 50-60Hz
• Rated load (240V): max 600W LED, 300W energy-saving, 1200W incandescent
• Power and detection indicators
• Installation height: 1.8-2.5m
• IP44 — Black

Grab yours now for fast dispatch Australia-wide.

Why the Tesla ST09B Sensor Suits Australian Installs

180 degree coverage aimed where you need it
The ST09B watches a 180 degree field — up and down, left and right — and detects movement up to 12 metres away. Because the head is swivel-adjustable, you can aim the detection field at an entry, path, or driveway rather than being locked to a fixed angle. That makes it a natural fit for doorways, porches, garages, stairwells, and external walls where a wall-mounted sensor covers the approach. The black finish suits dark eaves, trims, and contemporary exteriors where a white sensor would stand out.

Two adjustments that do the real work

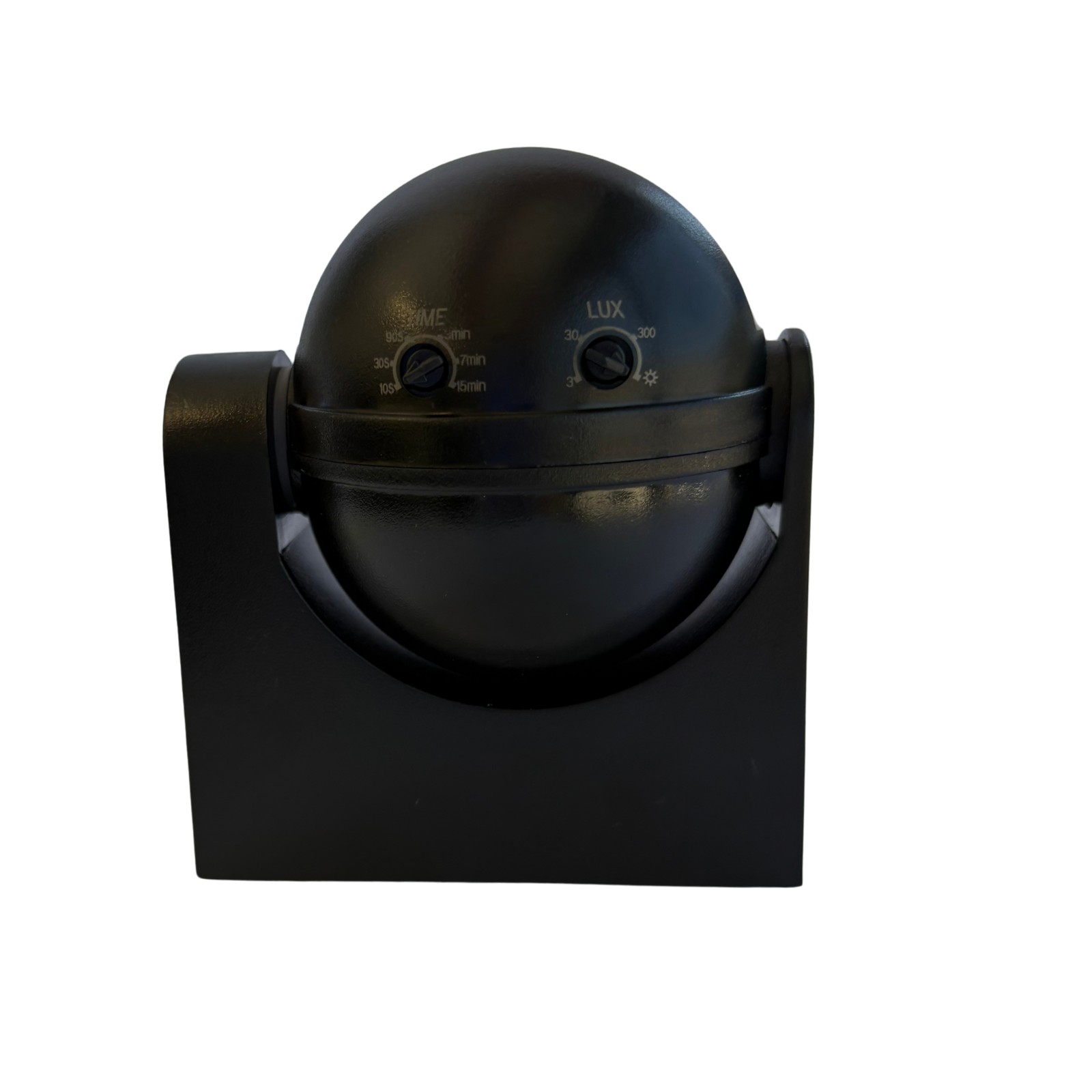

The ST09B gives you two dials that matter. The adjustable time delay runs from around 10 seconds up to roughly 7 minutes, tuning how long the light stays on after the last movement. The adjustable ambient light threshold, from 3 to 2000 LUX, sets how dark it must be before the sensor will switch on — so lights stay off in daylight and only respond after dusk. On-board power and detection indicators show at a glance that the unit is live and triggering.

IP44 rated for sheltered outdoor use
With an IP44 rating, the ST09B is protected against splashing water, suiting sheltered external positions such as porches, eaves, and carports as well as indoor use. It handles up to 600W of LED load on 240V and installs at a height of 1.8 to 2.5 metres. Wiring must be carried out by a licensed electrician in accordance with Australian requirements. Tesla Electrical Components is an Australian-based brand headquartered in Wetherill Park, NSW, and this sensor is sold individually and shipped Australia-wide.

Q: What area does the Tesla ST09B sensor cover?
The ST09B detects movement across a 180 degree field, up to 12 metres away, and its swivel-adjustable head lets you aim that field where it is needed.

Q: Can the Tesla ST09B be used outdoors?
It carries an IP44 rating, which protects against splashing water, making it suitable for sheltered outdoor positions such as porches and carports as well as indoor use.

Q: What load can the Tesla ST09B switch?
On 220-240V it handles a maximum of 600W LED, 300W energy-saving lamp, or 1200W incandescent, with an adjustable time delay from around 10 seconds to 7 minutes.
