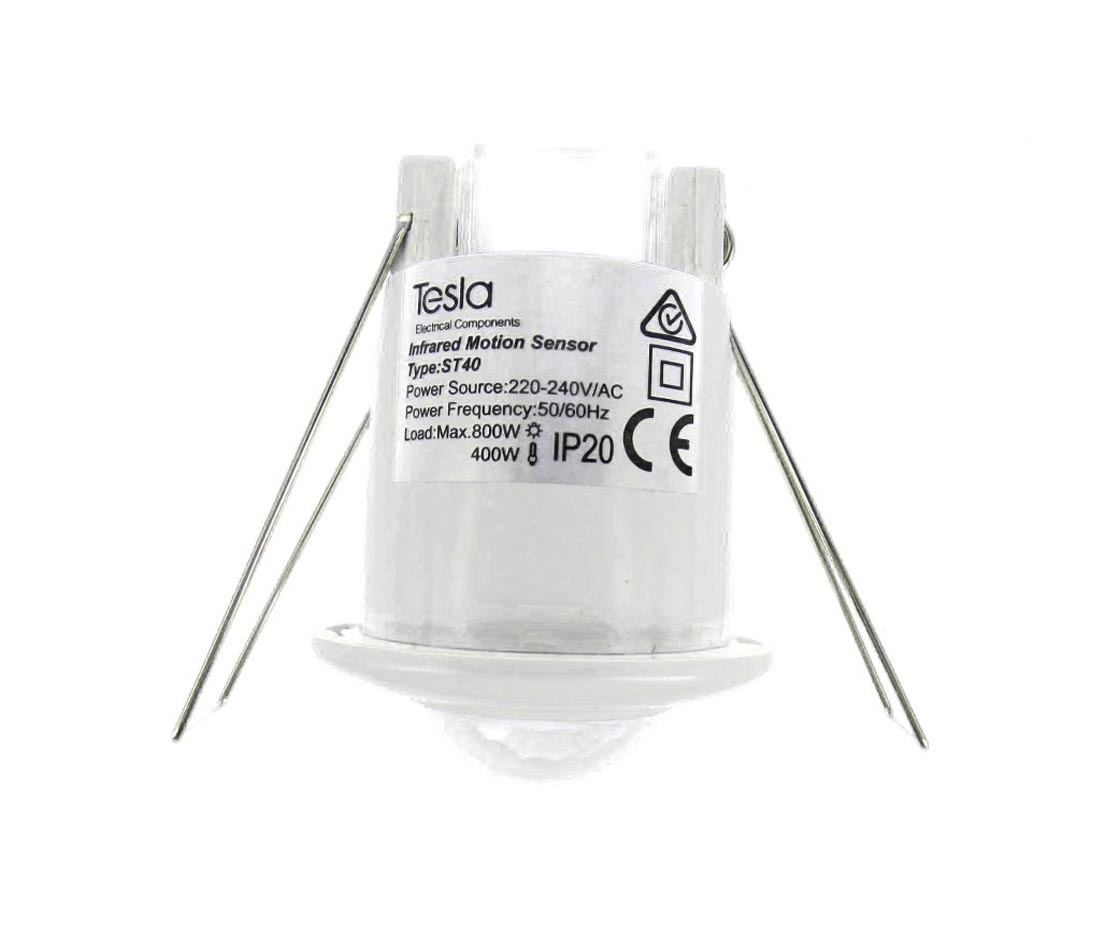

Tesla ST40 Infrared 360 Degree Motion Sensor Recessed 40mm Cut-Out 240V PIR

Description

360 degree recessed motion sensing, day or night.

The Tesla ST40 is a recessed 360 degree infrared motion sensor (PIR) that switches lighting and loads automatically when movement is detected. Fitting a 40mm ceiling cut-out, it identifies day and night automatically and offers an adjustable time delay, combining convenience, safety, and energy saving in one compact detector.

Key Features

• Tesla ST40 — Recessed 360 Degree Infrared Motion Sensor (PIR)
• Detection range: 360 degrees
• Detection distance: 6m max (below 24°C)
• Automatic day / night detection
• Adjustable time delay: approx. 10 sec to 7 min
• Power: 220-240V AC / 50-60Hz — approx. 0.5W consumption
• Rated load: max 400W LED, 400W fluorescent, 800W incandescent
• 40mm ceiling cut-out — recessed (flush) mount
• Installation height: 2.2-4m
• IP20

Buy online now for fast dispatch Australia-wide.

Why the Tesla ST40 Sensor Earns Its Place in the Ceiling

Full 360 degree coverage from a single point
Mounted in the ceiling, the ST40 watches a full 360 degrees around it, detecting movement up to 6 metres away. That makes it well suited to hallways, entries, stairwells, toilets, and storerooms where a single central detector can cover the whole space. It reads day and night automatically, so lights only trigger when they are actually needed — the energy-saving logic that makes automatic sensing worthwhile.

Adjustable timing for the way a room is used
The ST40 offers an adjustable time delay from around 10 seconds up to roughly 7 minutes, letting you tune how long the load stays on after the last movement. A short delay suits a quick-pass hallway; a longer delay suits a room where people linger. At approximately 0.5W standby consumption, the sensor itself costs almost nothing to run.

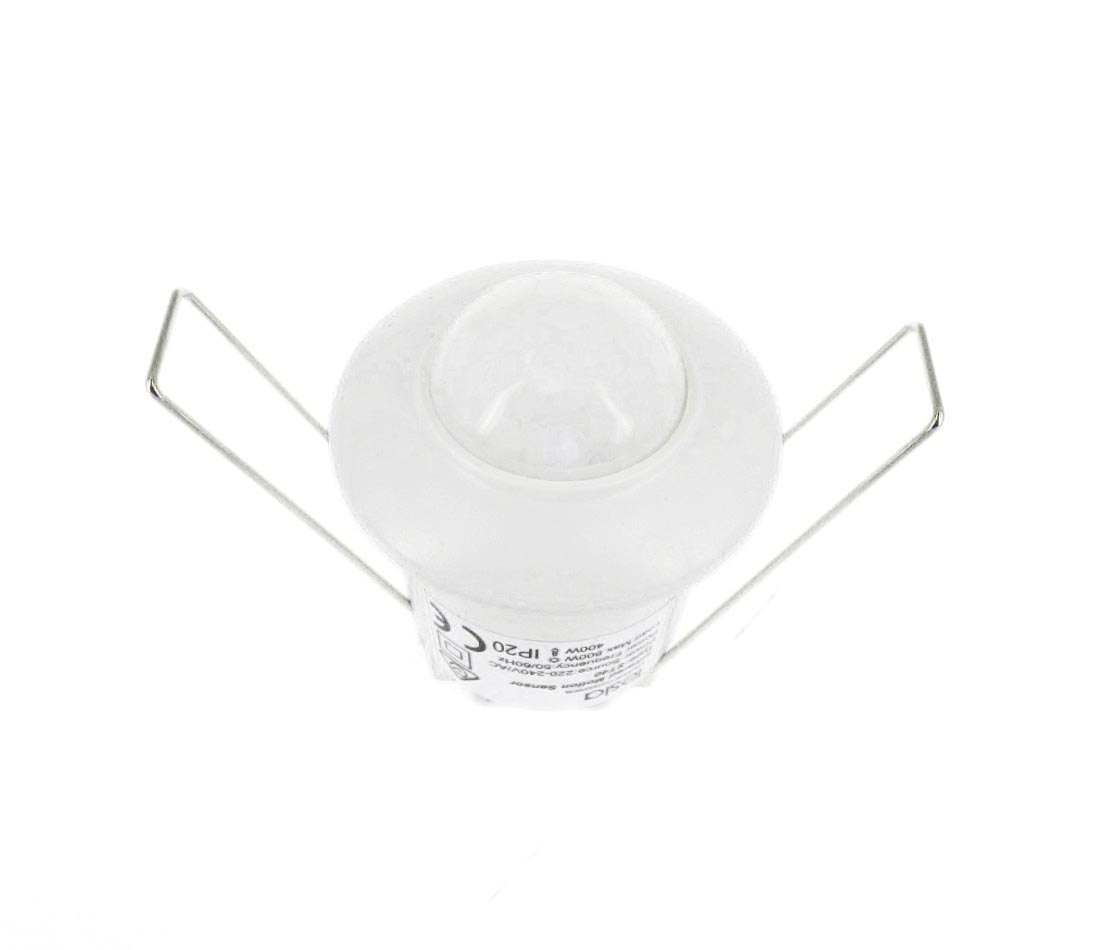

Recessed for a clean finish
The ST40 fits a 40mm cut-out and recesses flush into the ceiling, presenting a small, tidy face rather than a bulky surface box. It handles up to 400W of LED load (or 800W incandescent), covering typical residential and light commercial lighting circuits, and installs at a mounting height of 2.2 to 4 metres. Wiring must be carried out by a licensed electrician in accordance with Australian requirements. Tesla Electrical Components is an Australian-based brand headquartered in Wetherill Park, NSW, and this sensor is sold individually and shipped Australia-wide.

Q: What area does the Tesla ST40 sensor cover?
The ST40 detects movement across a full 360 degrees, up to 6 metres away, from a recessed ceiling position at a mounting height of 2.2 to 4 metres.

Q: Can the Tesla ST40 time delay be adjusted?
Yes. The ST40 has an adjustable time delay from approximately 10 seconds up to around 7 minutes, so the load stays on for as long as each space needs.

Q: What load can the Tesla ST40 switch?
The ST40 handles a maximum of 400W LED, 400W fluorescent, or 800W incandescent, running on 220-240V AC at 50-60Hz.

Warranty

This product is backed by an extended manufacturer warranty - click here for details.
