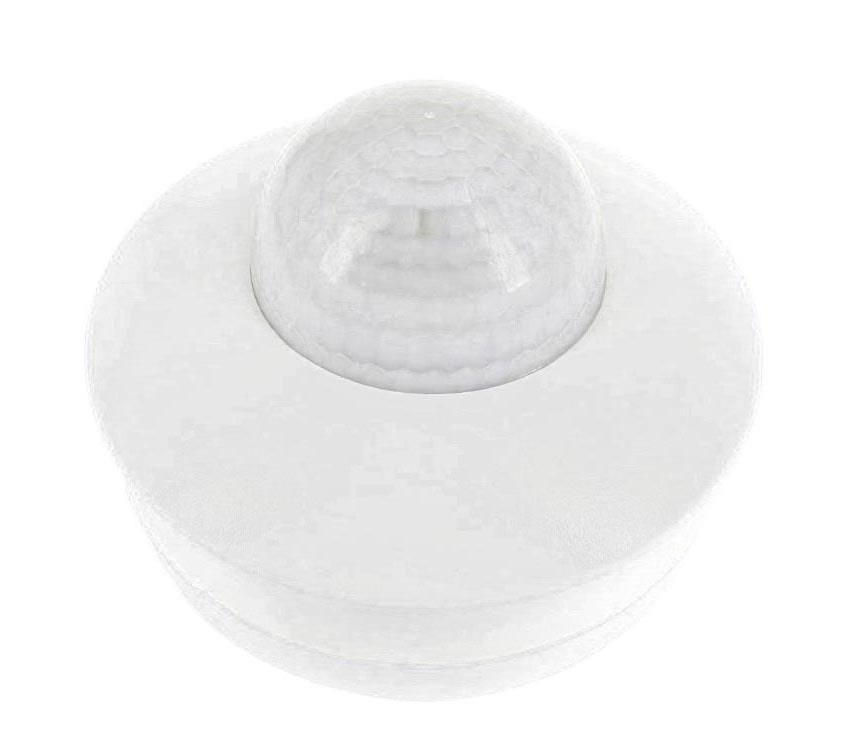

Tesla ST05B Infrared 360 Degree Motion Sensor Surface Mount 88mm 240V PIR White

Description

360 degree surface mount motion sensing with adjustable light control.

The Tesla ST05B is a surface mount 360 degree infrared motion sensor (PIR) in white, switching lighting and loads automatically when movement is detected up to 12 metres away. It offers both an adjustable time delay and an adjustable ambient light (LUX) threshold, so lights trigger only when they are needed.

Key Features

• Tesla ST05B — Surface Mount 360 Degree Infrared Motion Sensor (PIR)
• Detection range: 360 degrees
• Detection distance: 12m max
• 3x detector element
• Adjustable time delay: approx. 10 sec to 7 min
• Adjustable ambient light: 3-2000 LUX

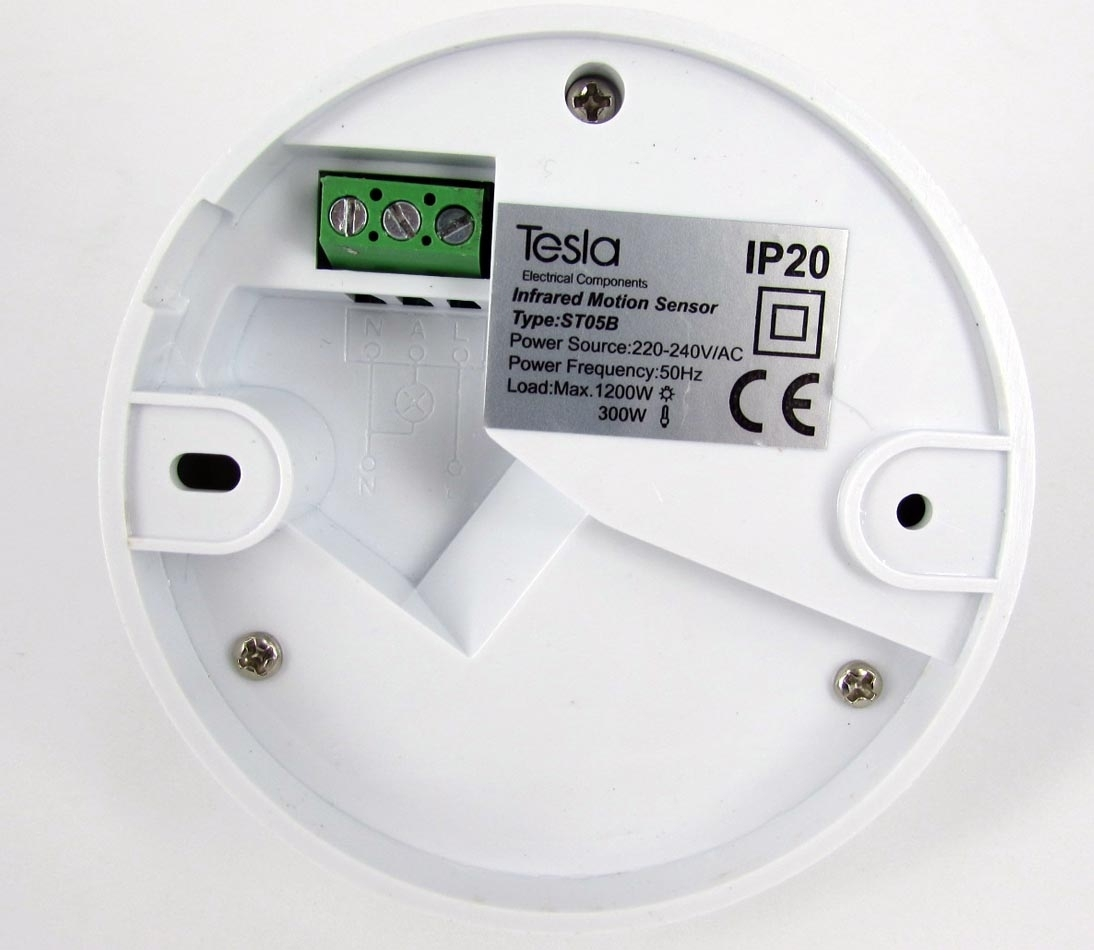

• Power: 220-240V AC / 50-60Hz
• Diameter: 88mm — surface mount
• Installation height: 2.2-4m
• Detection moving speed: 0.6-1.5 m/s
• IP20 — White

Order today for fast dispatch Australia-wide.

Why the Tesla ST05B Sensor Suits Australian Installs

Wide 360 degree coverage, long reach
Mounted on the ceiling, the ST05B watches a full 360 degrees around it and detects movement up to 12 metres away — a longer reach than compact recessed sensors, making it well suited to larger rooms, hallways, garages, carparks, and open commercial spaces. A 3x detector element helps it pick up movement reliably across that wide field.

Two adjustments that do the real work
The ST05B gives you two dials that matter. The adjustable time delay runs from around 10 seconds up to roughly 7 minutes, tuning how long the load stays on after the last movement. The adjustable ambient light threshold, from 3 to 2000 LUX, sets how dark it must be before the sensor will switch on — so lights stay off in daylight and only respond after dusk. Together they stop the sensor wasting energy in a well-lit or empty space.

Surface mount for easy retrofit
At 88mm in diameter, the ST05B surface mounts to the ceiling, so it fits where cutting a recess is impractical — ideal for retrofits and solid ceilings. It installs at a height of 2.2 to 4 metres and comes in white to blend with most ceilings. Wiring must be carried out by a licensed electrician in accordance with Australian requirements. Tesla Electrical Components is an Australian-based brand headquartered in Wetherill Park, NSW, and this sensor is sold individually and shipped Australia-wide.

Q: How far does the Tesla ST05B detect movement?
The ST05B detects movement across a full 360 degrees, up to 12 metres away, from a ceiling mounting height of 2.2 to 4 metres.

Q: Can the Tesla ST05B ignore daylight?
Yes. It has an adjustable ambient light threshold from 3 to 2000 LUX, so you can set how dark it must be before the sensor switches the load on.

Q: Is the Tesla ST05B recessed or surface mounted?
The ST05B is surface mounted, at 88mm in diameter, making it suited to retrofits and solid ceilings where a recessed cut-out is not practical.
