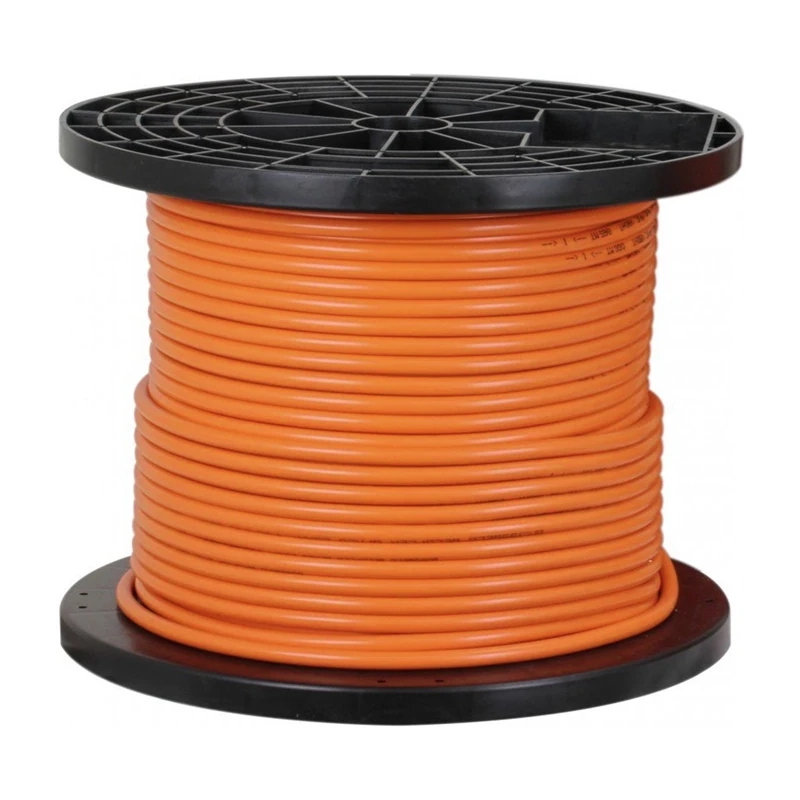

Orange Circular Building Cable 4 Core and Earth (5G) 10mm

Description

Four 10mm² actives plus earth in a 0.6/1kV cable.

Pulling four large actives and an earth individually means multiple pulls and more space taken in every pathway. The APEC MVM010E04 groups red, white, blue and black 10mm² actives with a 4mm² green/yellow earth in a single orange cable, produced under AS/NZS 5000.1 and sold per metre.

Key Features:

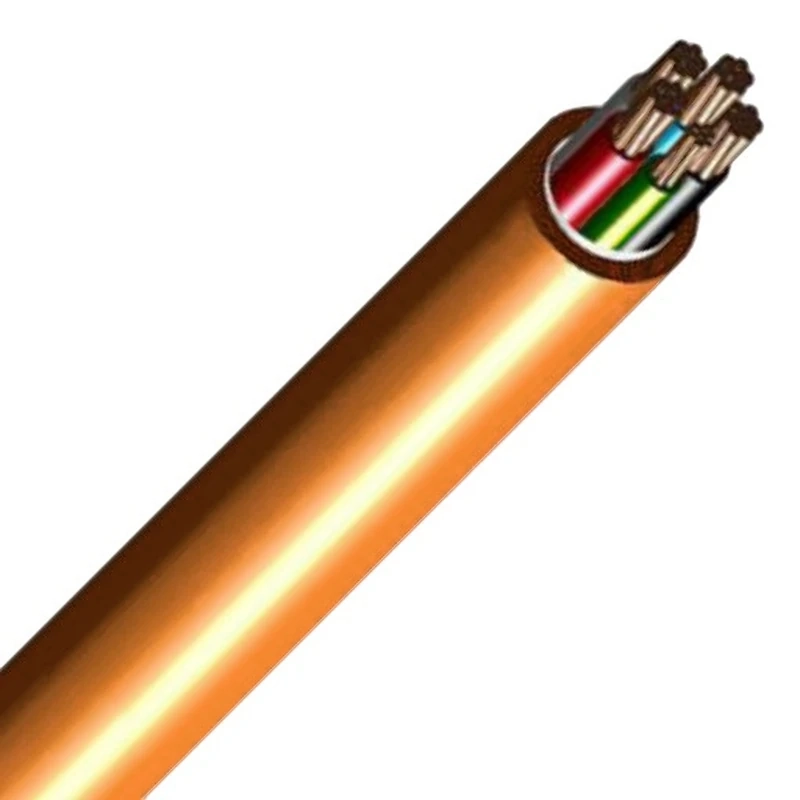

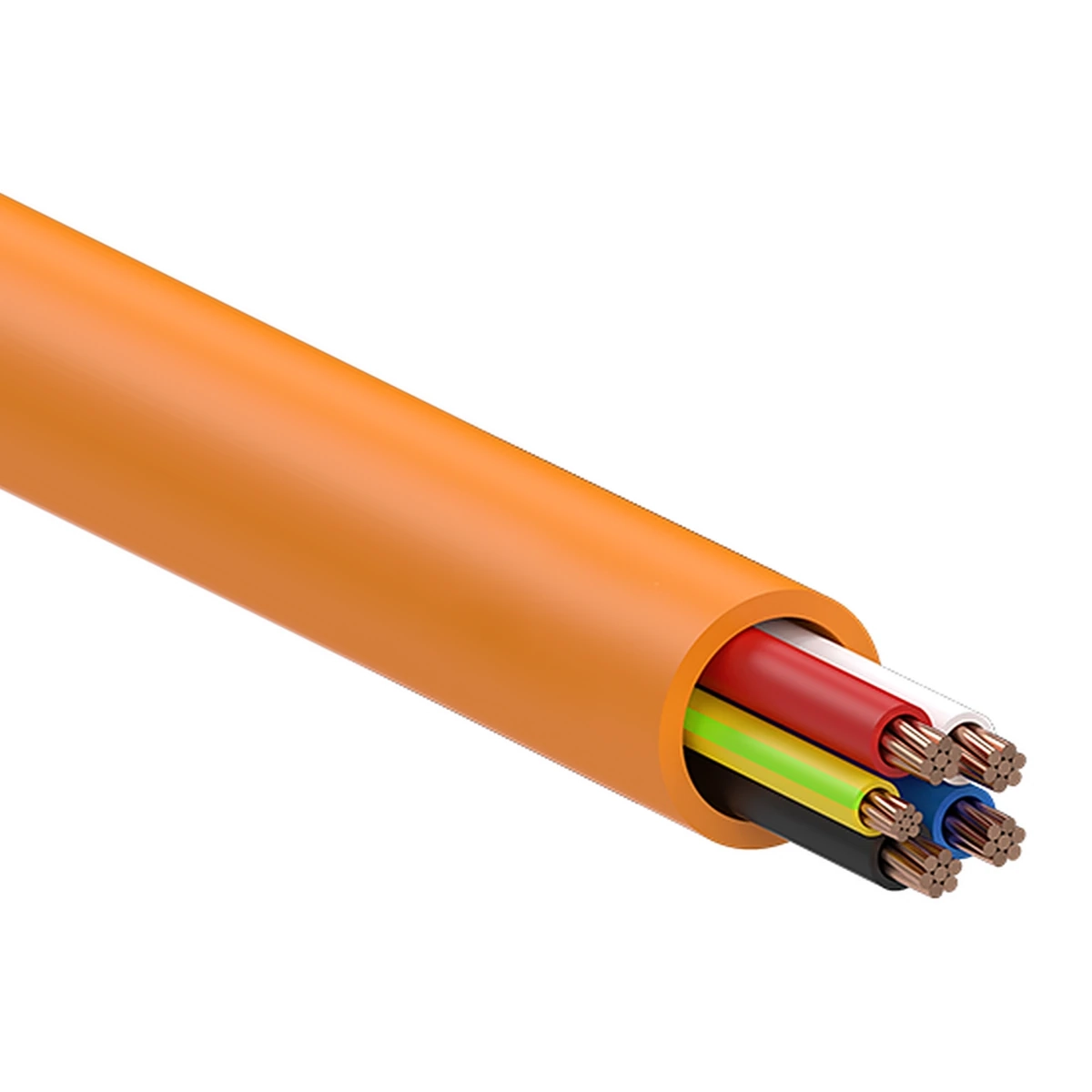

• 4 core plus earth orange circular PVC/PVC construction
• Four 10mm² annealed copper active conductors
• One 4mm² annealed copper earth conductor
• AS/NZS 5000.1 cable in the 0.6/1kV class
• V90 PVC insulation averaging 1.0mm on all five cores
• Orange 5V90 PVC sheath averaging 1.8mm
• Continuous conductor temperature rating of 90°C
• Red, white, blue and black actives with a green/yellow earth
• Overall diameter of about 19.1mm
• Mass of about 69.0kg per 100m
• Ordered and cut by the metre

Secure yours today — nominate the metres and we cut and send them.

Why It Matters

Five Conductors, One Sheath

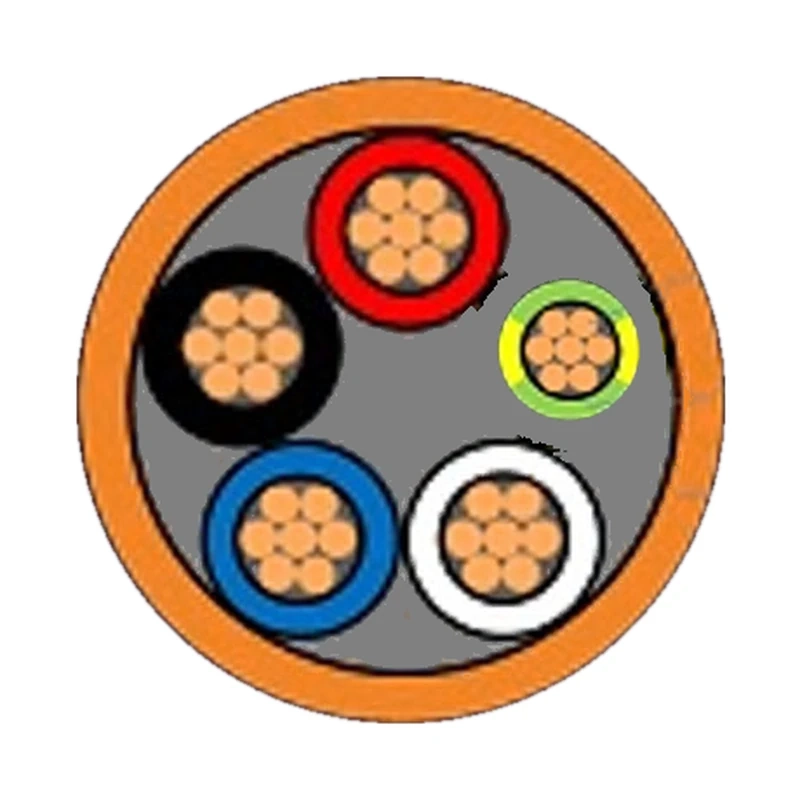

The MVM010E04 holds four 10mm² actives and its earth within a 1.8mm orange 5V90 sheath, every core insulated with 1.0mm of V90 PVC. Bringing all five together in one cable reduces the number of pulls compared with running separate conductors, and the colour-coded cores keep each one identifiable at the terminations.

Know the Earth Size

APEC's construction for this code uses a 4mm² earth beside the four 10mm² actives. Because the earth is the smaller conductor, confirm that it meets the protective earthing requirements of the circuit and its protective device before you order. The 4mm² value is APEC's published figure for this code, and its 1.0mm insulation matches the actives.

A Heavy Cable, Bought Precisely

At roughly 69.0kg per 100 metres and about 19.1mm across, this is a cable where surplus length costs money to buy, move and store. Specify 25 metres, 80 metres or whatever the job requires and only that length is cut. For conductor sizing against load and voltage drop, refer to AS/NZS 3008.1.1; the installation itself is licensed electrical work under AS/NZS 3000.

Q: Which earth conductor comes in APEC MVM010E04?
A: The green/yellow earth is 4mm², alongside four 10mm² actives coloured red, white, blue and black for identification.

Q: How much does APEC MVM010E04 weigh?
A: APEC lists an approximate mass of 69.0kg per 100 metres and an approximate diameter of 19.1mm.

Q: Is APEC MVM010E04 supplied per metre?
A: Yes. Enter your required length and that exact number of metres is cut for your order.
