Tesla NB-6 6 Hole Earth/Neutral Brass Bar 165A

Description

Six Terminations in a Compact 100mm Bar

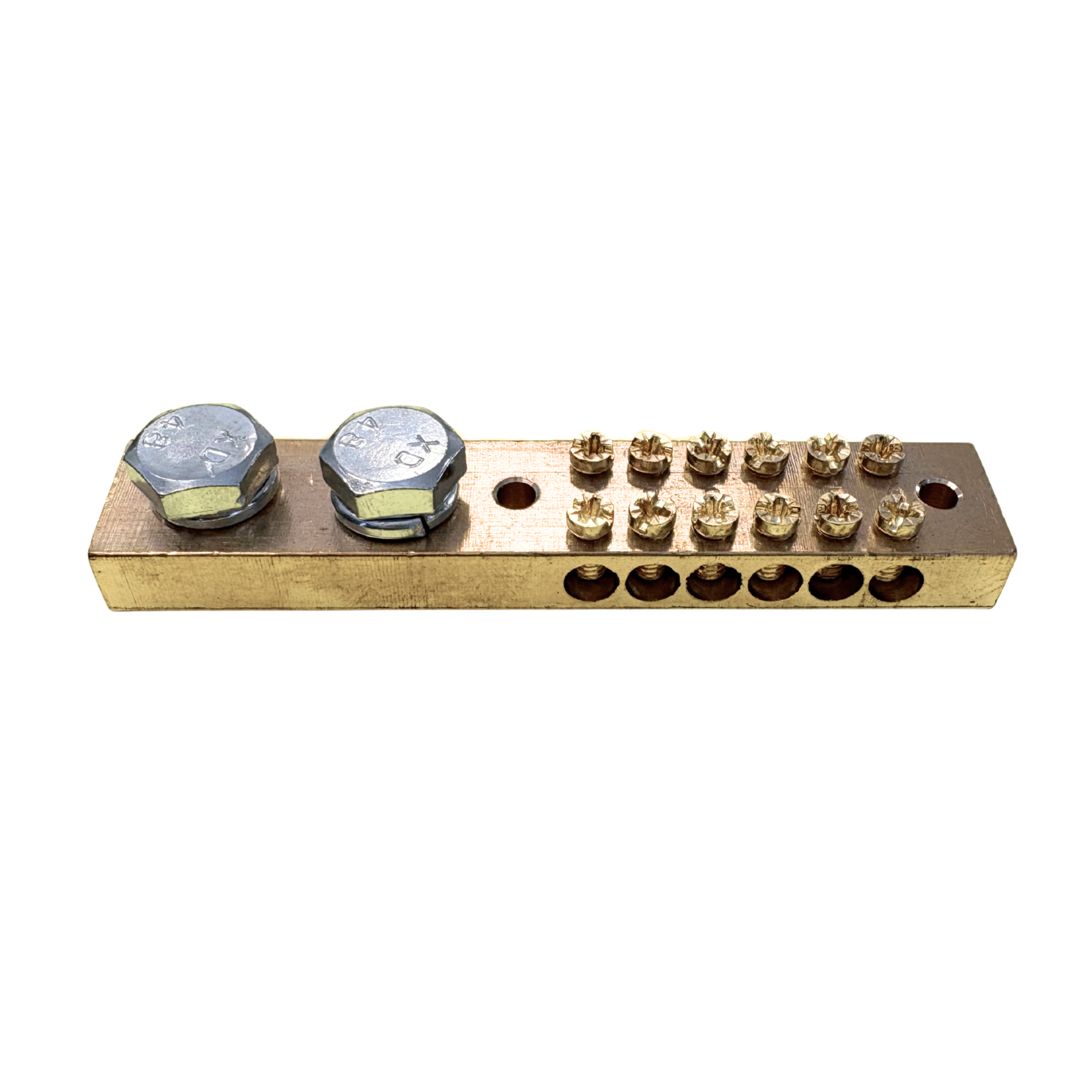

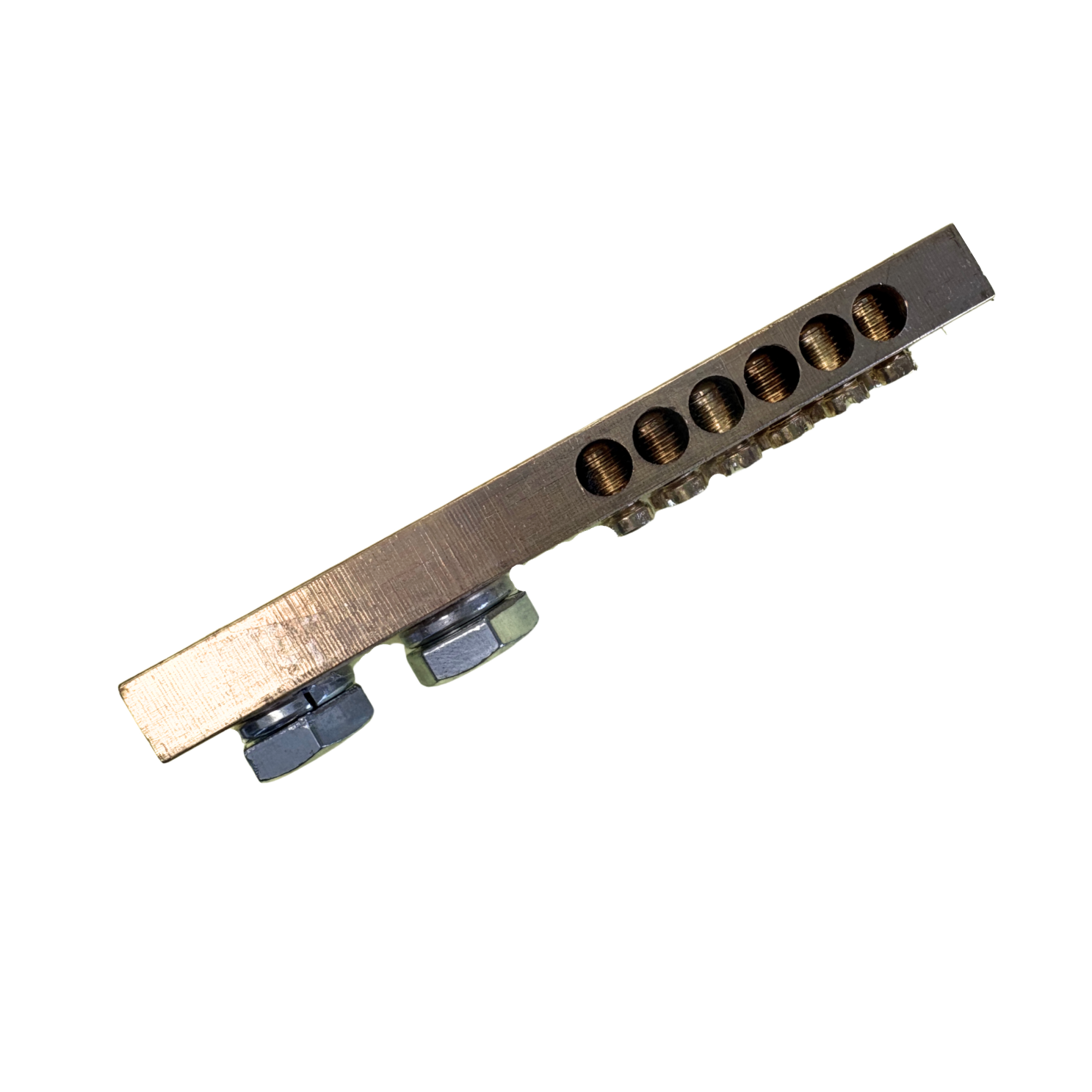

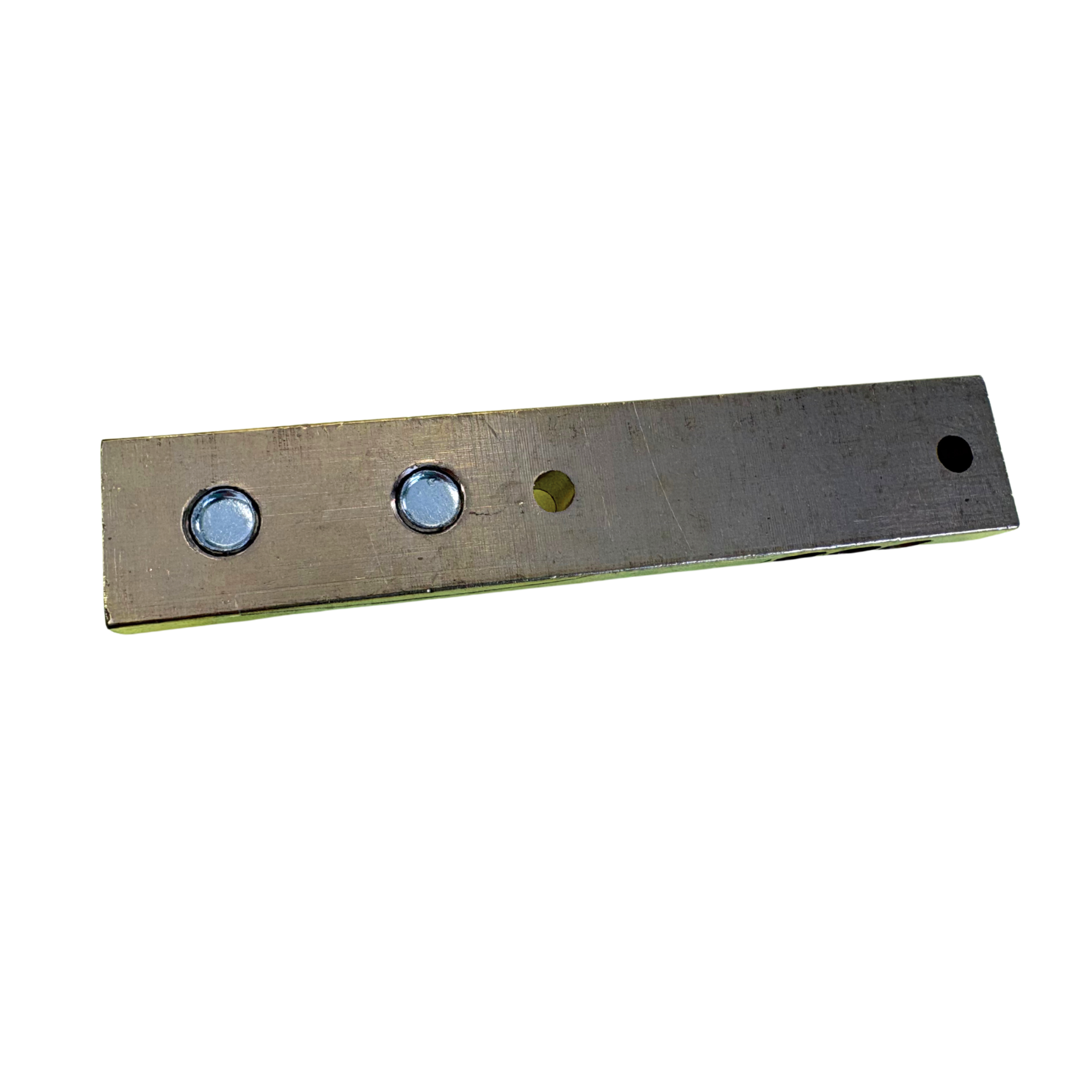

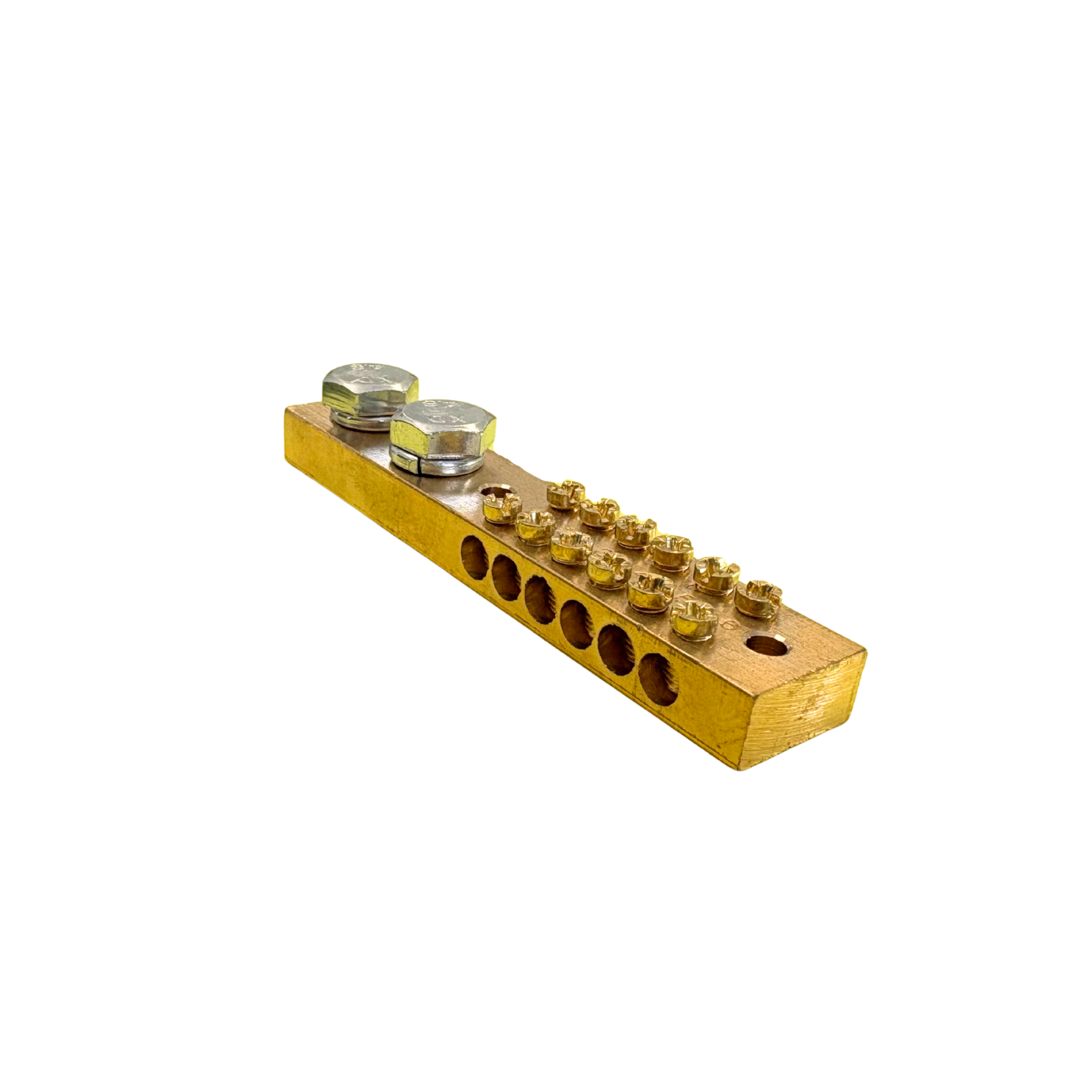

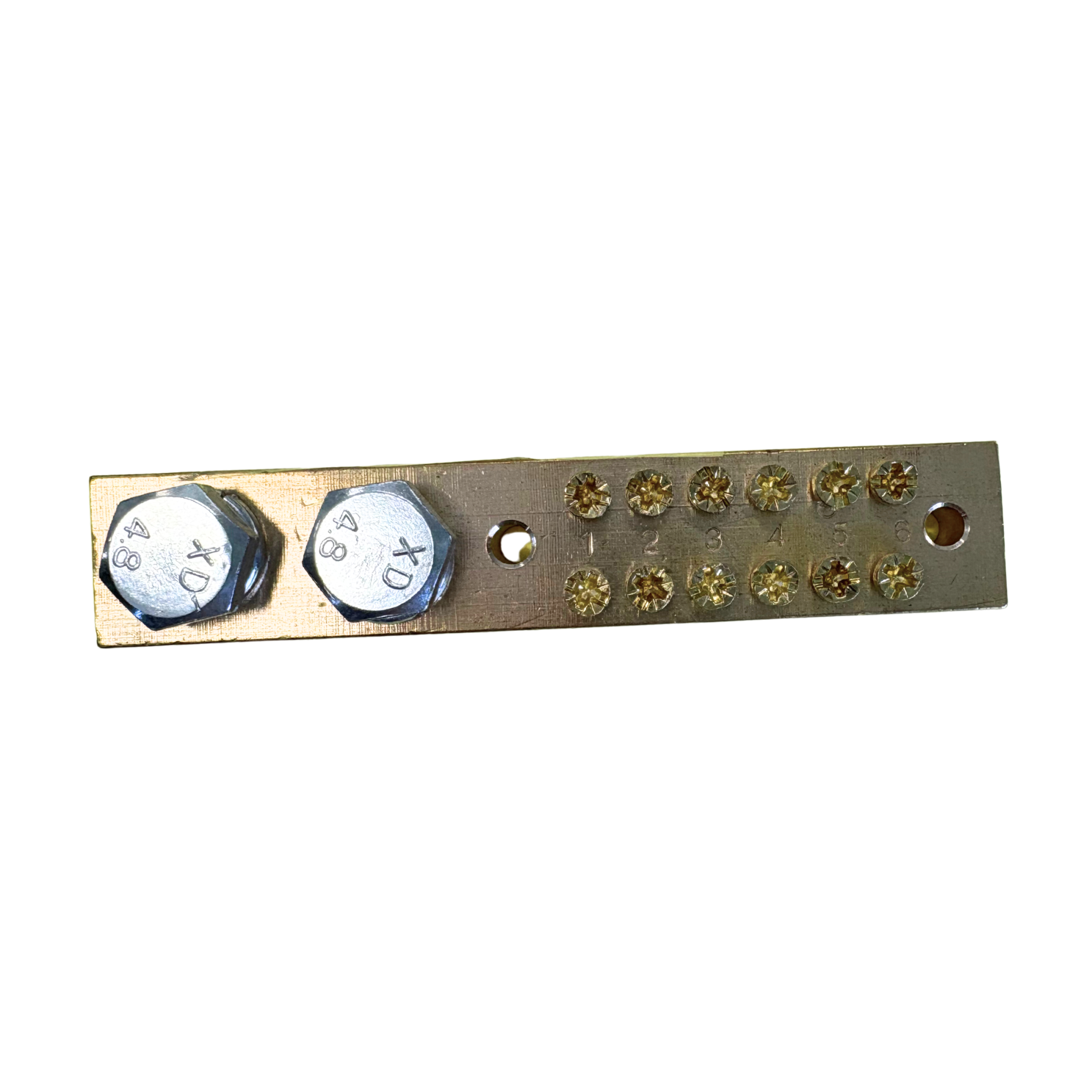

The Tesla NB-6 is the smallest earth and neutral brass bar in the NB range. It provides six 10mm² termination holes within a compact 100mm length, making it a practical option where connection requirements and available mounting space are limited.

Key Features

• 6 x 10mm² termination holes
• 165A current rating
• Compact 100mm bar length
• 2 x M8 bolts
• Spring washers included
• Suitable for earth or neutral termination
• Tesla Electrical product code NB-6

Order online for delivery across Australia.

Purpose-Sized for Lower Connection Counts

The NB-6 provides a central termination bar without the unused length of a larger model. Its six-hole configuration can suit an electrical assembly that needs only a small number of earth or neutral connections and has limited internal mounting space.

Each of the six holes is specified at 10mm², while the bar carries the same 165A current rating as the larger products in the Tesla NB range. Two M8 bolts with spring washers are also included in the product configuration. These specifications should be checked against the conductor sizes, current requirements and layout of the intended assembly.

The Most Compact Tesla NB Option

At 100mm long, the NB-6 is 41mm shorter than the 12 hole NB-12. This makes the selection decision straightforward: choose the NB-6 where six termination positions are sufficient, or move to the NB-12 when additional connections or planned spare capacity are required.

Measure the available internal space before ordering and allow room for mounting, conductor entry and access to the terminations. The bar may be used for earth or neutral termination, but its mounting method and any insulation required will depend on the intended function and electrical design.

Mounting supports and insulating accessories aren't specified as included. Product selection and installation should be completed by a suitably qualified person.

Q: How many termination holes does the Tesla NB-6 have?
A: It provides six termination holes, each specified at 10mm².

Q: How long is the Tesla NB-6 brass bar?
A: The NB-6 measures 100mm long, making it the shortest product in this Tesla NB range.

Q: What is the difference between the NB-6 and NB-12?
A: The NB-6 has six holes and measures 100mm. The NB-12 provides 12 holes and measures 141mm. Both are rated at 165A.
