Tesla NB-48 48 Hole Earth/Neutral Brass Bar 165A

Description

Maximum Capacity Across the Tesla NB Range

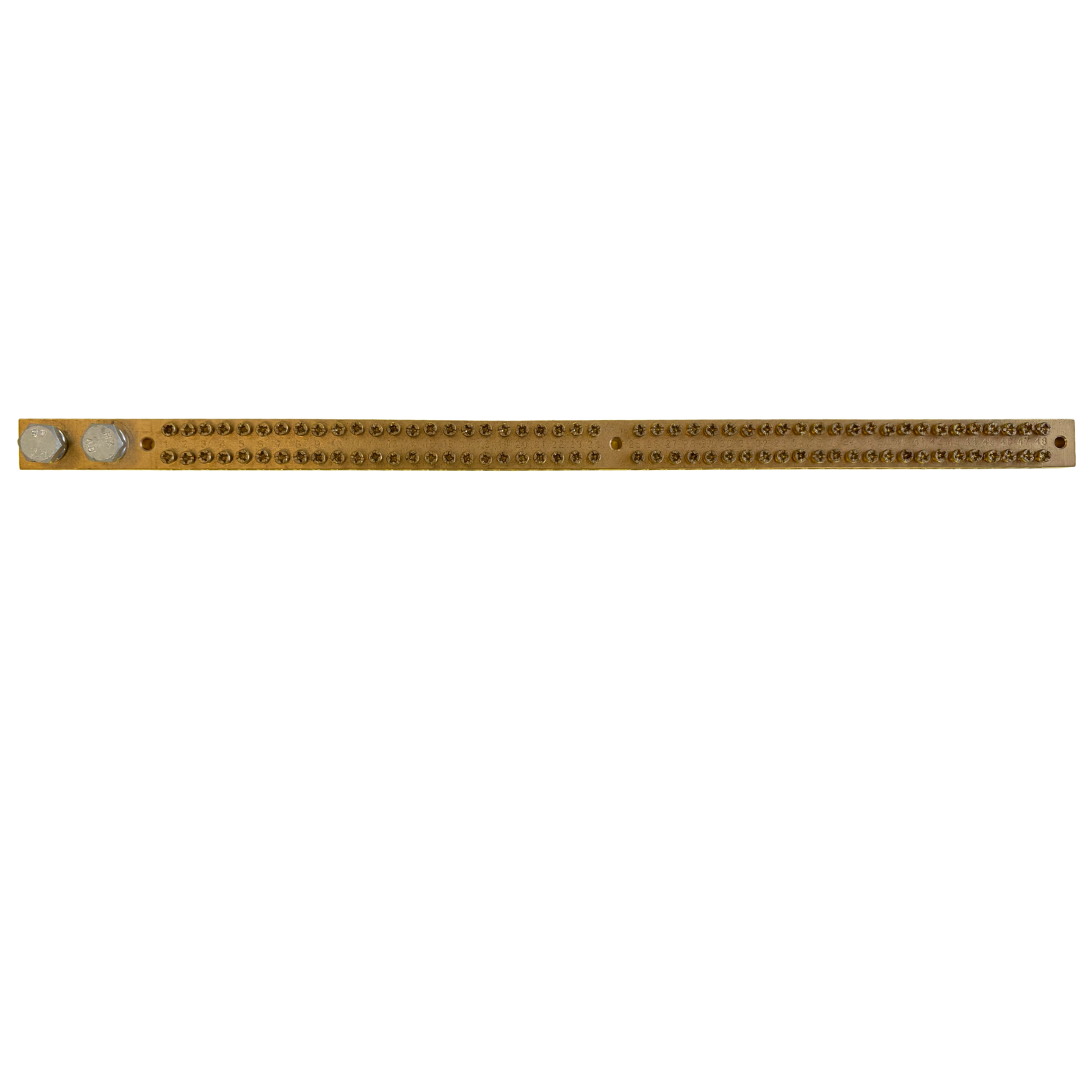

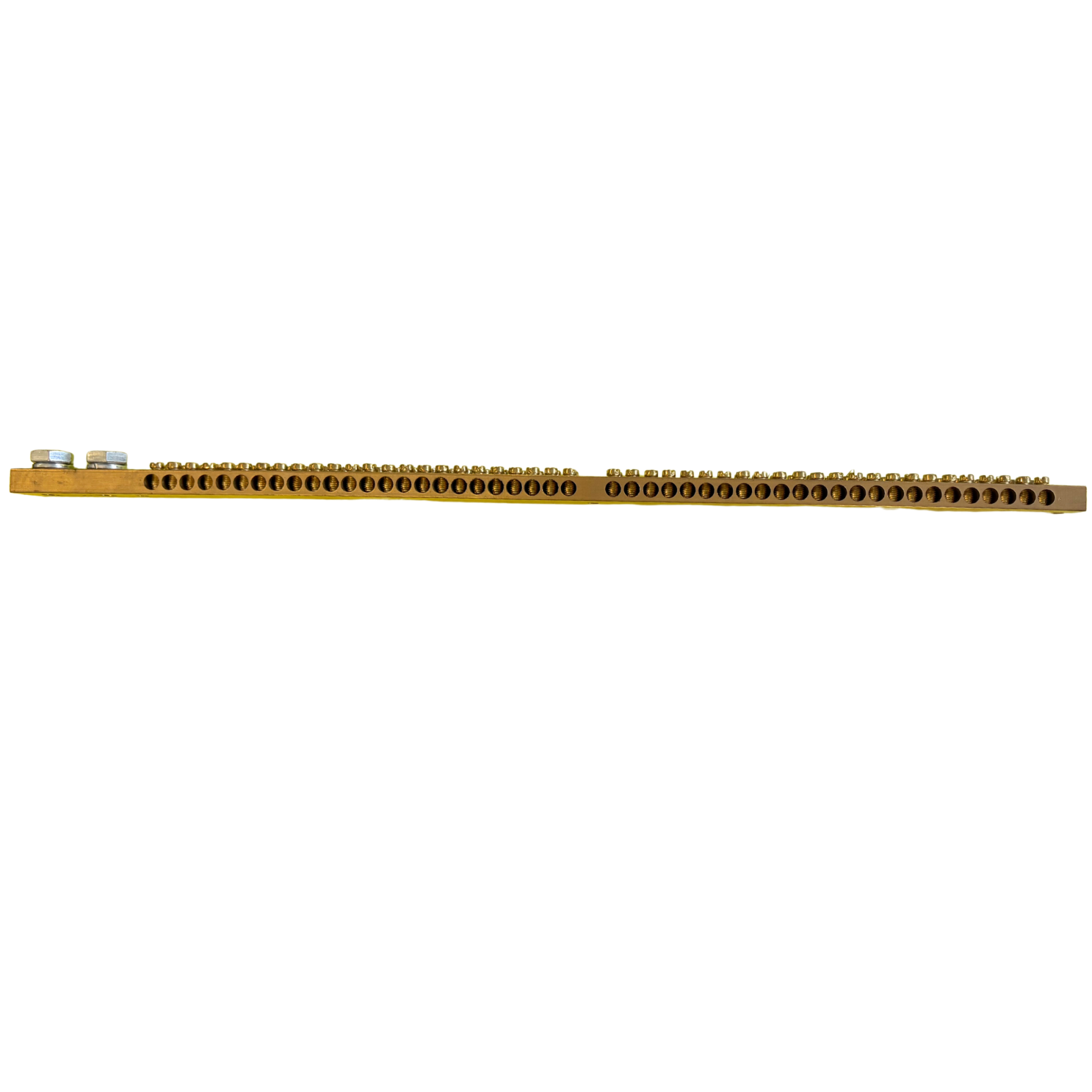

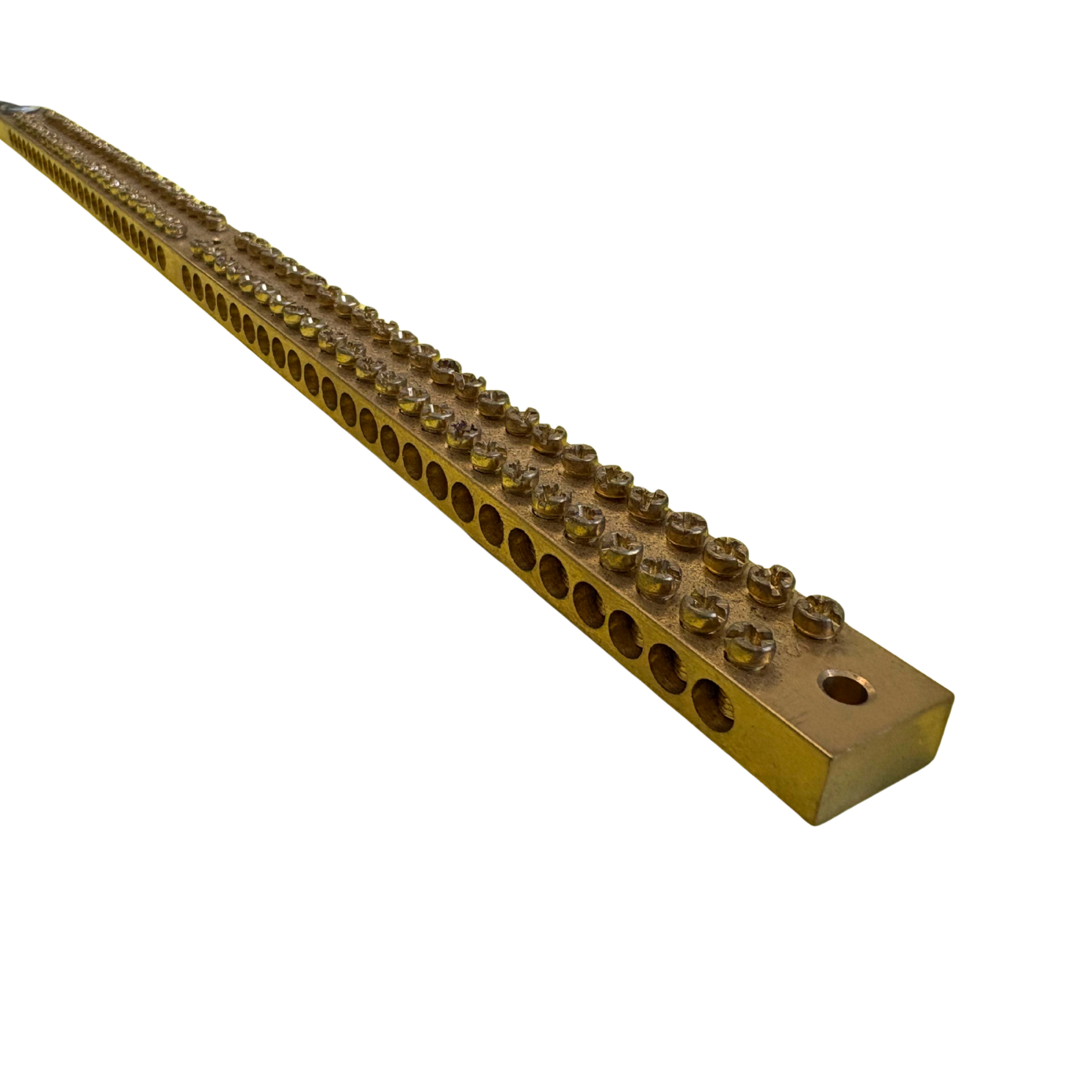

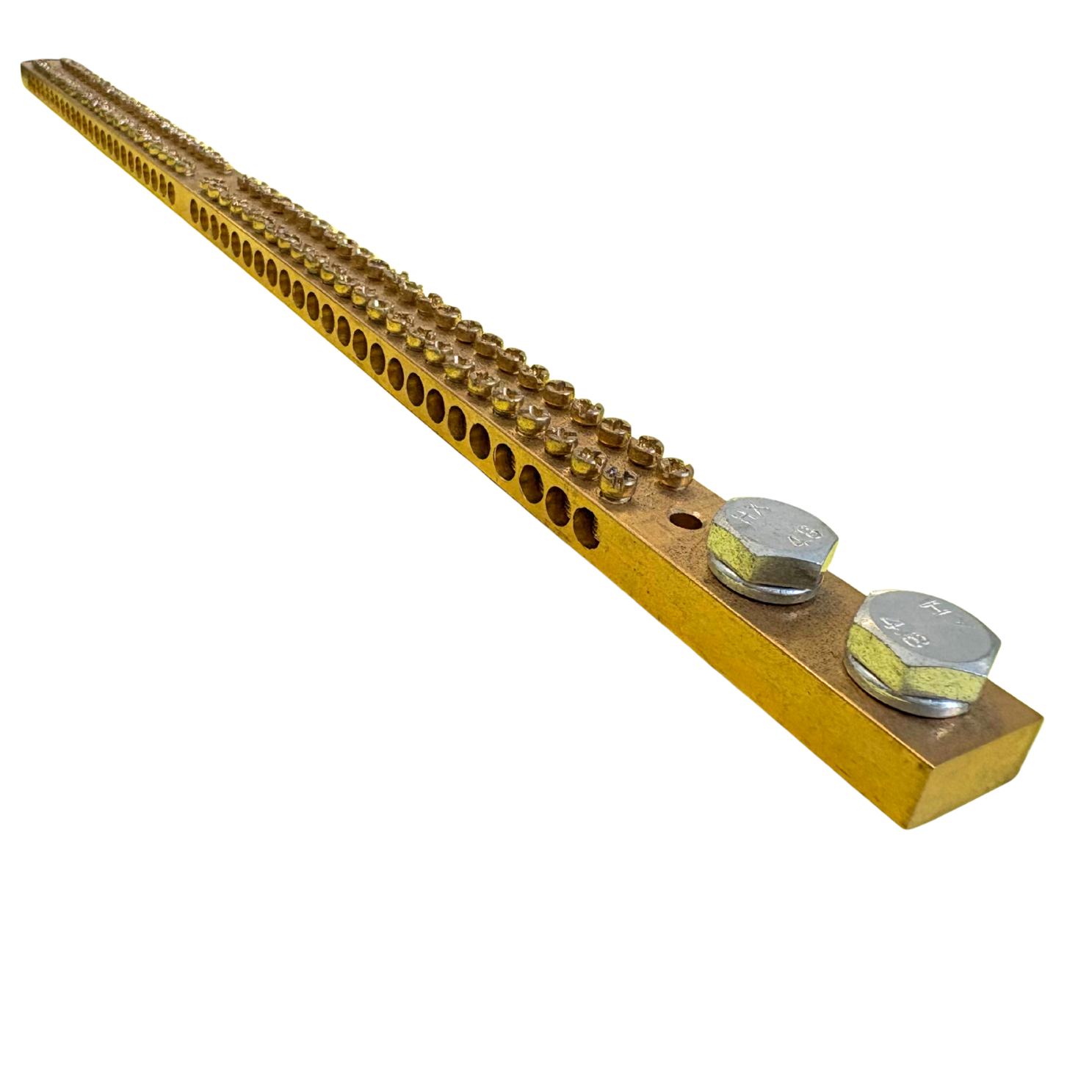

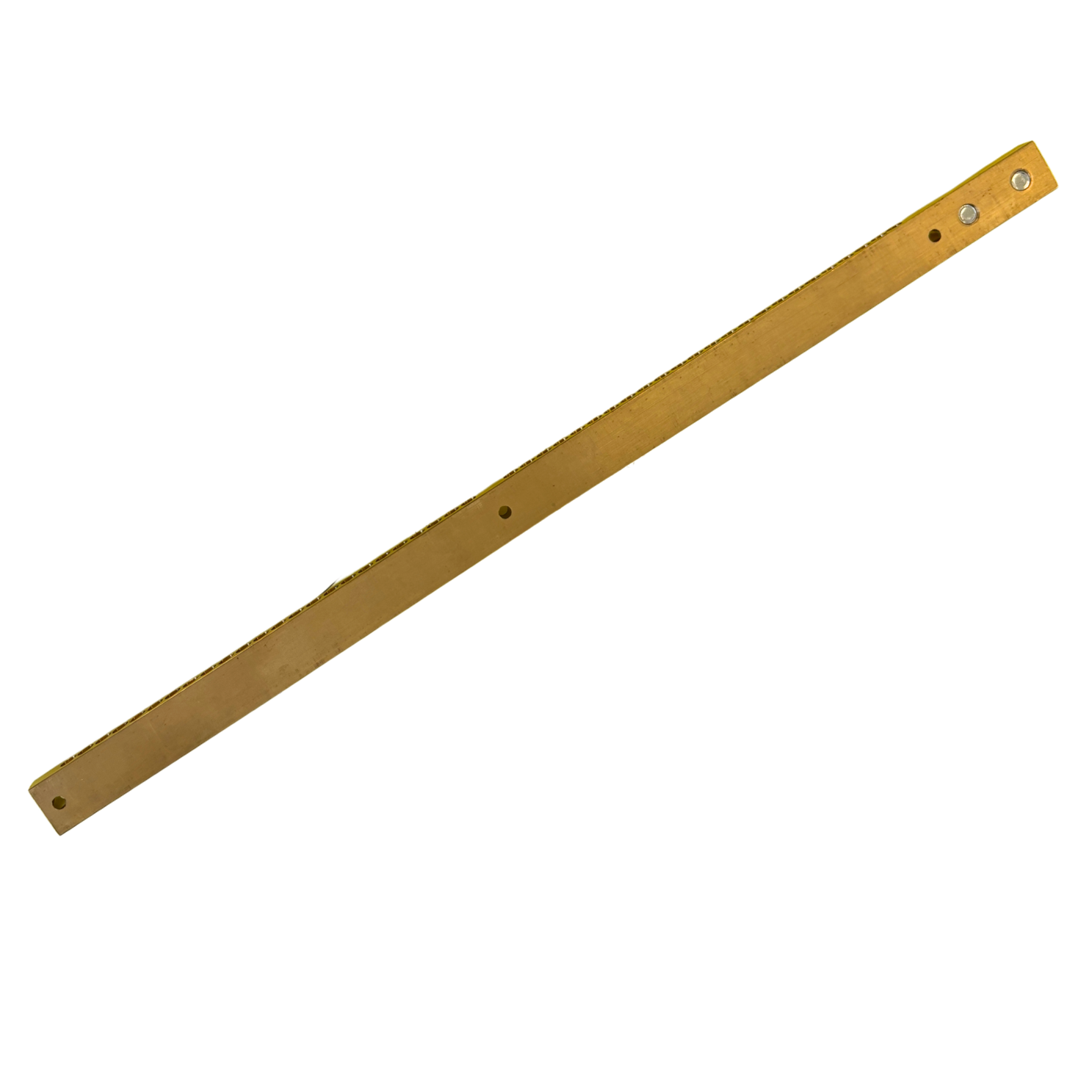

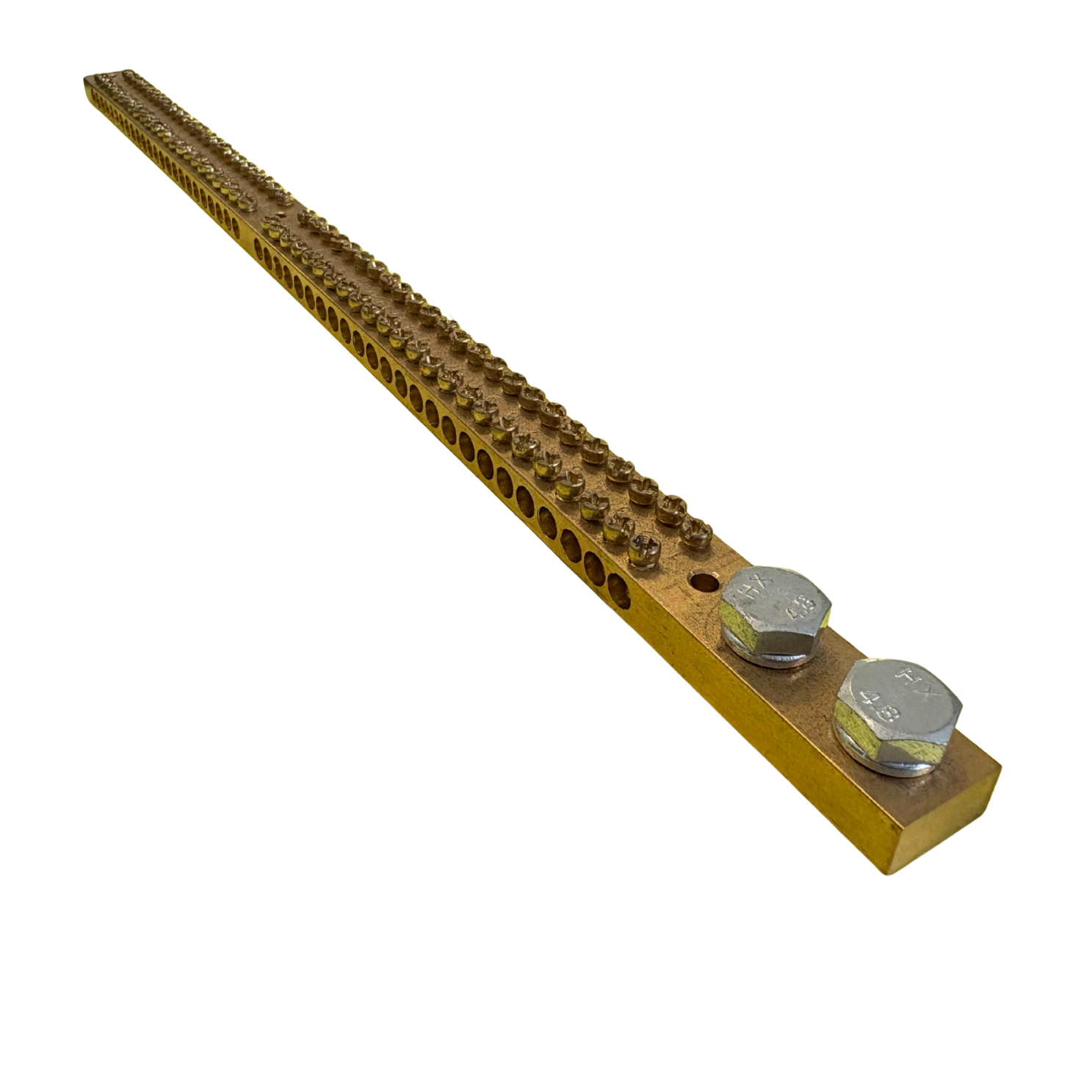

The Tesla NB-48 is the largest earth and neutral brass bar in the NB series. It provides 48 x 10mm² termination holes over a 440mm length for electrical assemblies with substantial connection requirements.

Key Features

• 48 x 10mm² termination holes
• 165A current rating
• 440mm overall bar length

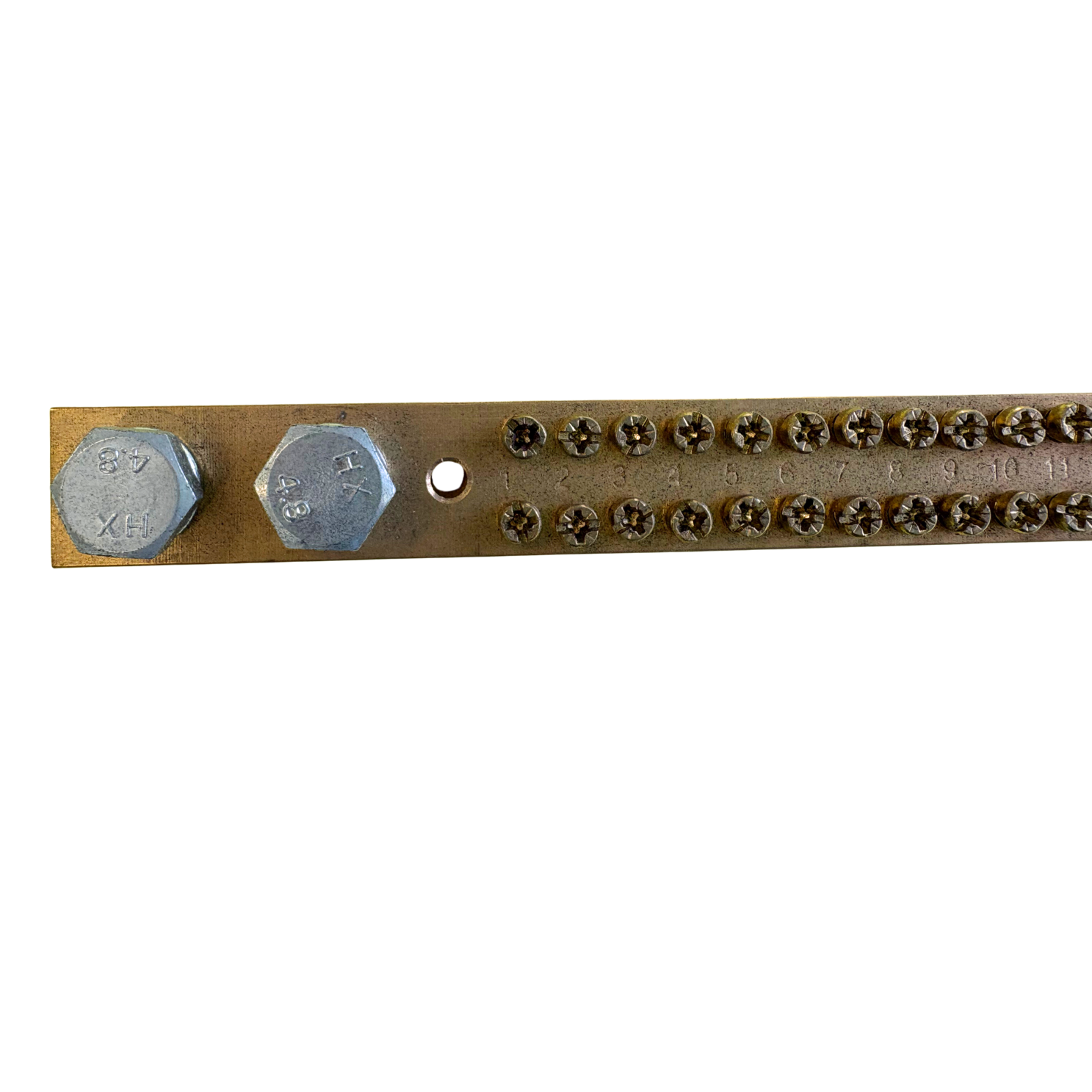

• 2 x M8 bolts
• Spring washers included
• Suitable for earth or neutral bar applications
• Tesla Electrical product code NB-48

Shop online today for delivery across Australia.

Consolidate Up to 48 Termination Positions

With 48 specified holes, the NB-48 offers the greatest connection count in Tesla's 165A NB brass bar range. It is intended for designs that need more positions than the NB-36 can provide or that deliberately include additional termination capacity.

Each hole is specified at 10mm². The bar also incorporates two M8 bolts with spring washers. These details allow the product to be assessed against the circuit count, conductor requirements and current rating established for the electrical assembly.

Check the 440mm Length Before Ordering

The NB-48's high capacity requires the largest mounting footprint in the range. Its 440mm length is 124mm greater than the NB-36, so accurate measurement is important. Allow suitable space for the bar, its mounting arrangement, conductor bends and ongoing access to the terminations.

Selecting the highest hole count isn't always the most efficient option. If fewer positions are required, the NB-36, NB-24, NB-18 or NB-12 may provide a closer match and require less enclosure space. The NB-48 is best considered where its full capacity or planned spare positions provide a clear benefit.

Tesla identifies this product for both earth and neutral applications. The installation design must determine how the bar is mounted and whether insulating components are needed. Mounting accessories aren't specified as part of the supplied product information.

Q: Is the NB-48 the largest bar in the Tesla NB range?
A: Yes. It provides 48 holes and has a 440mm length, making it the highest-capacity and longest model in this five-product range.

Q: What size are the holes in the Tesla NB-48?
A: Tesla specifies 48 x 10mm² holes. Confirm that this capacity suits the conductors selected for the installation.

Q: How does the NB-48 compare with the NB-36?
A: The NB-48 adds 12 termination holes and is 440mm long. The NB-36 provides 36 holes and measures 316mm.
