Tesla NB-36 36 Hole Earth/Neutral Brass Bar 165A

Description

High-Capacity Termination in One Bar

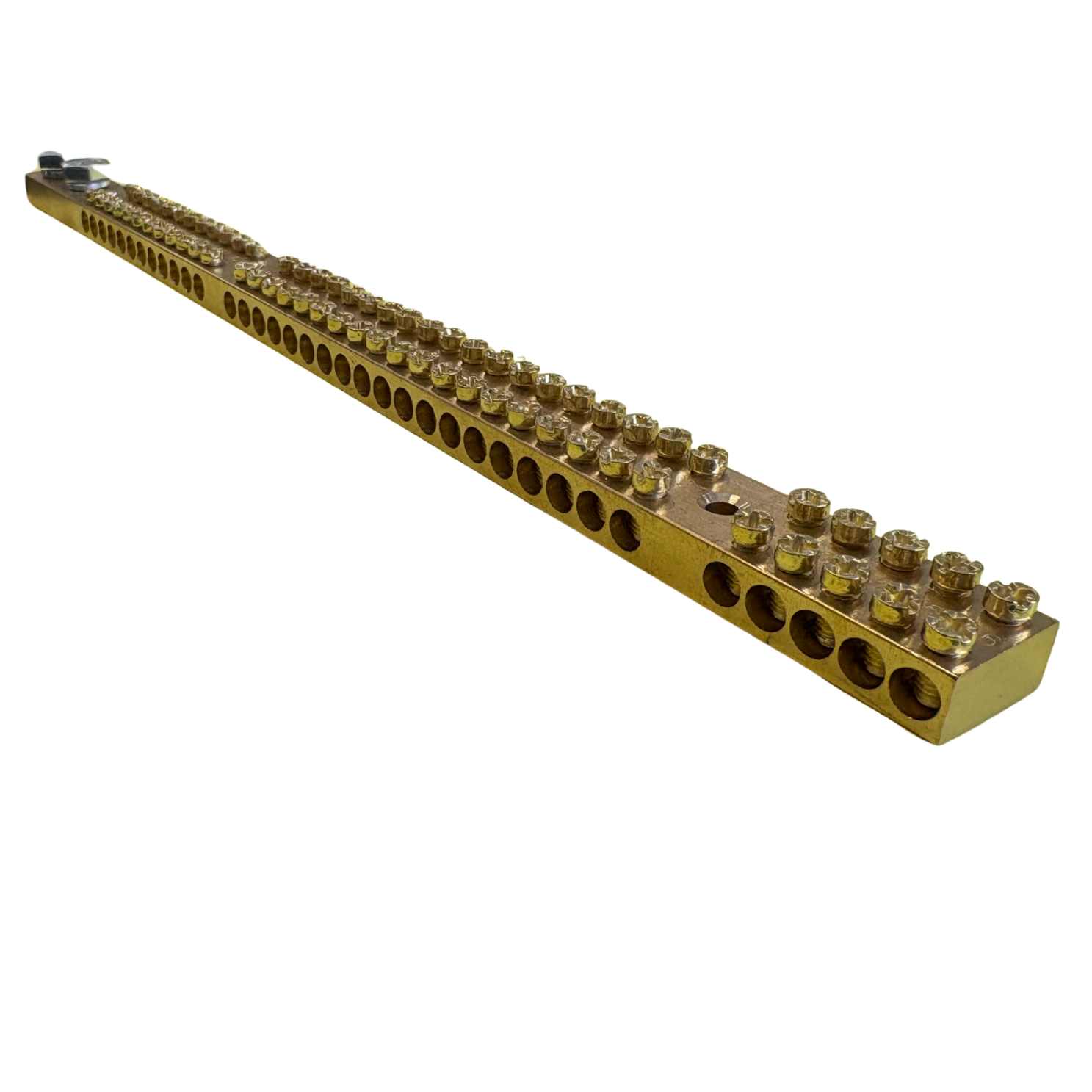

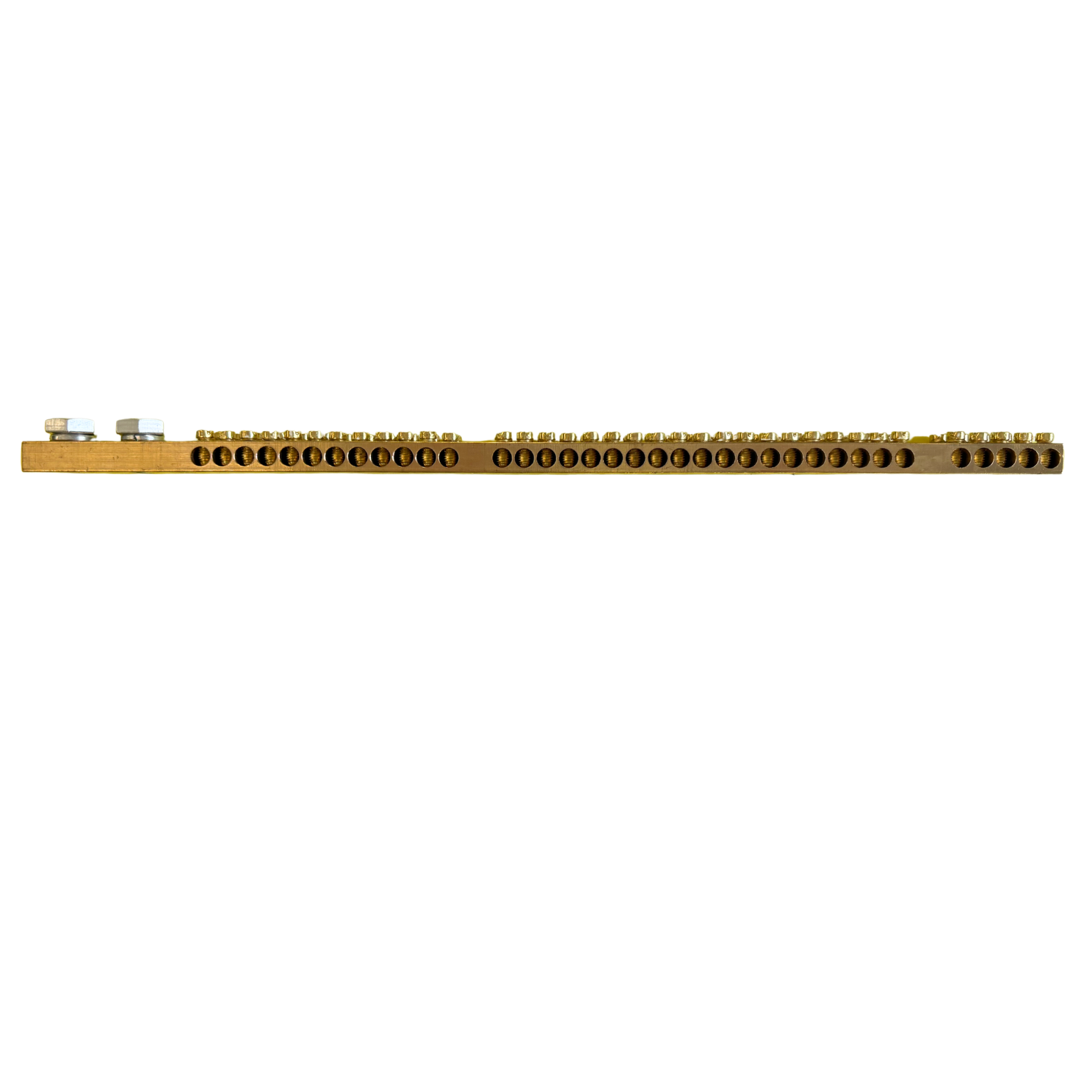

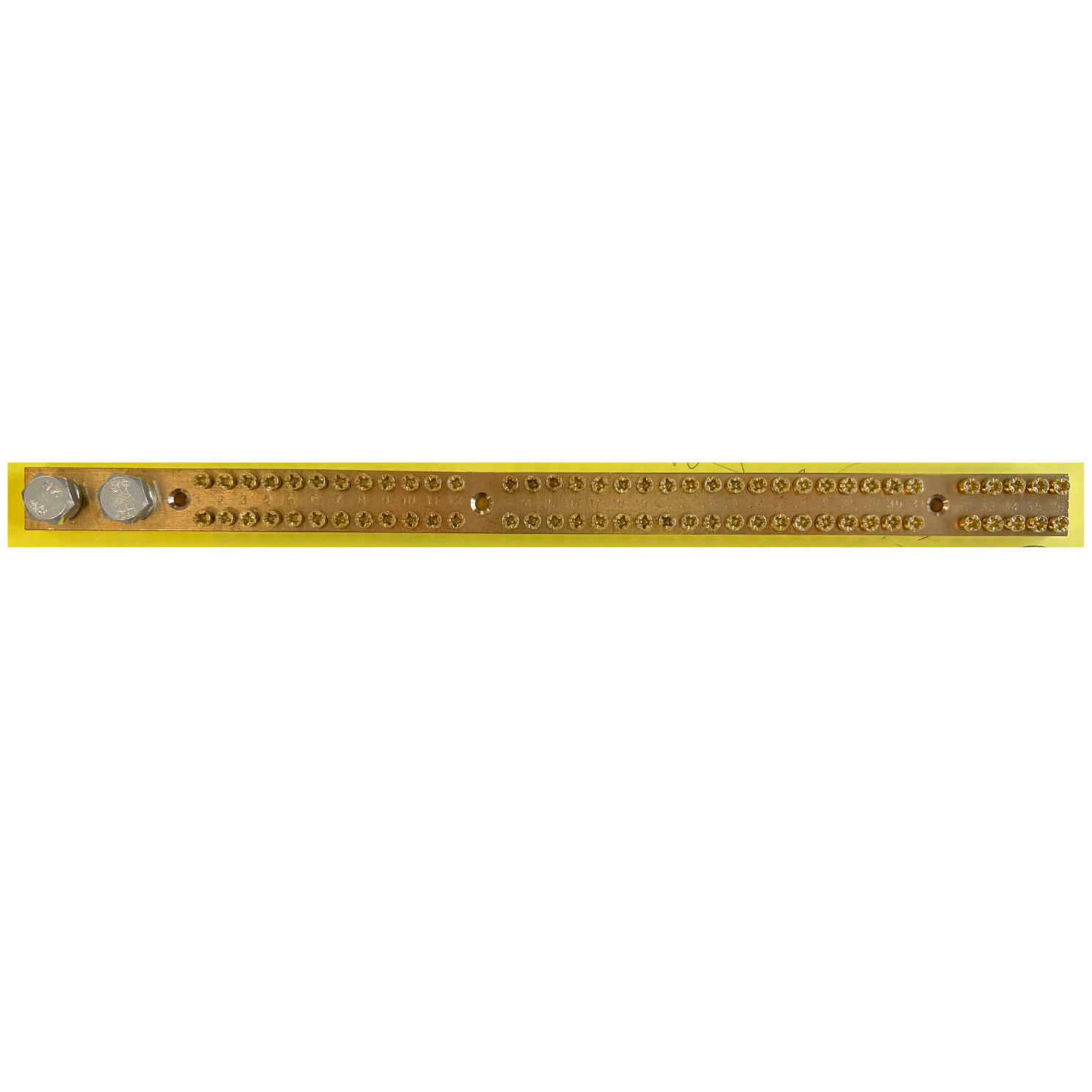

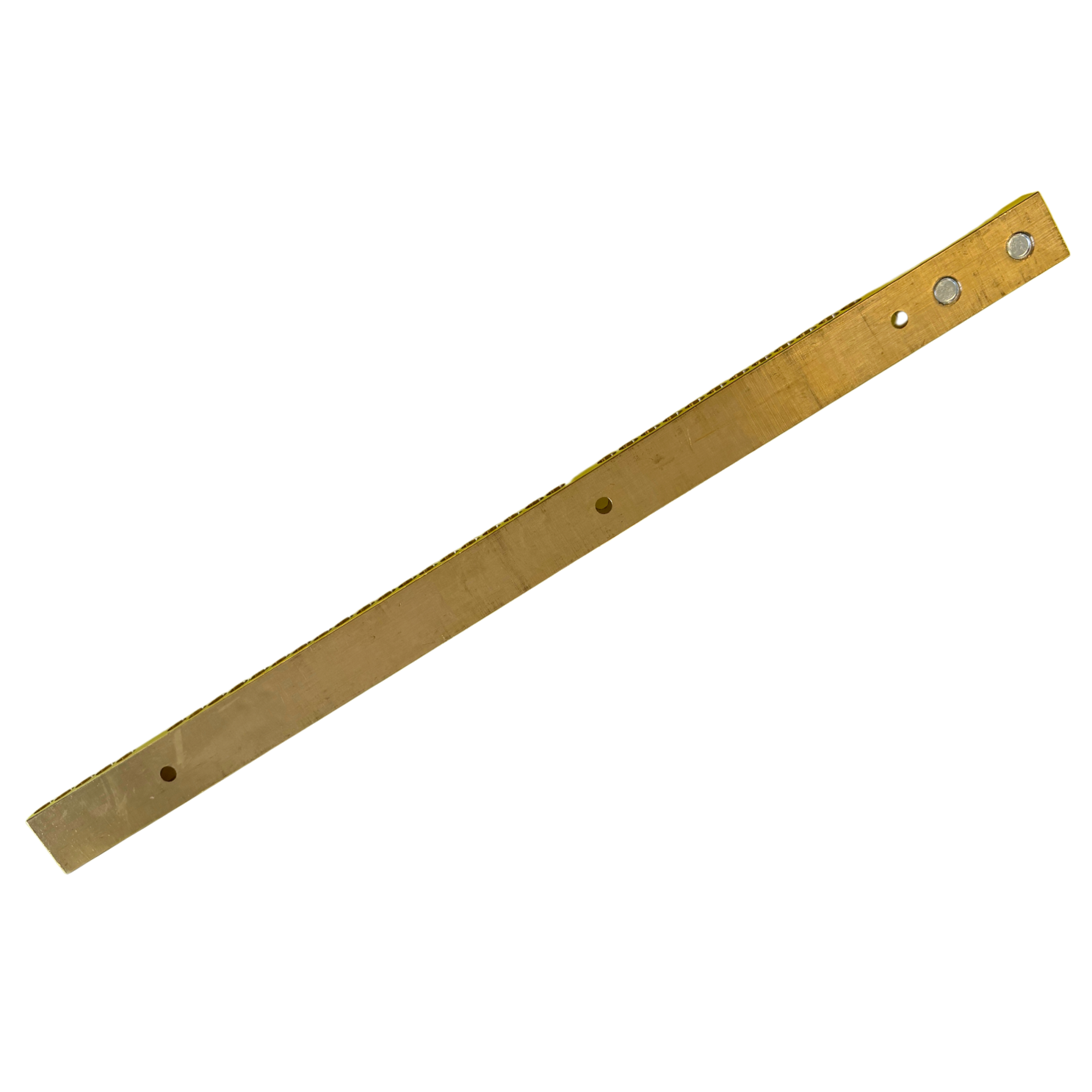

The Tesla NB-36 provides 36 earth or neutral termination holes along a single 316mm brass bar. It is designed for electrical assemblies requiring considerably more connection capacity than Tesla's 12, 18 or 24 hole models.

Key Features

• 36 x 10mm² termination holes
• 165A current rating
• 316mm overall bar length

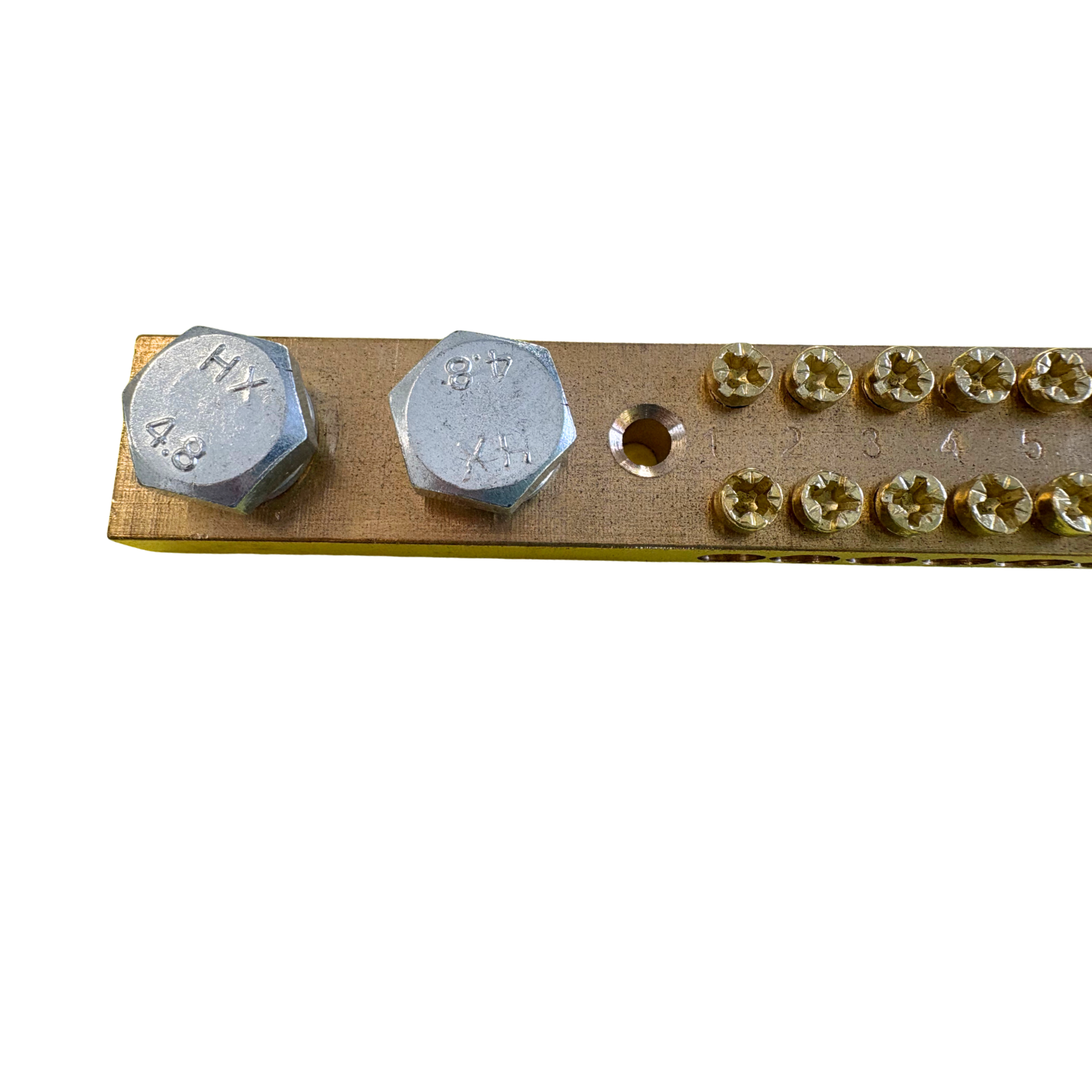

• 2 x M8 bolts
• Spring washers included
• Suitable for earth or neutral termination
• Tesla Electrical product code NB-36

Order online for Australia-wide delivery.

Built for Higher Connection Requirements

The NB-36 allows up to 36 specified termination positions to be planned along one bar. This can simplify product selection for a higher circuit-count assembly by avoiding the need to choose multiple smaller bars solely to achieve the required number of holes.

Each hole is specified at 10mm² and the bar carries a 165A rating. Two M8 bolts with spring washers are also part of the product configuration. These specifications should be checked against the conductors, current requirements and layout of the intended electrical assembly.

Allow Sufficient Enclosure Space

The greater capacity comes with a longer footprint. The NB-36 measures 316mm, which is 83mm longer than the NB-24. Buyers should check the available internal length, mounting position, conductor routes and access clearances before ordering.

Where 24 or fewer connections are needed, a shorter NB model may provide a more space-efficient option. Where the required count exceeds 36 or additional spare positions are part of the design, the 48 hole NB-48 is the next size in the range.

The NB-36 is identified by Tesla as a neutral and earth bar. The intended function determines the appropriate installation and mounting arrangement, including whether insulation from the enclosure is required. Product selection and installation should be completed by a suitably qualified person.

Q: How many termination holes are provided on the NB-36?
A: The NB-36 provides 36 holes, with each hole specified at 10mm².

Q: Will the Tesla NB-36 fit my switchboard or enclosure?
A: The bar is 316mm long. Check the enclosure's internal dimensions and allow additional clearance for mounting, conductor routing and access.

Q: What is the next size above the NB-36?
A: The next model is the NB-48, which provides 48 holes over a 440mm bar length.
