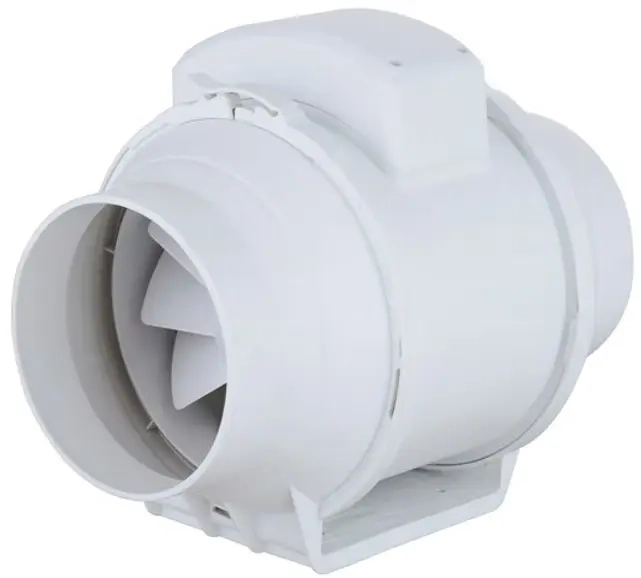

Tesla IF125 125mm Axial In-Line Mixed Flow Duct Fan 240V 26.9W 310m3/h IP44 3 Pin Plug

Description

Powerful two-speed inline ventilation for larger ducted runs.

The Tesla IF125 is a 125mm axial in-line duct fan that moves up to 310 m³/h through 5 inch ducting. Its mixed flow design delivers higher levels of extraction with low relative noise, and it runs on 220-240V via a standard 3 pin plug.

Key Features

• Tesla IF125 — 125mm (5 inch) Axial In-Line Duct Fan
• Two-speed operation: 310 m³/h high / 230 m³/h low
• Mixed flow design — higher extraction with low relative noise
• Power: 26.9W high / 21.6W low — 220-240V / 50-60Hz
• Airflow pressure up to 138 Pa
• Noise: 54 dB high / 46.5 dB low
• IP44 protection rating
• White finish
• Standard 240V 3 pin plug
• Easy installation

View specs and order online now for fast dispatch Australia-wide.

Why the Tesla IF125 In-Line Duct Fan Suits Australian Ventilation Jobs

Inline extraction with real pressure behind it
An in-line duct fan sits within the ductwork rather than at the grille, so it can pull air across longer runs and around bends where a surface exhaust fan would stall. The Tesla IF125 is a mixed flow unit — a design that combines the airflow of an axial fan with the pressure of a centrifugal one — giving it up to 138 Pa of air pressure to push air through ducted bathroom, toilet, and kitchen setups. Through 125mm (5 inch) ducting it moves up to 310 m³/h, stepping up the airflow from the smaller 100mm unit for larger spaces or longer duct runs.

Two speeds, low relative noise
The IF125 runs at two speeds. On high it delivers 310 m³/h at 2350 RPM for 26.9W, drawing air quickly when it is needed. On low it settles to 230 m³/h at 1900 RPM for 21.6W and 46.5 dB — quieter running for continuous or overnight ventilation. Tesla designed these inline fans for higher extraction with low relative noise, so you get the airflow without the roar.

IP44 rated and simple to install
The IF125 carries an IP44 protection rating, suited to the splash and moisture exposure of wet-area ducting. It comes in a white finish with a standard 240V 3 pin plug, so where a socket is accessible in the ceiling or roof space the fan plugs straight in. Any new wiring or socket must be installed by a licensed electrician in accordance with Australian requirements. Tesla Electrical Components is an Australian-based brand headquartered in Wetherill Park, NSW, and this fan is sold individually and shipped Australia-wide.

Q: What size duct does the Tesla IF125 fit?
The Tesla IF125 is a 125mm (5 inch) in-line fan, designed to connect into standard 125mm ducting for bathroom, toilet, and kitchen extraction.

Q: How much air does the Tesla IF125 move?
The IF125 is a two-speed fan: up to 310 m³/h on high (26.9W, 2350 RPM) and 230 m³/h on low (21.6W, 1900 RPM), running on 220-240V at 50-60Hz.

Q: Is the Tesla IF125 suitable for a bathroom?
Yes. The IF125 is an IP44-rated inline duct fan built for higher extraction with low relative noise, making it well suited to ducted bathroom, toilet, and kitchen ventilation.

Warranty

This product is backed by an extended manufacturer warranty - click here for details.
