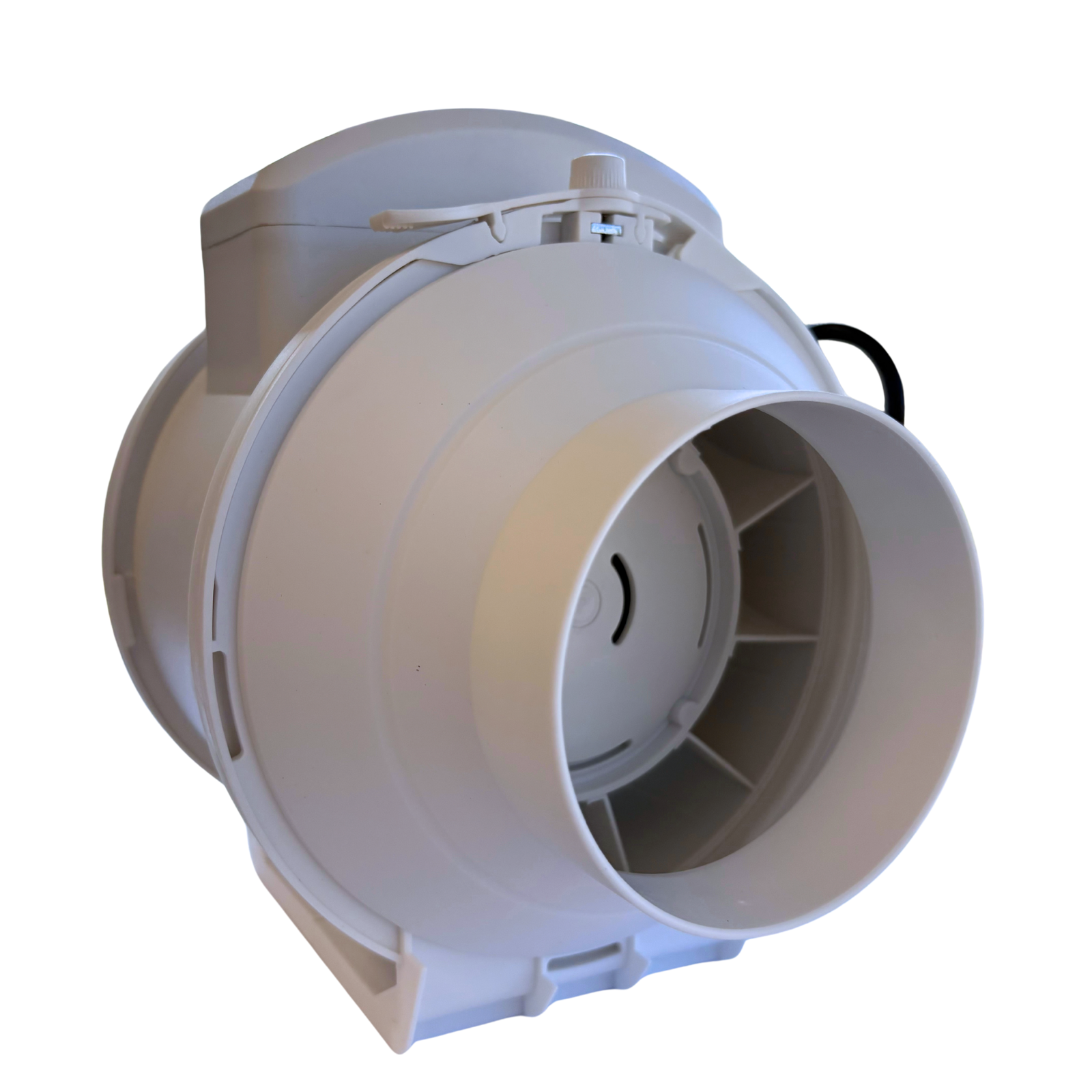

Tesla IF100 100mm Axial In-Line Mixed Flow Duct Fan 240V 22.6W 200m3/h IP44 3 Pin Plug

Description

Powerful two-speed inline ventilation for ducted extraction.

The Tesla IF100 is a 100mm axial in-line duct fan that moves up to 200 m³/h through 4 inch ducting. Its mixed flow design delivers higher levels of extraction with low relative noise, and it runs on 220-240V via a standard 3 pin plug.

Key Features

• Tesla IF100 — 100mm (4 inch) Axial In-Line Duct Fan
• Two-speed operation: 200 m³/h high / 160 m³/h low
• Mixed flow design — higher extraction with low relative noise
• Power: 22.6W high / 19.2W low — 220-240V / 50-60Hz
• Airflow pressure up to 130 Pa
• Noise: 52.5 dB high / 47 dB low
• IP44 protection rating
• White finish
• Standard 240V 3 pin plug
• Easy installation

Secure yours now for fast dispatch Australia-wide.

Why the Tesla IF100 In-Line Duct Fan Suits Australian Ventilation Jobs

Inline extraction with real pressure behind it
An in-line duct fan sits within the ductwork rather than at the grille, so it can pull air across longer runs and around bends where a surface exhaust fan would stall. The Tesla IF100 is a mixed flow unit — a design that combines the airflow of an axial fan with the pressure of a centrifugal one — giving it up to 130 Pa of air pressure to push air through ducted bathroom, toilet, and kitchen setups. Through 100mm (4 inch) ducting it moves up to 200 m³/h.

Two speeds, low relative noise
The IF100 runs at two speeds. On high it delivers 200 m³/h at 2350 RPM for 22.6W, drawing air quickly when it is needed. On low it settles to 160 m³/h at 1950 RPM for 19.2W and 47 dB — quieter running for continuous or overnight ventilation. Tesla designed these inline fans for higher extraction with low relative noise, so you get the airflow without the roar.

IP44 rated and simple to install
The IF100 carries an IP44 protection rating, suited to the splash and moisture exposure of wet-area ducting. It comes in a white finish with a standard 240V 3 pin plug, so where a socket is accessible in the ceiling or roof space the fan plugs straight in. Any new wiring or socket must be installed by a licensed electrician in accordance with Australian requirements. Tesla Electrical Components is an Australian-based brand headquartered in Wetherill Park, NSW, and this fan is sold individually and shipped Australia-wide.

Q: What size duct does the Tesla IF100 fit?
The Tesla IF100 is a 100mm (4 inch) in-line fan, designed to connect into standard 100mm ducting for bathroom, toilet, and kitchen extraction.

Q: How much air does the Tesla IF100 move?
The IF100 is a two-speed fan: up to 200 m³/h on high (22.6W, 2350 RPM) and 160 m³/h on low (19.2W, 1950 RPM), running on 220-240V at 50-60Hz.

Q: Is the Tesla IF100 suitable for a bathroom?
Yes. The IF100 is an IP44-rated inline duct fan built for higher extraction with low relative noise, making it well suited to ducted bathroom, toilet, and kitchen ventilation.
