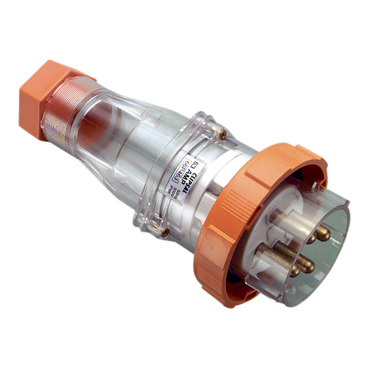

Clipsal 66P463-RO 66 Series Heavy Duty Straight Plug IP66 500V 63A 4 Pin Orange

Description

Heavy duty capacity in a chemical resistant body.

The Clipsal 66 Series 66P463-RO Heavy Duty Straight Plug carries 63 amps at 500 volts through a 4 round pin configuration, rated IP66. Cable terminates at screw terminals and enters through a cable gland, in a Chemical Resistant Orange body.

Key Features

• Rated 63 A at 500 V 50/60 Hz conforming to EN 60309-2
• 4 round pins
• IP66 rated for dust and water jet protection
• Screw terminal connections
• Cable gland entry
• Straight plug body
• Chemical Resistant Orange housing
• Plastic construction
• Mercury free
• Halogen free product
• 18 month manufacturer warranty

Grab yours online — quick dispatch.

Why it Matters

63 amps at 500 volts for heavy duty distribution

The 66P463-RO is rated 63 A at 500 V, 50/60 Hz, conforming to EN 60309-2. That pin standard means the plug mates only with correspondingly rated equipment, which is the point of a keyed industrial system: a 63 A connection cannot be accidentally made into a lower-rated outlet. For high-draw plant this is the rating band you specify into.

IP66 sealing keeps a heavy duty connection reliable

An IP66 rating means the plug is dust-tight and protected against powerful water jets. On sites where the connection sits outdoors, in a washdown zone, or in a dusty yard, that seal is what stops moisture and grit reaching the contacts. Cable gland entry maintains the seal at the point where cable enters the body, not just around the housing.

The RO variant of the 66P463

This is the Chemical Resistant Orange version of the 66P463, sitting alongside the Electric Orange model as a colour variant within the same electrical specification. Screw terminal connections mean terminations can be made and re-made with hand tools on site, without specialised crimping equipment. The 66P463 is covered by an 18 month manufacturer warranty and is a halogen free product.

What is the Clipsal 66P463-RO rated for?
It is rated 63 amps at 500 volts, 50/60 Hz, conforming to EN 60309-2. It uses a 4 round pin configuration.

Is the Clipsal 66P463-RO weatherproof?
Yes. The 66P463-RO carries an IP66 rating, meaning it is dust-tight and protected against powerful water jets from any direction.

What is the difference between the 66P463-RO and the 66P463-EO?
Both share the same electrical rating of 63 A at 500 V with 4 round pins. The RO is supplied in Chemical Resistant Orange and the EO in Electric Orange.
