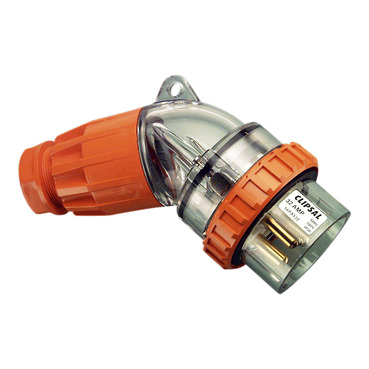

Clipsal 56 Series 56PA532-RO Angled Plug 500V 32A 5 Round Pin IP66 Chemical Resistant Orange

Description

A chemical-resistant five-pin plug that stands up to dust, water, and knocks.

The Clipsal 56PA532-RO is a 500V 32A angled plug with 5 round pins in a 3P + N + E configuration, built in a high-visibility Chemical Resistant Orange housing. The five-pin layout adds a neutral alongside the three phases and earth, and the M40 cable gland entry keeps the connection sealed against the weather.

Key Features

• 500V AC, 32A rated angled plug
• 5 round pins in a 3P + N + E configuration
• IP66 rated against dust and powerful water jets
• Chemical Resistant Orange polycarbonate housing
• Brass contact pins for reliable conductivity
• M40 cable gland entry with screw terminals accepting 2.5–25 mm² conductors
• Dimensions 130mm W x 78mm H x 168mm D
• Angled body design to help relieve cable strain
• Manufactured to AS/NZS 3123, RoHS compliant

Order now while stock is on the shelf.

Why it Matters

Built for Australian Conditions
Rated IP66 to AS 60529 and certified to AS/NZS 3123, this plug keeps performing where dust, moisture, and impact are part of the daily grind – a common requirement on industrial sites, outdoor installations, and washdown areas. The high-visibility orange finish makes the connection easy to spot.

The Chemical Resistant Orange Variant
This is the Chemical Resistant Orange (RO) version of the 56PA532, supplied with a chemical-resistant housing. It carries the same electrical rating as the standard Electric Orange model – 500V, 32A, in a 3P + N + E five-pin arrangement.

Higher-Capacity Five-Pin Three-Phase with Neutral
The 3P + N + E configuration provides three phases, a neutral, and an earth across five pins – suited to three-phase connections that also require a neutral conductor. Rated to 500V and 32A for higher-draw equipment, with screw terminals accepting conductors from 2.5 mm² up to 25 mm² through an M40 cable gland.

How does it differ from the 56PA532-EO?
It shares the same 500V 32A five-pin electrical rating and dimensions, but is supplied in a Chemical Resistant Orange housing rather than the standard Electric Orange.

What cable size does it accept?
The screw terminals accept conductor sizes from 2.5 mm² to 25 mm², with cable entry through an M40 gland.

What is the voltage and current rating?
It is rated 500V AC at 32A, configured with 5 round pins as 3 Phase plus Neutral plus Earth (3P + N + E).
