Clipsal 56AI310LE-RO 56 Series Appliance Inlet 10A 3 Pin Less Enclosure Orange

SKU: cliappinl310ro

Product image thumbnail for SKU cliappinl310ro

Download Data Sheet

$131.10 (ex-GST)

$144.21 (inc-GST)

$144.21

$131.10

(inc-GST)

(ex-GST)

⚫︎ Ships in 2-5 days

Clipsal 56 Series IP66 appliance inlet, 250V 10A, three flat pins, chemical-resistant orange. Supplied less enclosure (housing not included). AS/NZS 60320.1.

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200

Inquire here

A chemical-resistant appliance inlet, supplied without enclosure.

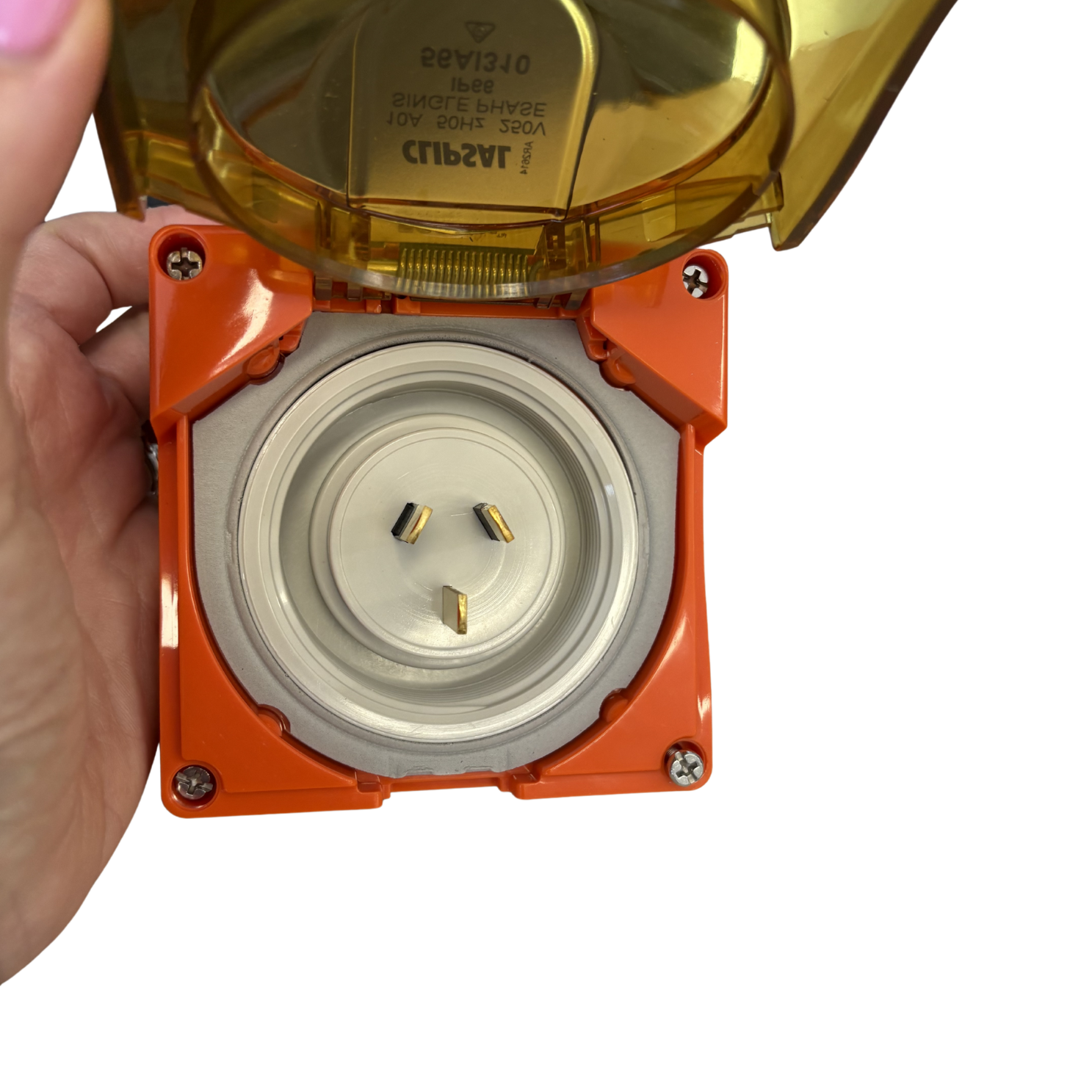

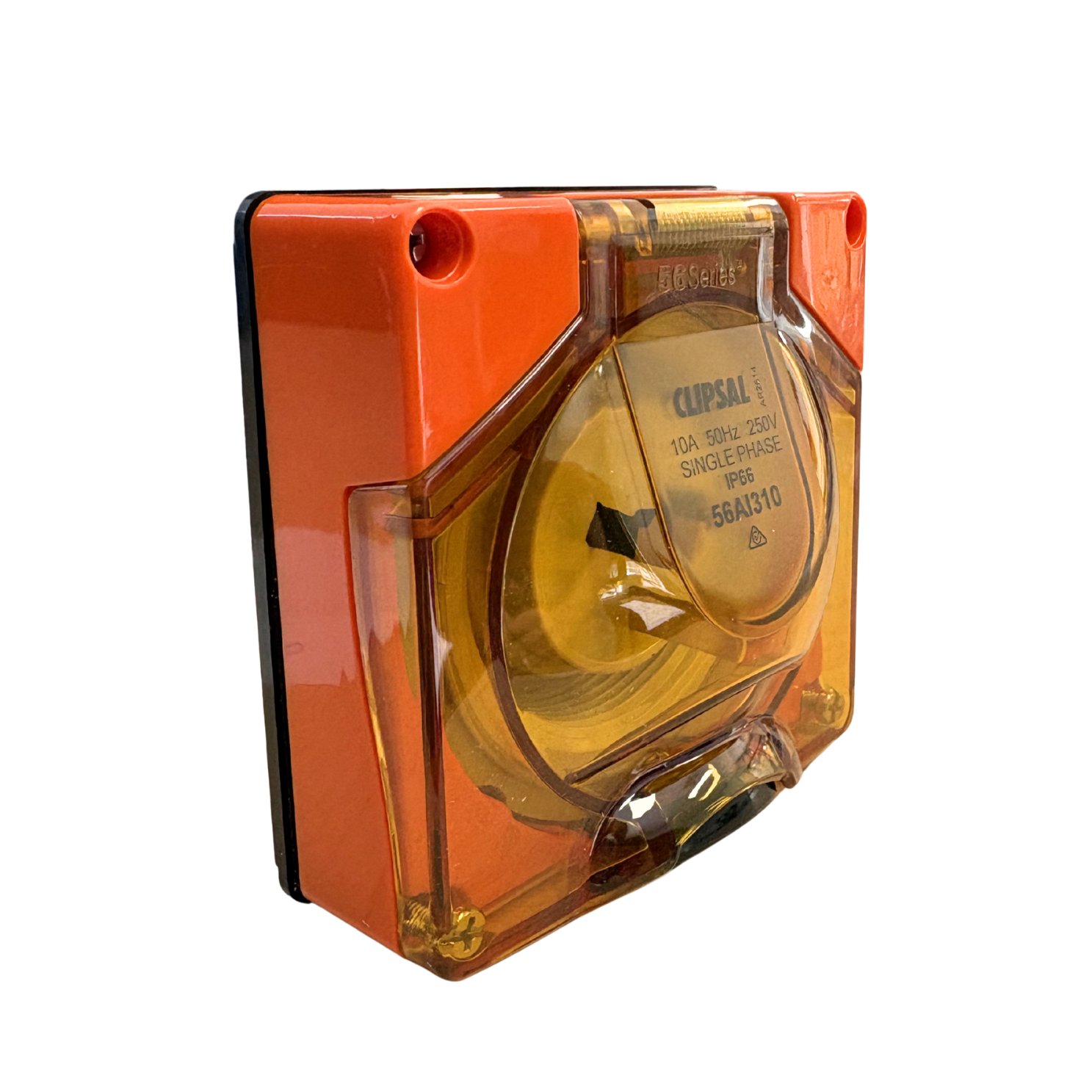

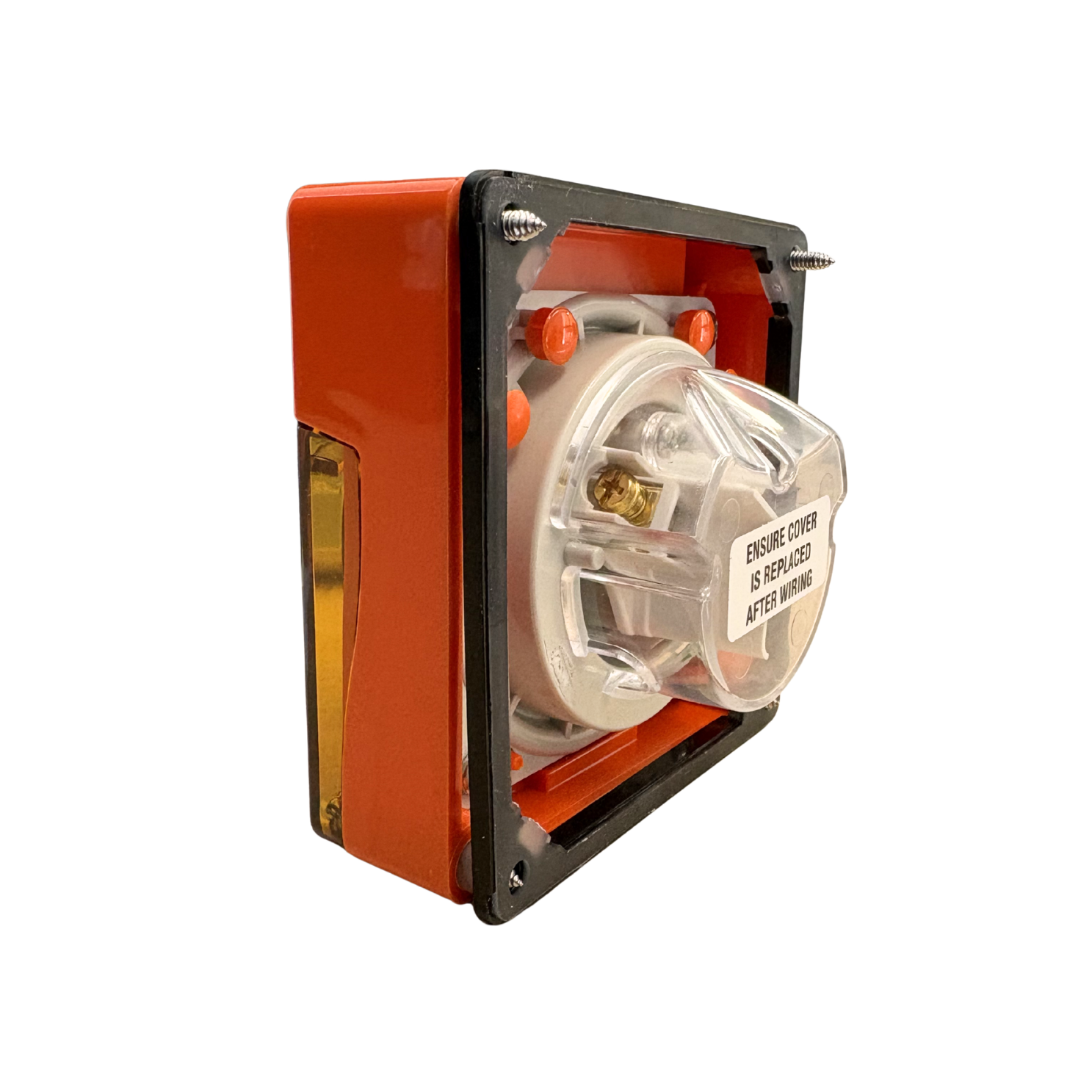

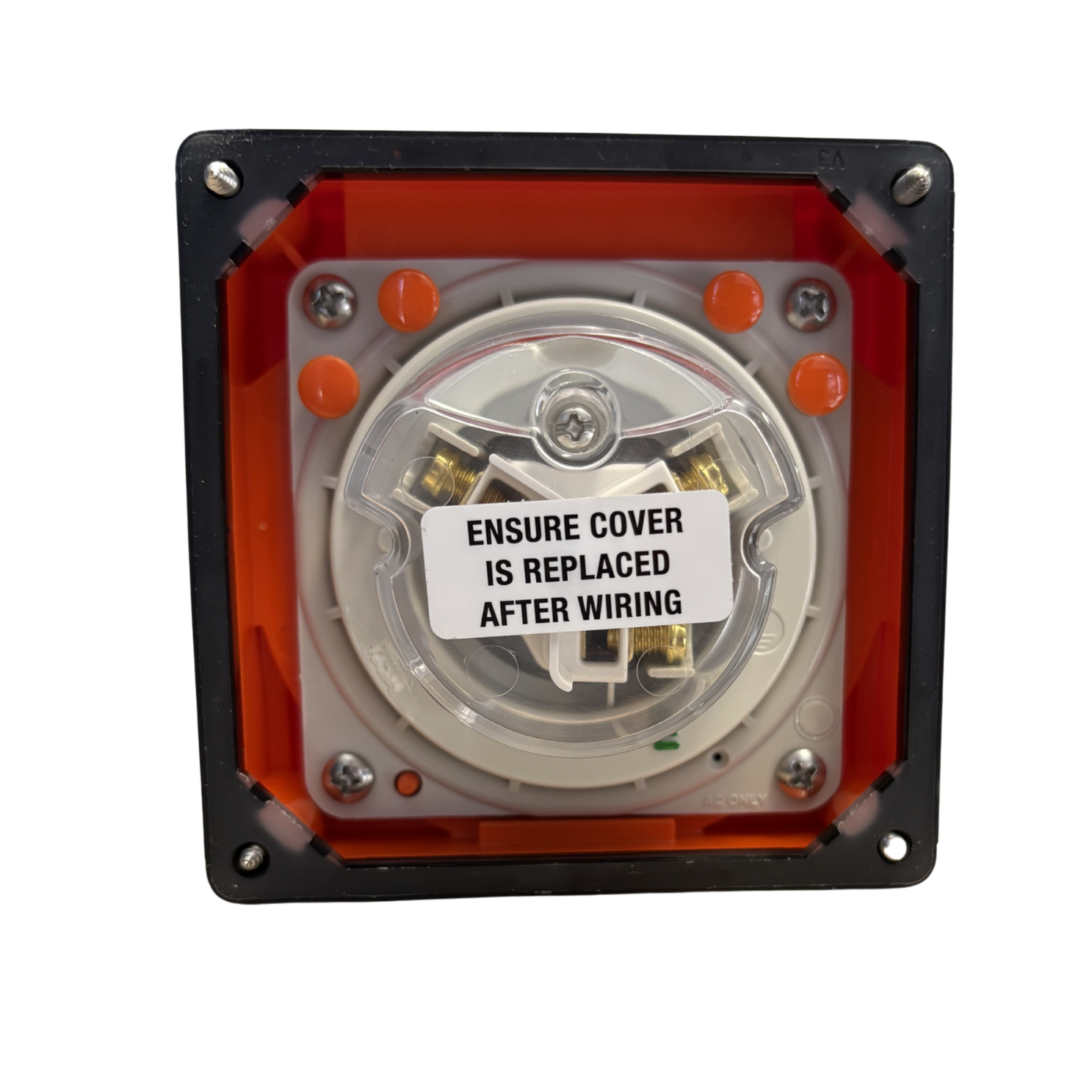

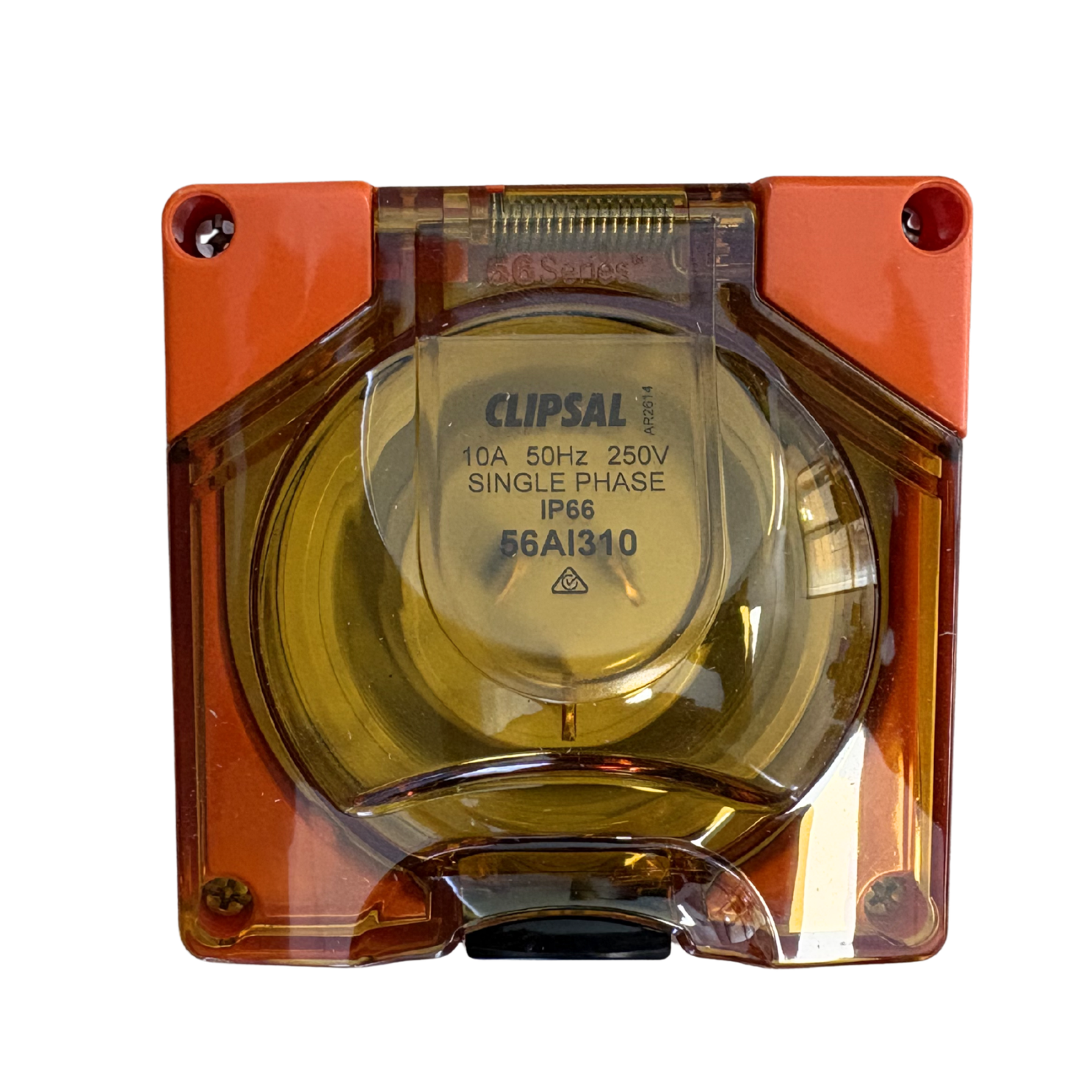

The Clipsal 56AI310LE-RO is a 250V 10A appliance inlet in chemical-resistant orange, supplied ""less enclosure"" – that is, without the surrounding housing. With three flat pins and an IP66 rating, it provides a rugged, weatherproof power inlet suited to industrial and utility settings.

Key Features

250V, 10A appliance inlet
Chemical-resistant orange (per manufacturer designation)
Supplied less enclosure (housing not included)
Three flat pins (Active, Neutral, Earth)
IP66 rated – dust-tight and protected against powerful water jets
Surface mount
Brass screw terminals accepting 1.5–6mm² rigid or stranded cable
Polycarbonate cover
Made to AS/NZS 60320.1, IP66 to AS 60529
Wide operating range: -25 to 75°C

Secure yours online today.

Why it Matters

Less Enclosure – Check What You Need
This version is supplied without the surrounding enclosure. It's designed to fit a compatible 56 Series enclosure or mounting arrangement, so make sure you have the required enclosure to complete the installation. This keeps cost down where you already have suitable housing.

Weatherproof and Compliant
The IP66 rating means it's fully dust-tight and withstands powerful water jets, and it's built to Australian and New Zealand standards (AS/NZS 60320.1, IP66 to AS 60529) – dependable for outdoor and industrial installations. The high-visibility orange finish makes the inlet easy to identify on site.

Solid Terminals
Brass screw terminals accept 1.5 to 6mm² rigid or stranded cable, giving a secure connection for a range of conductor sizes – wired by a licensed electrician.

What is the Clipsal 56AI310LE-RO?
It is a 250V 10A IP66 appliance inlet in chemical-resistant orange, supplied without an enclosure, with three flat pins for feeding 240V power into equipment.

Does it come with an enclosure?
No. This is the ""less enclosure"" version – the surrounding housing is not included and must be provided separately.

What cable does it take?
The brass screw terminals accept 1.5 to 6mm² rigid or stranded cable.

(cliappinl310ro)

Design
Range	Clipsal - 56 Series
Range of product	Series 56
Product brand	Clipsal
Product or component type	appliance inlet
Device application	power supply
Colour	grey (RAL 7035)
Market segment	utilityindustrysmall commercial
Physical
[in] rated current	10 A
[ue] rated operational voltage	250 V 50/60 Hz conforming to EN 60309-2
Mounting mode	surface mounted
Outlet standard	industrial
Connections - terminals	screw terminal 1.5-6 mm² rigid or stranded cable
Net weight	0.24 kg
Height	107 mm
Width	101 mm
Depth	72 mm
Standards	AS/NZS 60320.1
Ip degree of protection	IP66 conforming to AS 60529
Ambient air temperature for operation	-25...75 °C
Mercury free	Yes
Environmental disclosure	ENVPEP2407007EN
Circularity profile	N/A
Material
Material	plastic
Material	polycarbonate: cover
Contacts material	screws: brass
Others
Poles description	1P + N + E
Voltage colour	blue
Plug, socket category	low voltage
Outlet standard deviation	Australian/New Zealand
Tightening torque	0.8 N.m
Plug, socket, control station shape	straight
Pin arrangement	A
Targeted country	Australia
Unit type of package 1	PCE
Package 1 height	7.65 cm
Package 1 width	9.95 cm
Package 1 length	9.95 cm
Package 1 weight	305.0 g
Recycled metal content at cr level	0
Removable battery	N/A
Global warming ; total life cycle	1 kg CO2 eq.
Minimum percentage of recycled plastic content	0
