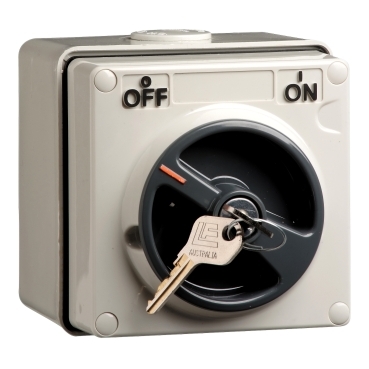

Clipsal 56 Series 56K2SW115-GY Key Operated Surface Switch IP66 250V 15A 1P Grey

Description

Lockable industrial control, weather-sealed and Aussie-standard rated.

The Clipsal 56K2SW115-GY is a key-operated single-pole surface-mount switch in a sealed IP66 polycarbonate enclosure. Rated 15A at 250VAC, it provides controlled ON-OFF switching where authorised personnel can lock the circuit in either the ON or the OFF position using the removable key.

Key Features

• IP66 rated to AS 60529 - dust-tight and protected against powerful water jets
• 15 A rated current at 250 V AC 50 Hz, 1-pole switching
• K2 mechanism - locks in both ON and OFF positions, supplied with random key
• Key actuator with clear ON-OFF surface marking
• Motor rating M80 at 250V (AS/NZS 3133)
• 15 kA breaking capacity
• Rotary handle also accepts 2 padlocks (8-8 mm) for lock-out
• Grey polycarbonate housing and grey key handle
• Operating range -25 to 75 °C
• Certified to AS/NZS 3133, Green Premium, mercury-free

Get yours dispatched fast Australia-wide from our Brisbane warehouse.

Identifying This SKU - K2

The 56 Series key-operated range uses a naming convention that tells you exactly what the lock does and which key it takes:

• K1 - Locks in OFF position only
• K2 - Locks in ON and OFF positions
• CK - Common Key

This SKU 56K2SW115-GY has K2 in the model number (locks in both ON and OFF positions)

Why it Matters

ON-or-OFF Lockable, Key-Controlled

The K2 mechanism gives you a choice most weatherproof switches do not: lock the circuit either firmly ON for critical equipment that must not be turned off casually, or firmly OFF for maintenance and lockout-tagout. Only someone holding the key can change the switch state, and the rotary handle also accepts two 8 mm padlocks for additional mechanical lock-out.

Weather-Sealed for Exposed Sites

The IP66 seal to AS 60529 keeps dust out and withstands direct water jets. Operating from -25 to 75 °C, the polycarbonate housing is designed to hold up in outdoor installations and industrial environments exposed to dust, jetted water and wide temperature swings.

Compliant to Australian Standards

Manufactured to AS/NZS 3133, the 56K2SW115-GY covers M80 motor duty at 250V and is backed by an 18-month Schneider Electric manufacturer warranty. The unit is Green Premium listed and mercury-free.

Q: What does the K2 in 56K2SW115-GY mean?
A: The K2 designation means the switch can be locked with the removable key in either the ON or the OFF position. The K1 variant locks in the OFF position only.

Q: Is the 56K2SW115-GY supplied with a common key?
A: No. Without CK in the part number, the switch is supplied with a random key. CK-suffix variants use the common No 103 key but are not currently in our range.

Q: Can the Clipsal 56K2SW115-GY be padlocked for lockout-tagout?
A: Yes. The rotary handle accepts up to 2 padlocks with an 8 mm shackle, making it suitable for lockout-tagout procedures during maintenance and service work on 250V single pole circuits.
