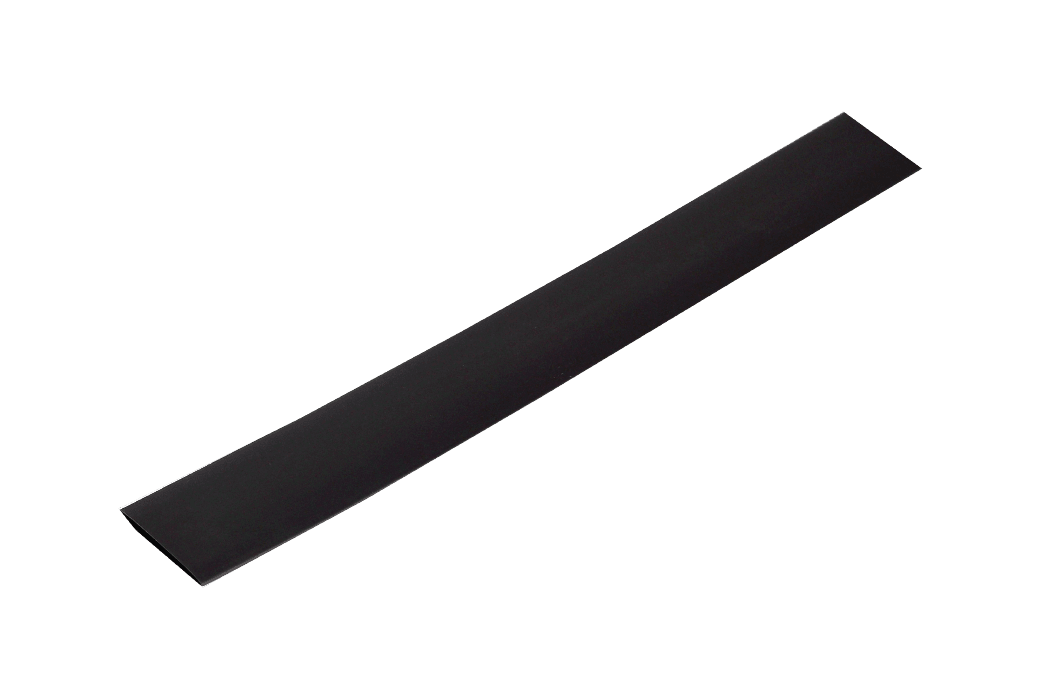

HSTL40B 40mm Heat Shrink Tubing Black 1m

Description

HSTL40. 40mm. Heat Shrink Tubing. 2:1 Shrink Ratio. Polyolefin. 600V. 1m Length. Available in Black, Red, White, Blue, Green/Yellow, Clear, Yellow.

The HSTL40 is a 40mm polyolefin heat shrink tube — supplied in 1 metre lengths with a 2:1 shrink ratio. Supplied inside diameter 41.5mm. Shrinks at 70°C, fully recovered at 125°C. Used for cable and wire insulation, bundling, strain relief, connector and terminal protection, and colour coding in automotive, marine, electrical, and industrial applications. Resistant to acidic and alkaline conditions. 600V rated. Sold as 1 metre length — select colour below.

• HSTL40 — 40mm Heat Shrink Tube, 2:1 Shrink Ratio
• Supplied I.D.: 41.5 ±1.0mm
• Wall thickness (supplied): 0.50 ±0.12mm
• Recovered I.D.: ≤20.75mm
• Shrink ratio: 2:1 — suits cables and conductors up to approximately 40mm OD
• Shrink temperature: 70°C minimum — fully recovered at 125°C
• Longitudinal shrink: less than 5%
• Material: Polyolefin
• Voltage rating: 600V continuous
• Operating temperature: -55°C to +125°C
• Resistant to acidic and alkaline conditions
• Compliance: RoHS, REACH, ISO
• Available colours: Black, Red, White, Blue, Green/Yellow, Clear, Yellow
• Supplied as 1 metre length — select colour below

Select colour below — fast dispatch Australia-wide.

HSTL40 Available Colour Variants

• HSTL40B — Black
• HSTL40R — Red
• HSTL40W — White
• HSTL40BL — Blue
• HSTL40G/Y — Green/Yellow
• HSTL40C — Clear
• HSTL40Y — Yellow

About Heat Shrink Tubing — 2:1 Polyolefin

Polyolefin heat shrink tubing is the most widely used heat shrink material in electrical, automotive, marine, and industrial wiring — it is flexible, flame retardant, and resistant to moisture, oils, and a wide range of chemicals. The 2:1 shrink ratio means the tube shrinks to approximately half its supplied diameter when heated — a 41.5mm supplied I.D. tube recovers to approximately 20.75mm minimum recovered I.D., creating a tight, conforming sleeve over the cable or termination.

Heat shrink is applied using a heat gun set to the correct temperature — applying even heat along the tube causes it to shrink uniformly around the cable or component underneath. The low longitudinal shrink (less than 5%) means the tube retains close to its original 1 metre length after recovery. The HSTL40 range suits cables, conductors, terminals, connector barrels, and wire bundles up to approximately 40mm OD — suited to very large multicore and armoured cables, heavy battery and welding cables, large cable gland entries, lug and crimp protection on high-current connections, and conduit entry sealing in marine, solar, mining, and heavy industrial electrical installations.

Multiple colours are available to allow colour coding by circuit, polarity, phase, or system — consistent with standard wiring colour conventions. All colours carry the same polyolefin specification, 2:1 shrink ratio, and 600V rating.

Q: What cable OD does the HSTL40 suit?
A: The HSTL40 has a supplied I.D. of 41.5mm and suits cables and conductors up to approximately 40mm OD. With a 2:1 shrink ratio, the recovered I.D. is approximately 20.75mm minimum.

Q: What temperature is required to shrink the HSTL40?
A: The HSTL40 begins to shrink at 70°C and is fully recovered at 125°C. A standard heat gun is suitable.

Q: What colours are available in the 40mm size?
A: Black, Red, White, Blue, Green/Yellow, Clear, and Yellow. Select the required colour using the variant selector below.

Q: What is the voltage rating of the HSTL40?
A: The HSTL40 is rated at 600V continuous.

Q: How long is each piece?
A: Each piece is 1 metre in length.
