GEN3 PLA3PH450 Weatherproof IP66 Angled Plug 50A 3 Phase Orange

Description

High-current three-phase, angled and weatherproof.

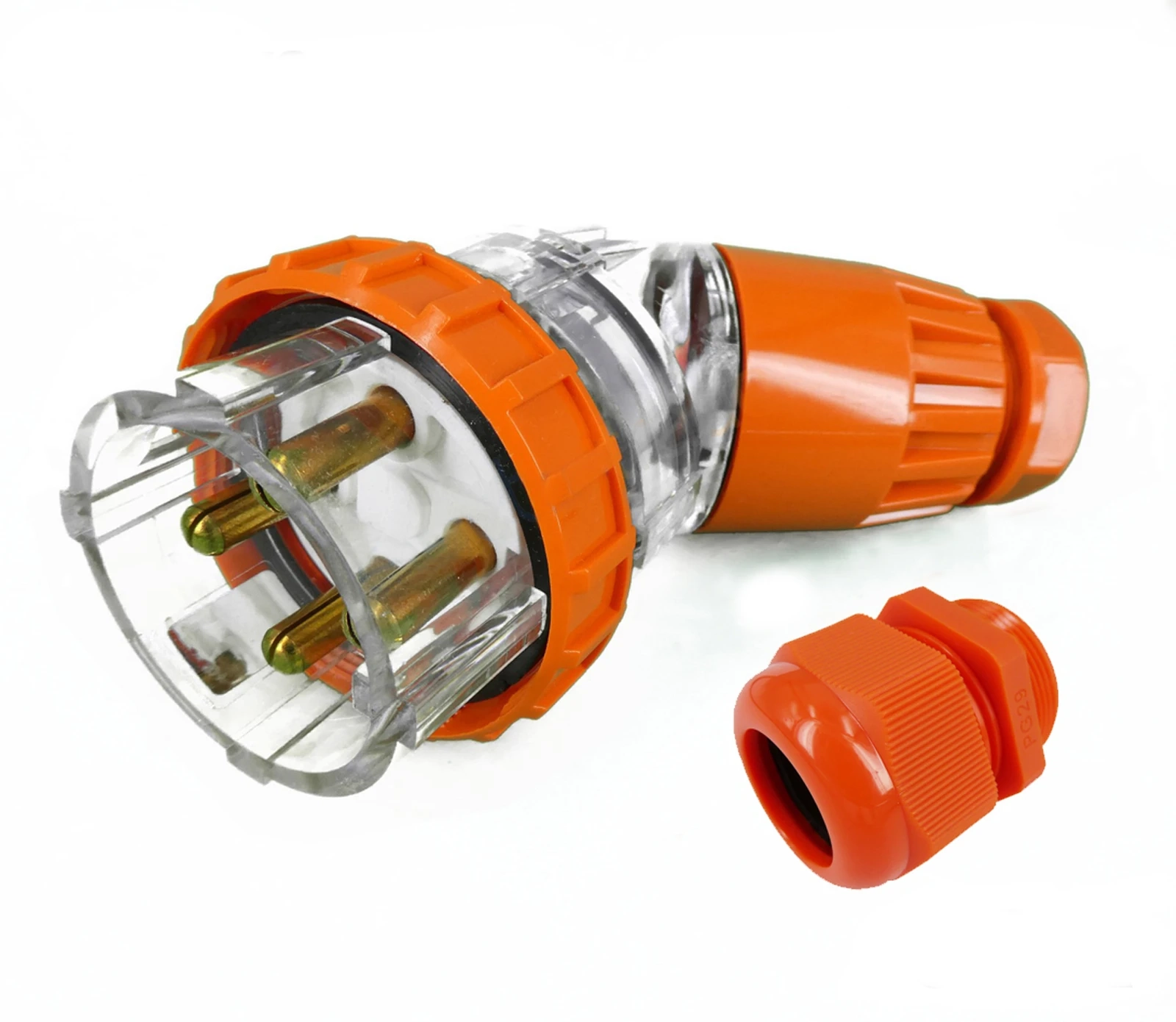

The GEN3 PLA3PH450 is a 50A three-phase industrial extension plug top with four round pins and a 45-degree angled body. It ships with an oversize gland for larger cables, and its IP66-rated, 56 Series-style design makes it a rugged plug for heavy three-phase outdoor and industrial leads.

Key Features

• 50A three phase, 4 round pins
• 500V AC
• 45-degree angled plug top
• Oversize gland included for larger cables (18–25mm diameter)
• IP66 rated — dust-tight and protected against powerful water jets
• 56 Series-style, interchangeable with other major brands
• PCA18 virgin-grade plastic (no regrind)
• 316 stainless steel springs and screws
• Brass internal components (greater than 85% copper) for lower heat rise
• Operating temperature -25°C to +70°C
• Complies with AS/NZS 3123:2005; orange finish

Shop now and have it shipped Australia-wide.

Why the 45-Degree Angle

The angled body turns the cable away from the pins and down along the surface, taking strain off the cable entry and keeping leads tidy against a wall, board or machine. It's the practical choice in tight spots or where a straight plug would protrude and snag.

High-Current Three-Phase, Built Tough

The four round pins carry three-phase power (three actives plus earth) rated to 500V, with a 50A current rating for the largest three-phase equipment in the angled range. To match the heavier conductors a 50A circuit needs, it includes an oversize gland sized for 18–25mm cable. It is IP66 rated, so it is dust-tight and withstands powerful water jets from any direction, with a virgin-grade PCA18 body, 316 stainless steel springs and screws, and brass contacts of greater than 85% copper. A wide -25°C to +70°C operating range and AS/NZS 3123:2005 compliance suit it to demanding Australian industrial sites.

Fast, Interchangeable Termination

The oversize compression gland makes cable termination quick and secure on site, even with larger cable. Because it follows the 56 Series-style format, the PLA3PH450 mates with 50A four-pin three-phase round sockets and inlets and is interchangeable with other major brands. Pair it with a matching 4-pin 50A extension socket to build a complete three-phase extension lead.

Q: What size cable fits the GEN3 PLA3PH450?
A: It includes an oversize gland sized for larger cables of 18 to 25mm outer diameter, suited to the heavier conductors a 50A three-phase circuit requires.

Q: Is the GEN3 PLA3PH450 weatherproof?
A: Yes. It is IP66 rated, meaning it is dust-tight and protected against powerful water jets, and it is built to AS/NZS 3123:2005 for industrial use.

Q: What socket does the PLA3PH450 plug into?
A: It mates with 50A four-pin three-phase round 56 Series-style sockets and inlets and is interchangeable with other major brands. Add a matching 4-pin 50A extension socket to make a lead.
