C20 IEC Appliance Outlet | Rewirable Plug | Connector

AC Power Connector

SKU: fasextpluC20

Product image thumbnail for SKU fasextpluC20

Inquire here

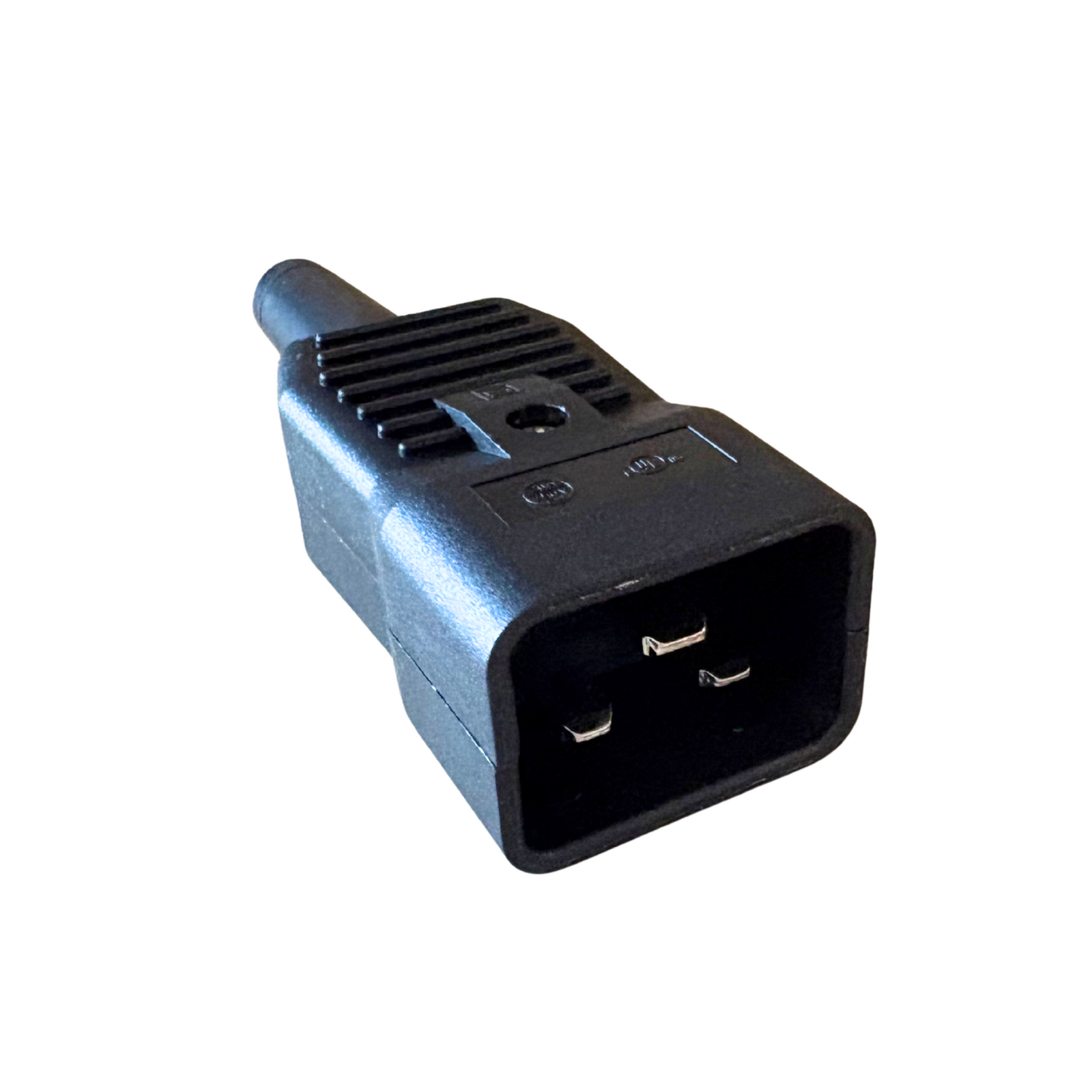

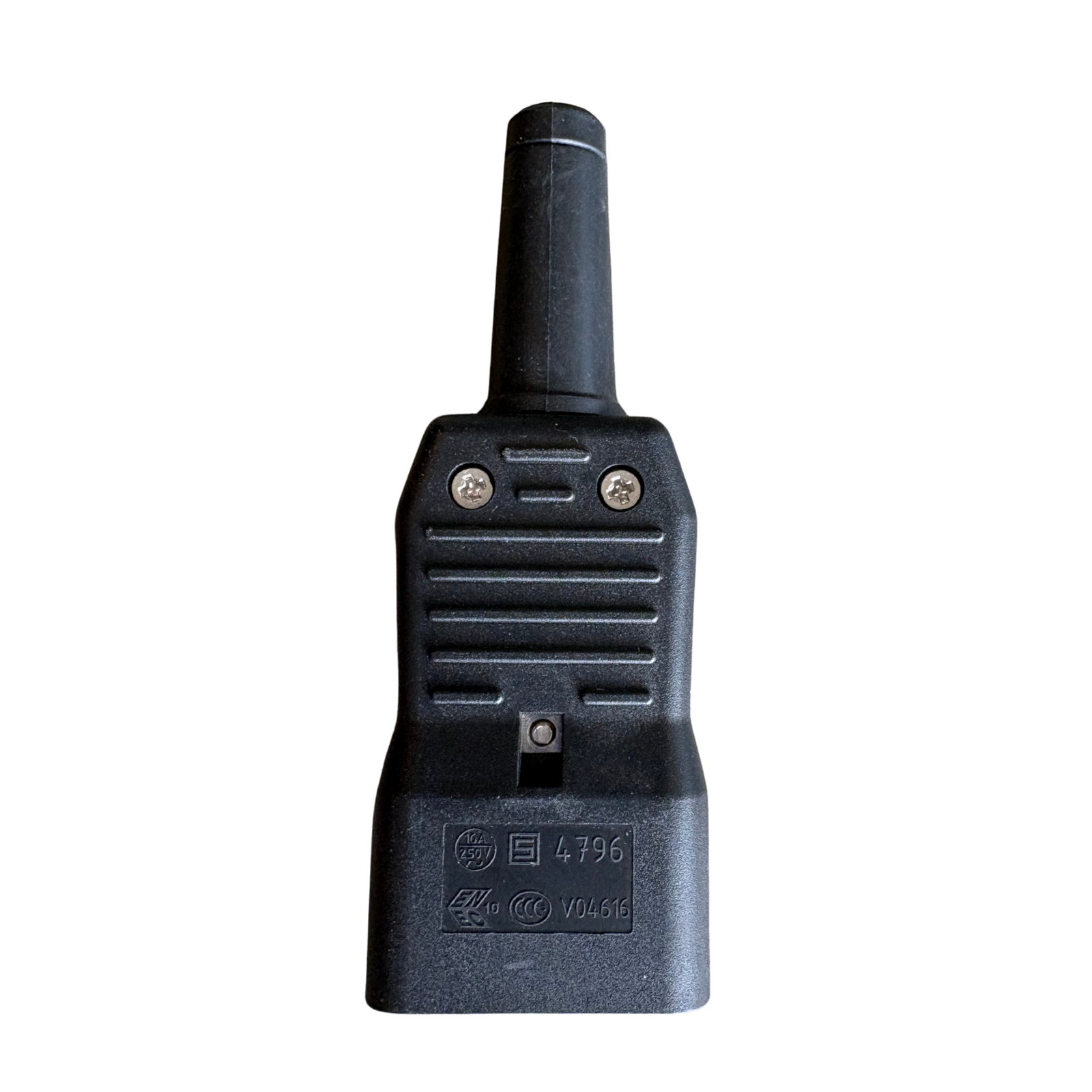

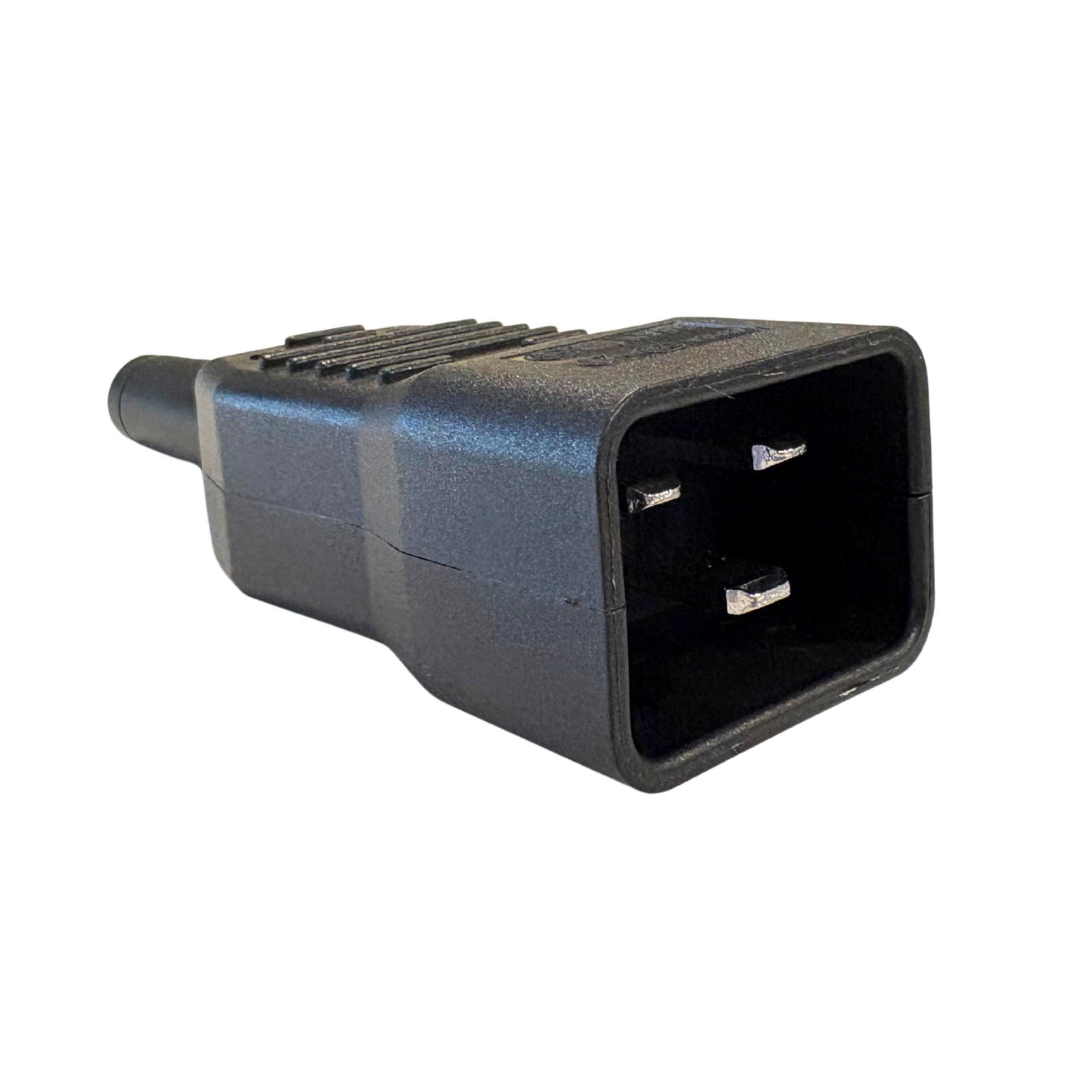

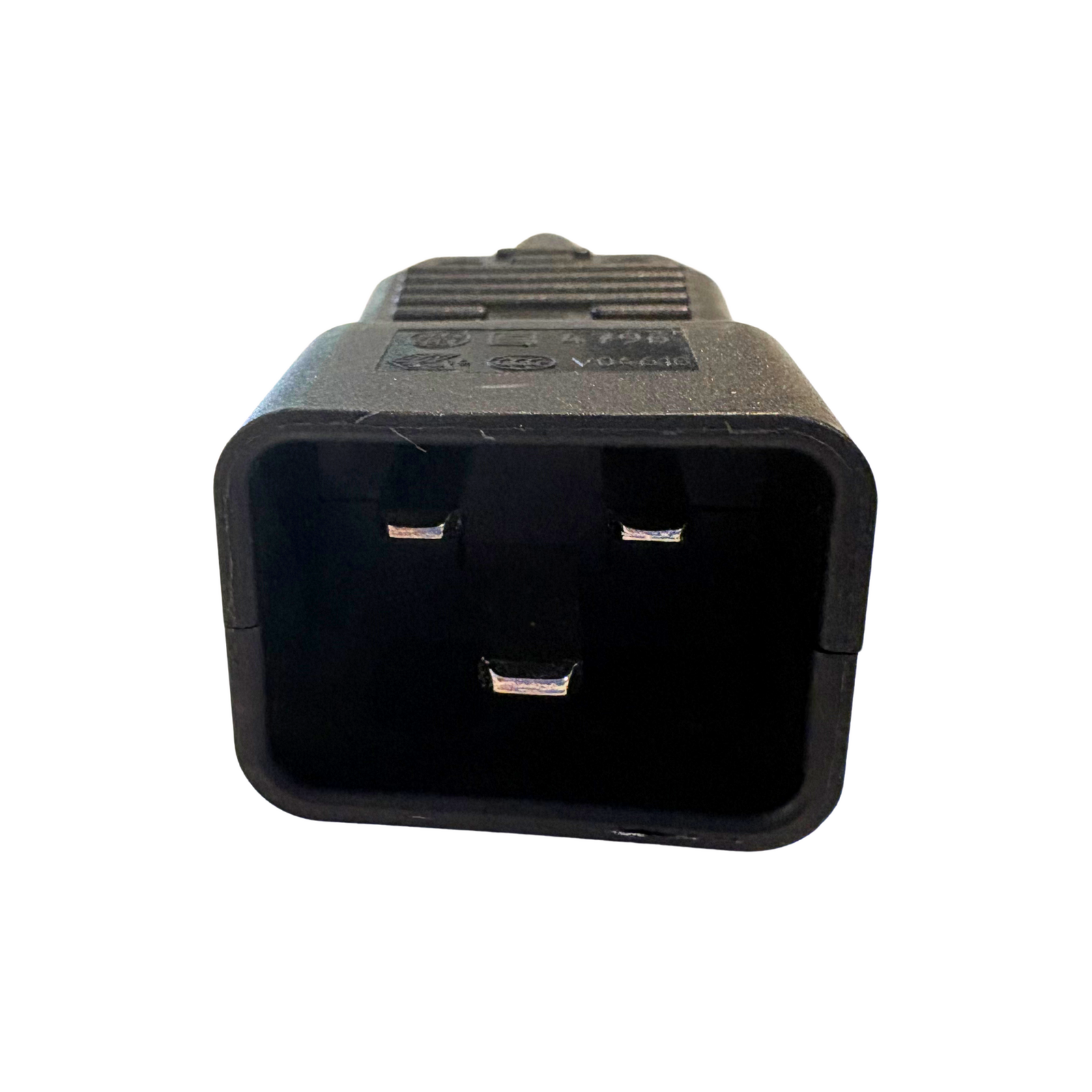

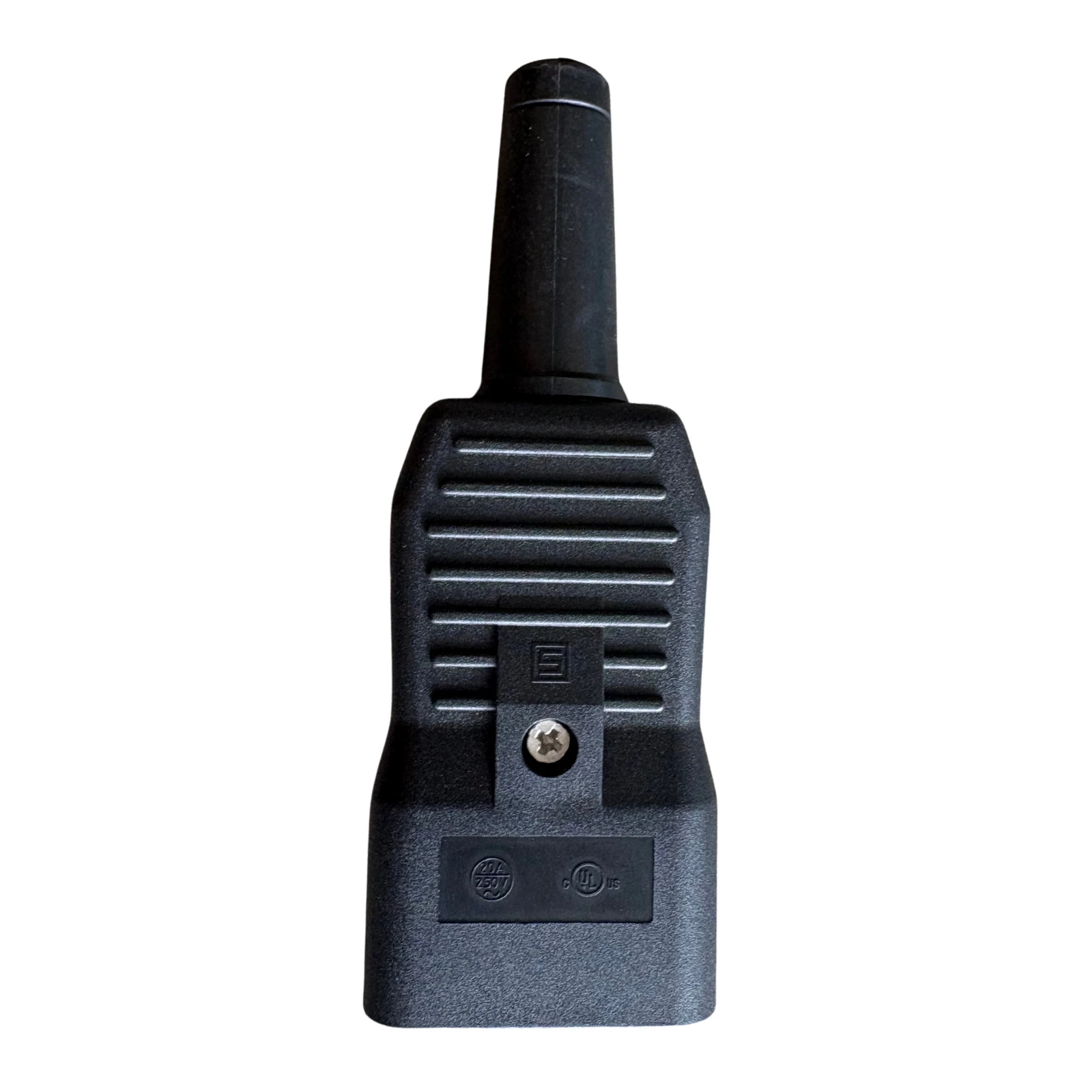

Schurter 4796.0000 – C20 IEC Rewireable Appliance Inlet (Cable Mount)

The Schurter 4796.0000 is a high-quality C20 rewireable IEC appliance inlet, designed for Class I equipment and high-current cable connections. Built for ease of assembly and long-term reliability, it features screw-on mounting, a rugged thermoplastic housing, and is rated for pin temperatures up to 70 °C.

This connector supports 16A at 250V (IEC) and 20A at 250V (UL/CSA), making it a solid choice for power tools, IT equipment, industrial appliances, and more.

Highlights:

Rewireable C20 inlet for flexible cord connections
Supports 8mm and 10mm cable strain relief options
Housing rated UL 94V-0, black thermoplastic
Dielectric strength > 2kVAC
Suitable for Class I appliances (IEC 61140)

Approvals:

VDE: 40008629
UL: E96454
CCC: 2014010204709155

A direct substitute for older types like 0106 and 1612, the 4796.0000 offers a reliable upgrade for modern installations. Backed by international certifications and compliant with IEC/EN 60320-2-2. Fast shipping Australia-wide.

(fasextpluC20)

Schurter 4796.0000 – IEC Appliance Outlet C20, Rewireable Cord Connector
General Specifications
Product Code	4796.0000
Function	Appliance Inlet
Plug Type	C20 acc. to IEC/EN 60320-1 / UL 60320-1 / CSA C22.2 no. 60320-1
Weight	40g
Rewireable Type	Yes
Substitute For	Type 0106, 1612
Electrical Specifications
Rated Voltage	250 VAC
Rated Current	16 A (IEC), 20 A (UL/CSA)
Frequency	50 Hz (IEC), 60 Hz (UL/CSA)
Pin Temperature Rating	70°C
Dielectric Strength	> 2 kVAC between L-N, > 2 kVAC between L/N-PE (1 min / 50 Hz)
Isolation Voltage	2 kV
Mechanical & Mounting Specifications
Mounting Style	Screw-on Mounting
Termination Style	C20 / Screw Terminal
Maximum Wire Size	3 x 1.5 mm² / 14 AWG
Mounting Wire	Screw Mount / Outlet

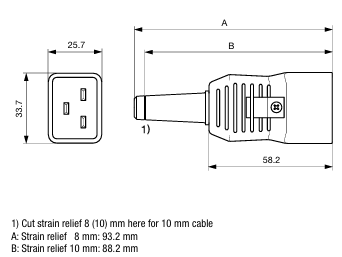

Strain Relief Dimensions A	Strain relief 8 mm: 93.2 mm
Strain Relief Dimensions B	Strain relief 10 mm: 88.2 mm
Overall Length	58.2 mm
Strain Relief Cut	Cut at 8 mm (or 10 mm) mark for 10 mm cable
Material & Environmental
Material - Housing	Thermoplastic, black, UL 94V-0
Operating Temperature	-25°C to 70°C
Protection Class	Class I (acc. to IEC 61140)
Protection Degree	IP30 (from front side, acc. to IEC 60529)
ROHS / REACH / China-ROHS	Compliant
Compliance & Certifications
Certifications	VDE: 40008629, UL: E96454, CCC: 2014010204709155
Standards Compliance	IEC/EN 60320-1, UL 60320-1, CSA C22.2 no. 60320-1
Glow Wire Test Compliance	IEC 60695-2-12 and -13
Household Equipment Suitability	IEC 60335-1 (unattended household use)
