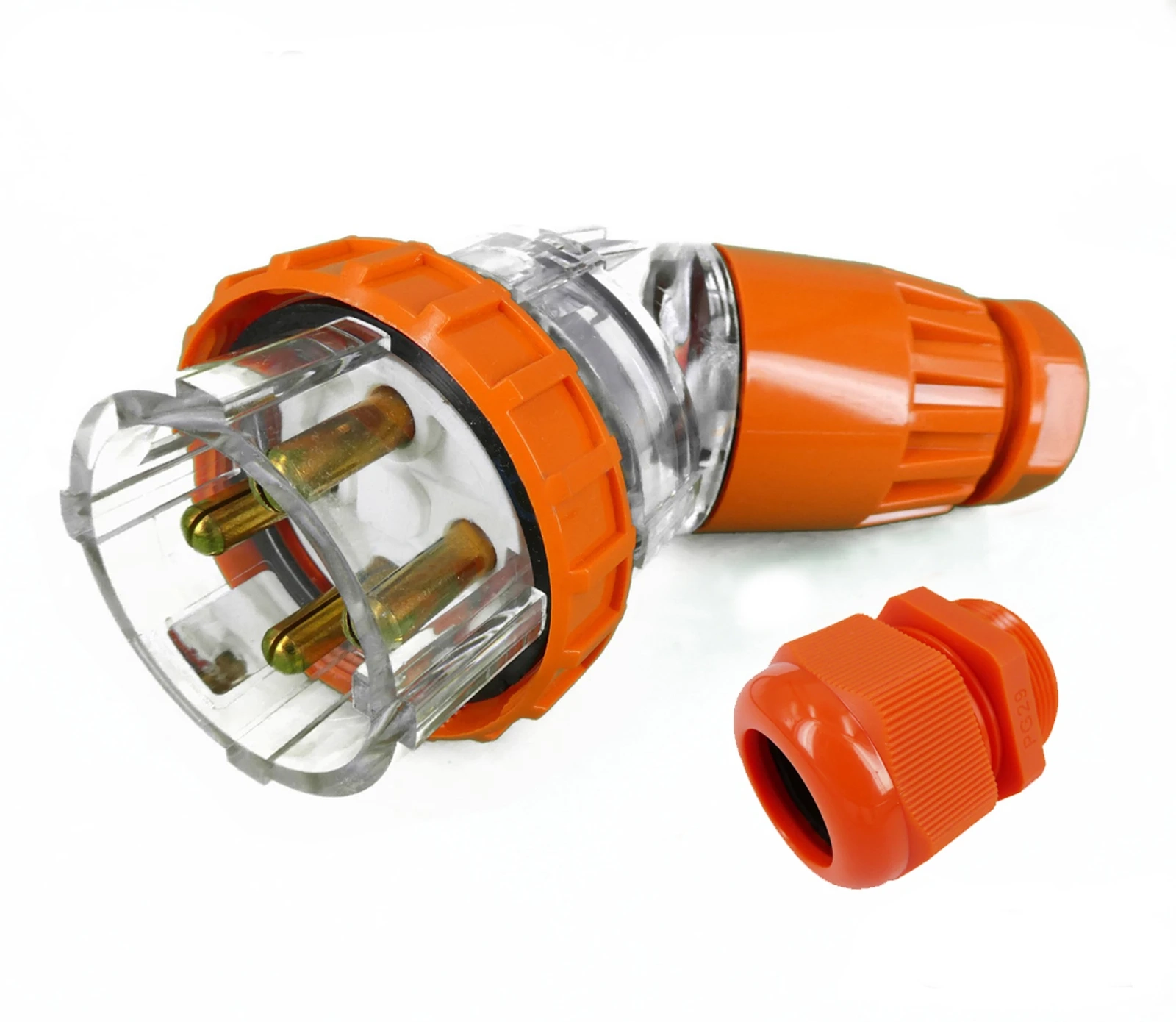

Extension Lead 4 Pin 50 Amp Round Pin Angled Plug 2m Heavy Duty 10mm cable 415V

Description

The top of our 4 pin round range.

A 4 pin round 50 Amp extension lead drives 415V three phase power through three actives and an earth, on a single 10mm² cable grade rated to 66 Amps. Lengths run 2m to 60m, and each lead is test tagged by licensed electricians before dispatch.

High quality extension lead:

• Extension Lead 4 Pin Round 50 Amp 415V
• 24 month warranty on all products. Warranty does not extend to misuse.
• Please consult with a qualified electrician or engineer about the suitability of this product for your intended purpose.
• All Electrotraders Extension Leads are assembled, tested and tagged in-house by our Licenced Electricians.

Choose your configuration:

• Available in lengths (m): 2, 3, 5, 10, 15, 20, 25, 30, 40, 50, 60 (Note: configurations may not offer all length options due to component availability or electrical characteristics)
• Cable Specifications: cross-sectional area (CSA in mm2), Nominal Sheath Thickness (NST in mm), Max DC Resistance @20°C (MaxR in ohms/KM), Nominal Diameter (NOD in mm), Amperage rating (in accordance with AS/NZS 3008.1.1.2009 Table 14)
  • Standard: CSA 10mm2, NST 3.4mm, MaxR 1.95, NOD 23.3mm, Amps 66
  • Heavy Duty: Not Available
  • Extra Heavy Duty: Not Available
• Typically used at events & temporary cabling, fairgrounds, sporting venues, for generators / motors / compressors / construction applications including portable equipment such as concrete cutting.

IMPORTANT: Avoid extra costs and fees of ordering the wrong product. Before you order: confirm the compatibility of the plug and sockets i.e. 4 Pin 32A, 4 Pin 20A, 4 Pin 10A etc. If you aren't sure, contact us, we are happy to help.

Switch Gear:

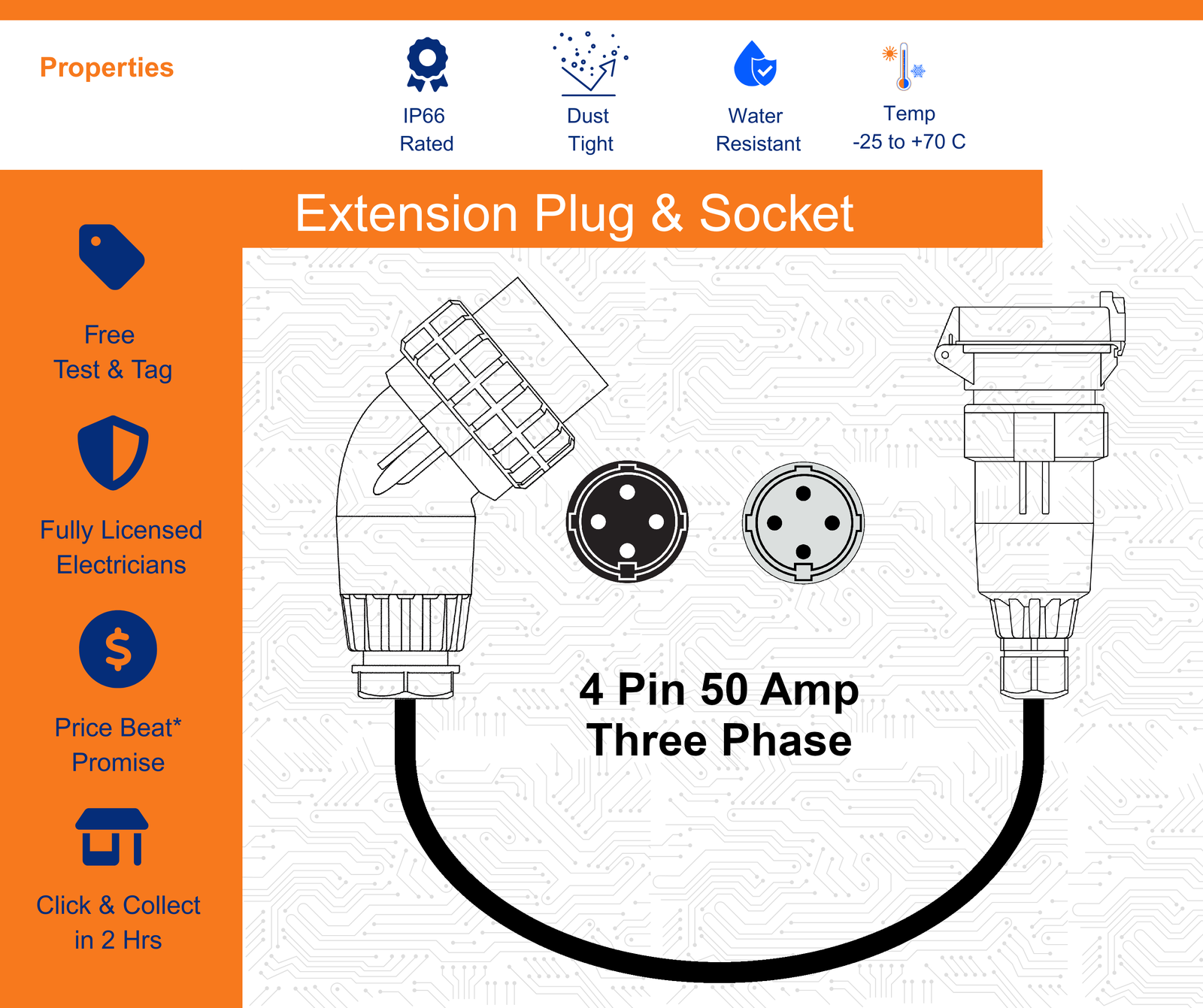

• All Plugs and Sockets are source from high quality reputable Australian brands, are IP66 rated and are compatible with all leading Australian switch gear.
• Choose from our regular high quality GEN3 plugs and sockets, or upgrade to industry leading Clipsal gear (available on some product options only)

Cable Properties:

• Leads are assembled using Multi Core Rubber Insulated and Sheathed Flexible Power Cable insulated with Ethylene-propylene rubber (EPR) R-EP-90 90 deg C Conductor
• Conductors are Class 5 tinned copper according to AS/NZS 1125,IEC 60228
• H07 Grade Rubber Flex cable has a submersible rating of 200m (suitable for fresh water, salt water, sewage/contaminated water), is UV sunlight / oil / weather resistant and flame retardant to IEC 0332-1-2:2004,EN60332-1-2-2004.
• Outer jacket (black colour) made of Chlorinated Polyethylene, CPE rubber compound
• Rated Voltage 0.6/1kV

Order today for fast dispatch Australia-wide.

Hard wearing, wherever the work is. A lead at this rating spends its life beside big generators, motors, compressors and concrete cutting equipment on construction sites, or strung across events, fairgrounds and sporting venues as temporary cabling. The 4 core H07 grade rubber flex takes UV, oil and weather in stride, holds flame retardant and 200m submersible ratings, and finishes in IP66 rated plugs and sockets that lock out dust and water jets.

Why 10mm² is the only grade offered. At 50 Amps there is no room for undersized cable, so this lead comes exclusively on 10mm² conductor rated 66 Amps under AS/NZS 3008.1.1.2009 Table 14, a healthy 16 Amp buffer above the plug rating. Its 1.95 ohms/KM maximum DC resistance is the lowest of any grade we run, keeping voltage drop under control across the entire 2m to 60m span, even at sustained full load.

Test tagged before it leaves Rochedale QLD. Licensed Australian electricians hand build every lead in our Brisbane workshop and each one carries a test tag and a 24 month warranty out the door. Shipping covers all of Australia, click and collect works for locals, and custom lengths or bulk quotes are a call away on 1300 017 197.

Q: What is a 4 pin 50 amp extension lead used for?
A: It moves 415V three phase power into heavy equipment with a 4 pin round 50A plug, think large generators, motors, compressors and construction machinery like concrete cutting gear, and serves as heavy duty temporary cabling at events, fairgrounds and sporting venues.

Q: How long can a 50 amp three phase extension lead be?
A: We build this lead in lengths from 2m to 60m. The 10mm² cable's low 1.95 ohms/KM resistance keeps voltage drop manageable on the longest runs, and for anything outside that range our electricians can quote a custom length on 1300 017 197.

Q: Can I get this extension lead with Clipsal plugs and sockets?
A: Yes. A Clipsal upgrade is offered through the Switch Gear option on selected configurations, with GEN3 as our regular fitting. Both carry IP66 ratings and suit Australian switch gear.
